Our most affordable Shimano STEPS Electron model, the S1 is the ideal everyday eBike.
Based around Shimano's efficient E5000 drive unit, the S1 has three assist levels to enhance your cycling experience over varying terrain.
Complete with integrated lights, mudguards and pannier rack, we're sure you'll be reaching for the Electron S1 whatever the weather.

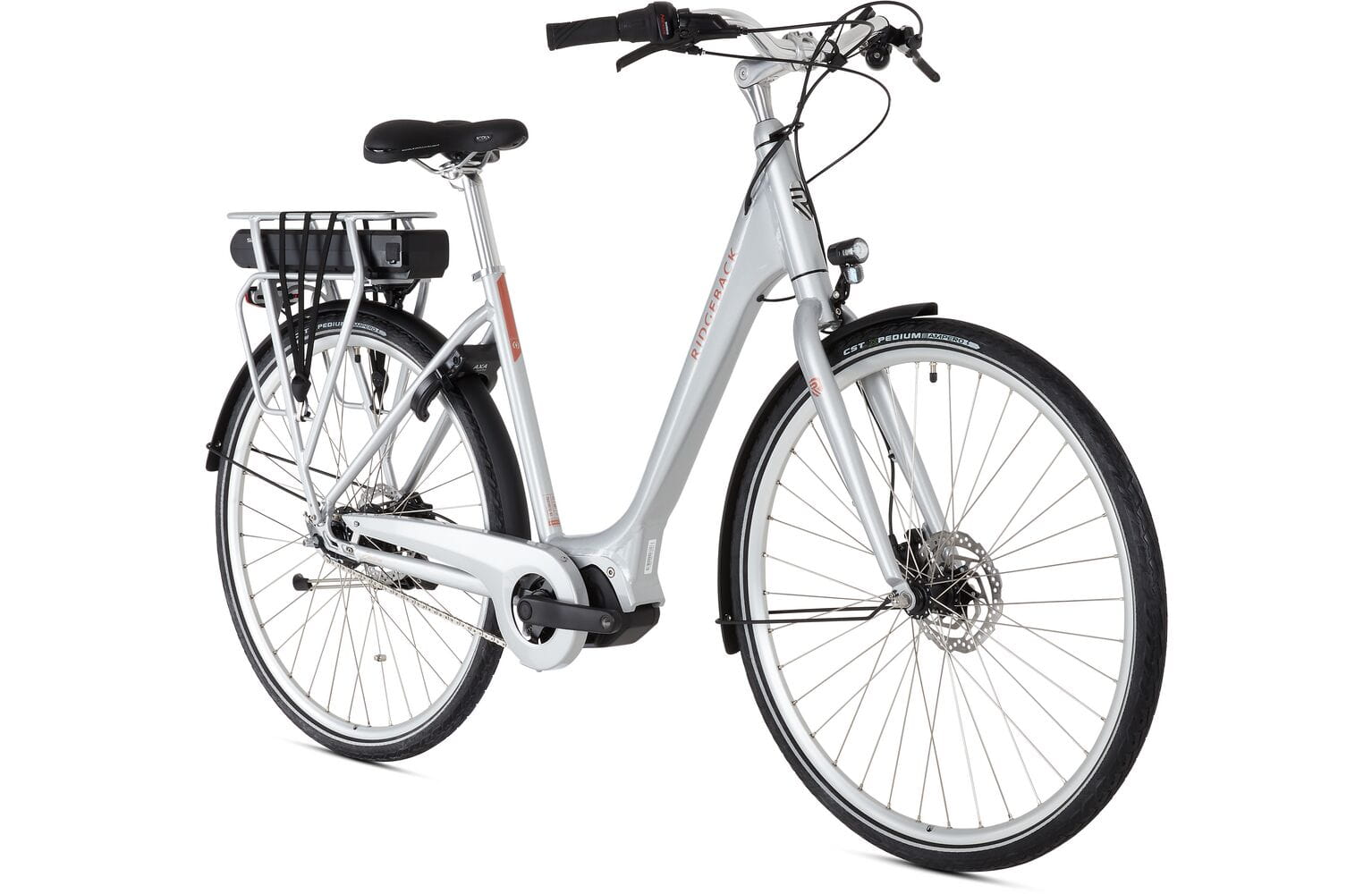

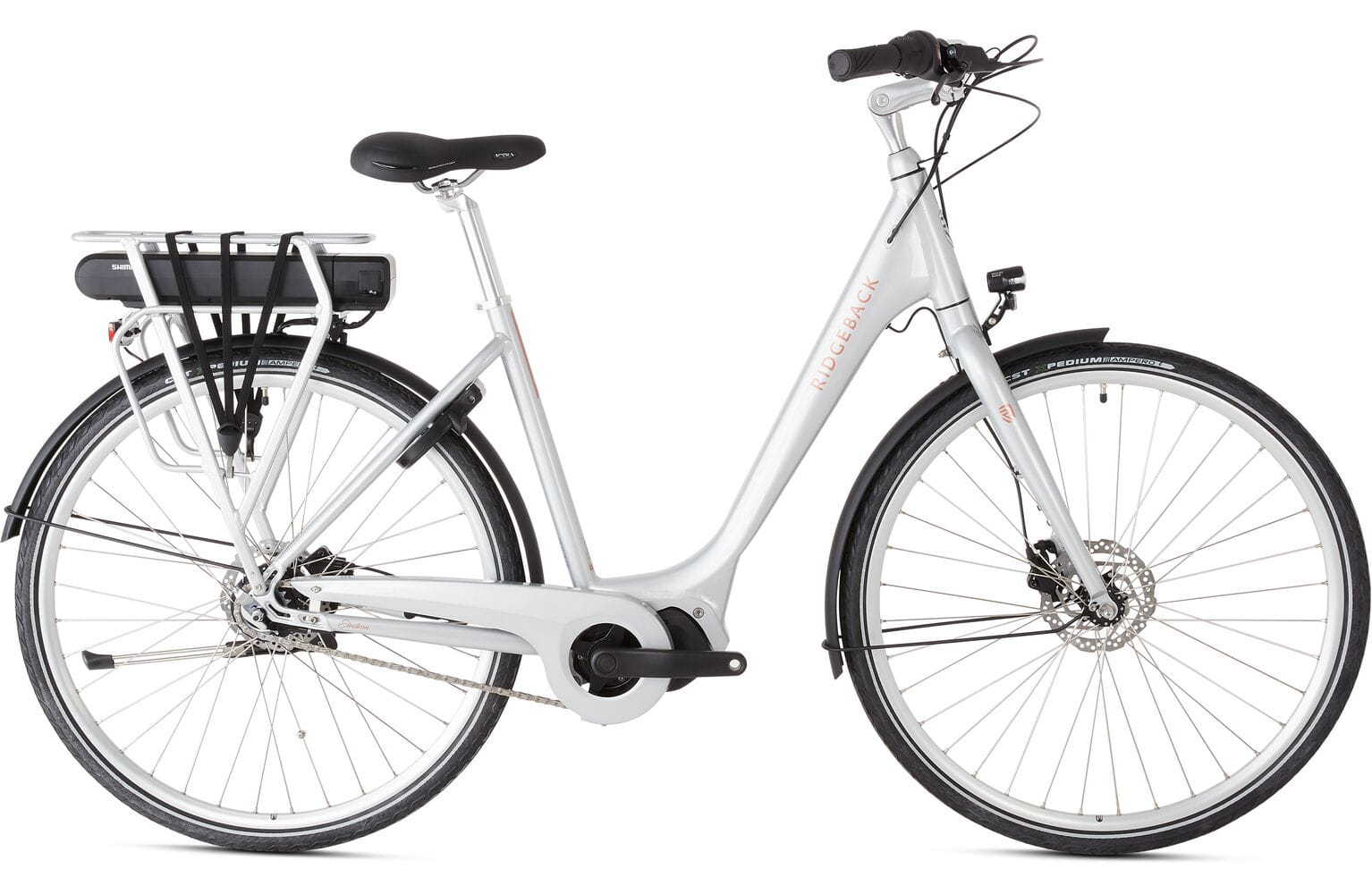

Ridgeback Electron S1
SKU
VARRB22121
Brake Type :
Hydraulic Disc
Frame Material :
Alloy
Battery Type :
Shimano BT-E6000 418wh
Brake Levers :
Alhonga AHJ-OD7
Brakes :
Alhonga AHJ-OD7
Cassette Freewheel :
Shimano 18t Nexus sprocket
Chain :
KMC Z1EHX
Chain Set :
Shimano STEPS FC-E5000 170mm 38T
Charger :
Shimano STEPS 2AH
Handlebars :
Alloy with 21mm rise 38 degree backsweep 620mm wide
Headset :
FSA TH-805ST 1-1/8"
Hubs :
Front: KT TC6F 36h Rear: Shimano SG-C3001-7 36h
Motor :
Shimano STEPS DU-E5000 40Nm 250W
Rims :
J19ZK 36h
Seat Post :
Alloy 30.9 x 300mm
Shifters :
Shimano Nexus SL-C3000-7 RevoShift
Spokes :
Steel 14g
Stem :
Adjustable quill 90mm
Tyres :
CST Ampero 700x40c
Wheel Size :
700c
Battery Integration :
External
Fork Material :
Steel
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
SMALL / MEDIUM - 150 to 165
MEDIUM / LARGE - 165 to 180
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 490 | 485 |
| Frame Seat Tube | 500 | 460 |
| Frame Top Tube | 600 | 585 |
| Frame Reach | 400 | 395 |
| Frame Stack | 647 | 620 |
| Frame Head Tube | 180 | 160 |
| Frame Head Angle | 70° | 69° |
| Frame Seat Angle | 73° | 73° |
| Frame Chainstay | ||
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1123 | 1119 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 90 | 90 |
| Handle Bar Width | 620 | 620 |
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 490 | 485 |
| Frame Seat Tube | 500 | 460 |
| Frame Top Tube | 600 | 585 |
| Frame Reach | 400 | 395 |
| Frame Stack | 647 | 620 |
| Frame Head Tube | 180 | 160 |
| Frame Head Angle | 70° | 69° |
| Frame Seat Angle | 73° | 73° |
| Frame Chainstay | ||
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1123 | 1119 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 90 | 90 |
| Handle Bar Width | 620 | 620 |
