Building on the tried and tested specification of the S1, the Electron S2 is a model that's ticked a few more boxes.

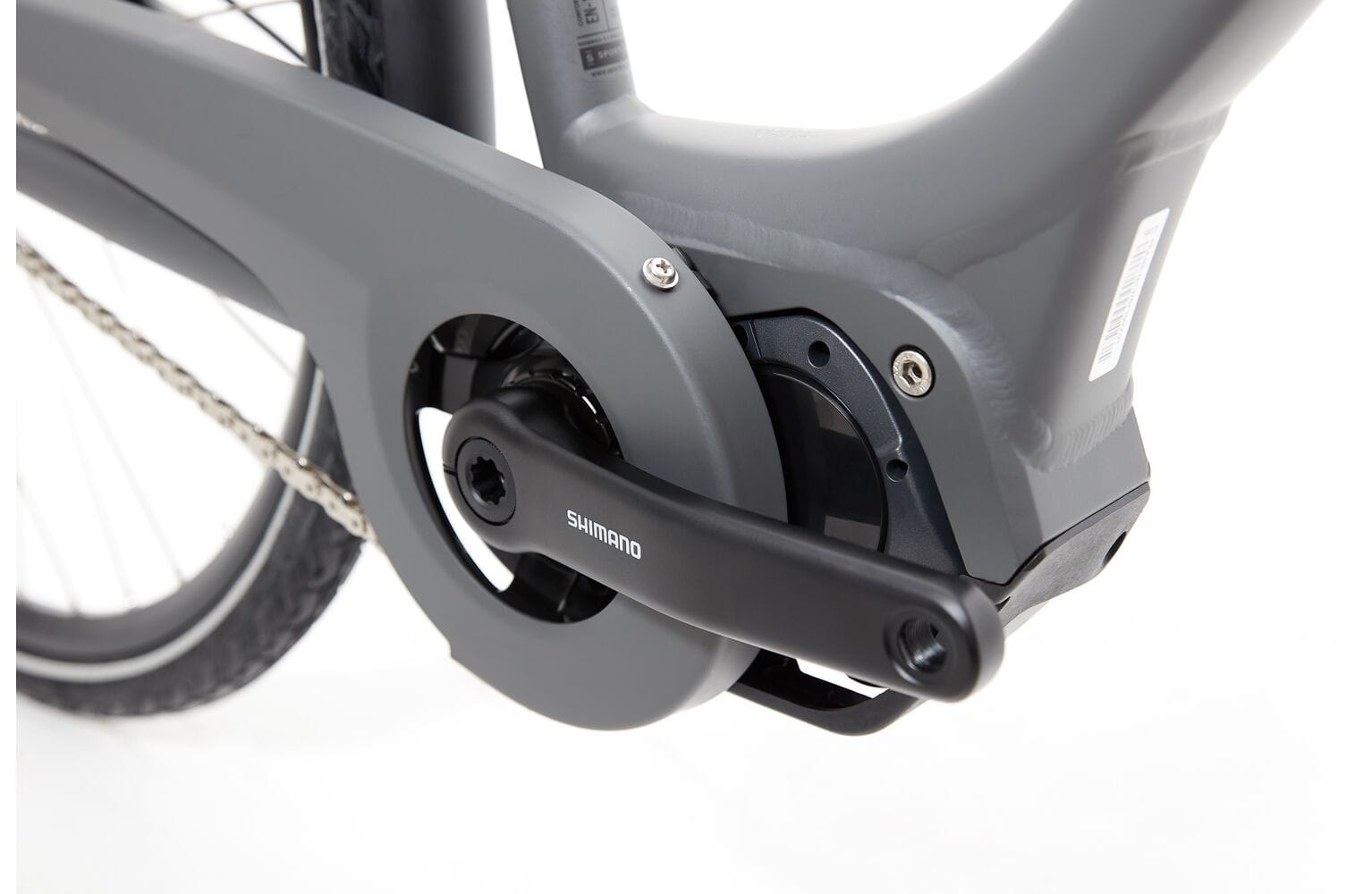

Based around the same unisex frame design, the S2 uses Shimano's high powered E6100 drive unit, providing 60Nm of torque. This is especially useful when cycling in hillier areas or carrying extra luggage.

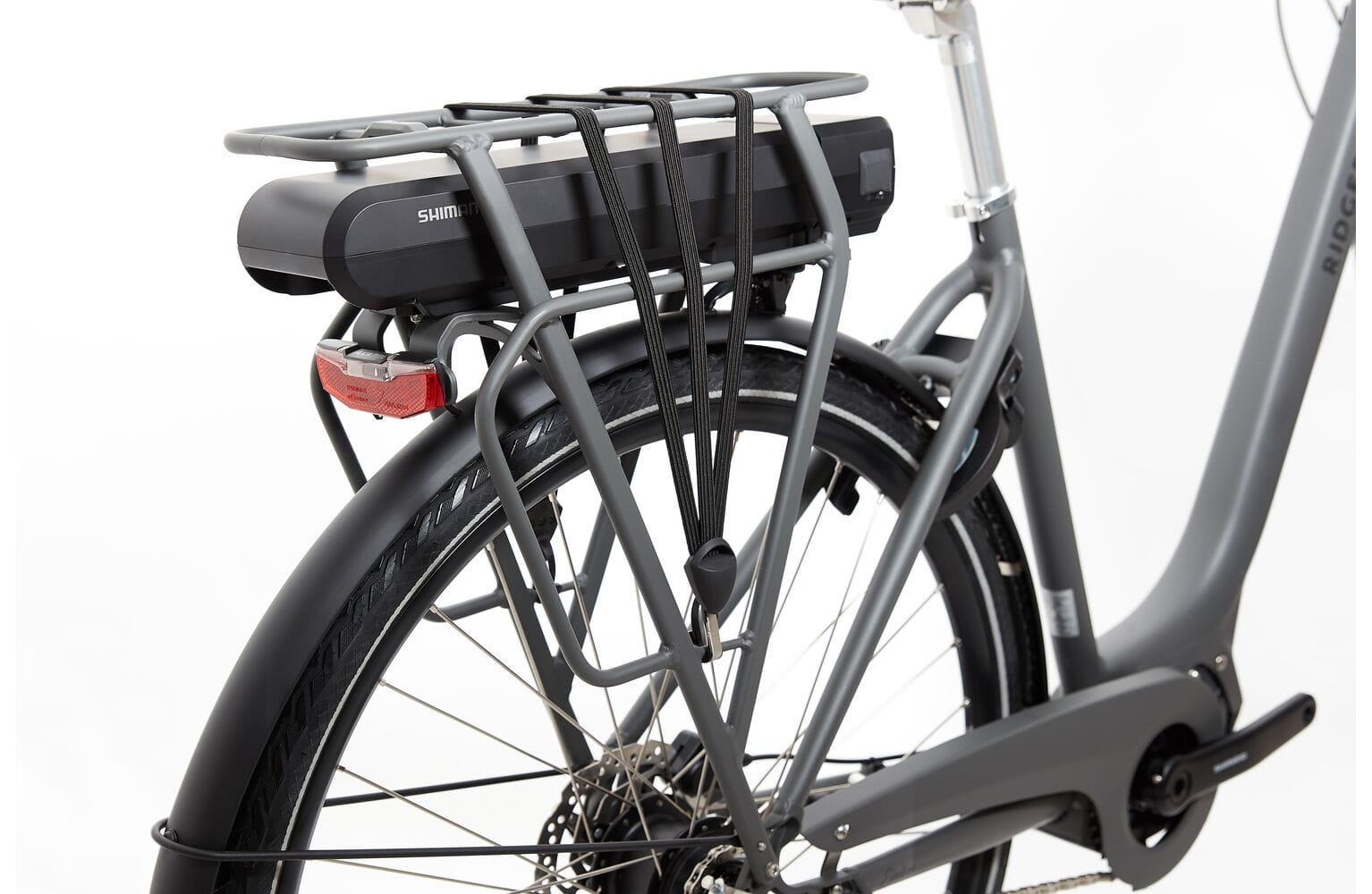

Not stopping there, the S2 comes with a larger capacity 500Wh battery, meaning you can achieve a range up to 150km depending on conditions.

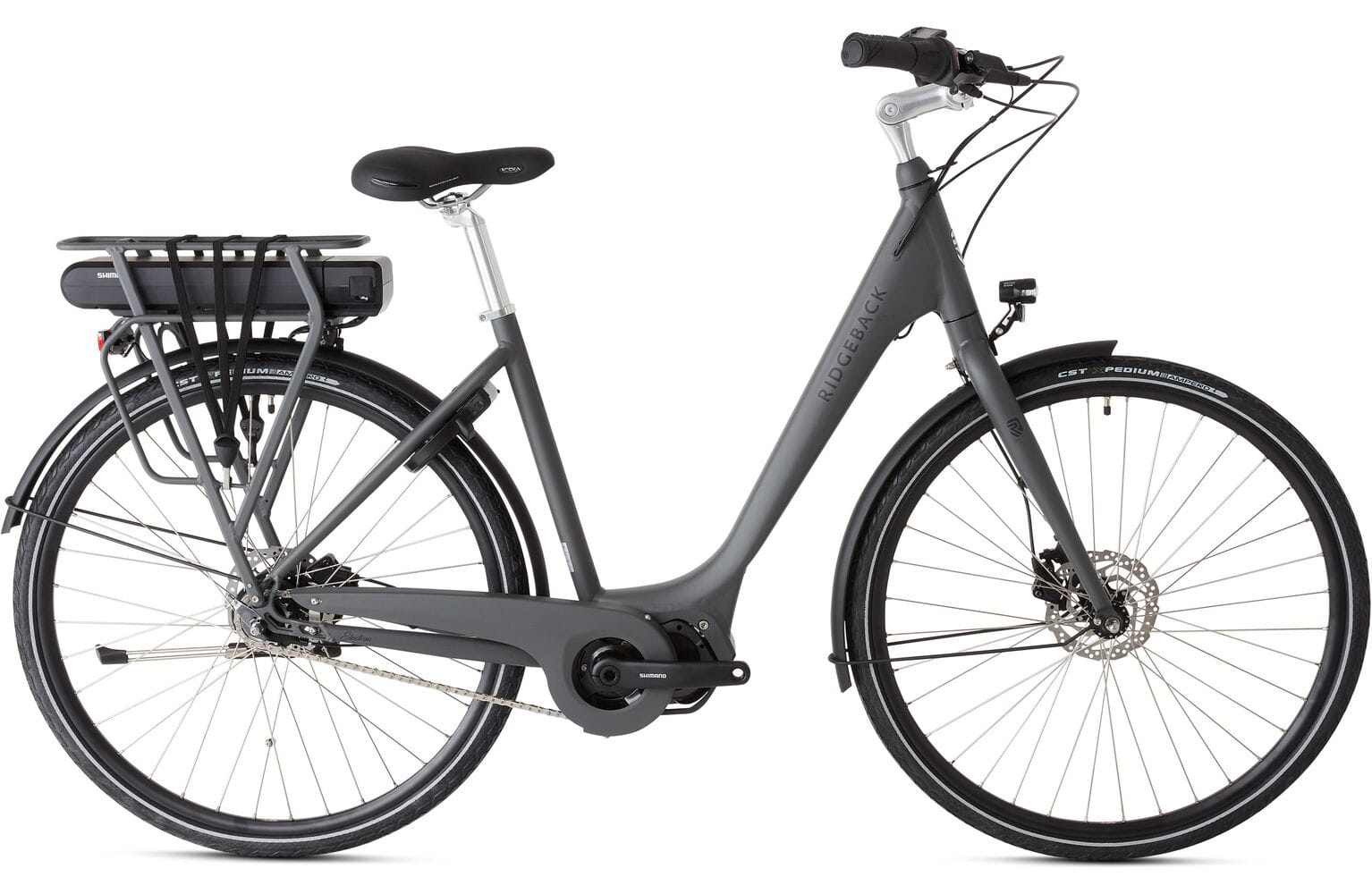

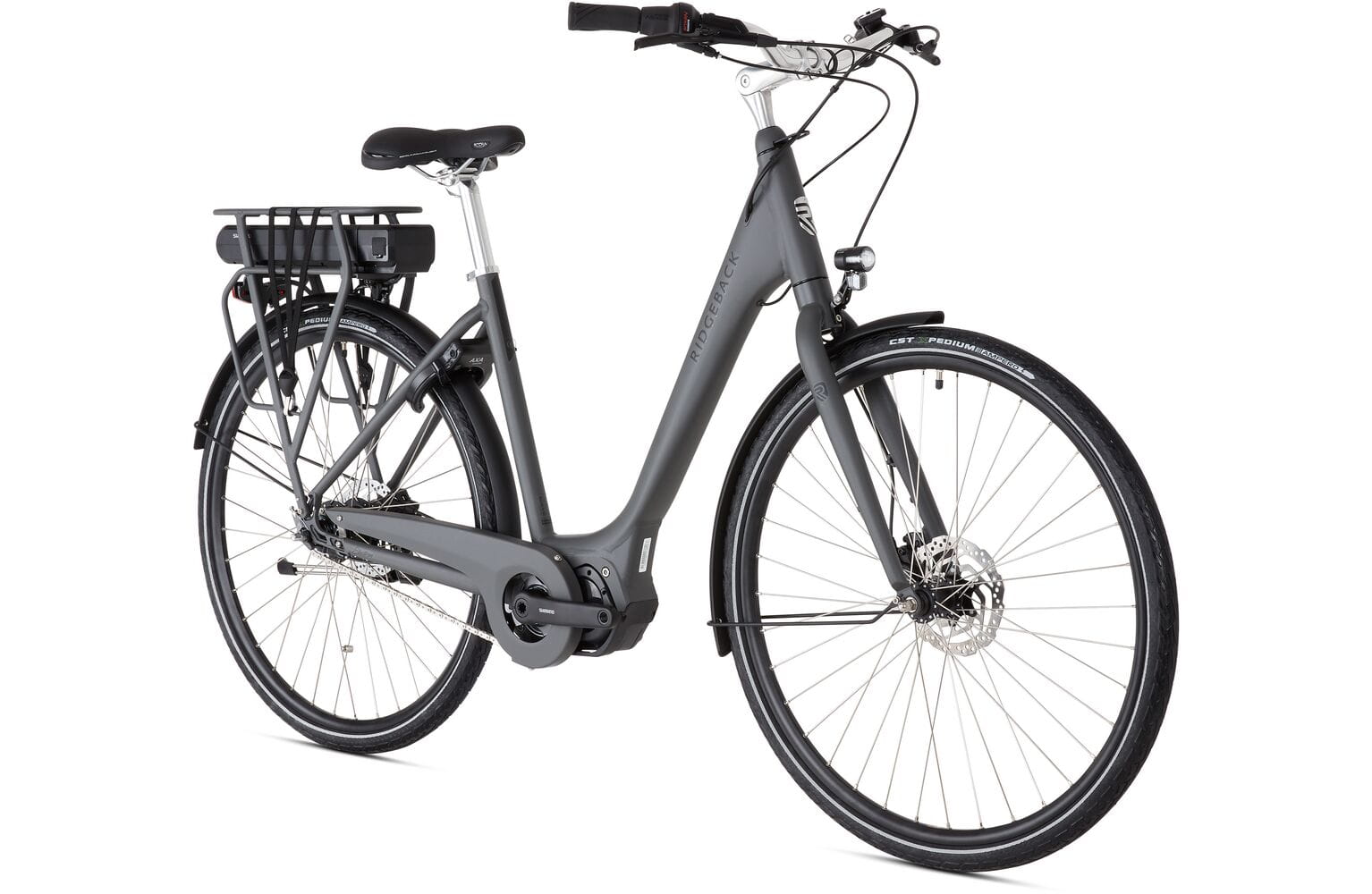

Ridgeback Electron S2
SKU
VARRB22122
Brake Type :
Hydraulic Disc
Fork Material :
Steel
Frame Material :
Alloy
Battery Type :
Shimano BT-E6001 504Wh
Brake Levers :
Alhonga AHJ-OD7
Intended Use :
E-Bike, Urban and Commute
Brakes :
Alhonga AHJ-OD7
Chain :
KMC Z1EHX
Chain Set :
Shimano STEPS FC-E6100 170mm 38T
Charger :
Shimano STEPS 2AH

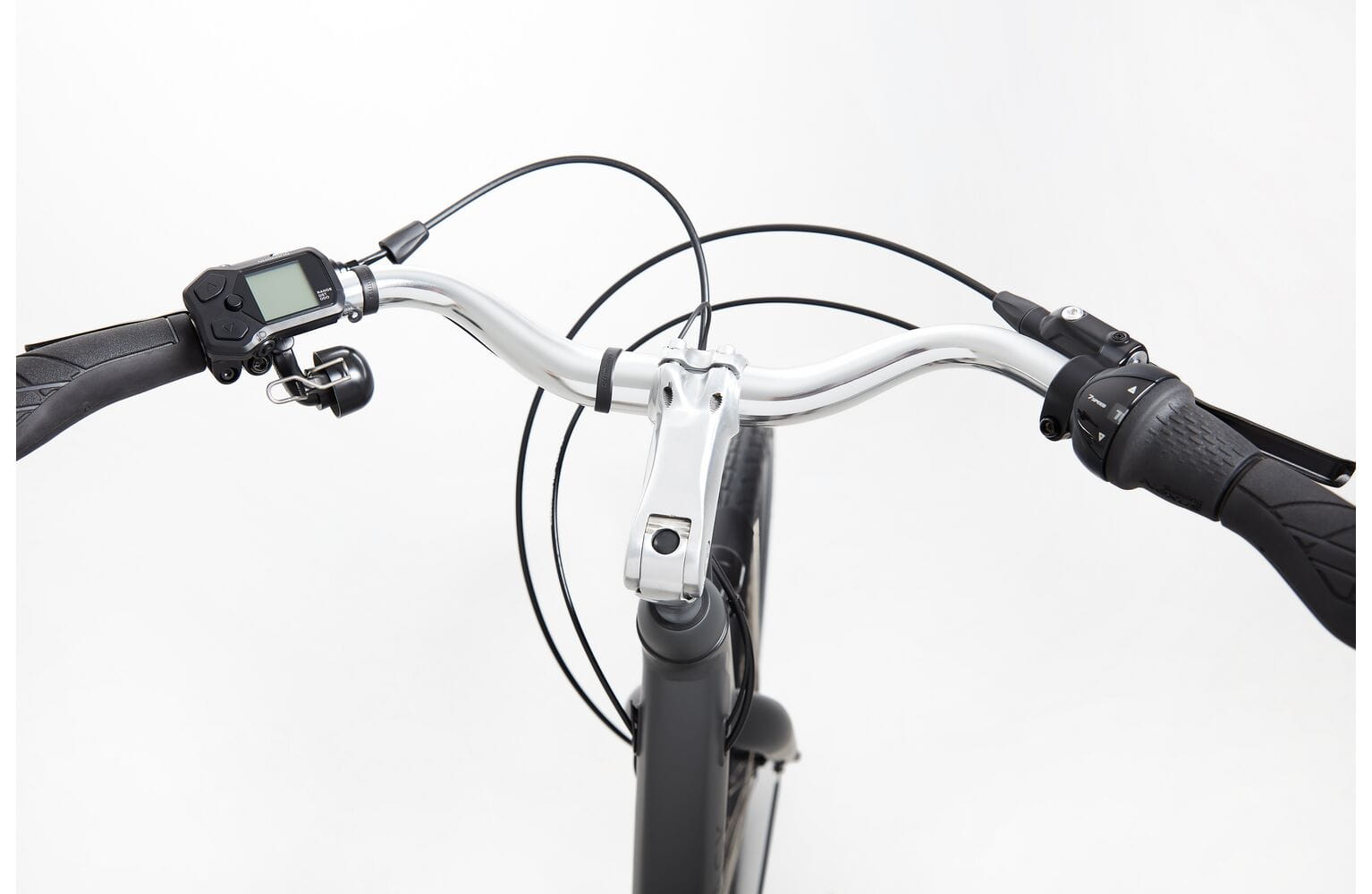

Handlebars :
Alloy with 21mm rise 38 degree backsweep 620mm wide
Headset :
FSA TH-805ST 1-1/8"
Hubs :
Front: KT TC6F 36h Rear: Shimano SG-C3001-7 36h
Motor :
Shimano STEPS DU-E6100 60Nm 250W
Rims :
J19ZK 36h
Seat Post :
Alloy 30.9 x 300mm
Shifters :
Shimano Nexus SL-C3000-7 RevoShift
Spokes :
Steel 14g
Stem :
Adjustable quill 90mm
Tyres :
CST Ampero 700x40c
Frame Shape :
Step Through
Gender :
Mens, Womens
Wheel Size :
700c
Battery Integration :
External
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Geometry
| Frame Seat Tube | 500 |
|---|---|
| Frame Top Tube | 600 |
| Frame Reach | 400 |
| Frame Stack | 647 |
| Frame Head Tube | 180 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1123 |
| Fork Offset | 45 |
| Stem Length | 90 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 460 |
| Frame Top Tube | 585 |
| Frame Reach | 395 |
| Frame Stack | 620 |
| Frame Head Tube | 160 |
| Frame Head Angle | 69 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1119 |
| Fork Offset | 45 |
| Stem Length | 90 |
| Handle Bar Width | 620 |
