Ridgeback Terrain 2
£429.99
Skip to Content
Need Help? Call us on 0208 385 3440

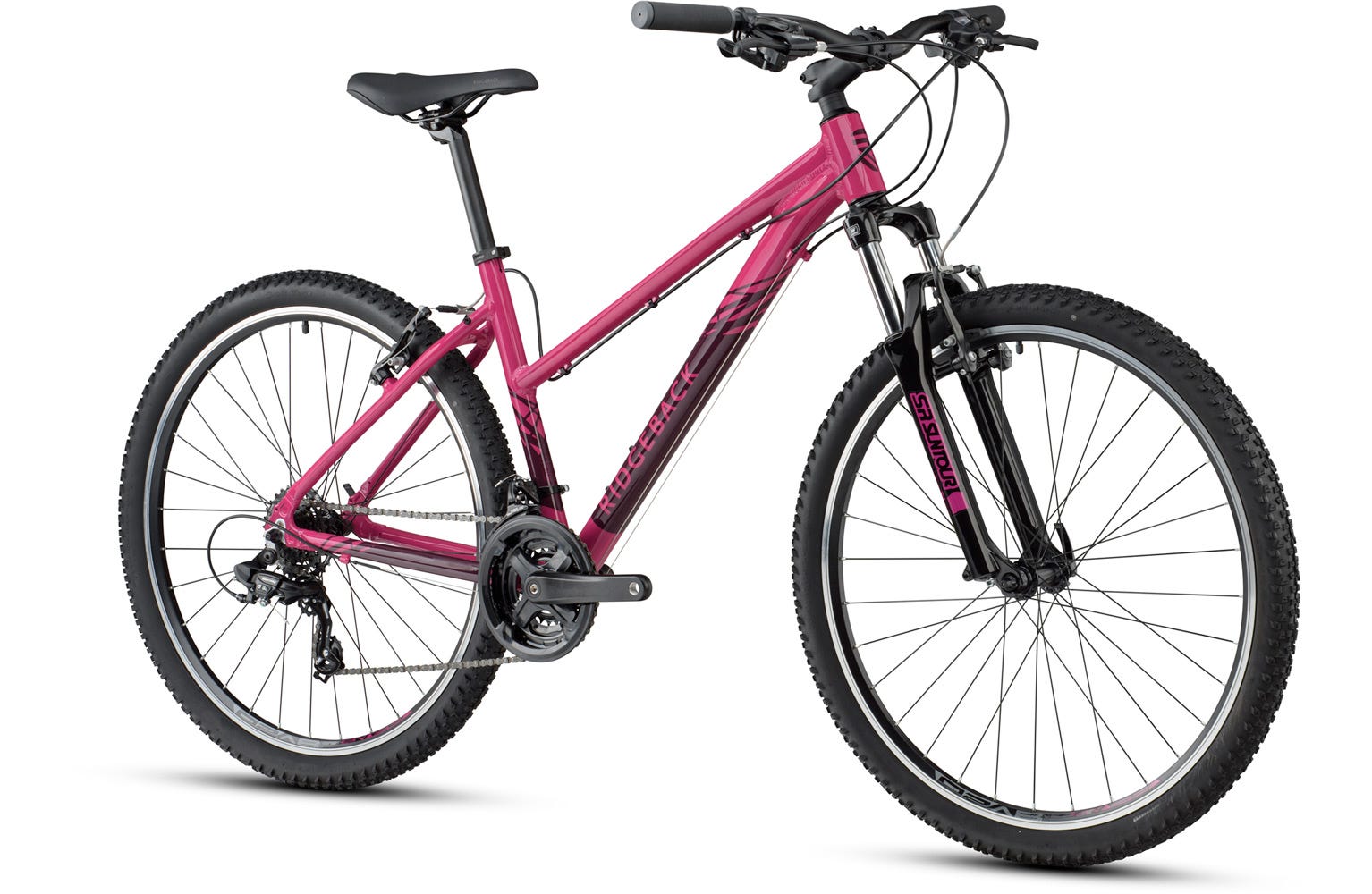

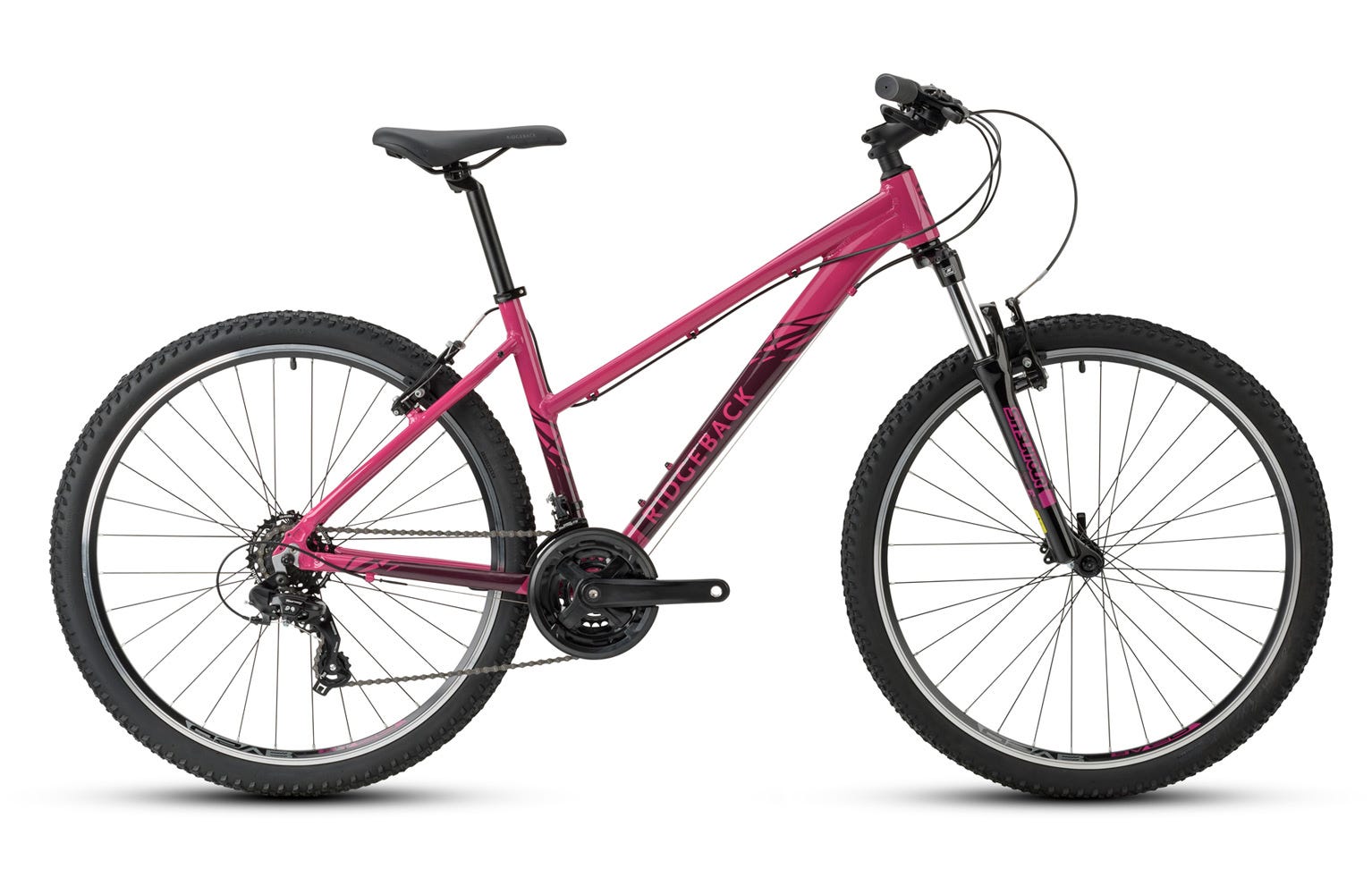

- The Ridgeback Terrain 2 Open Frame mountain bike is perfect for your first off road adventures.
The open frame design makes taking a seat simple, removing the need to swing a leg over - as you would have to with a more traditional design.
The wide range of 21 Shimano gears provides high quality shifting, with plenty of range when it comes to climbing steep hills.

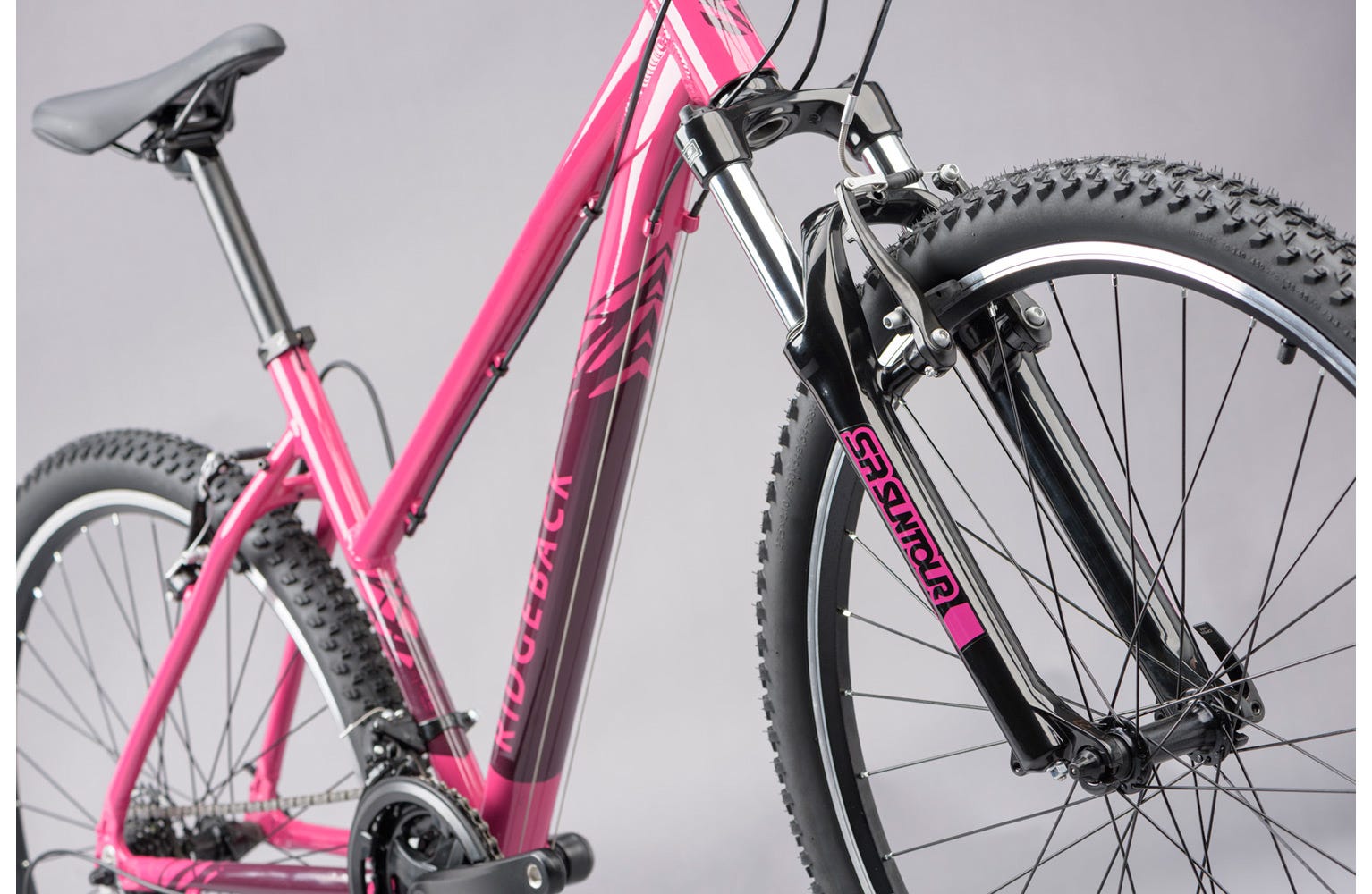

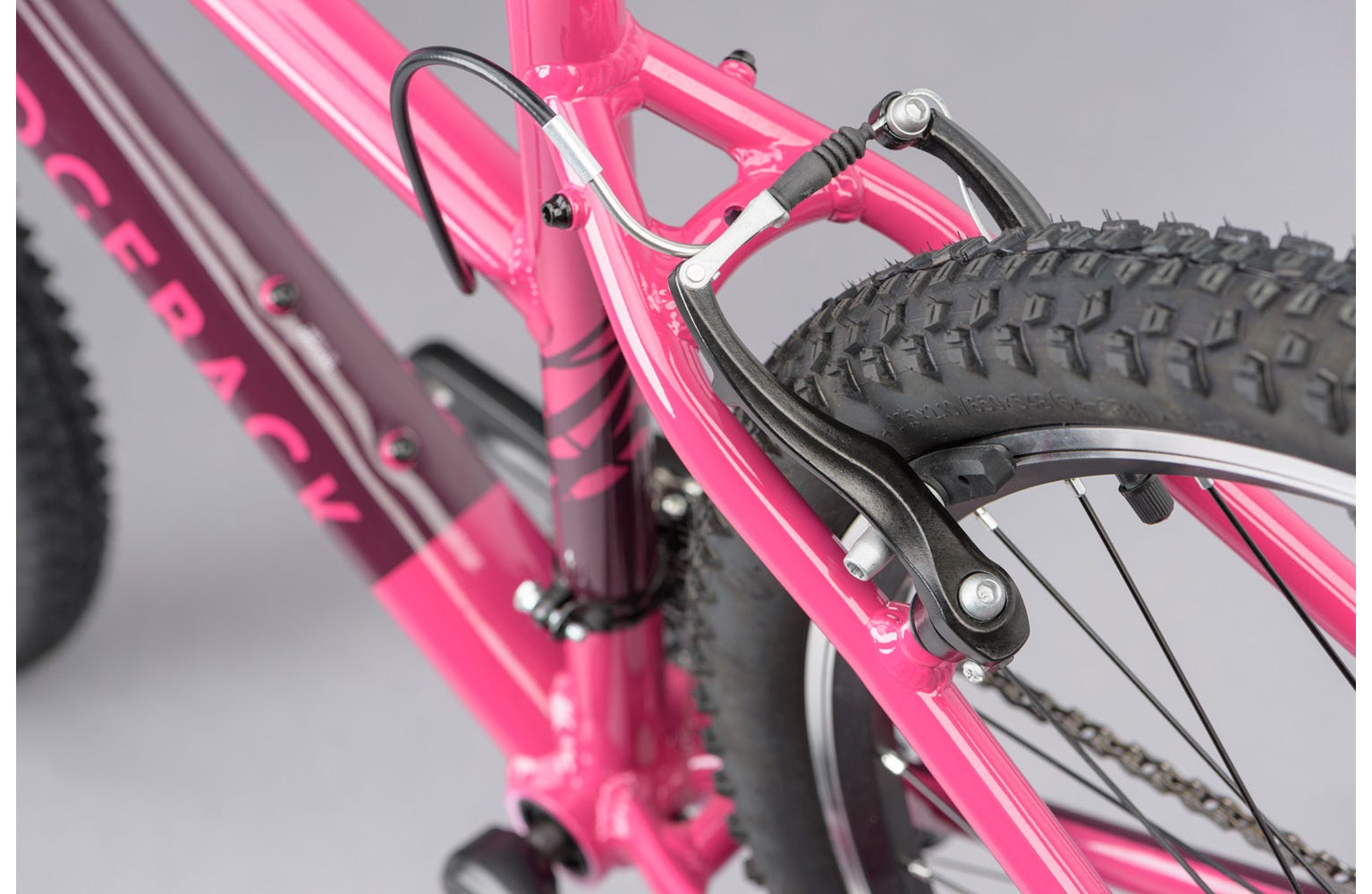

The suspension fork deals with lumps and bumps on the trail, knobbly tyres are designed to work well in all off-road conditions and V-brakes give good stopping power.
Ridgeback Terrain 2 Open Frame
SKU
VARRB22610
Brake Type :
Rim
Frame Material :
Alloy
Bottom Bracket :
68mm/122.5mm

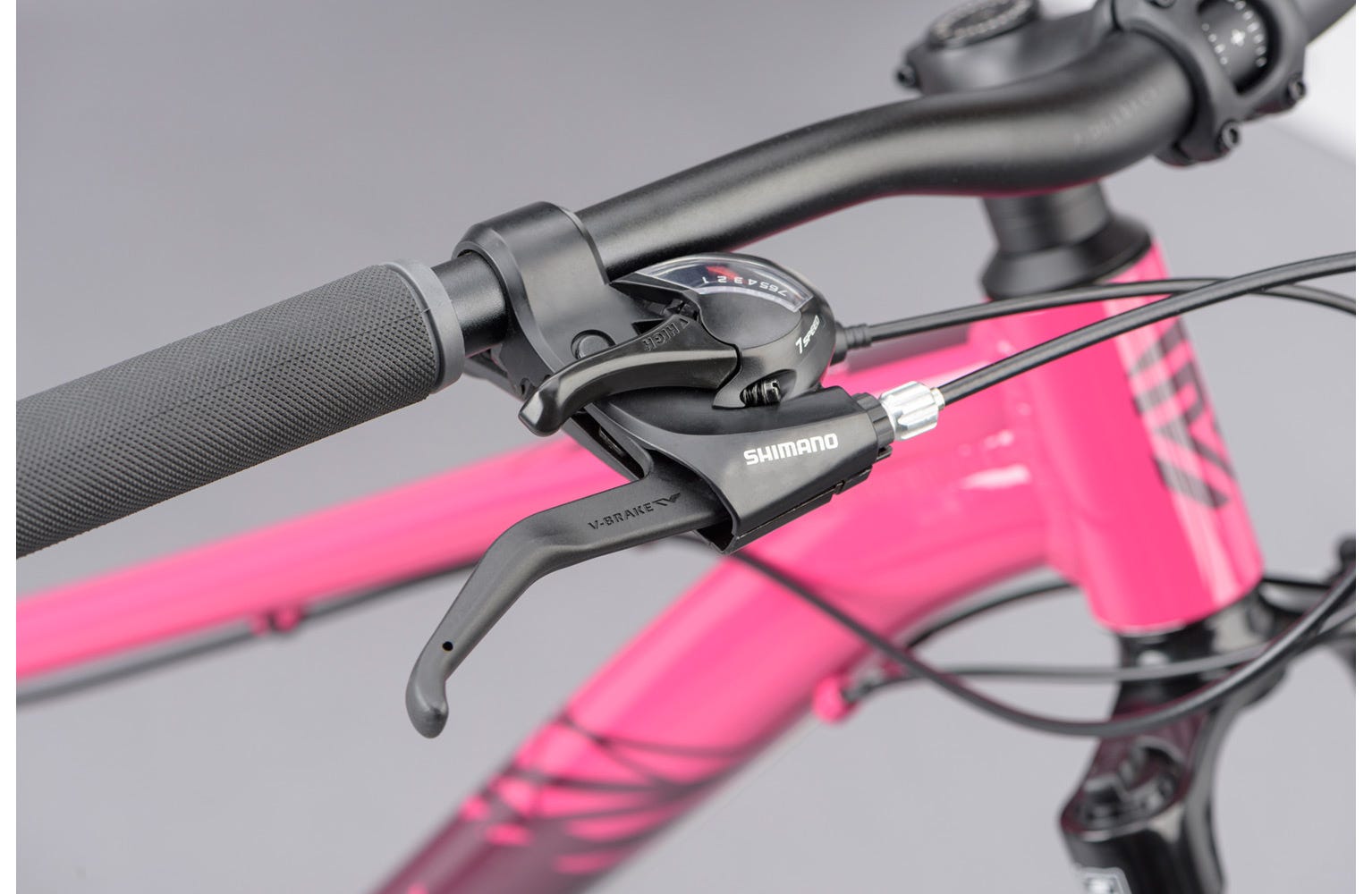

Brake Levers :
Shimano ST-EF41
Brakes :
Alhonga V-Brake
Cassette Freewheel :
Shimano CS-HG200-7 12-32T
Chain :
KMC HV-500
Chain Set :
Prowheel TA-CQ68 42 / 34 / 24 170 mm

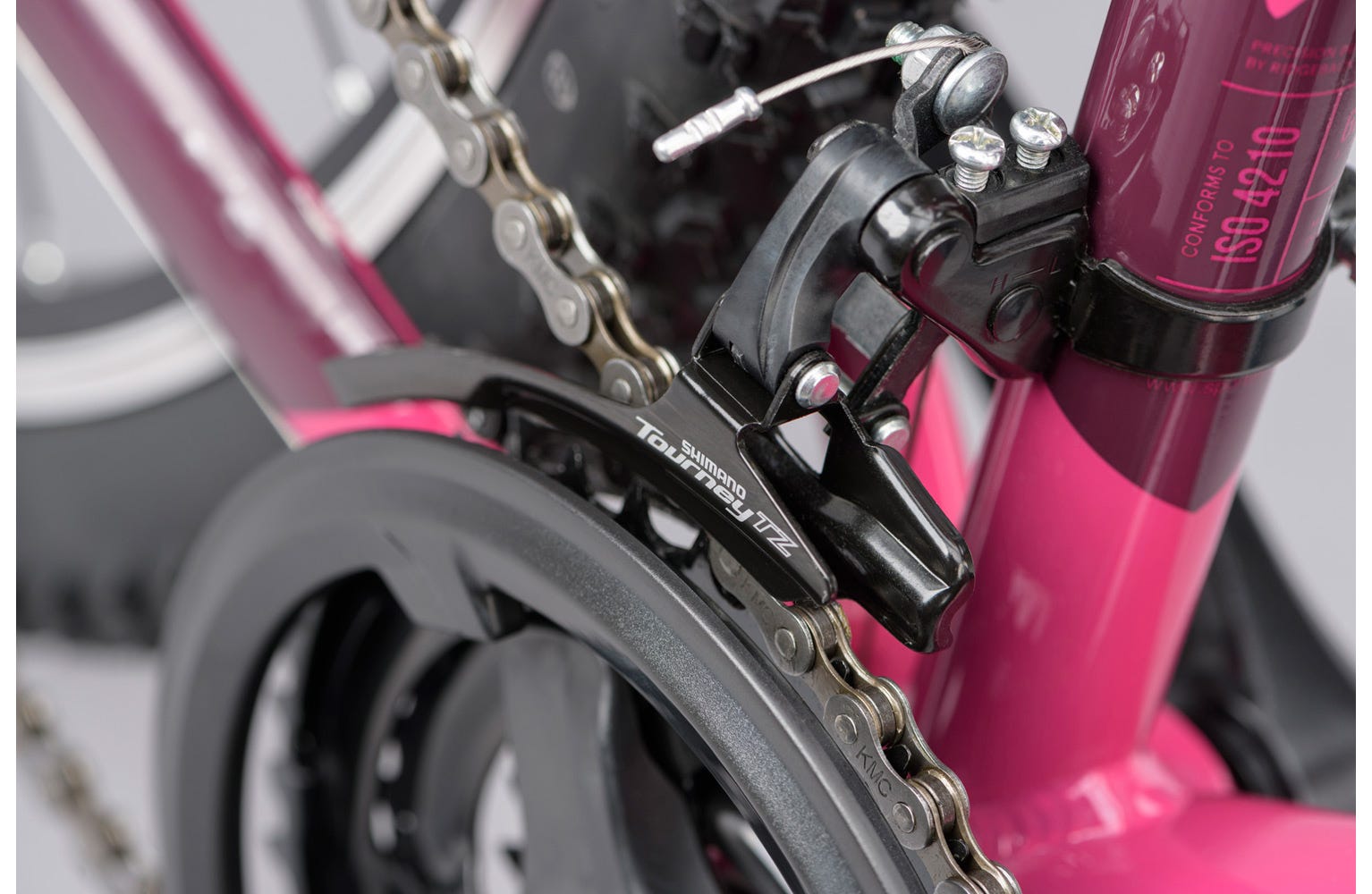

Front Derailleur :
Shimano FD-TZ500 DM6
Grip Tape :
Ridgeback
Handlebars :
Ridgeback Alloy 720 mm width / 18 mm rise
Headset :
Feimin FP-H863
Hubs :
Joytech JY-751DSE / F362TSE
Pedals :
NW-303

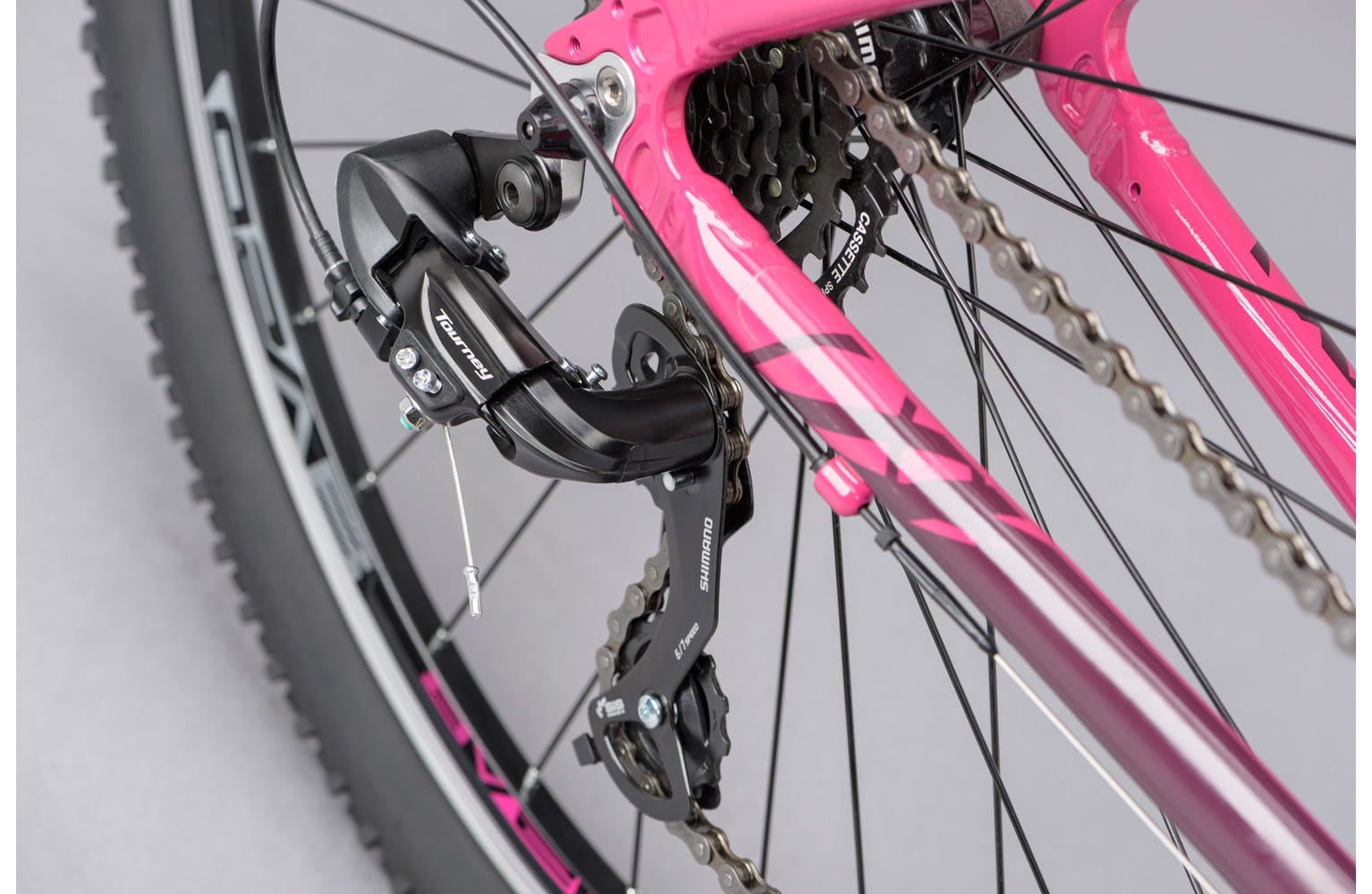

Rear Derailleur :
Shimano RD-TY300
Rims :
JHT HLQC-02AB

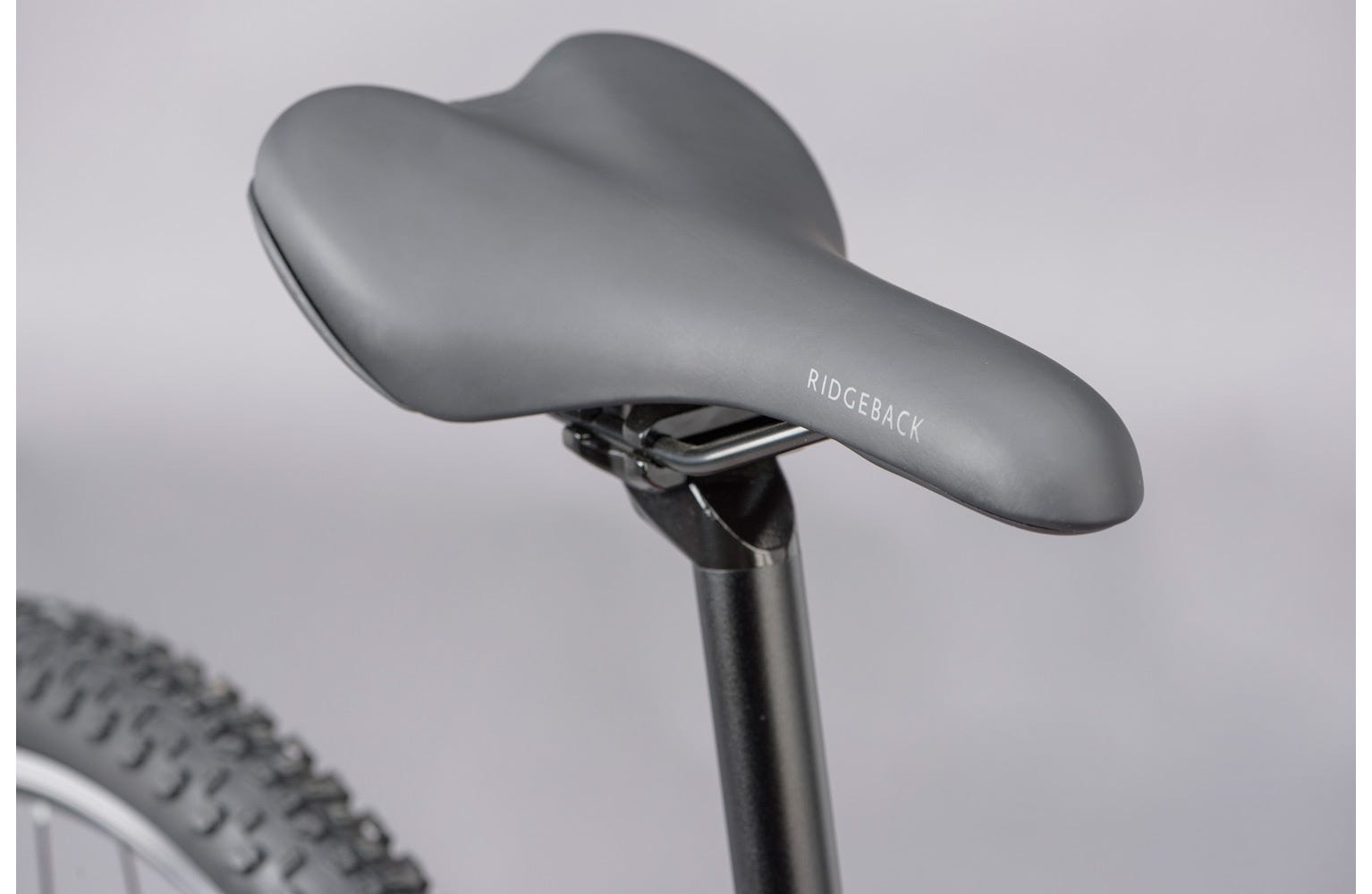

Saddle :
Ridgeback
Seat Post :
Alloy 27.2 x 400 mm

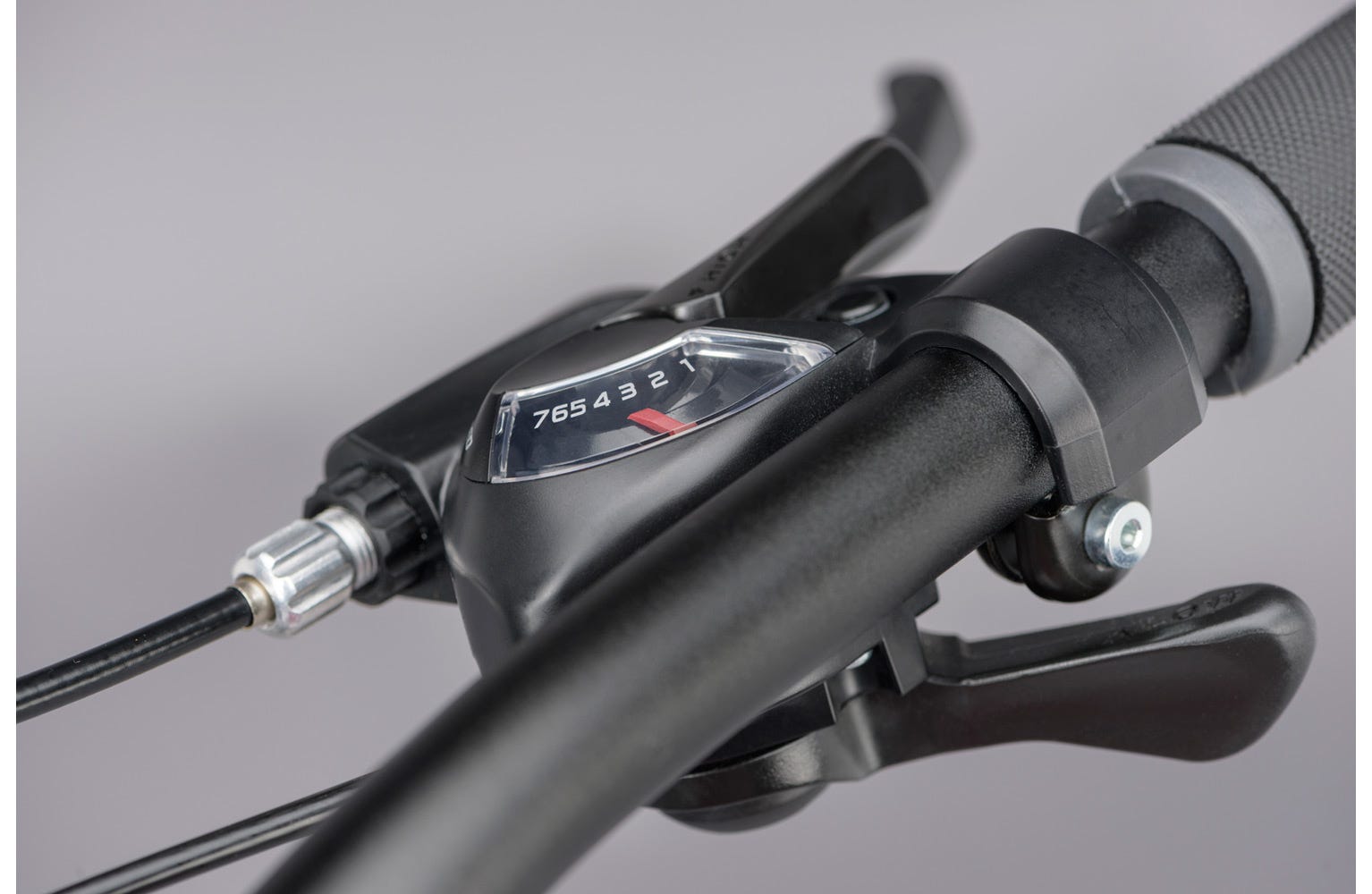

Shifters :
Shimano ST-EF41
Spokes :
Steel 14 g
Stem :
Ridgeback Alloy 75 mm
Tyres :
Deli 27.5 x 2.1
Wheel Size :
27.5 inch
Fork :
SR SUNTOUR SF19 XCE28 DS 27.5 100 mm
Fork Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
X-SMALL - 156 to 164
SMALL - 164 to 172
MEDIUM - 171 to 179
LARGE - 178 to 186
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE |
|---|---|---|---|---|

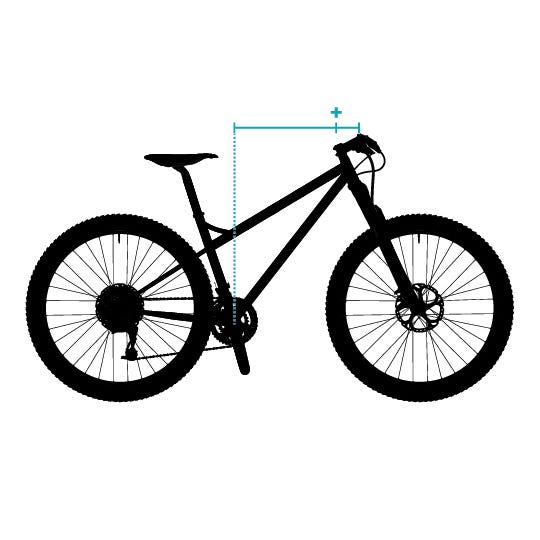

| Stem Length plus Reach | 1481 | 1522 | 1560 | 1598 |
| Frame Seat Tube | 330 | 381 | 431 | 482 |
| Frame Top Tube | 570 | 590 | 610 | 630 |
| Frame Reach | 393 | 413 | 430 | 447 |
| Frame Stack | 581 | 581 | 590 | 599 |
| Frame Head Tube | 100 | 100 | 110 | 120 |
| Frame Head Angle | 67° | 67° | 67° | 67° |
| Frame Seat Angle | 73° | 73° | 73° | 73° |
| Frame Chainstay | 425 | 425 | 425 | 425 |
| Frame BB Drop | 40 | 40 | 40 | 40 |
| Frame Wheel Base | ||||
| Fork Offset | 100 | 100 | 100 | 100 |
| Fork Travel | 728 | 750 | 778 | 807 |
| Standover | 75 | 75 | 75 | 75 |
| Stem Length | 1088 | 1109 | 1130 | 1151 |
| Handle Bar Width | 720 | 720 | 720 | 720 |
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE |
|---|---|---|---|---|
| Stem Length plus Reach | 1481 | 1522 | 1560 | 1598 |
| Frame Seat Tube | 330 | 381 | 431 | 482 |
| Frame Top Tube | 570 | 590 | 610 | 630 |
| Frame Reach | 393 | 413 | 430 | 447 |
| Frame Stack | 581 | 581 | 590 | 599 |
| Frame Head Tube | 100 | 100 | 110 | 120 |
| Frame Head Angle | 67° | 67° | 67° | 67° |
| Frame Seat Angle | 73° | 73° | 73° | 73° |
| Frame Chainstay | 425 | 425 | 425 | 425 |
| Frame BB Drop | 40 | 40 | 40 | 40 |
| Frame Wheel Base | ||||
| Fork Offset | 100 | 100 | 100 | 100 |
| Fork Travel | 728 | 750 | 778 | 807 |
| Standover | 75 | 75 | 75 | 75 |
| Stem Length | 1088 | 1109 | 1130 | 1151 |
| Handle Bar Width | 720 | 720 | 720 | 720 |
| Frame | ALX8 6066/6061-T6 DOUBLE-BUTTED ALUMINIUM |
|---|---|
| Rear Shock | N/A |
| Fork | SR SUNTOUR SF19 XCE28 DS 27.5 100 mm |
| Headset | Feimin FP-H863 |
| Shifters | Shimano ST-EF41 |
| Rear Derailleur | Shimano RD-TY300 |
| Front Derailleur | Shimano FD-TZ500 DM6 |
| Chainset | Prowheel TA-CQ68 42 / 34 / 24 170 mm |
| Bottom Bracket | 68mm/122.5mm |
| Chain | KMC HV-500 |
| Cassette / Freewheel | Shimano CS-HG200-7 12-32T |
| Rims | JHT HLQC-02AB |
| Hubs | Joytech JY-751DSE / F362TSE |
| Spokes | Steel 14g |
| Tyres | Deli 27.5 x 2.1 |
| Brakes | Alhonga V-Brake |
| Brake levers | Shimano ST-EF41 |
| Handlebars | Ridgeback Alloy 720 mm width / 18 mm rise |
| Stem | Ridgeback Alloy 75 mm |
| Saddle | Ridgeback |
| Seatpost | Alloy 27.2 x XS/SM 350 mm, MD/XL 400mm |
| Pedals | NW-303 |
| Drive Unit | N/A |
| Battery | N/A |
| charger | N/A |
