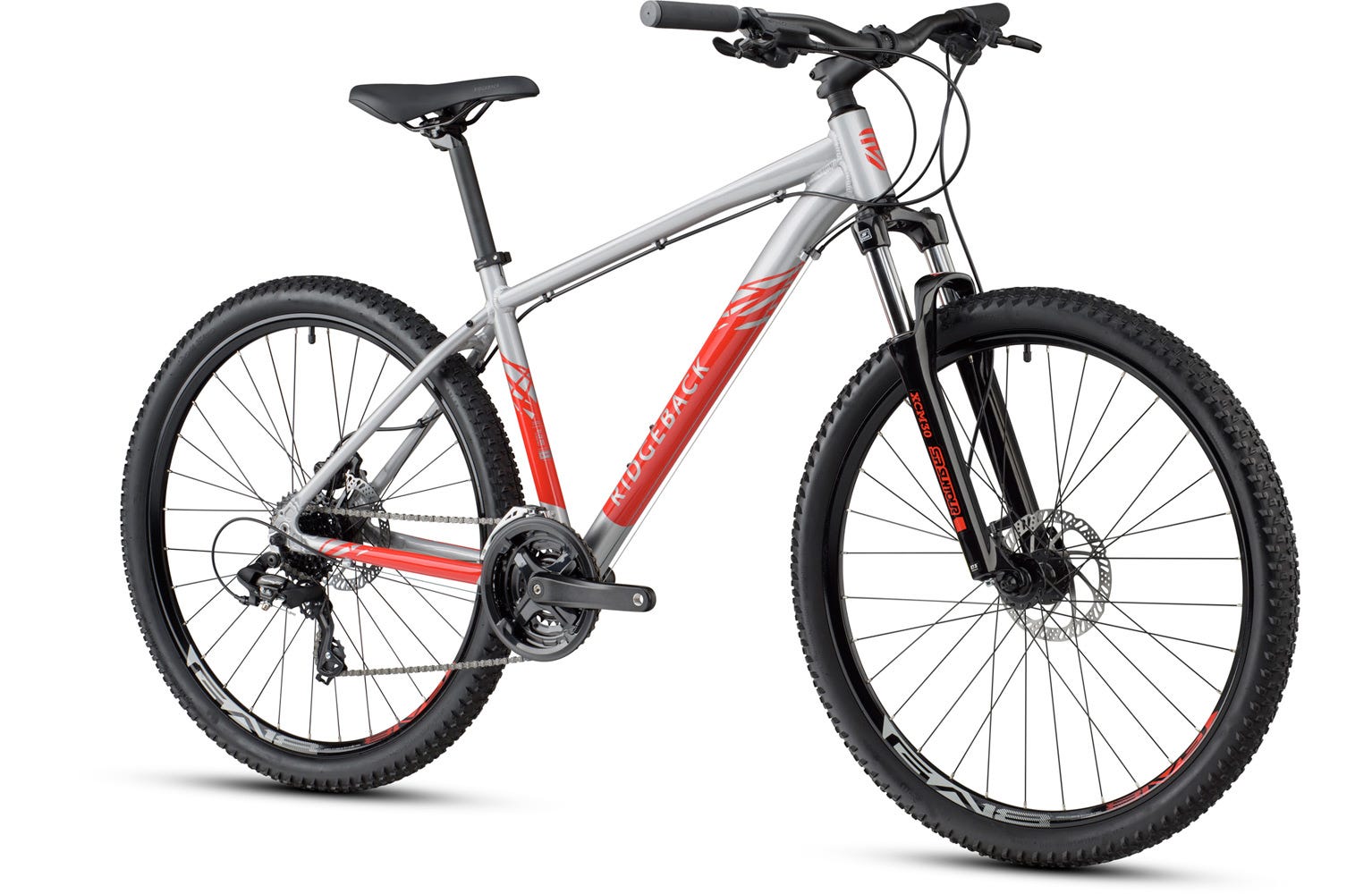

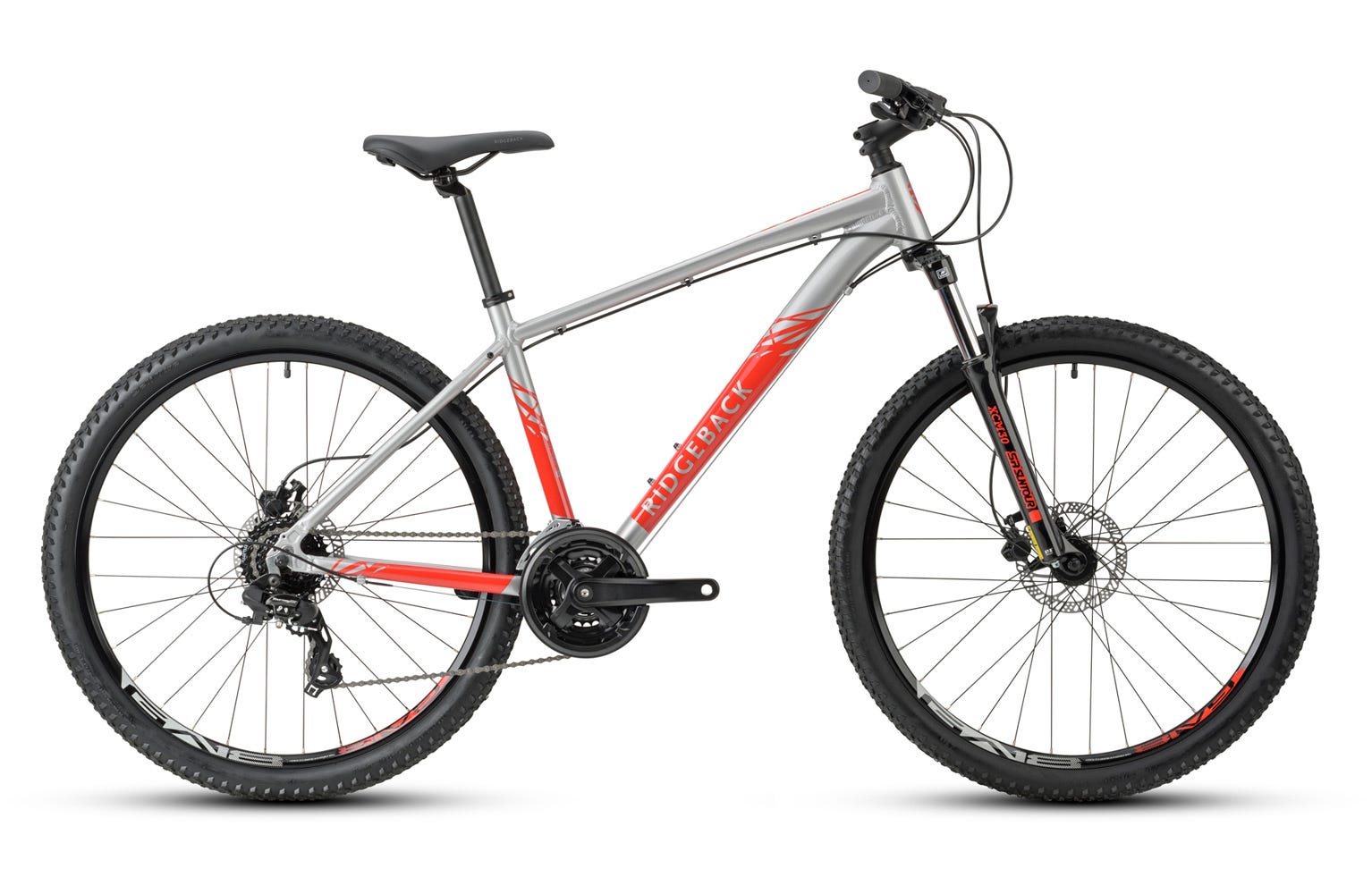

Ridgeback Terrain 4
- The Ridgeback Terrain 4 is our range-topping hardtail mountain bike and is the perfect way to get into off road riding.

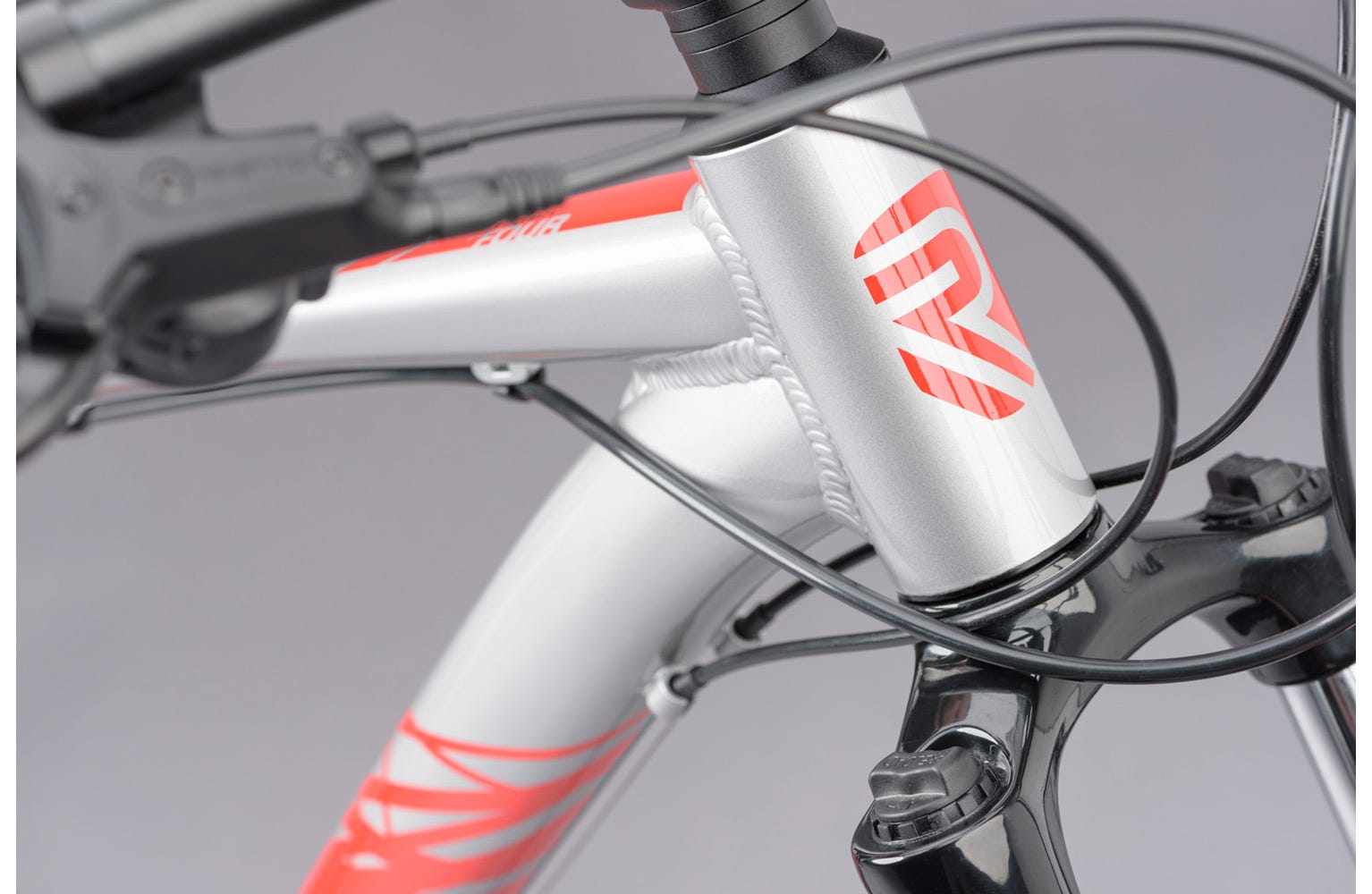

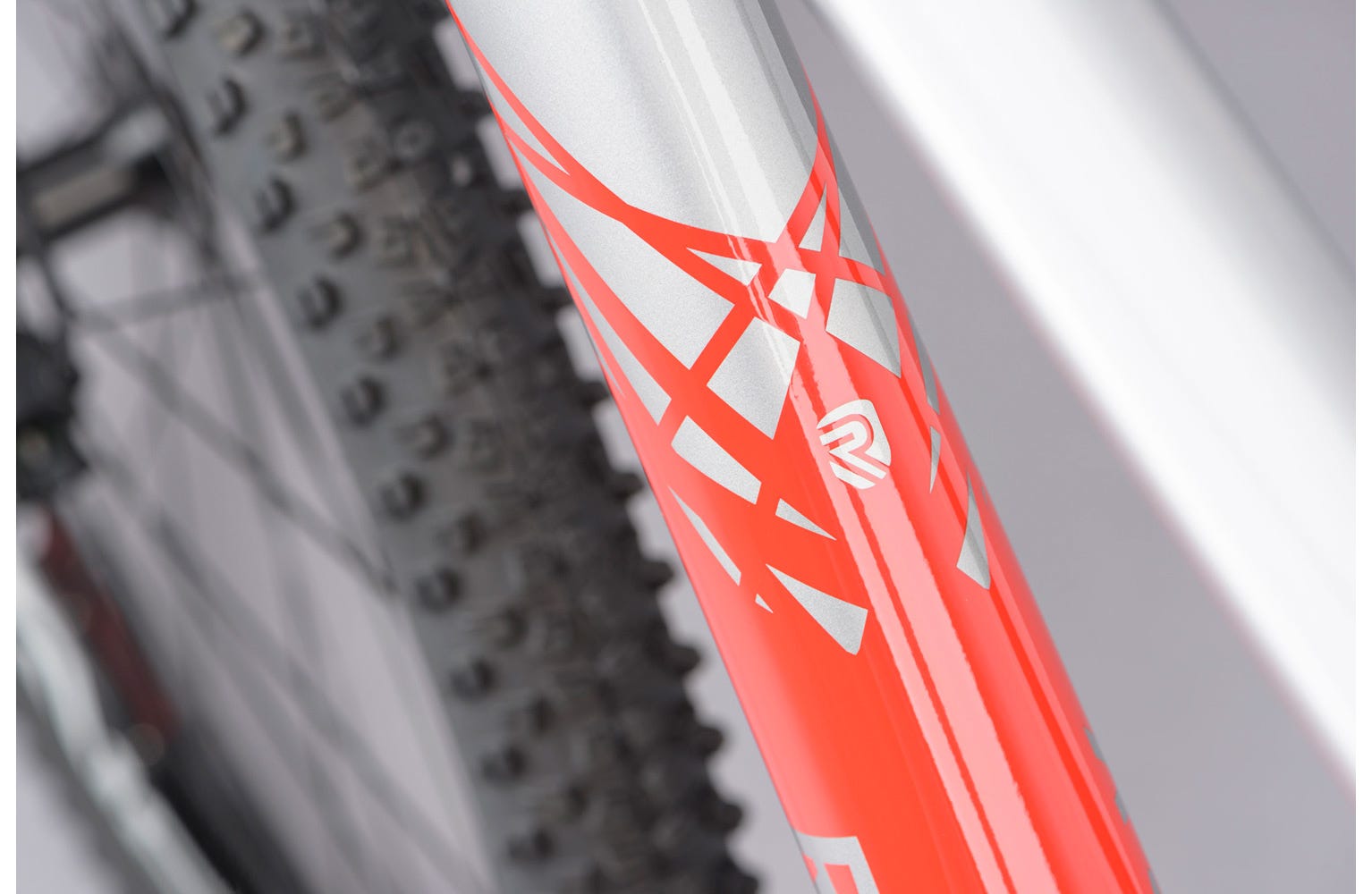

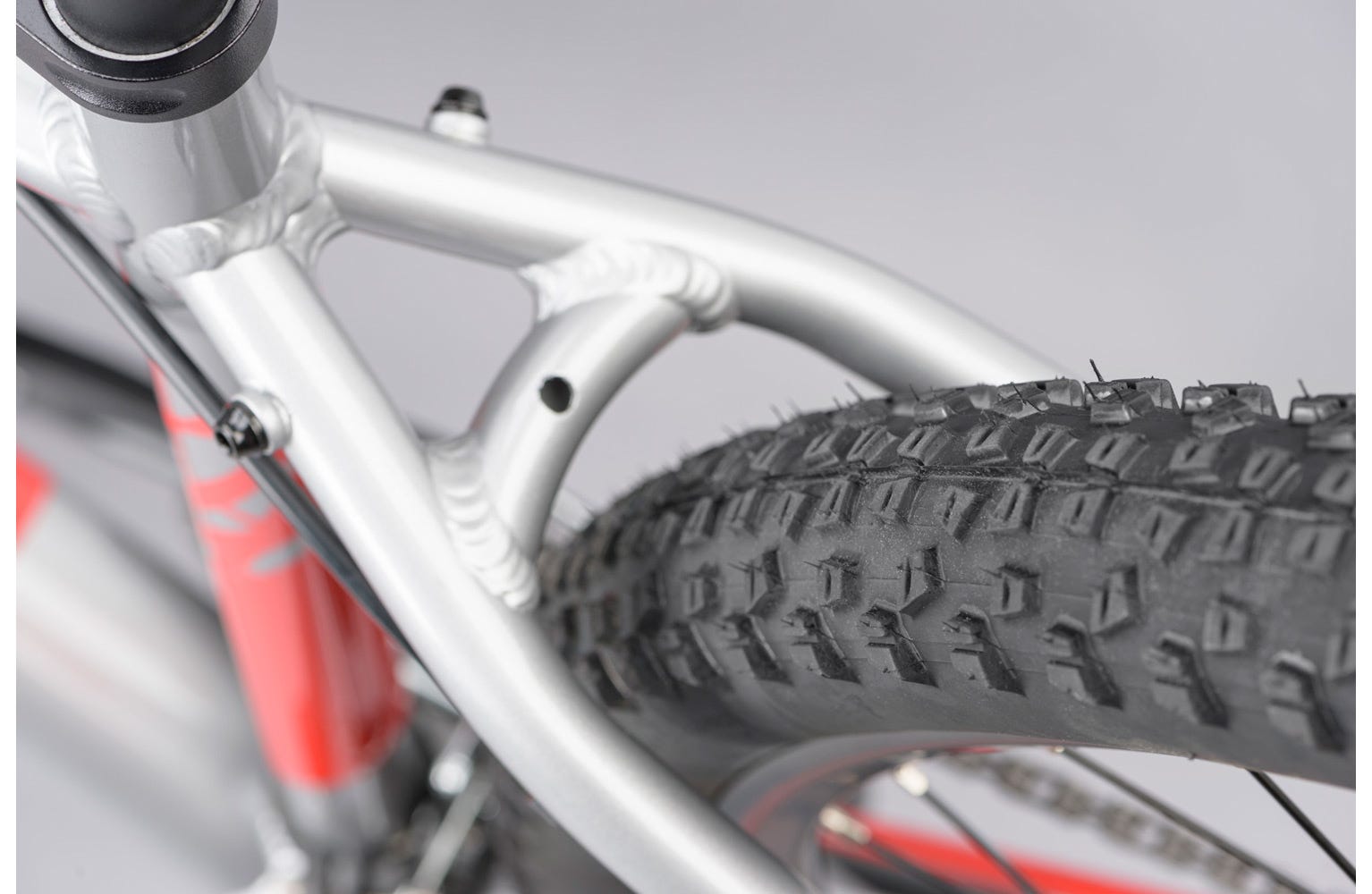

The lightweight and robust aluminium frame is designed with trail riding in mind and is matched with a 100mm travel coil-sprung suspension fork to help smooth bumps and roots.
Hydraulic disc brakes give high performance stopping in all weather conditions and wide knobbly tyres help you find grip even on loose surfaces.
A Shimano drivetrain provides smooth and reliable shifting, even under load and on bumpy terrain. The 24 gears give a wide range, perfect for climbing steep hills and enjoying fast descents.
Ridgeback Terrain 4
SKU
VARRB22630
Brake Type :
Hydraulic Disc
Fork Material :
Alloy
Frame Material :
Alloy
Bottom Bracket :
68mm/122.5mm
Wheel Size :
27.5 inch
Brake Levers :

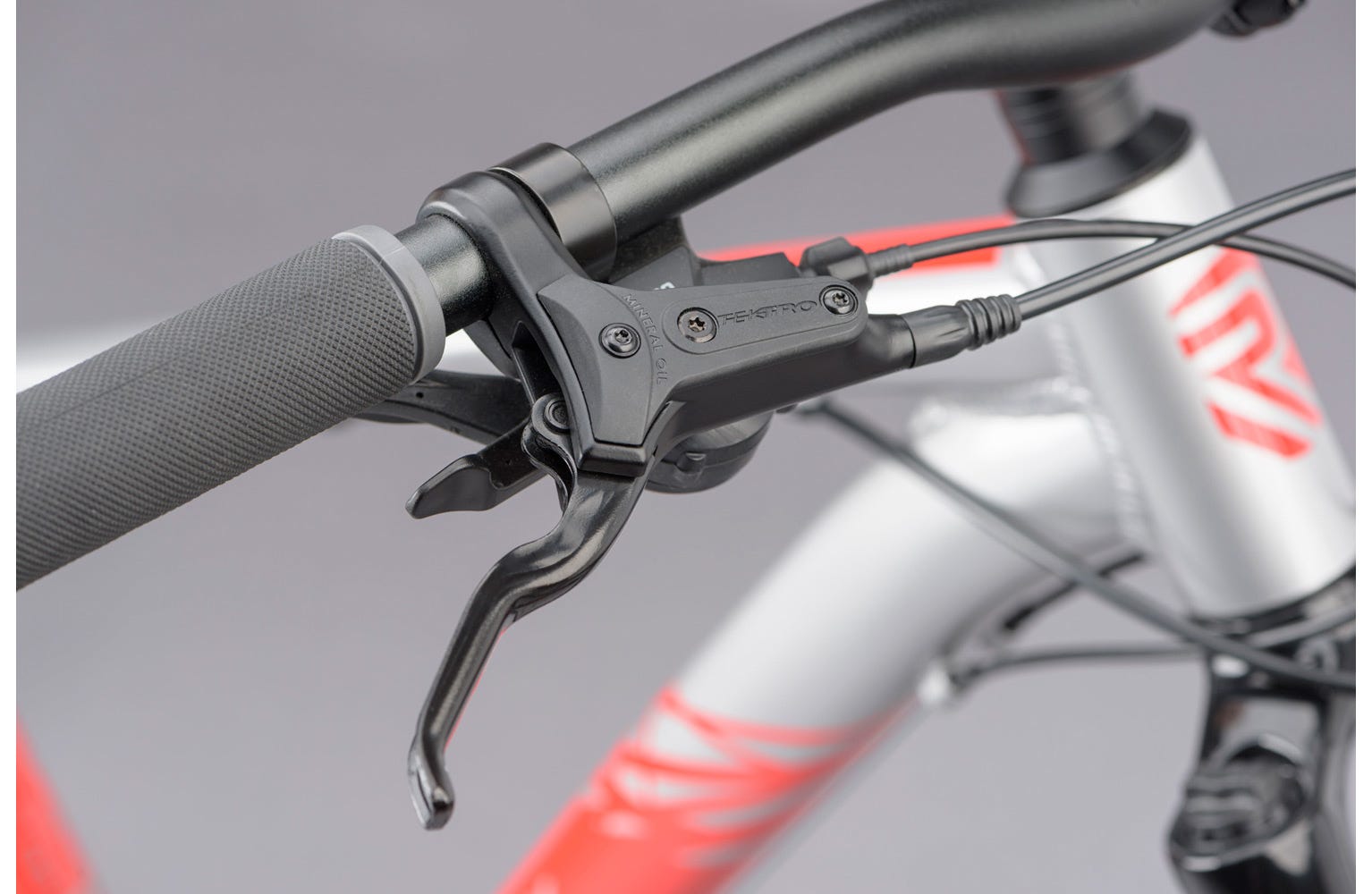

Tektro HDM-275
Intended Use :
MTB
Brakes :

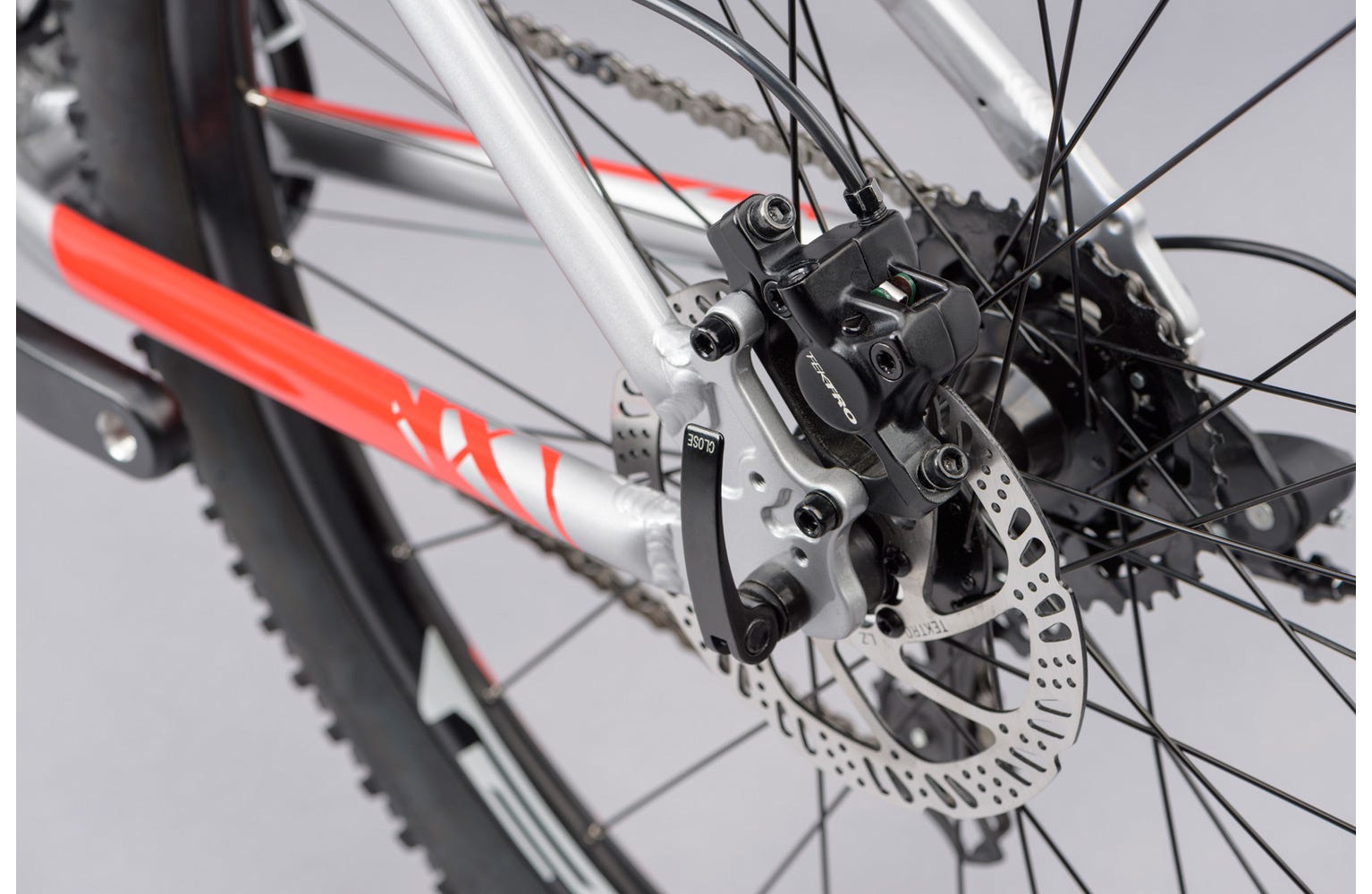

Tektro HDM-275
Cassette Freewheel :
Shimano CS-HG200-8 12-32T
Chain :
KMC Z-51
Chain Set :

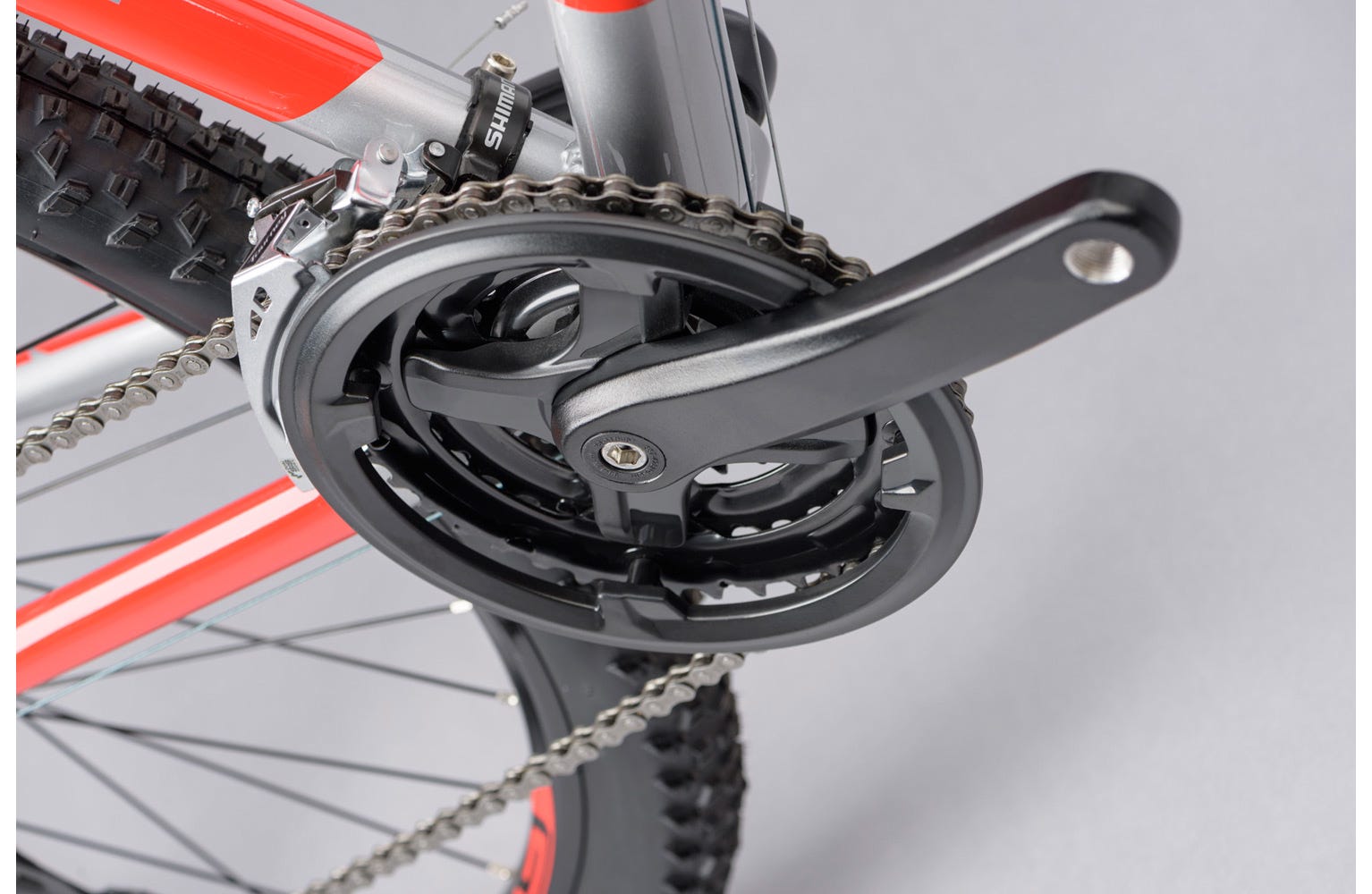

Prowheel TA-CQ68 42 / 34 / 24 170 mm

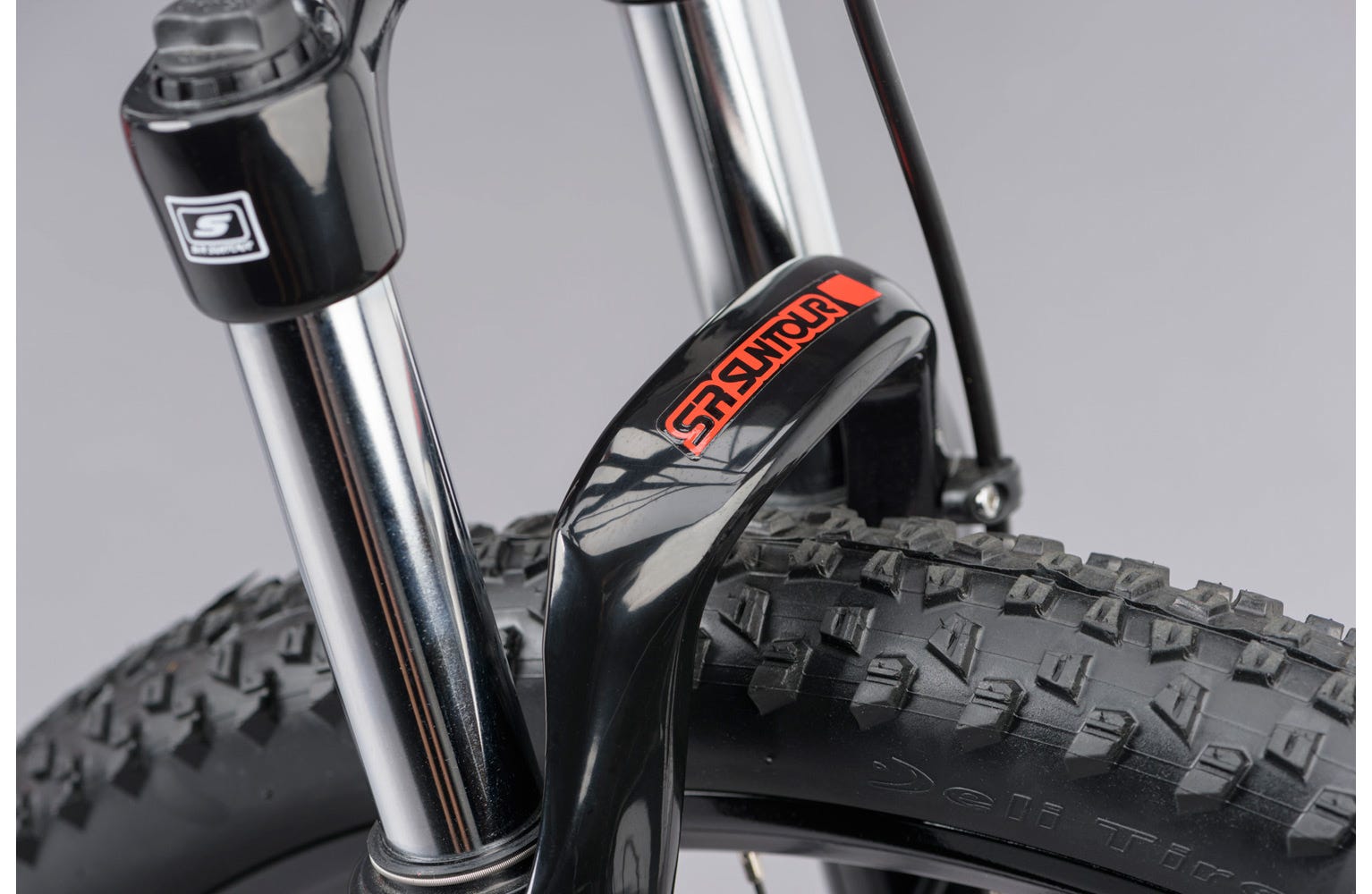

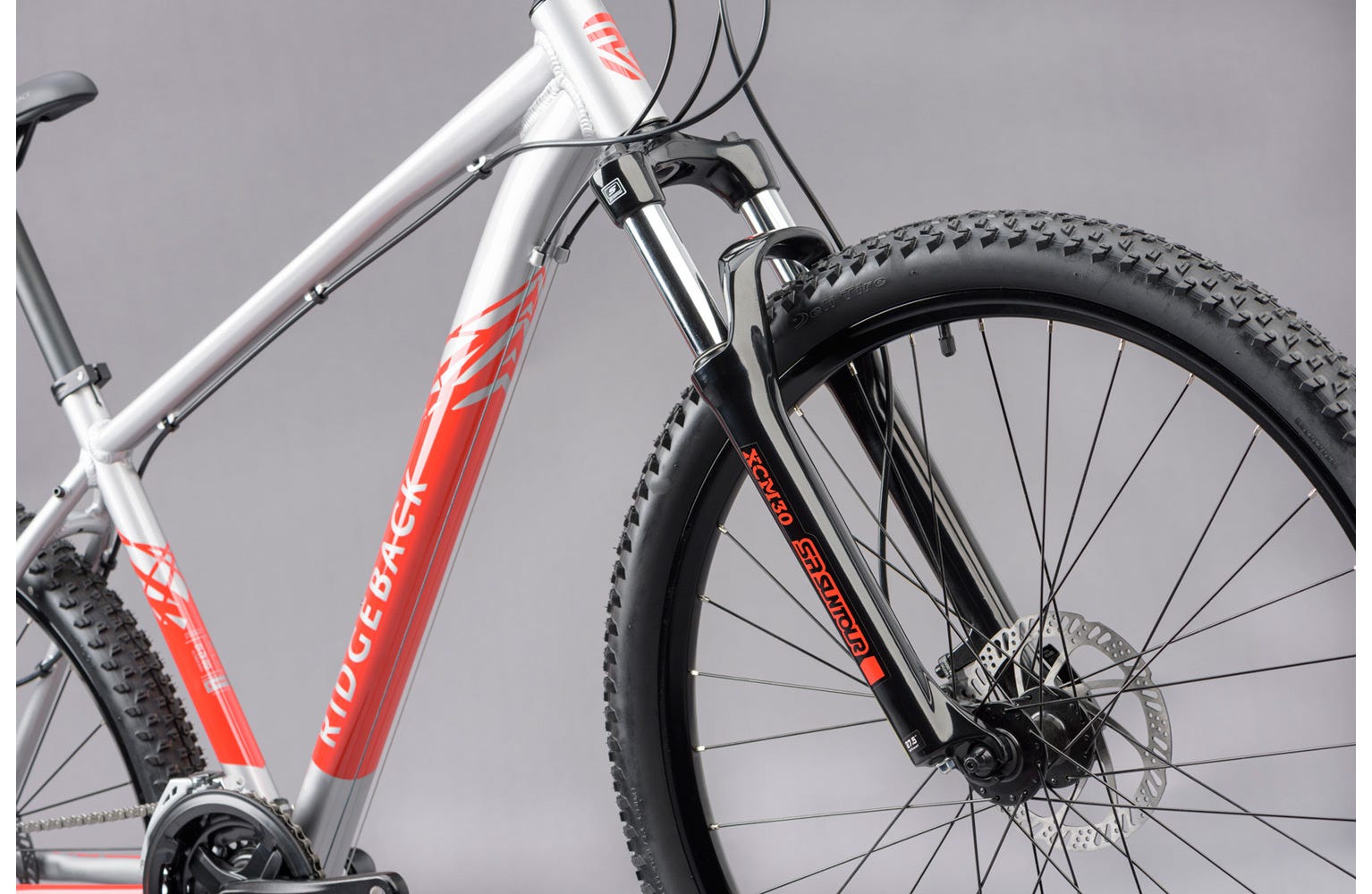

Fork :
SR SUNTOUR SF15 XCM DS 27.5 100 mm

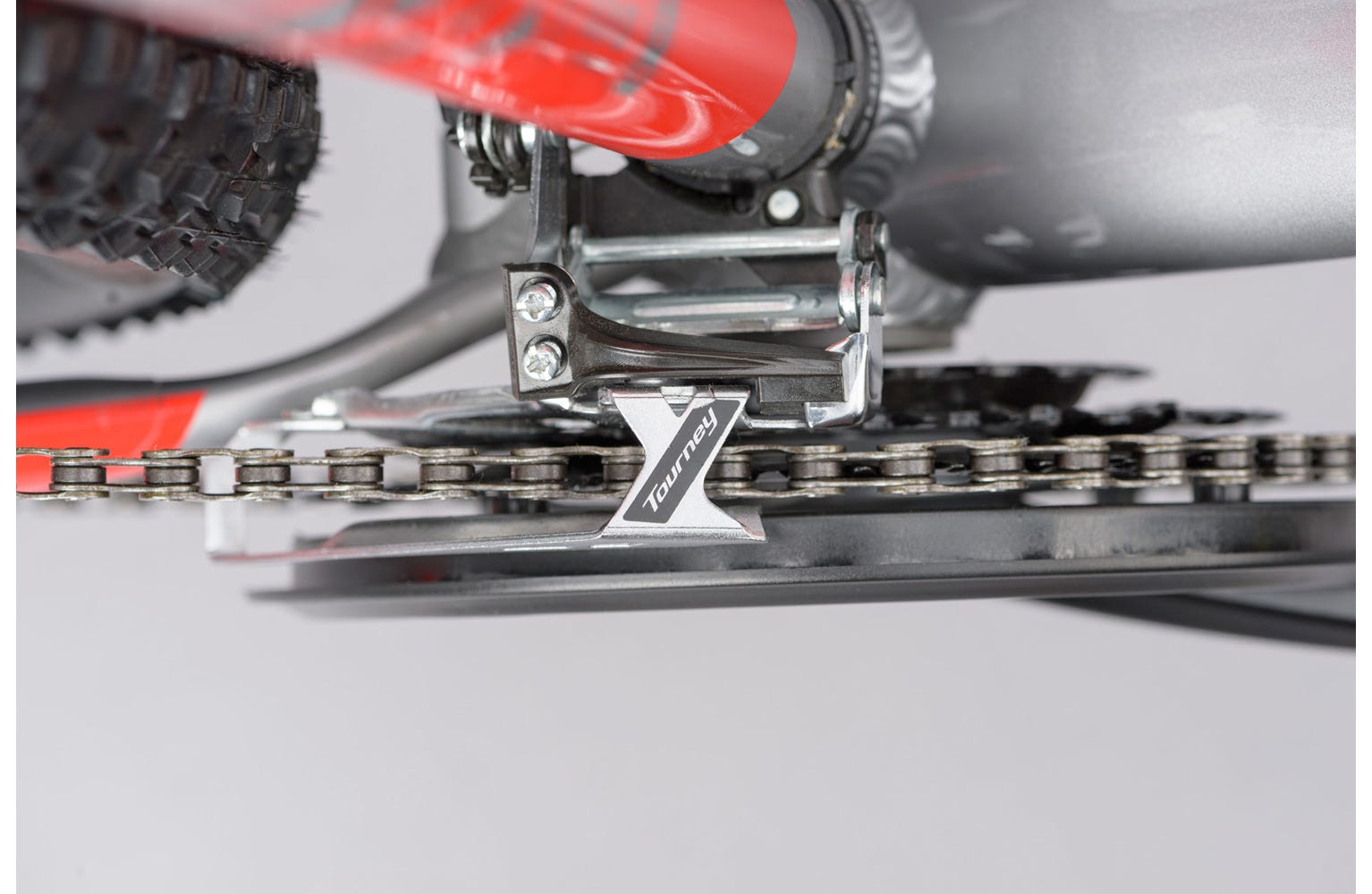

Front Derailleur :
Shimano FD-TY700 TSM8
Grip Tape :
Ridgeback
Handlebars :
Ridgeback Alloy 720 mm width / 18 mm rise
Headset :
Feimin FP-H863
Hubs :
Joytech D041DSE / D142DSE
Pedals :
NW-303
Rear Derailleur :

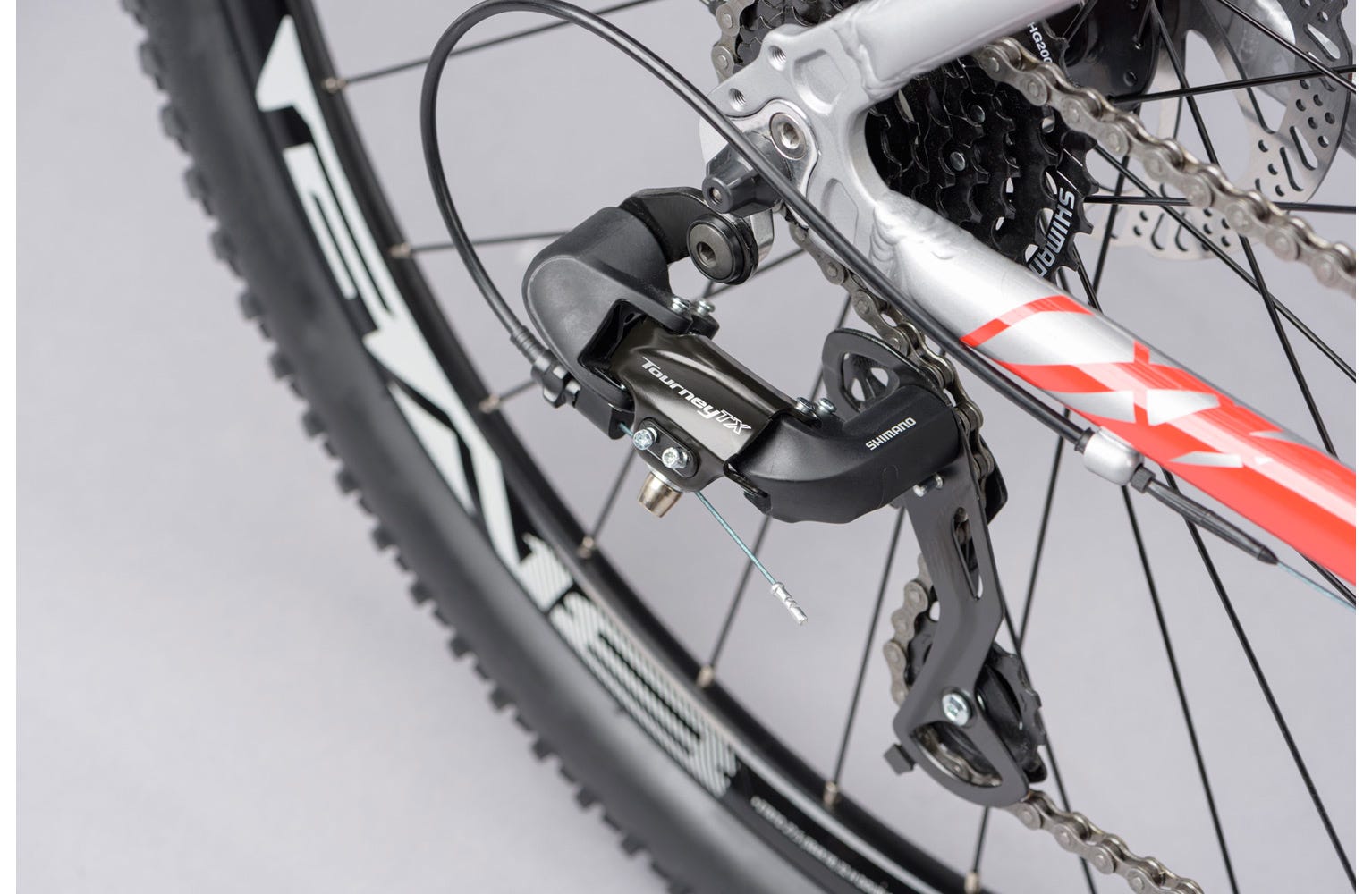

Shimano RD-TX800
Rims :
JHT HLQC-GA18

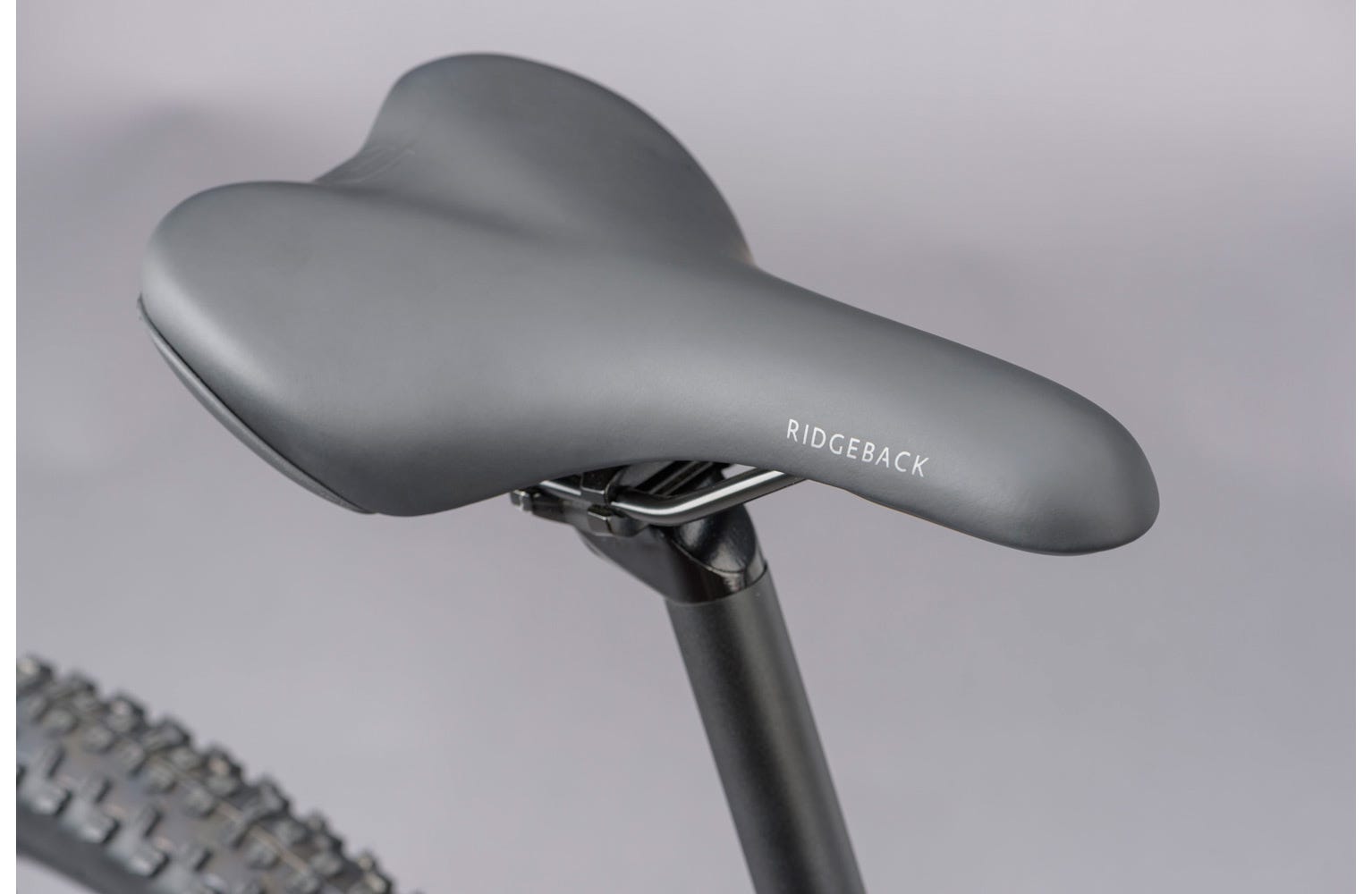

Saddle :
Ridgeback
Seat Post :
Alloy 27.2 x 400 mm
Shifters :
Shimano SL-M315
Spokes :
Steel 14 g
Stem :
Ridgeback Alloy 75 mm
Tyres :
Deli 27.5 x 2.1
Frame Shape :
Crossbar
Gender :
Mens
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 482 |
|---|---|
| Frame Top Tube | 630 |
| Frame Reach | 447 |
| Frame Stack | 599 |
| Frame Head Tube | 120 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 40 |
| Fork Offset | 100 |
| Fork Travel | 807 |
| Standover | 75 |
| Stem Length | 1151 |
| Handle Bar Width | 720 |
| Frame Seat Tube | 431 |
| Frame Top Tube | 610 |
| Frame Reach | 430 |
| Frame Stack | 590 |
| Frame Head Tube | 110 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 40 |
| Fork Offset | 100 |
| Fork Travel | 778 |
| Standover | 75 |
| Stem Length | 1130 |
| Handle Bar Width | 720 |
| Frame Seat Tube | 381 |
| Frame Top Tube | 590 |
| Frame Reach | 413 |
| Frame Stack | 581 |
| Frame Head Tube | 100 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 40 |
| Fork Offset | 100 |
| Fork Travel | 750 |
| Standover | 75 |
| Stem Length | 1109 |
| Handle Bar Width | 720 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 650 |
| Frame Reach | 464 |
| Frame Stack | 608 |
| Frame Head Tube | 130 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 40 |
| Fork Offset | 100 |
| Fork Travel | 835 |
| Standover | 75 |
| Stem Length | 1172 |
| Handle Bar Width | 720 |
| Frame Seat Tube | 330 |
| Frame Top Tube | 570 |
| Frame Reach | 393 |
| Frame Stack | 581 |
| Frame Head Tube | 100 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 40 |
| Fork Offset | 100 |
| Fork Travel | 728 |
| Standover | 75 |
| Stem Length | 1088 |
| Handle Bar Width | 720 |
| Frame | ALX8 6066/6061-T6 DOUBLE-BUTTED ALUMINIUM |
|---|---|
| Rear Shock | N/A |
| Fork | SR SUNTOUR SF15 XCM DS 27.5 100 mm |
| Headset | Feimin FP-H863 |
| Shifters | Shimano SL-M315 |
| Rear Derailleur | Shimano RD-TX800 |
| Front Derailleur | Shimano FD-TY700 TSM8 |
| Chainset | Prowheel TA-CQ68 42 / 34 / 24 170 mm |
| Bottom Bracket | 68mm/122.5mm |
| Chain | KMC Z-51 |
| Cassette / Freewheel | Shimano CS-HG200-8 12-32T |
| Rims | JHT HLQC-GA18 |
| Hubs | Joytech D041DSE / D142DSE |
| Spokes | Steel 14g |
| Tyres | Deli 27.5 x 2.1 |
| Brakes | Tektro HDM-275 Hydrualic Disc Brake |
| Brake levers | Tektro HDM-275 |
| Handlebars | Ridgeback Alloy 720 mm width / 18 mm rise |
| Stem | Ridgeback Alloy 75 mm |
| Saddle | Ridgeback |
| Seatpost | Alloy 27.2 x XS/SM 350 mm, MD/XL 400mm |
| Pedals | NW-303 |
| Drive Unit | N/A |
| Battery | N/A |
| charger | N/A |
