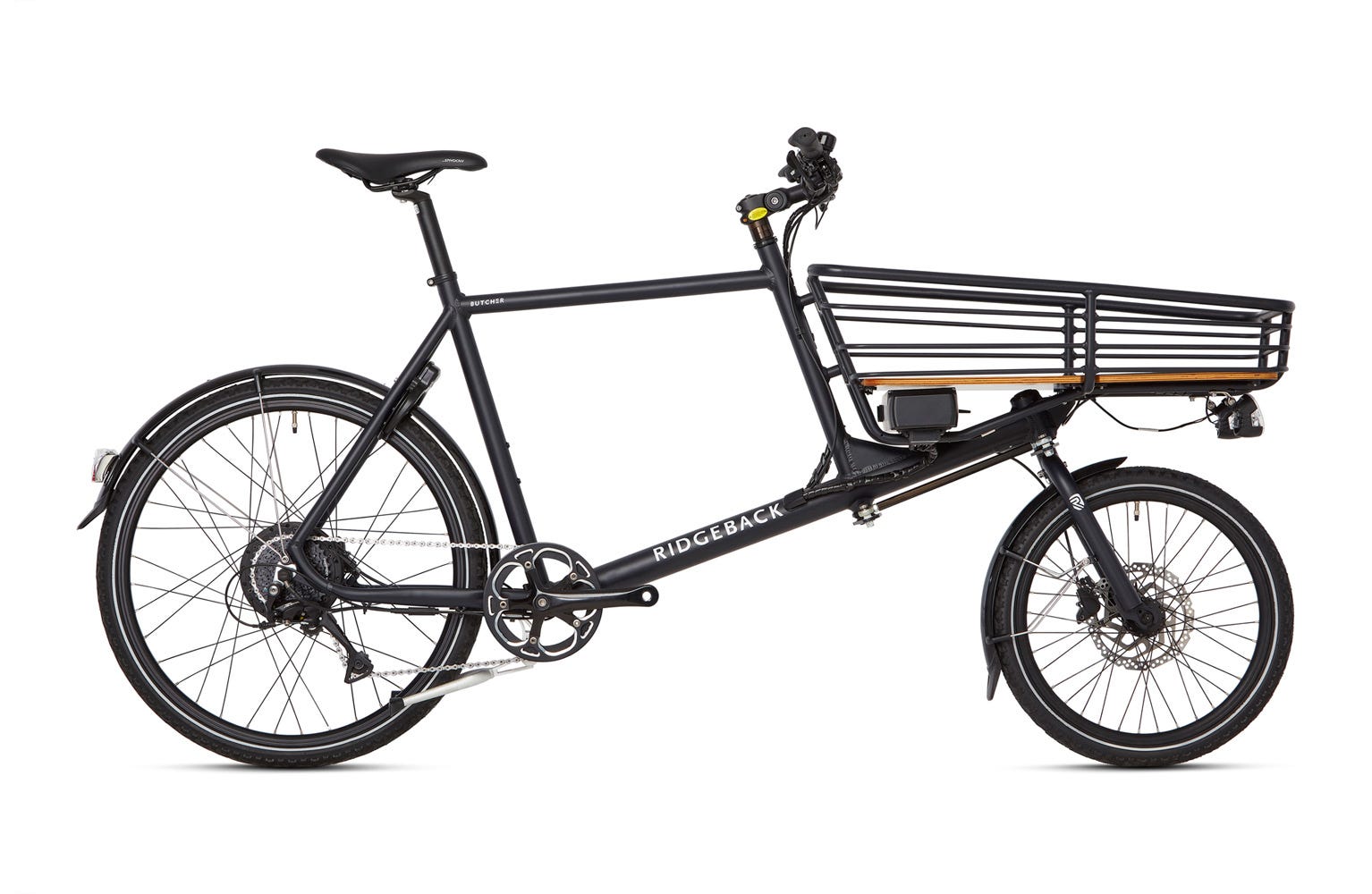

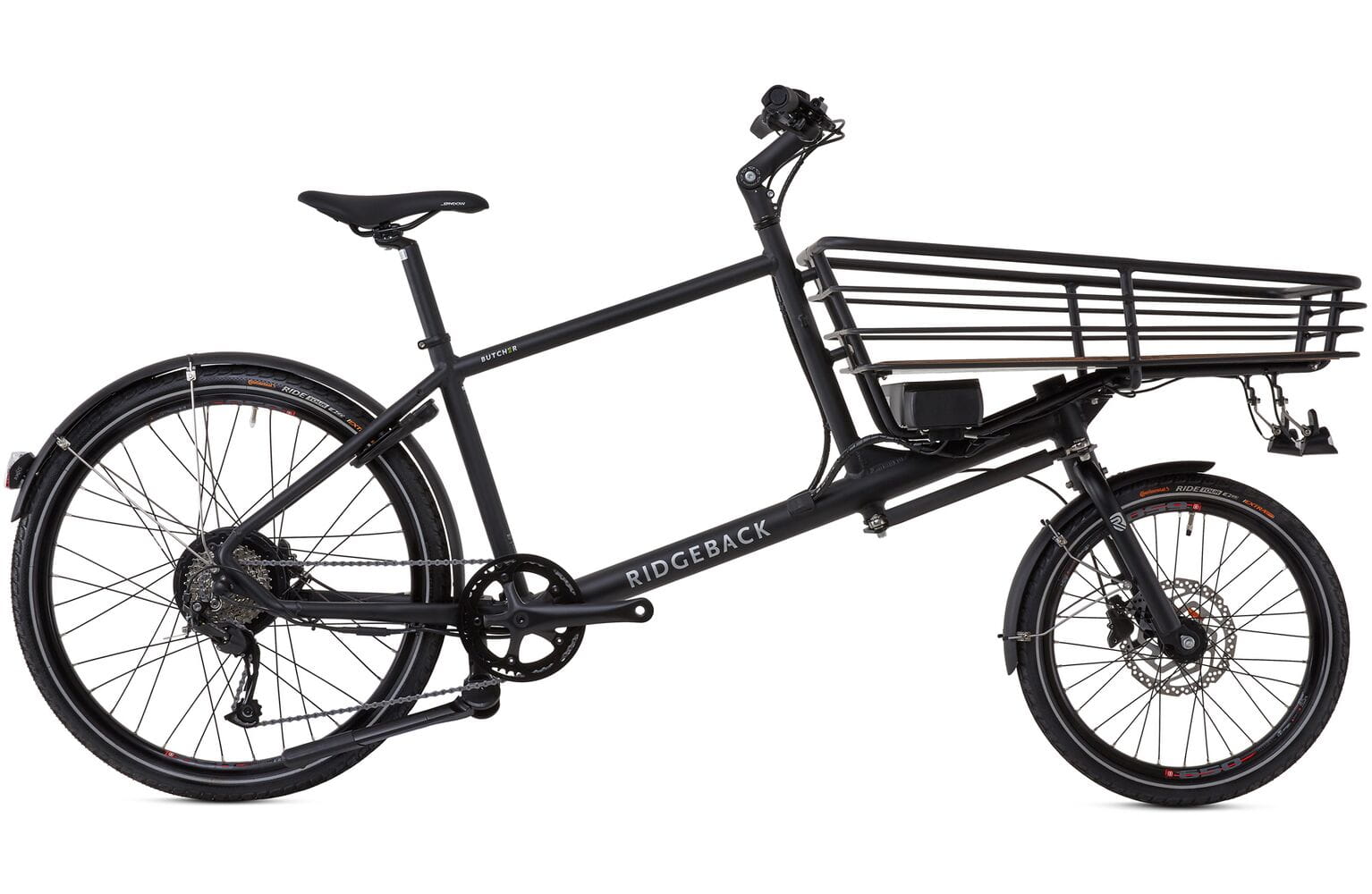

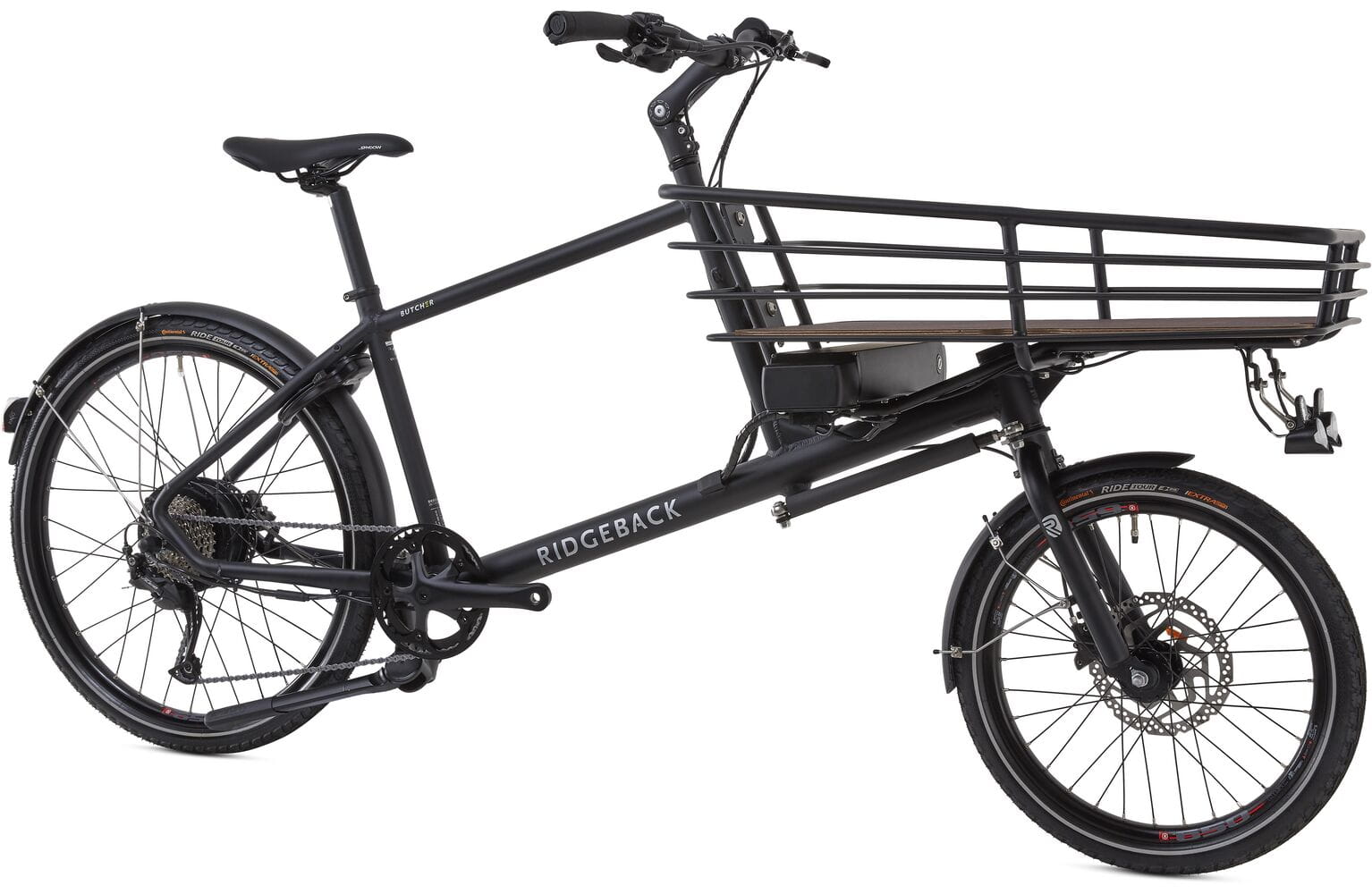

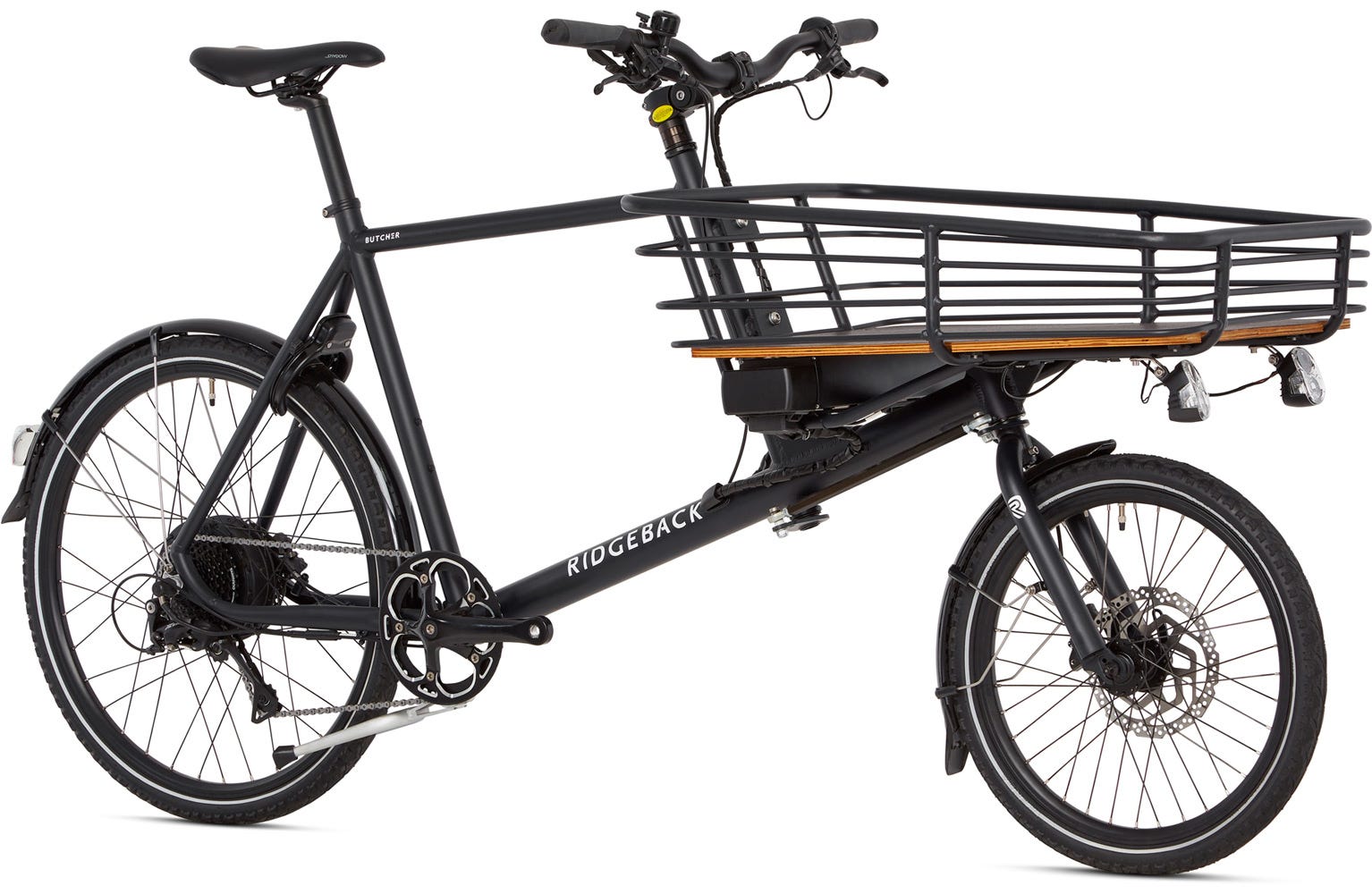

- Compact and adaptable, the Ridgeback Butcher is an E-Cargo bike that is perfectly proportioned to carry small and medium-sized loads.
The traditional two-wheel design and slim front basket area helps when negotiating narrower roads, while delivering excellent carrying capability.

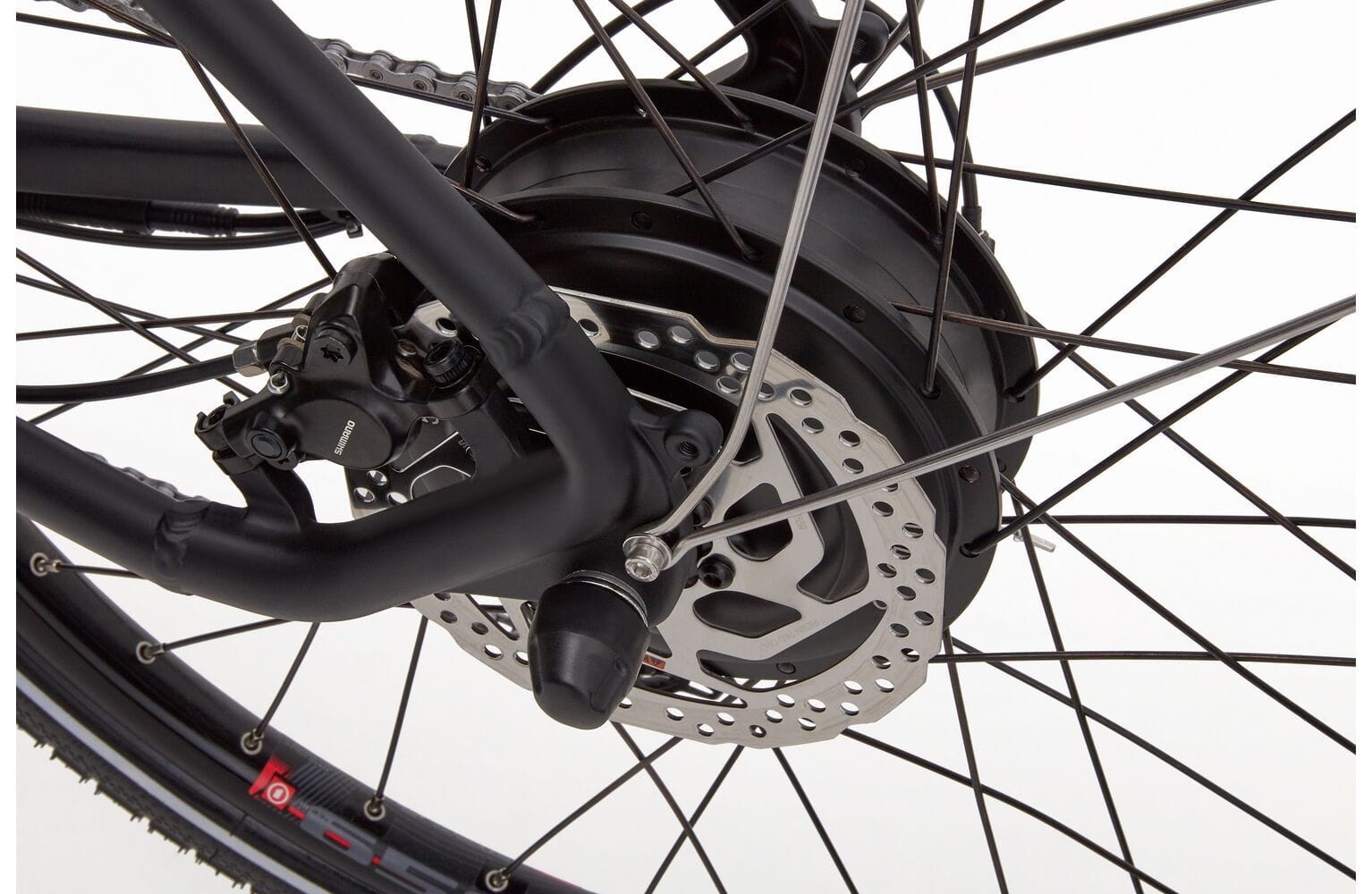

The rear hub drive Promovec motor delivers 250-watts of pedalling assistance, perfect to help when fully loaded or encountering climbs.

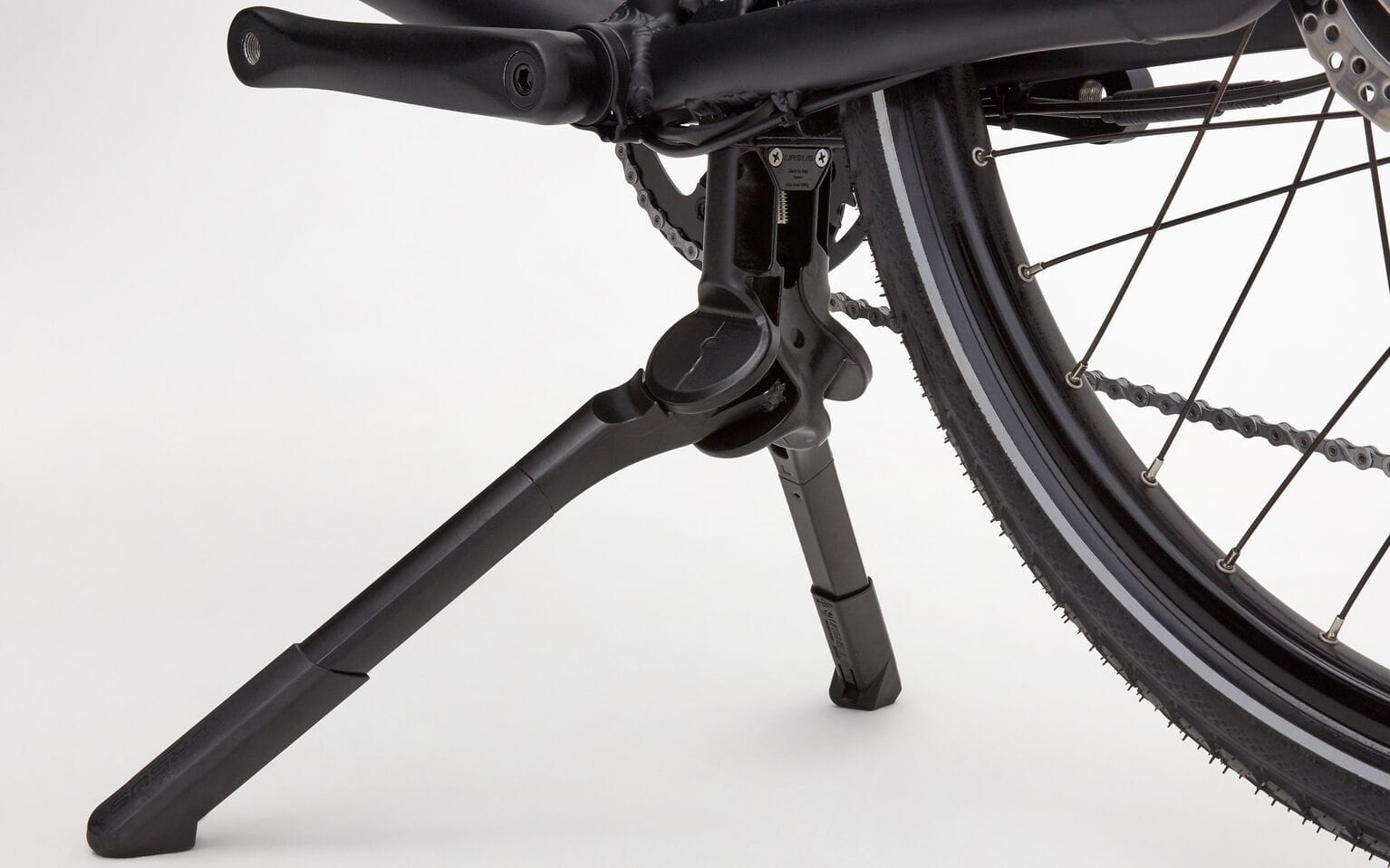

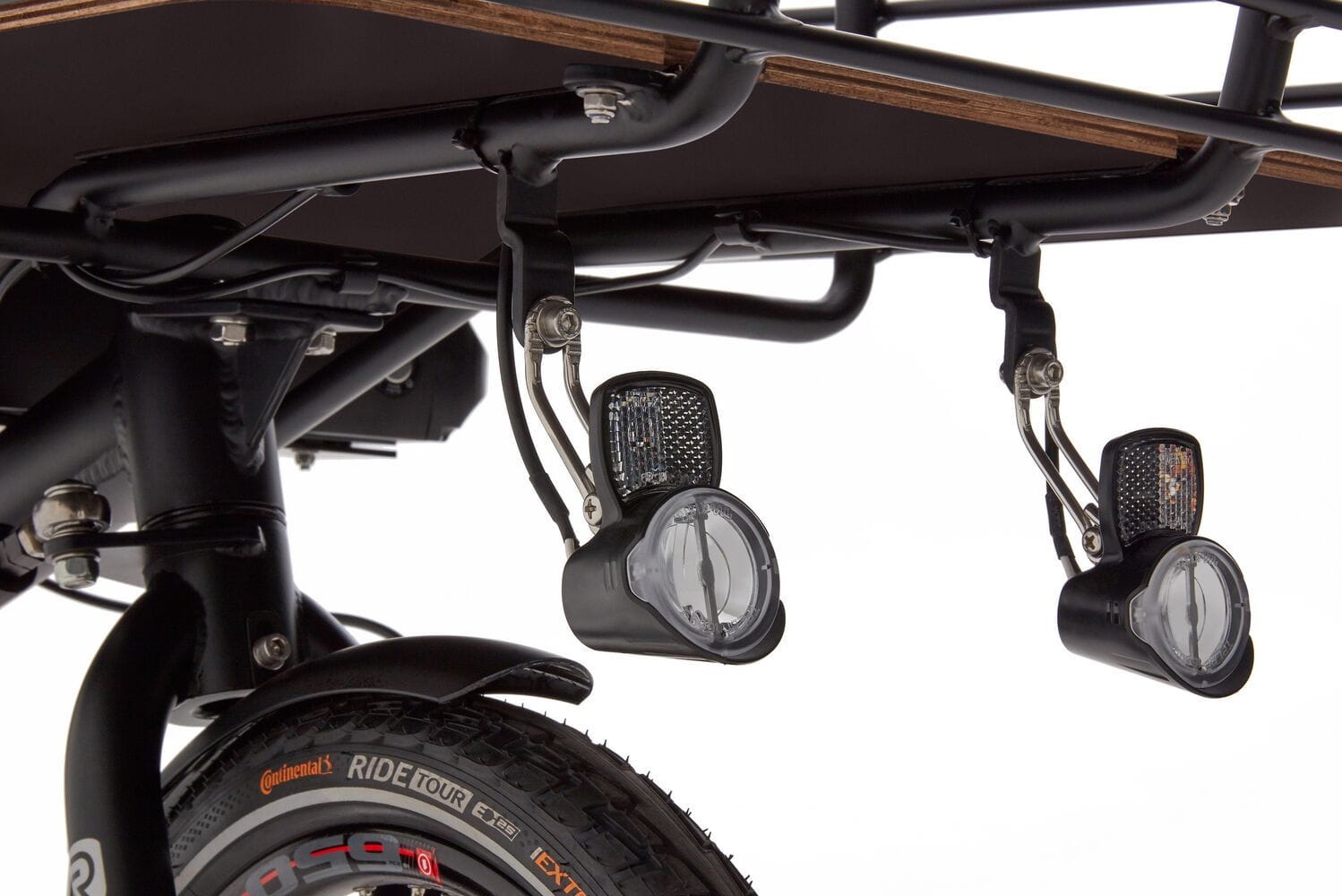

Powerful hydraulic disc brakes give assured stopping in all conditions, with mudguards, lights and a stand completing a practical package.
Weight - 34.7kg (Size Large)
Ridgeback Butcher
SKU
VARRB21830
Brake Type :
Hydraulic Disc
Frame Material :
Alloy
Battery Type :
PROMOVEC 600wh
Bottom Bracket :
Taper 68/124.5mm
Brake Levers :
Shimano BL-MT200 Hydraulic Brakes
Brakes :
Shimano BR-MT200 Hydraulic Disc Brake
Cassette Freewheel :
Shimano CS-HG201-9 11-32T
Chain :
KMC X9E
Chain Set :
Alloy 175mm / 42T
Charger :
Promovec 2AH
Grip Tape :
Ridgeback
Headset :
Neco H-148-MP 1-1/8 inch
Hubs :
KT-MH8F / PROMOVEC 50750
Motor :
PROMOVEC 50750 250w 43nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rims :
MACH 1 650

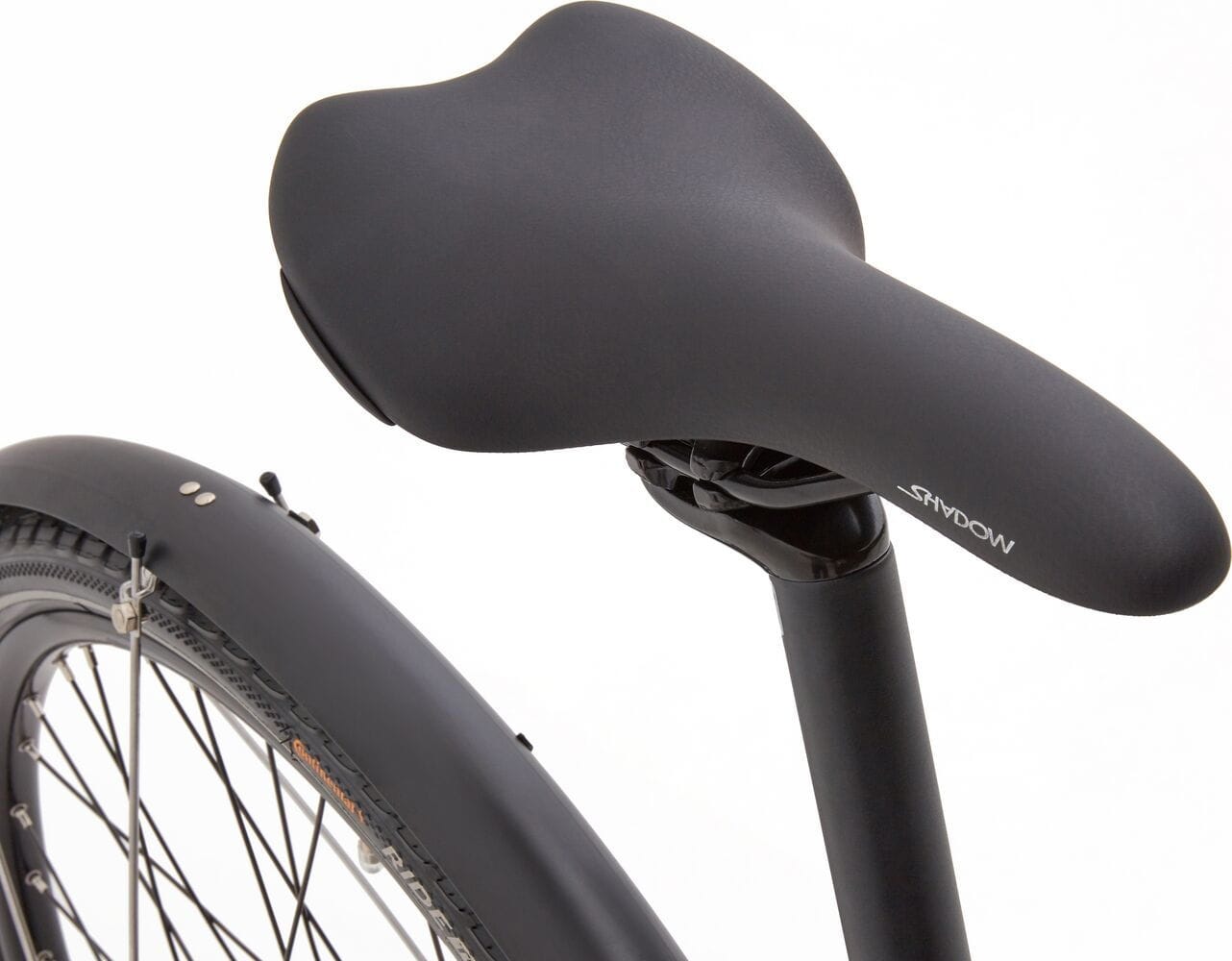

Saddle :
Ridgeback Metro
Seat Post :
Alloy 31.6 x 350 mm
Shifters :
Shimano Altus SL-M2000 9 Speed
Spokes :
Steel 14 g
Stem :
Alloy Adjustable 110 mm
Tyres :
Schwalbe Delta Cruiser 20/26 x 1.75

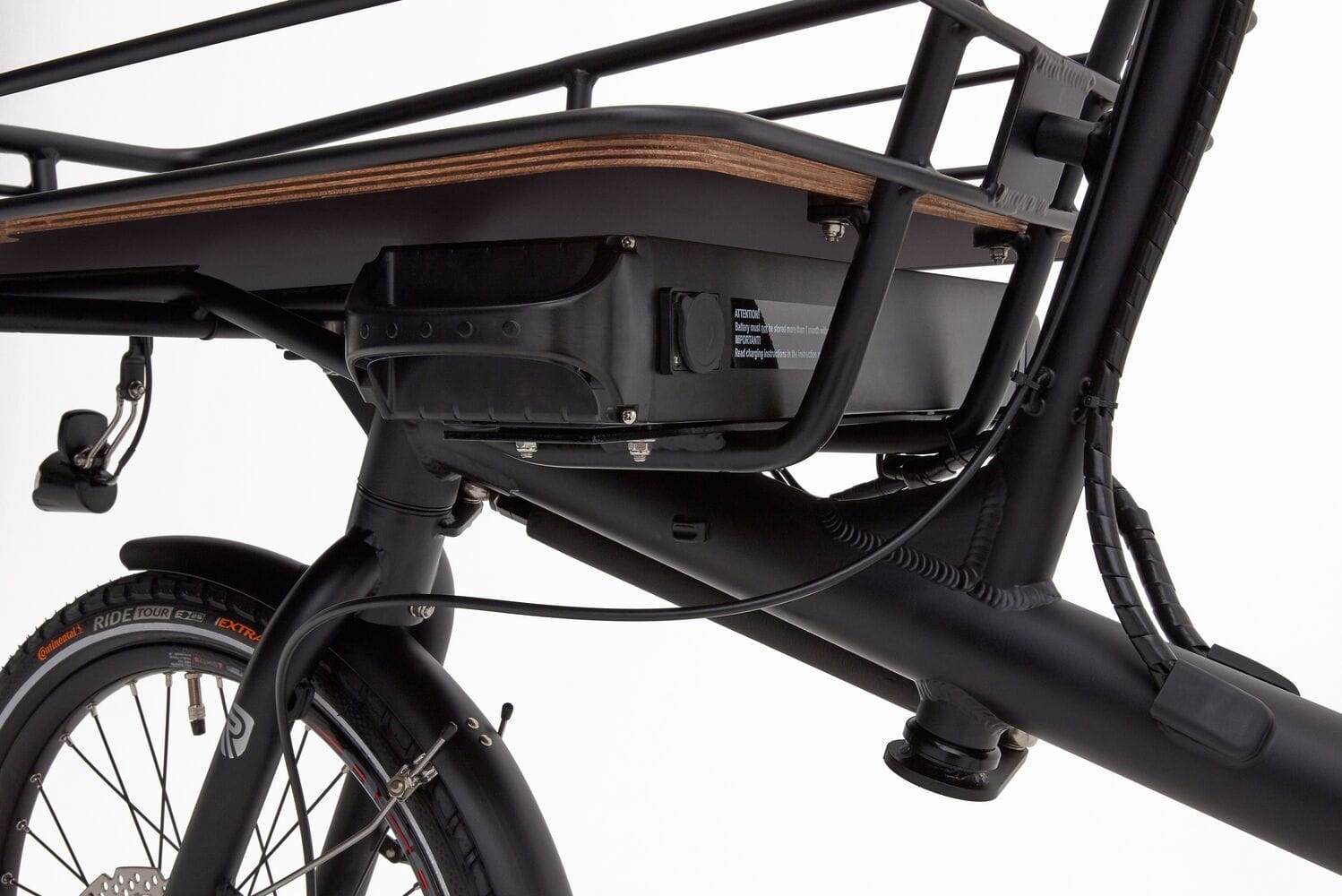

Battery Integration :
External
Fork :
Steel Cargo Disc
Fork Material :
Steel
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
165
167
169
171
173
175
177
179
181
183
185
187
189
191
193
195
SMALL - 165 to 180
LARGE - 180 to 195
| Frame Size | SMALL | LARGE |
|---|---|---|
| Stem Length plus Reach | ||
| Frame Seat Tube | 430 | 560 |
| Frame Top Tube | 545 | 545 |
| Frame Reach | ||
| Frame Stack | ||
| Frame Head Tube | ||
| Frame Head Angle | ||
| Frame Seat Angle | 73° | 73° |
| Frame Chainstay | 437 | 437 |
| Frame BB Drop | 45 | 45 |
| Frame Wheel Base | 1408 | 1408 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 110 | 110 |
| Handle Bar Width | 680 | 680 |
| Frame Size | SMALL | LARGE |
|---|---|---|
| Stem Length plus Reach | ||
| Frame Seat Tube | 430 | 560 |
| Frame Top Tube | 545 | 545 |
| Frame Reach | ||
| Frame Stack | ||
| Frame Head Tube | ||
| Frame Head Angle | ||
| Frame Seat Angle | 73° | 73° |
| Frame Chainstay | 437 | 437 |
| Frame BB Drop | 45 | 45 |
| Frame Wheel Base | 1408 | 1408 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 110 | 110 |
| Handle Bar Width | 680 | 680 |
