- Advance by name advanced by nature.
- Our new Ridgeback Advance 1W has everything you need to explore your local roads, trails, towpaths or wherever your curiosity takes you.
- The Advance 1W demonstrates an open frame design for easier mounting and dismounting.

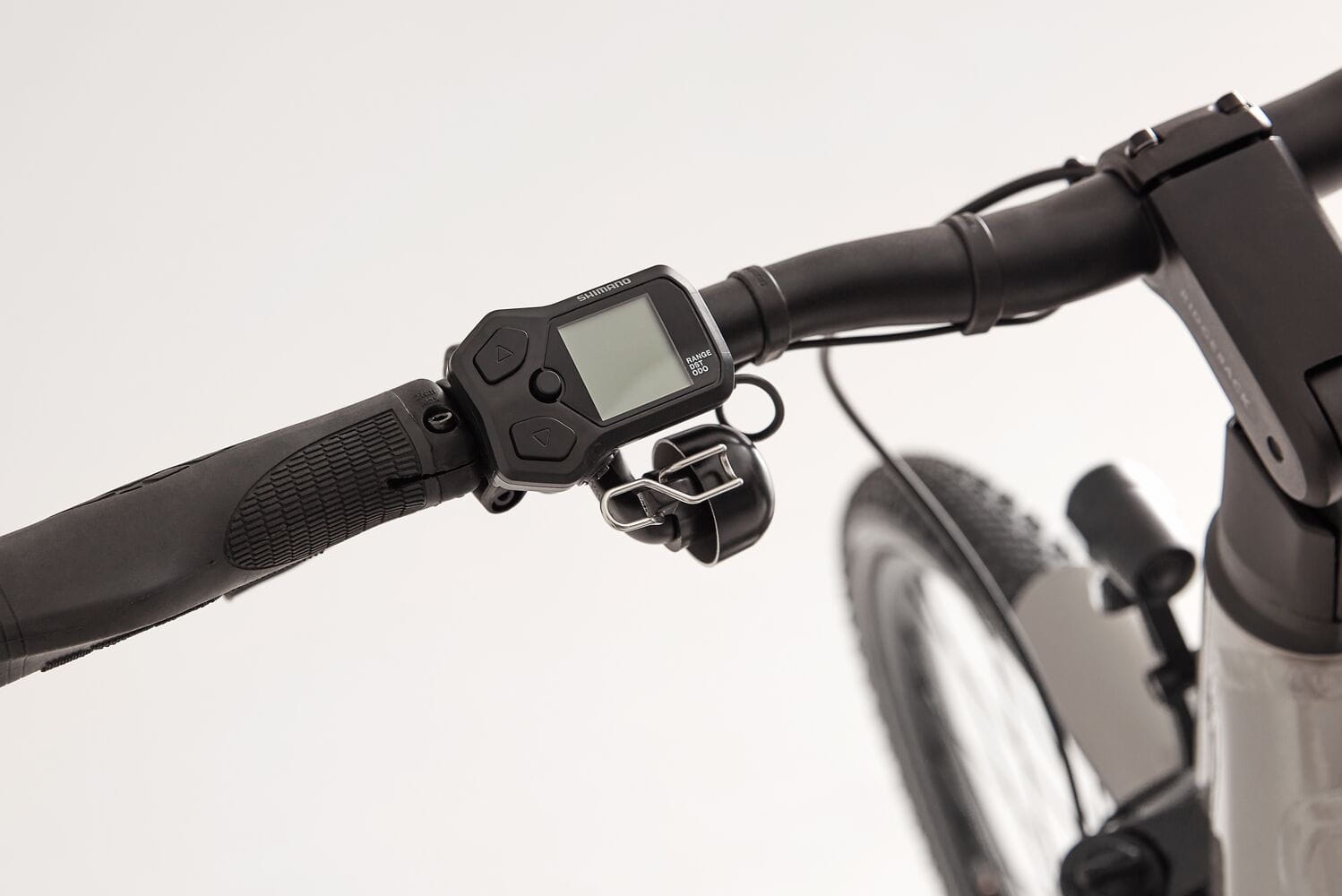

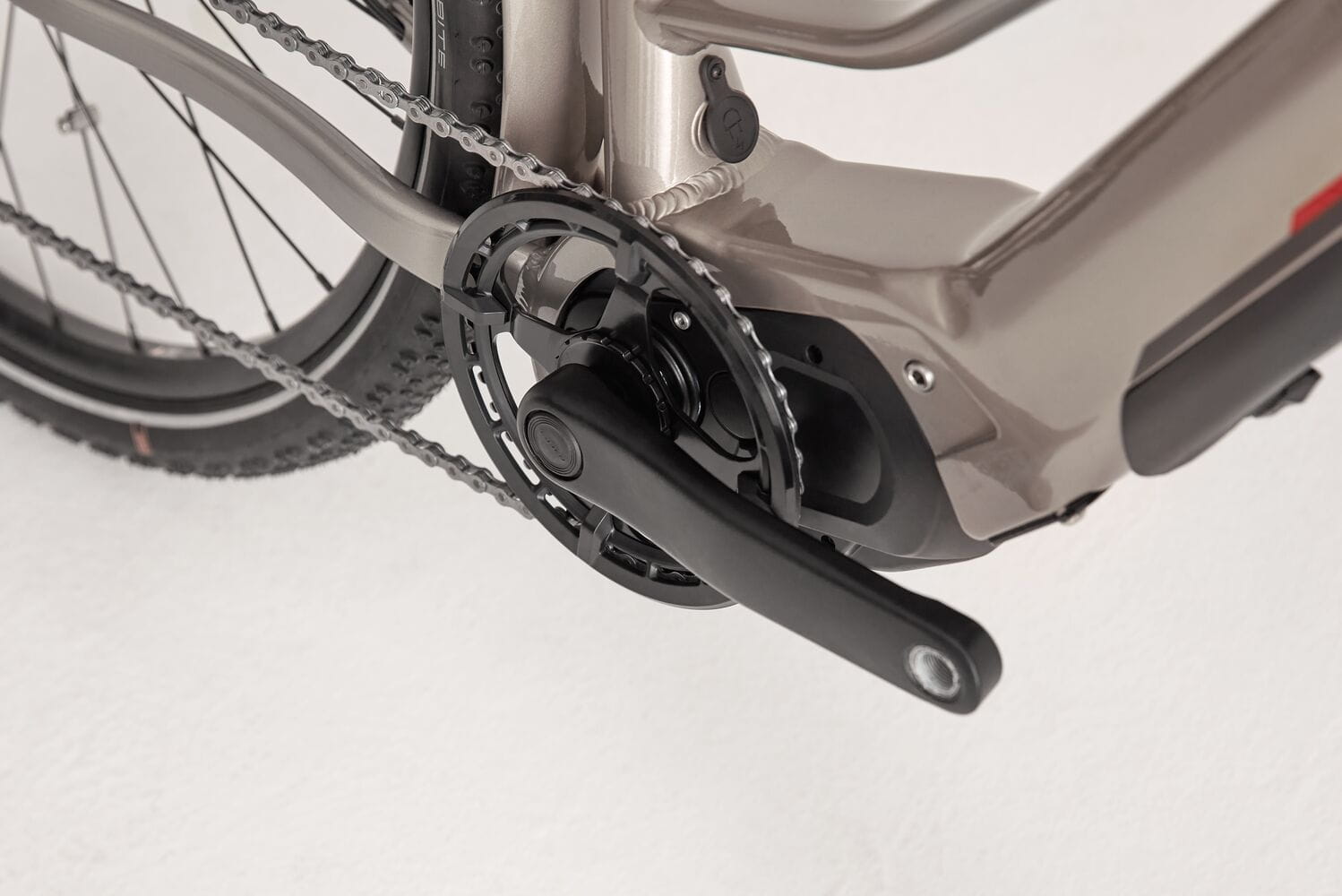

- Equipped with the Shimano STEPS E5000 pedal assist drive unit to make those hills disappear and the easy-to-use STEPS E5000 combined display and switch for simple and elegant control.
- A beautifully hidden yet powerful 504Wh battery will keep you going for up to 219km giving you the chance to really head out on your adventure.

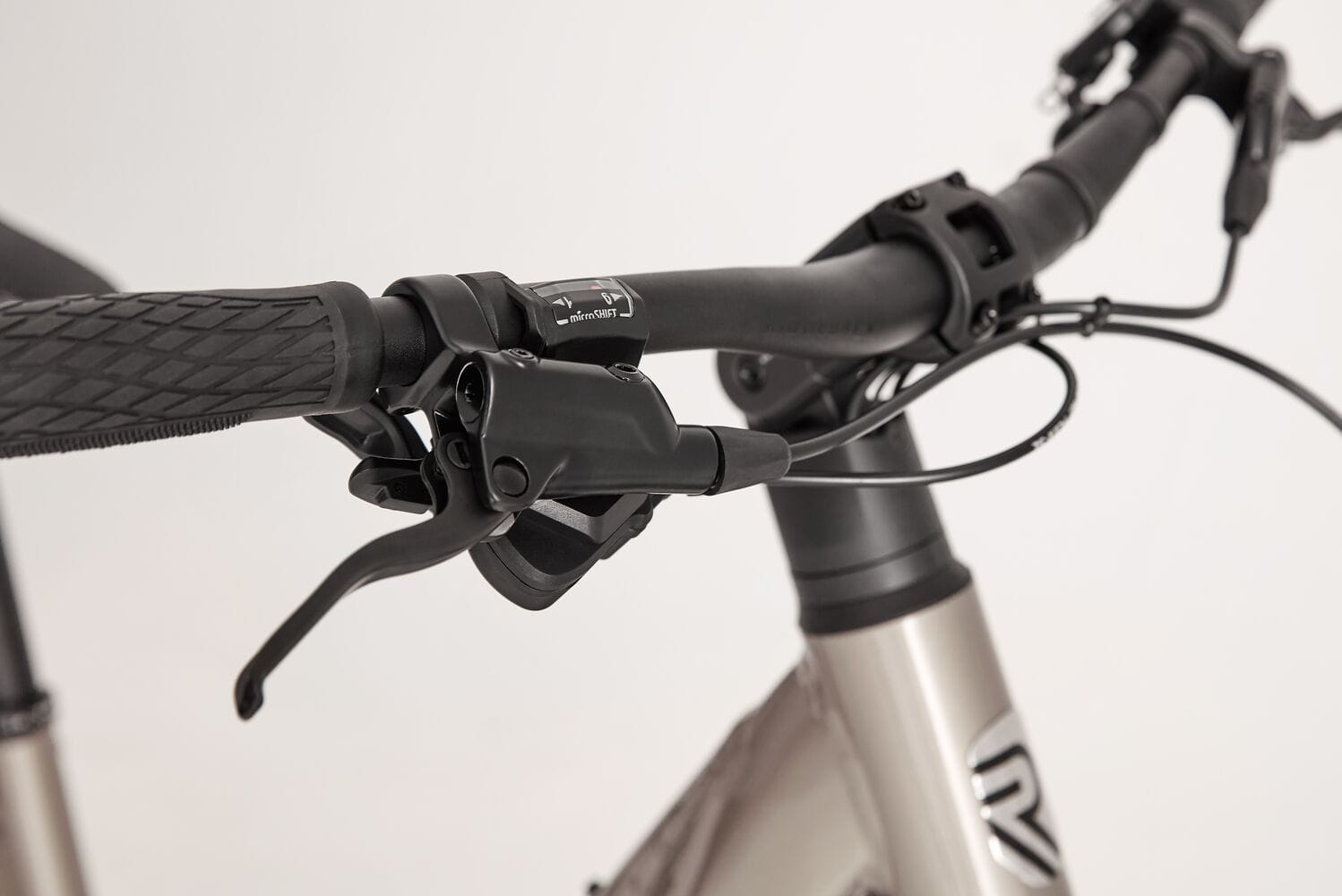

- microSHIFT 9 speed gearing provides the right gear for any situation, and powerful hydraulic disc brakes produce plenty of stopping power.

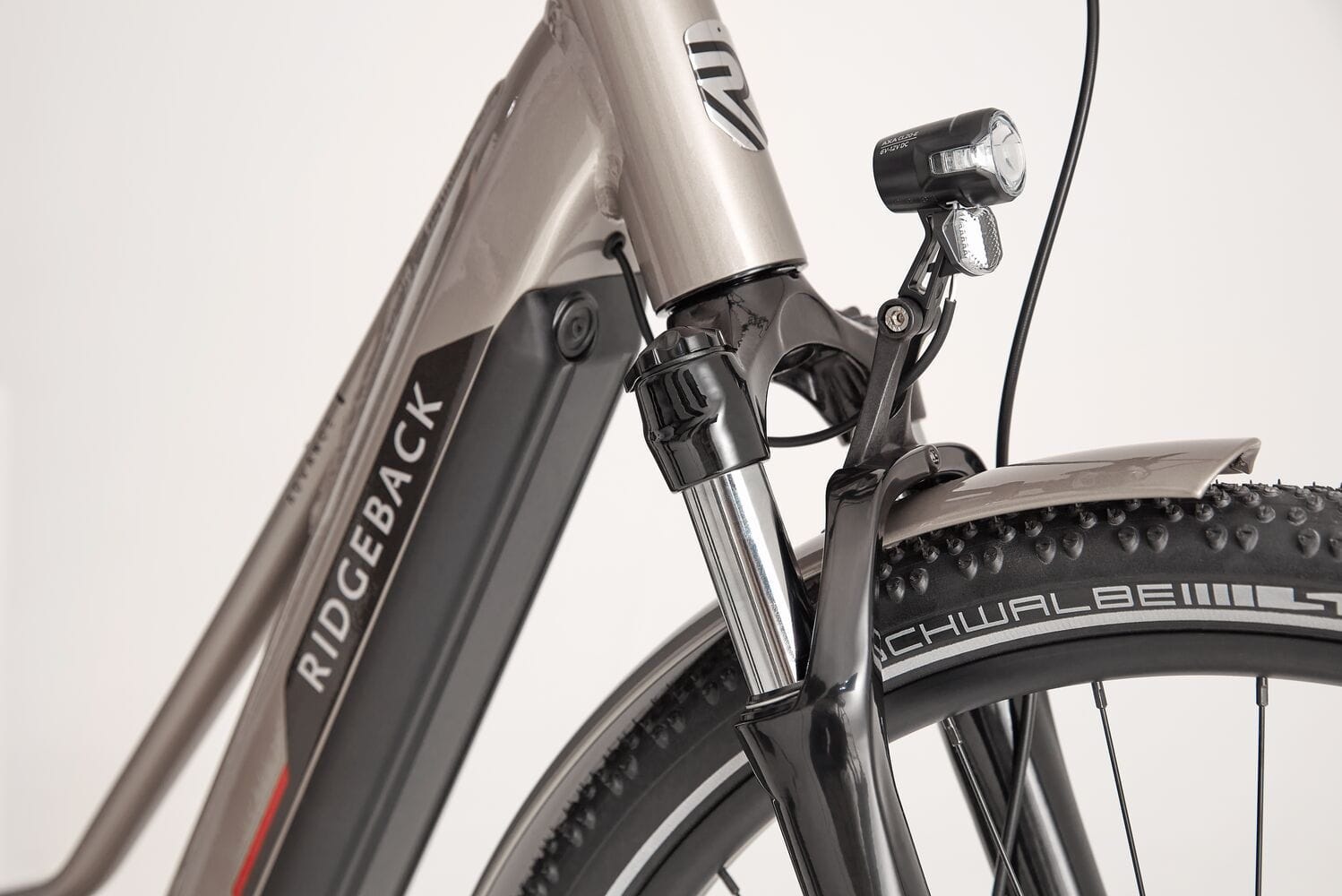

- Comfort is handled by the RST Volant suspension fork combined with 50mm wide Schwalbe G-One tyres, soaking up those bumps and providing extra grip when things get slippery.

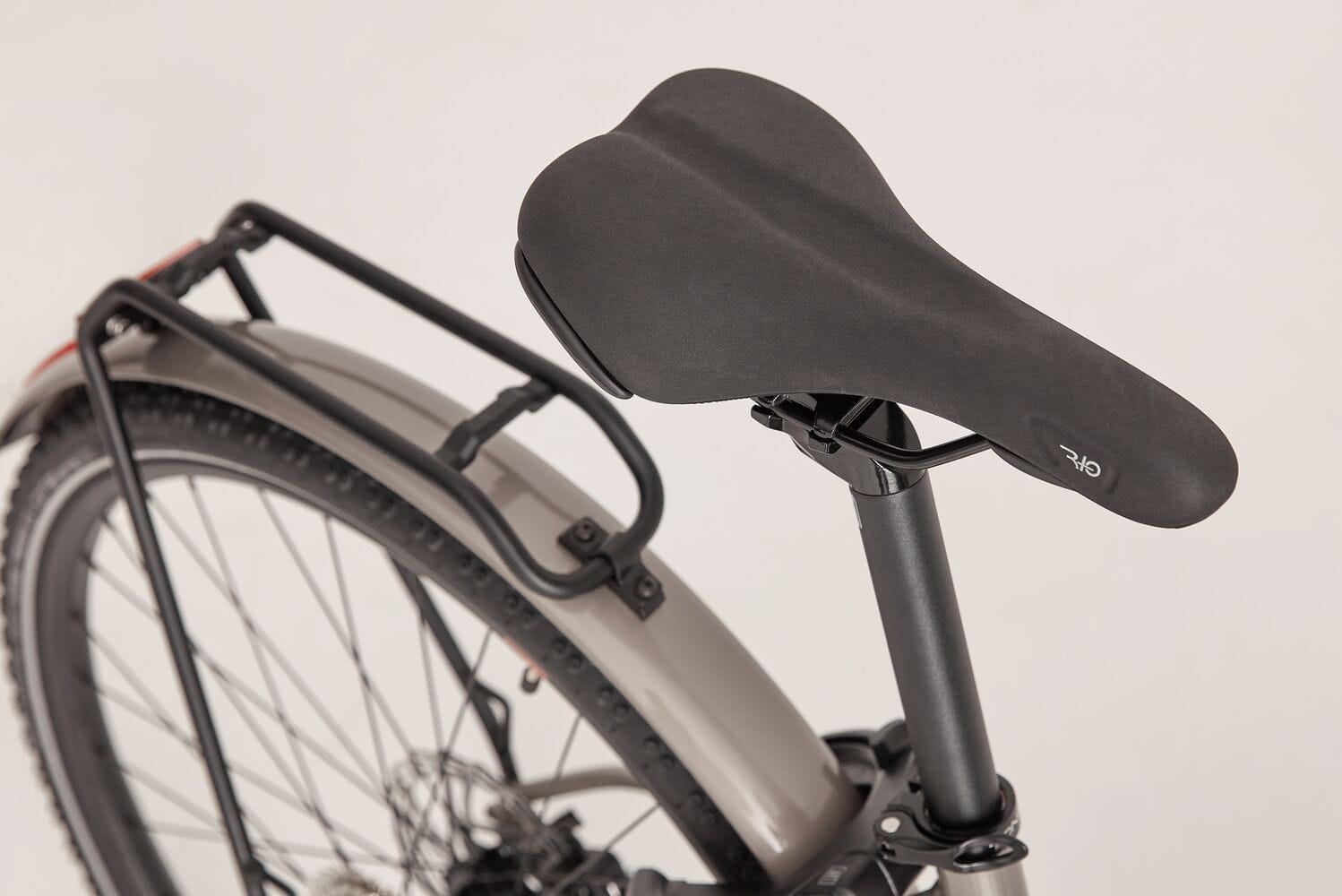

- The Advance 1W is ready for your adventure with fully integrated lights powered by the STEPS system, bespoke full metal mudguards and a pannier rack featuring the brilliant AtranVelo rack system.

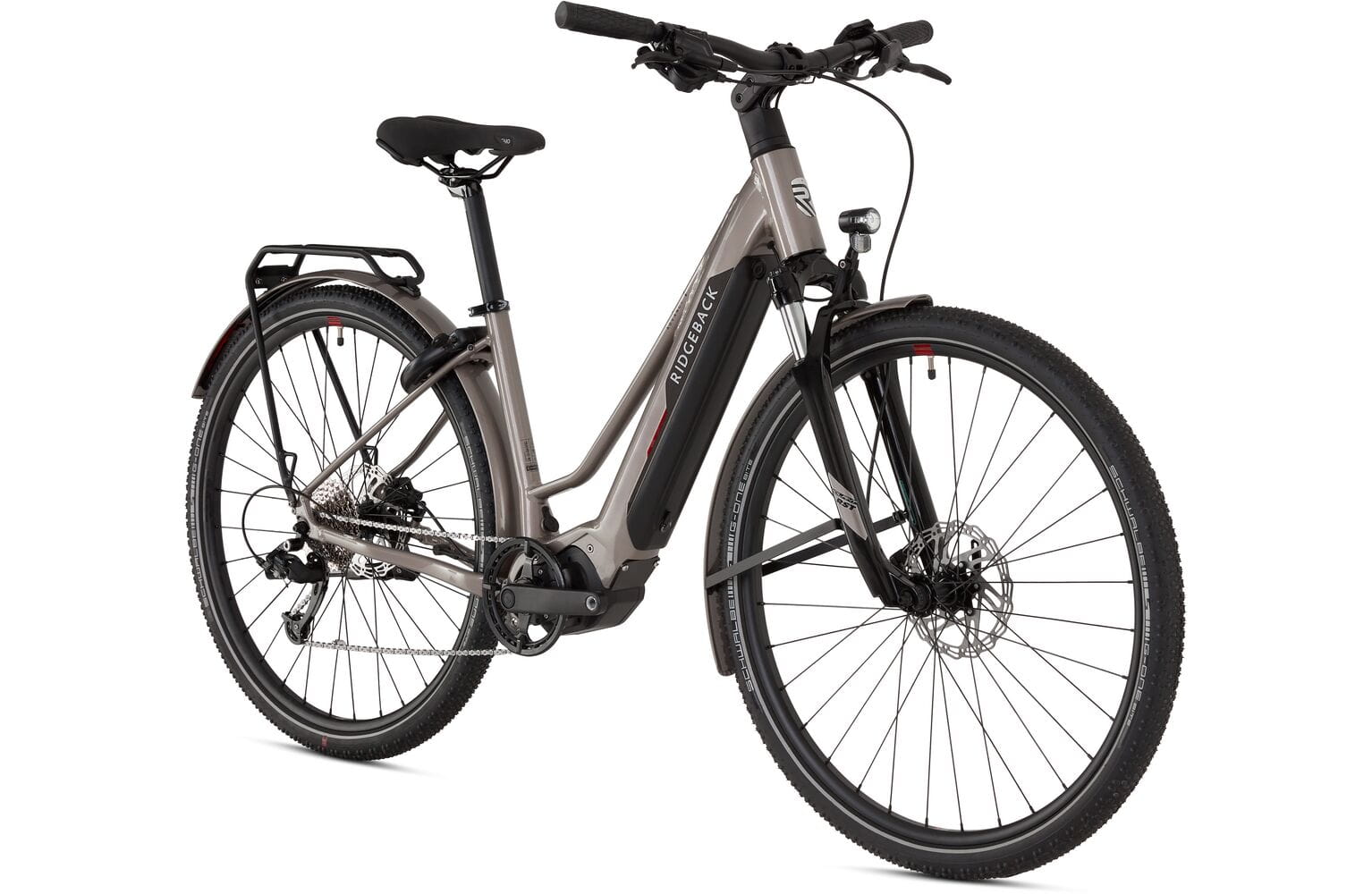

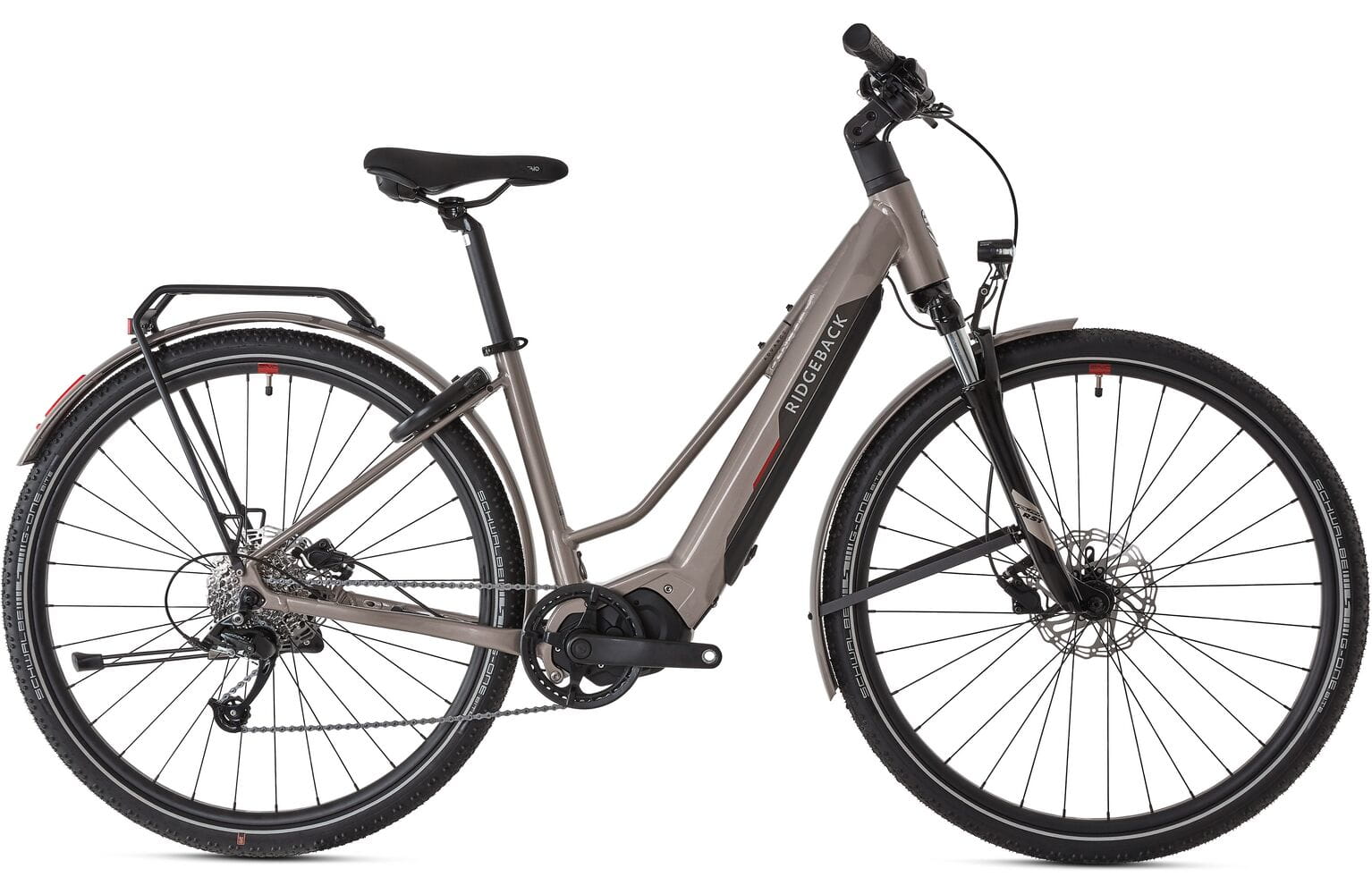

Ridgeback Advance 1W
SKU
VARRB22127
Battery Type :
DARFON INTERNAL 504wh
Brake Levers :
Alhonga AHJ-OD5
Brakes :
Alhonga AHJ-OD5
Cassette Freewheel :
microSHIFT CS-H092 11-36 9-Speed
Chain :
KMC X9EPT
Chain Set :
Shimano CRE50 38T 170mm
Charger :
DARFON 2AH Smartcharger
Grip Tape :
Ridgeback
Handlebars :
Alloy 680 x 20mm 15 degree Backsweep
Headset :
ACROS AZX-585 ZS56/ZS56
Hubs :
KT TC7 32h
Motor :
Shimano STEPS DU-E5000 250w 40Nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RD-M36L 9-Speed
Rims :
STARS J26S 32h
Seat Post :
Alloy 30.9x350mm
Shifters :
microSHIFT Mezzo TS39 9-Speed
Spokes :
Steel 14 g
Stem :
Integrated Adjustable Ahead
Tyres :
Schwalbe G-One Bite 700x50c
Wheel Size :
700c
Battery Integration :
Internal
Fork :
RST Volant PLS-TNL 60mm
Fork Material :
Alloy
Frame Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Brake Type :
Hydraulic Disc
160
162
164
166
168
170
172
174
176
178
180
182
184
186
SMALL / MEDIUM - 160 to 175
MEDIUM / LARGE - 175 to 185
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 475 | 466 |
| Frame Seat Tube | 457 | 420 |
| Frame Top Tube | 595 | 585 |
| Frame Reach | 410 | 401 |
| Frame Stack | 620 | 620 |
| Frame Head Tube | 140 | 140 |
| Frame Head Angle | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.3° |
| Frame Chainstay | 450 | 450 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1131 | 1123 |
| Fork Offset | 44 | 44 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 475 | 466 |
| Frame Seat Tube | 457 | 420 |
| Frame Top Tube | 595 | 585 |
| Frame Reach | 410 | 401 |
| Frame Stack | 620 | 620 |
| Frame Head Tube | 140 | 140 |
| Frame Head Angle | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.3° |
| Frame Chainstay | 450 | 450 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1131 | 1123 |
| Fork Offset | 44 | 44 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
