- Advance by name advanced by nature.
- With advanced geometry and a 12mm bolt thru rear axle our Ridgeback Advance 3W has everything you need to explore your local roads, trails, towpaths or wherever your curiosity takes you.
- The Advance 3W demonstrates an open frame design for easier mounting and dismounting.

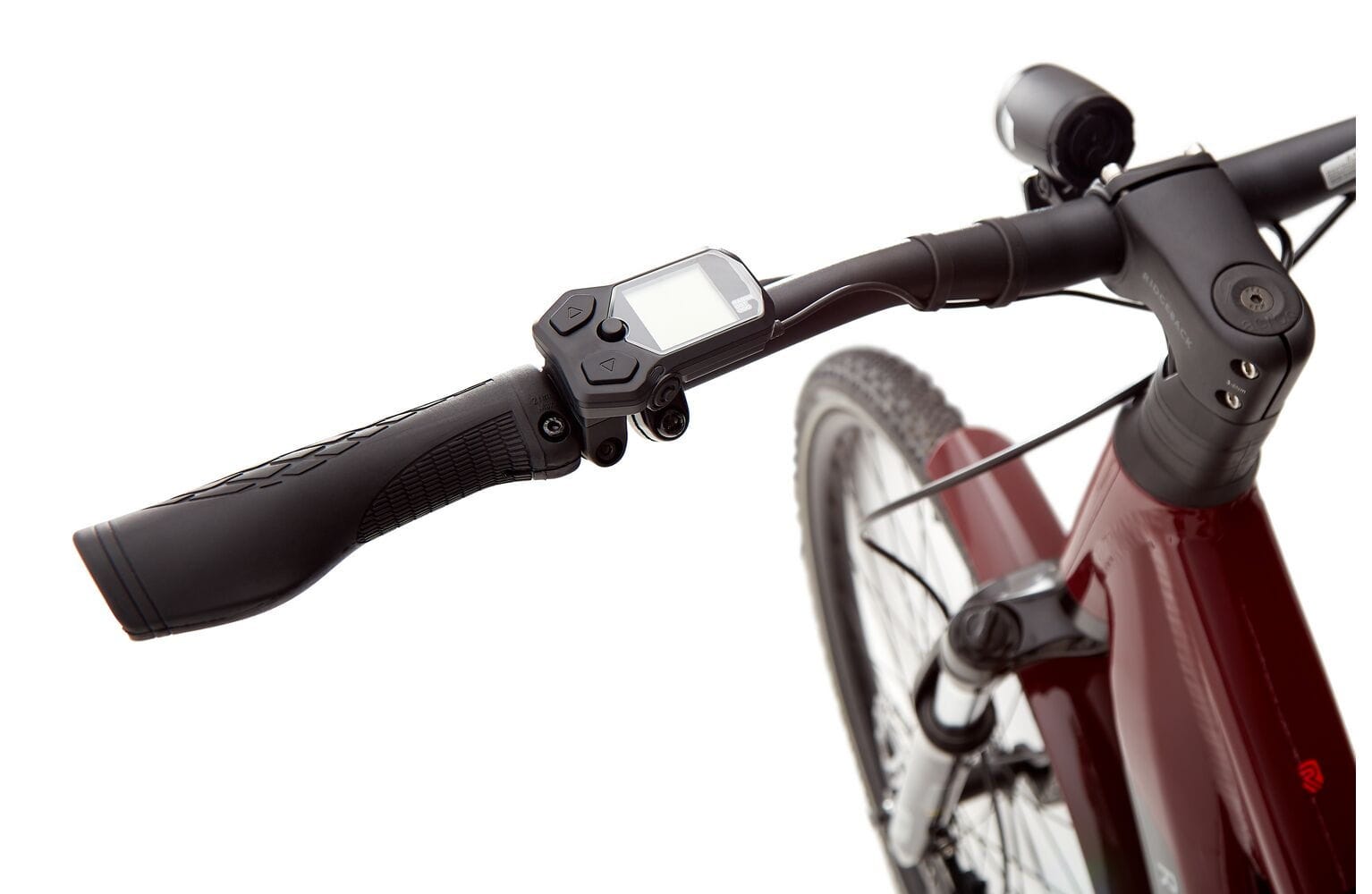

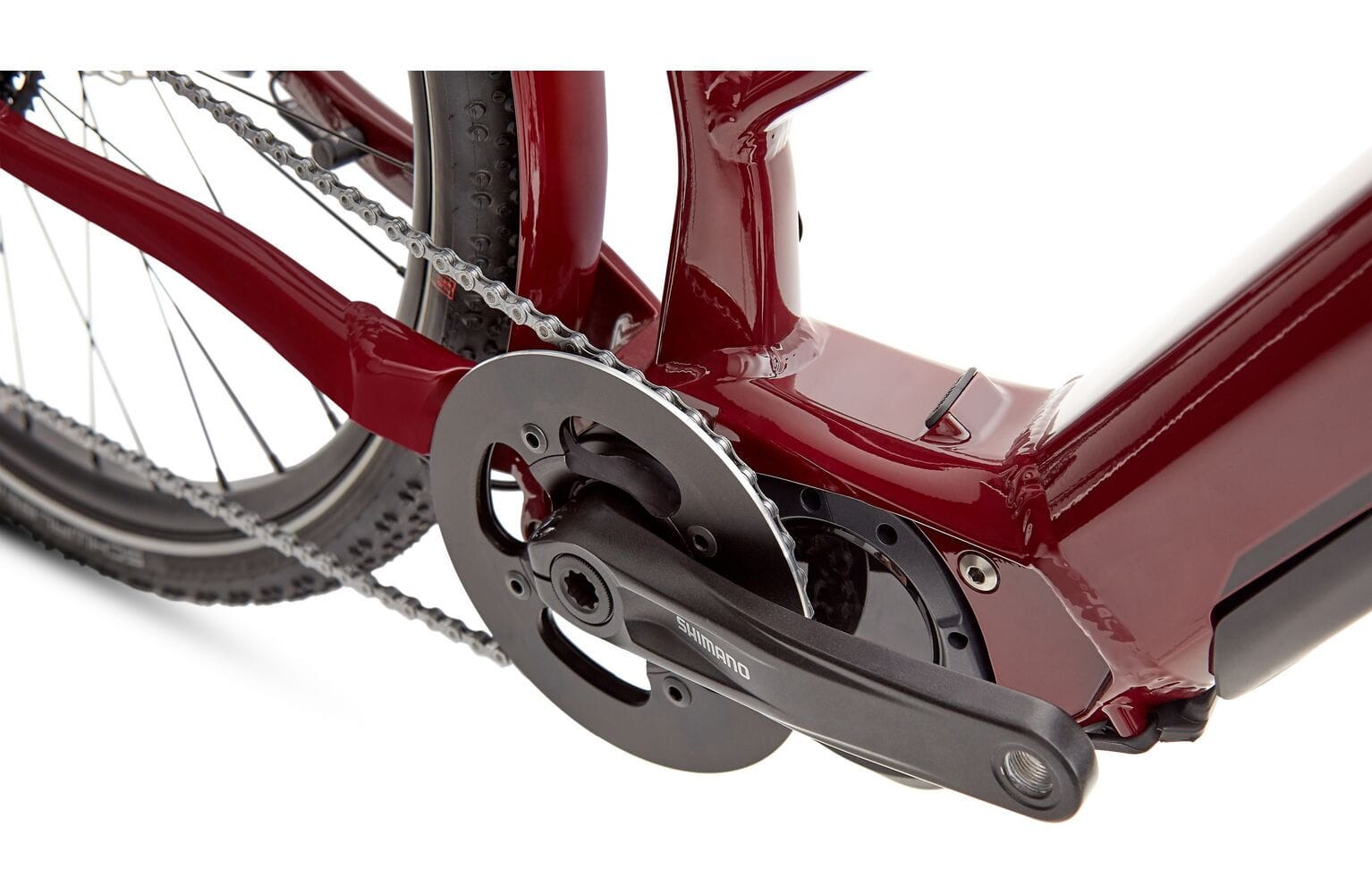

- Taking advantage of the powerful Shimano STEPS E6100 pedal assist drive unit to power over the most daunting of climbs, matched with the easy-to-use STEPS E5000 combined display and switch for simple and elegant control.
- A beautifully hidden yet powerful 504Wh battery will keep you going for up to 205km giving you the chance to really head out on your adventure.

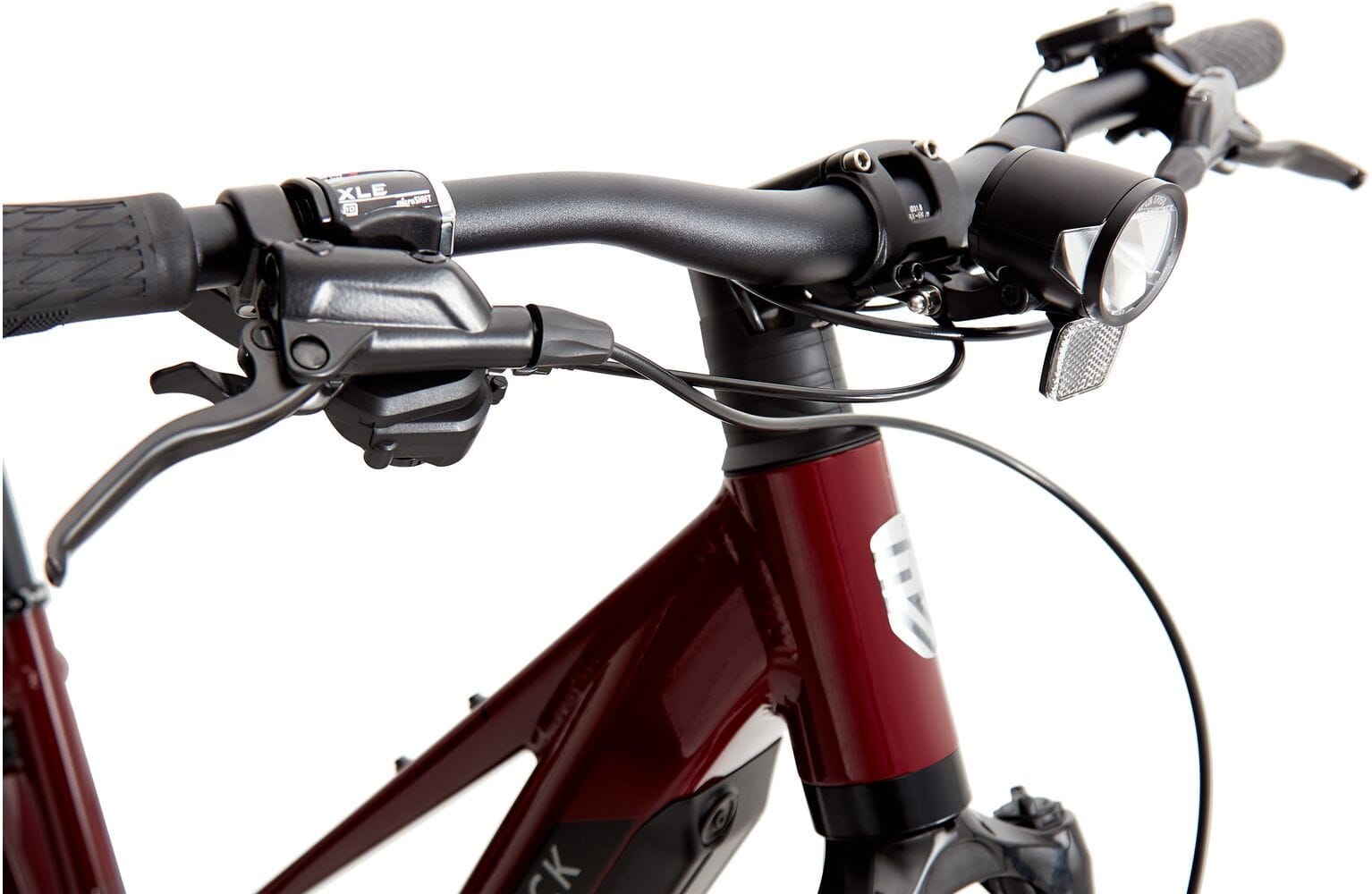

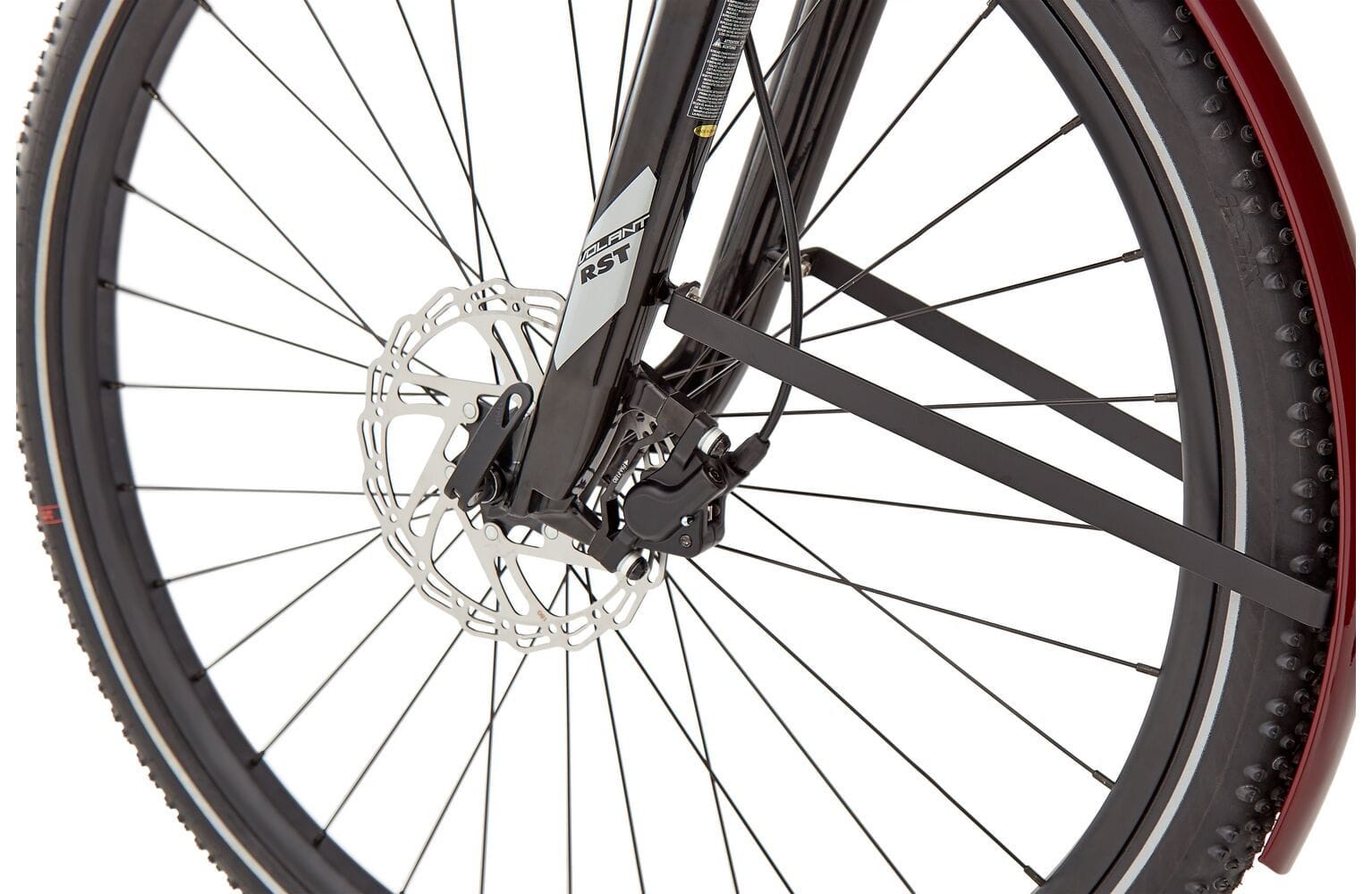

- microSHIFT 10 speed gearing provides the right gear for any situation, and powerful hydraulic disc brakes produce plenty of stopping power.

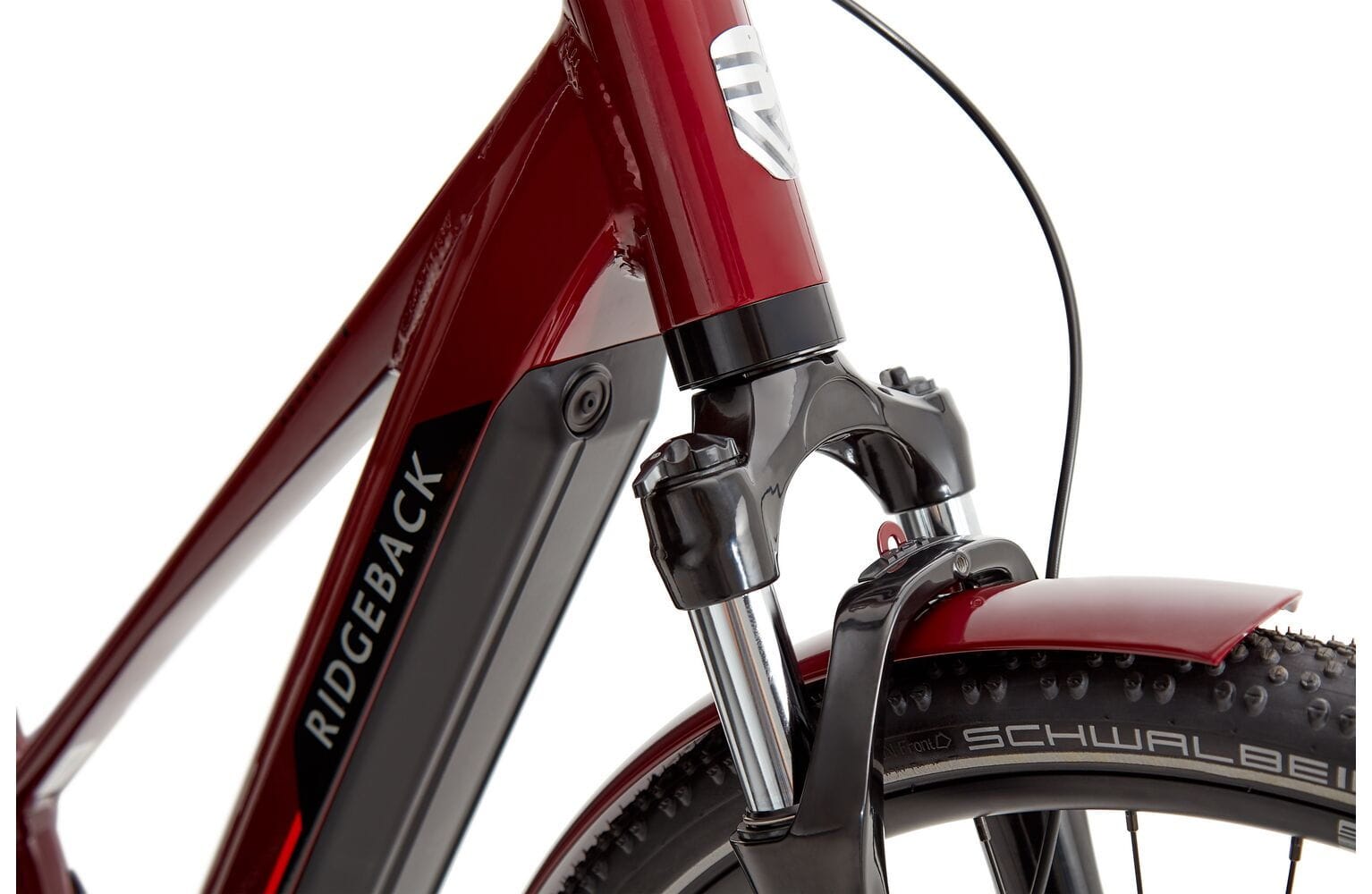

- Comfort is handled by the RST Volant suspension fork combined with 50mm wide Schwalbe G-One tyres, soaking up those bumps and providing extra grip when things get slippery.

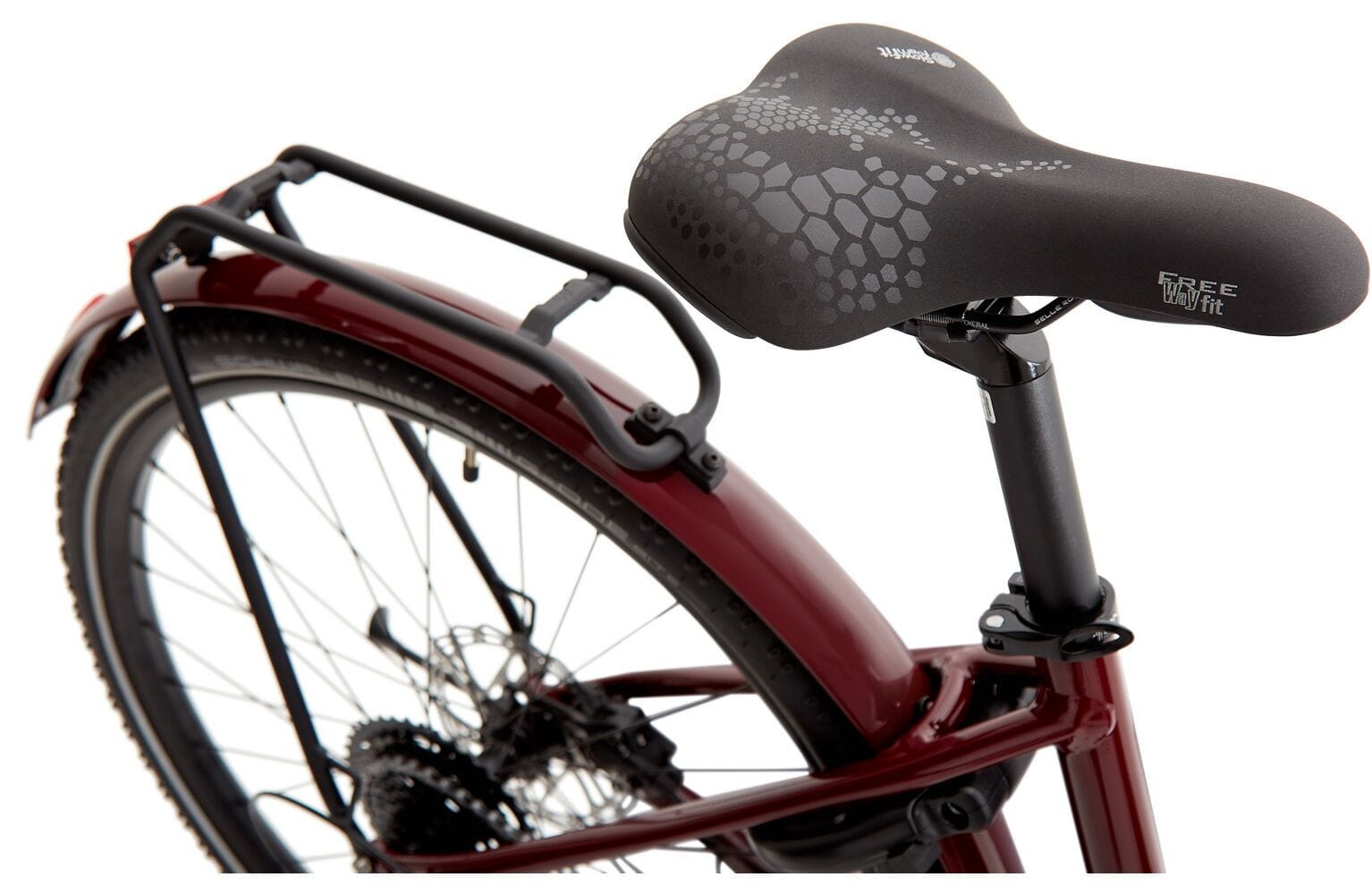

- The Advance 3W is ready for your adventure with fully integrated lights powered by the STEPS system, bespoke full metal mudguards and a pannier rack featuring the brilliant AtranVelo rack system.

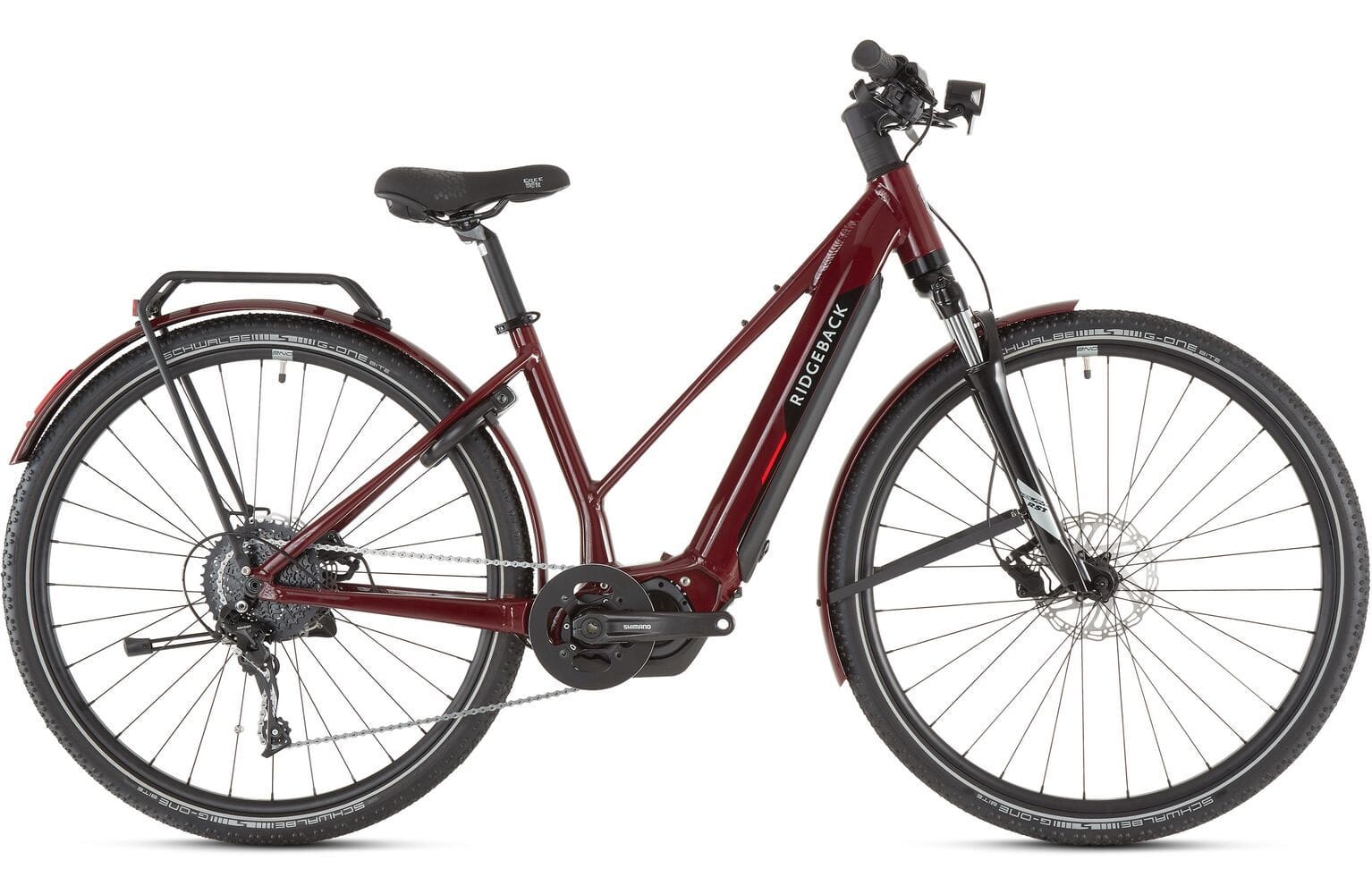

Ridgeback Advance 3W
SKU
VARRB22131
Brake Type :
Hydraulic Disc
Frame Material :
Alloy
Battery Type :
DARFON INTERNAL 504wh
Brake Levers :
Alhonga AHJ-OD5
Brakes :
Alhonga AHJ-OD5
Cassette Freewheel :
microSHIFT CS-H100 11-36 10-Speed
Chain :
KMC X10EPT
Chain Set :
Shimano FC-E6100 38T 170mm
Charger :
DARFON 2AH Smartcharger
Grip Tape :
Ridgeback
Handlebars :
Alloy 680 x 20mm 15 degree Backsweep
Headset :
ACROS AZX-585 ZS56/ZS56
Hubs :
KT TC7 32h
Motor :
Shimano STEPS DU-E6100 250w 60Nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT XLE10 RD-M62L 10-Speed
Rims :
STARS J26S 32h
Seat Post :
Alloy 30.9x350mm
Shifters :
microSHIFT XLE10 SL-M760 10-Speed
Spokes :
Steel 14 g
Stem :
Integrated Adjustable Ahead
Tyres :
Schwalbe G-One Bite 700x50c
Wheel Size :
700c
Battery Integration :
Internal
Fork :
RST Volant PLS-TNL 60mm
Fork Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
160
162
164
166
168
170
172
174
176
178
180
182
184
186
SMALL / MEDIUM - 160 to 175
MEDIUM / LARGE - 175 to 185
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 481 | 466 |
| Frame Seat Tube | 457 | 420 |
| Frame Top Tube | 595 | 580 |
| Frame Reach | 416 | 401 |
| Frame Stack | 604 | 604 |
| Frame Head Tube | 120 | 120 |
| Frame Head Angle | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.5° |
| Frame Chainstay | 450 | 450 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1131 | 1117 |
| Fork Offset | 44 | 44 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
| Frame Size | MEDIUM / LARGE | SMALL / MEDIUM |
|---|---|---|
| Stem Length plus Reach | 481 | 466 |
| Frame Seat Tube | 457 | 420 |
| Frame Top Tube | 595 | 580 |
| Frame Reach | 416 | 401 |
| Frame Stack | 604 | 604 |
| Frame Head Tube | 120 | 120 |
| Frame Head Angle | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.5° |
| Frame Chainstay | 450 | 450 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1131 | 1117 |
| Fork Offset | 44 | 44 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
