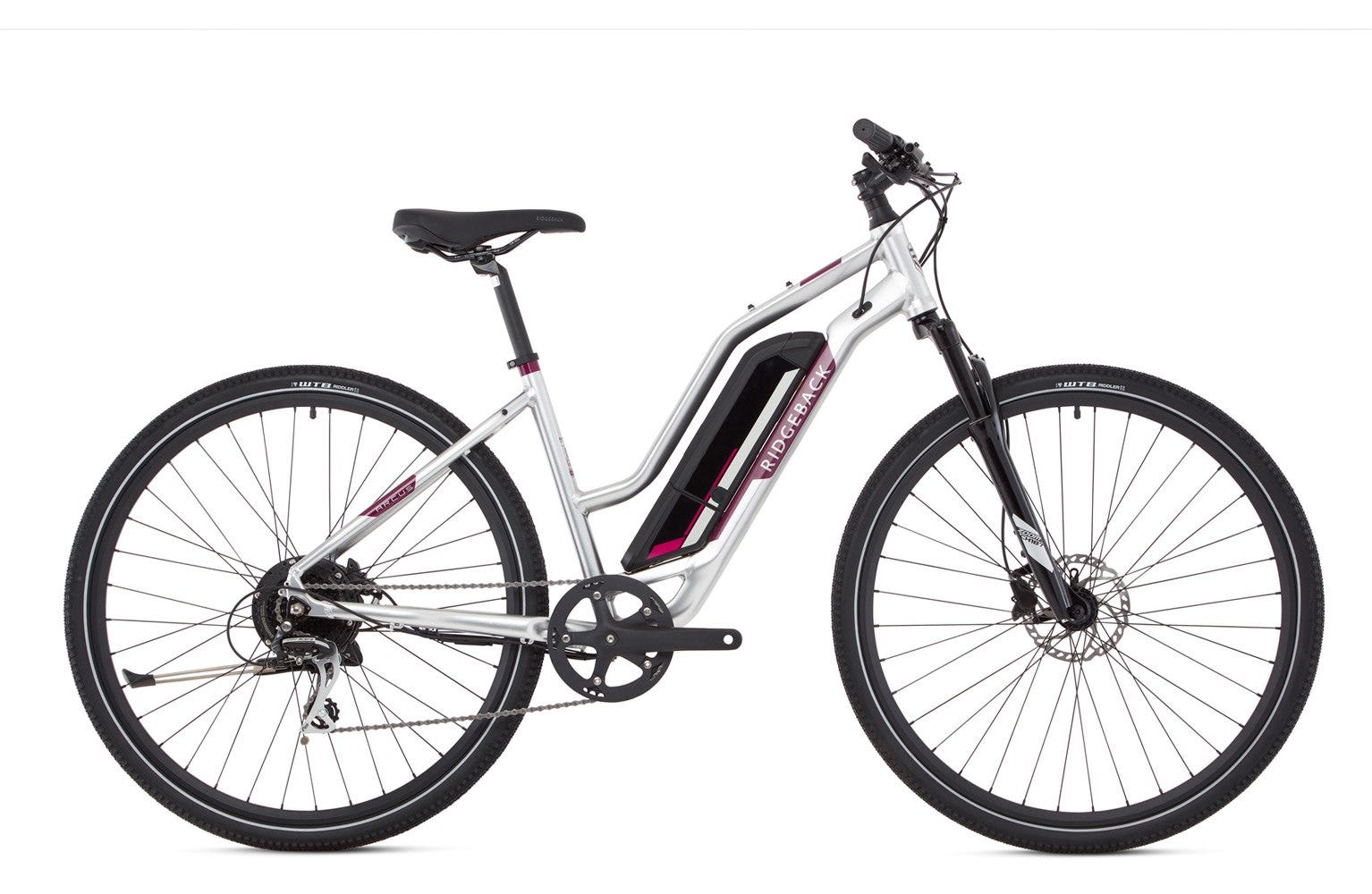

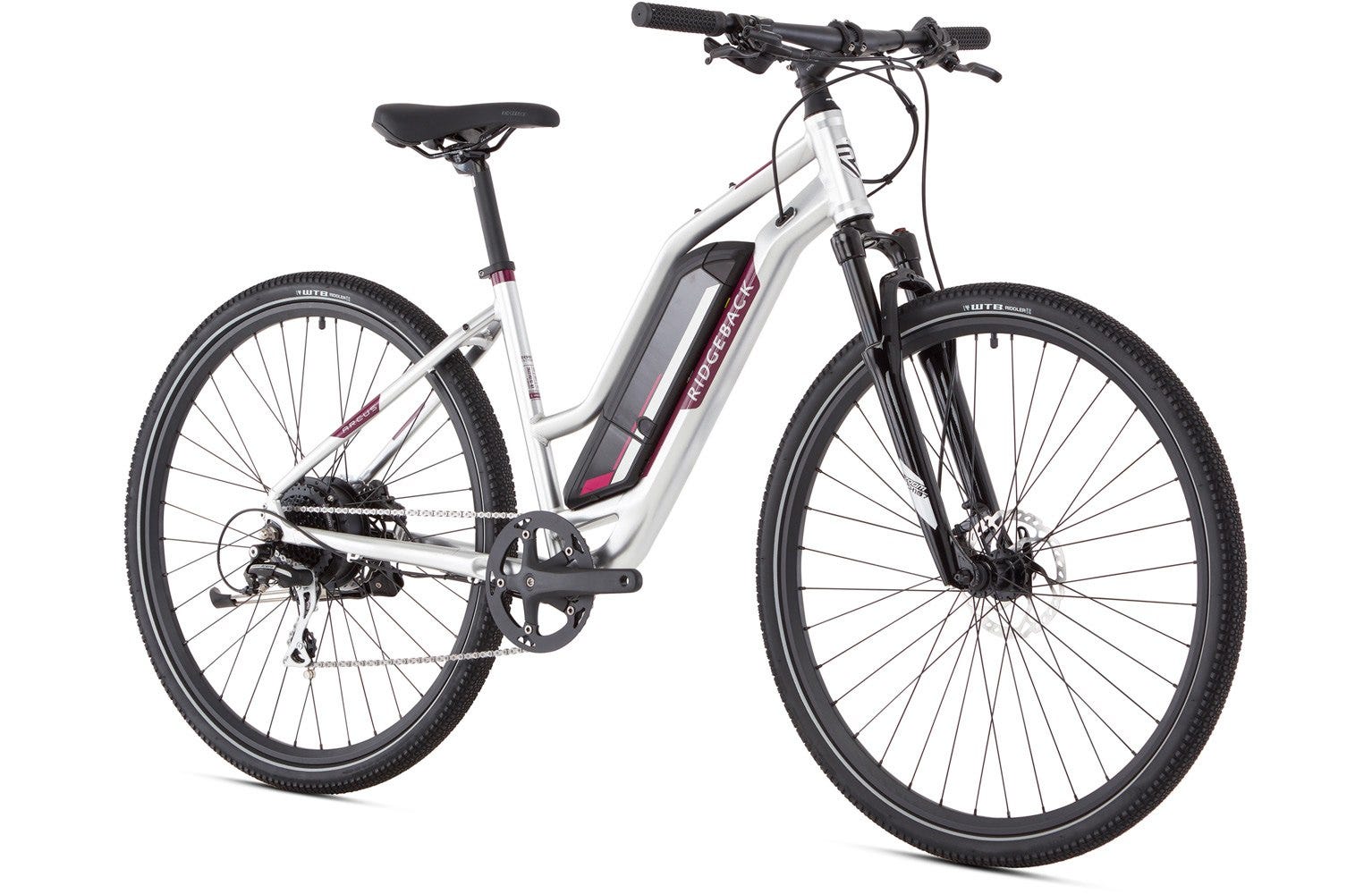

- The Ridgeback Arcus 1 is an affordable and rugged E-bike, built for a comfortable ride on road and gravel.
The Sportdrive M155 motor offers 250 watts of pedal assist and up to 40nm of torque, all the way up to 25km/h making climbs disappear and maintaining momentum on flatter roads.

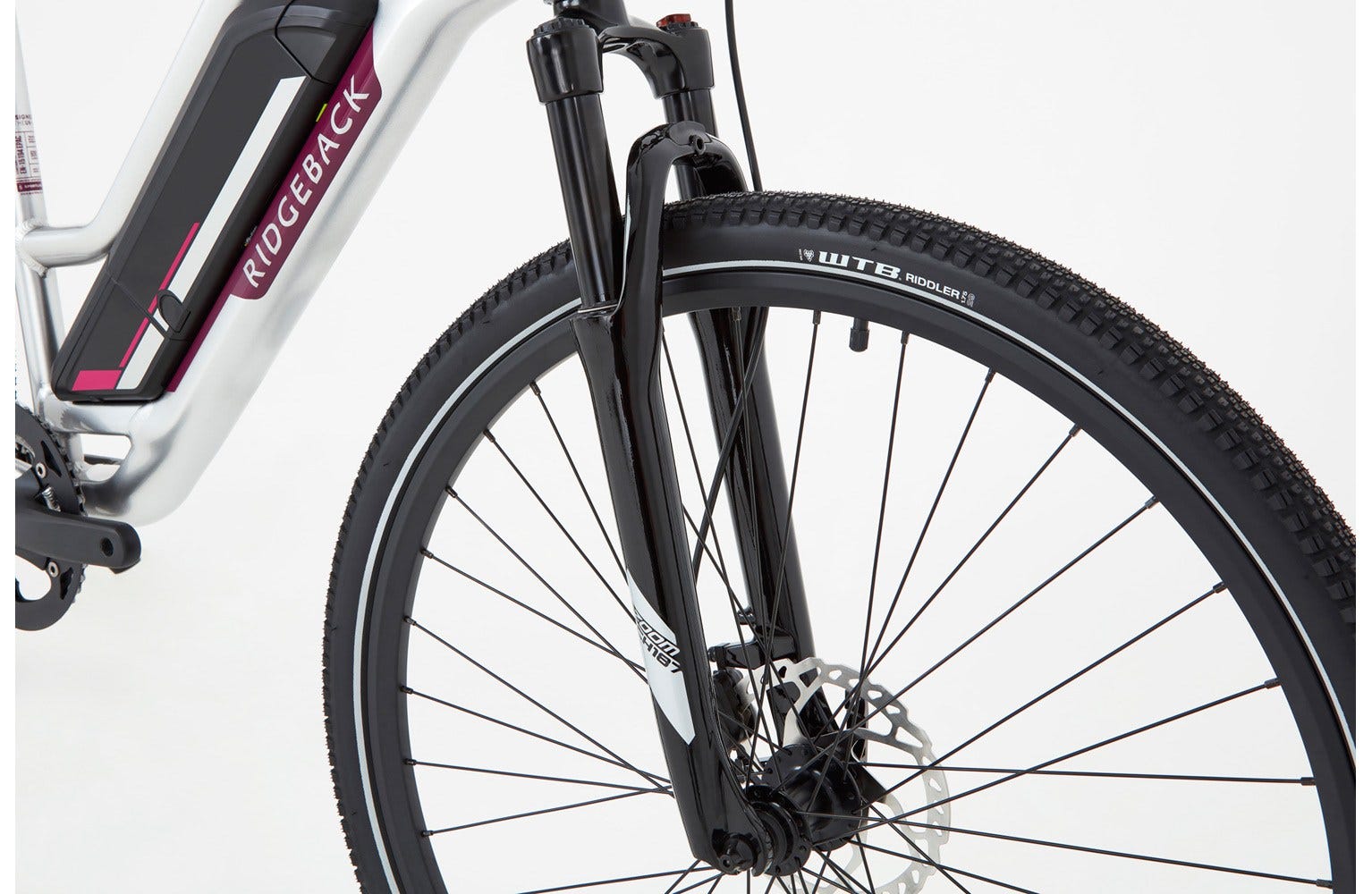

A suspension fork with 63mm of travel is paired with wide 45mm tyres to provide comfort over rough roads, and the capability to head off the beaten track on towpaths and gravel tracks.
Hydraulic disc brakes keep everything under control in this great value package.
Ridgeback Arcus 1 Open Frame
SKU
VARRB21920

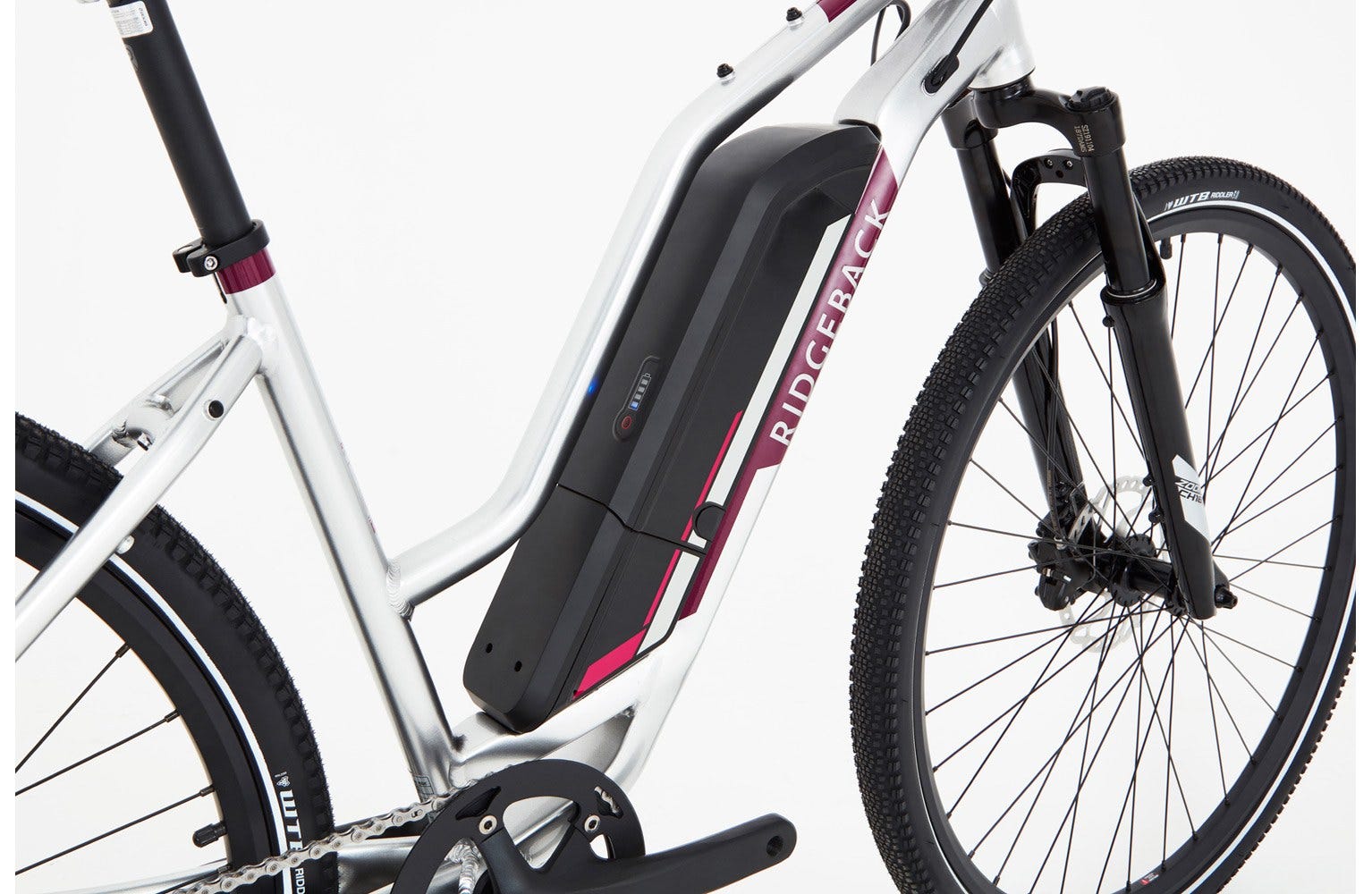

Battery Type :
Sportdrive 313wh
Brakes :
Alhonga AHJ-OD05 Hydraulic Disc Brake
Cassette Freewheel :
microSHIFT Mezzo CSH082 11-34T 8 Speed
Chain :
KMC X8E
Chain Set :
Sportdrive 42T / 170 mm
Charger :
Sportdrive 2AH
Grip Tape :
Ridgeback
Headset :
FSA HS NO.10 1-1/8 inch
Hubs :
KT-TC7F / Sportdrive M155

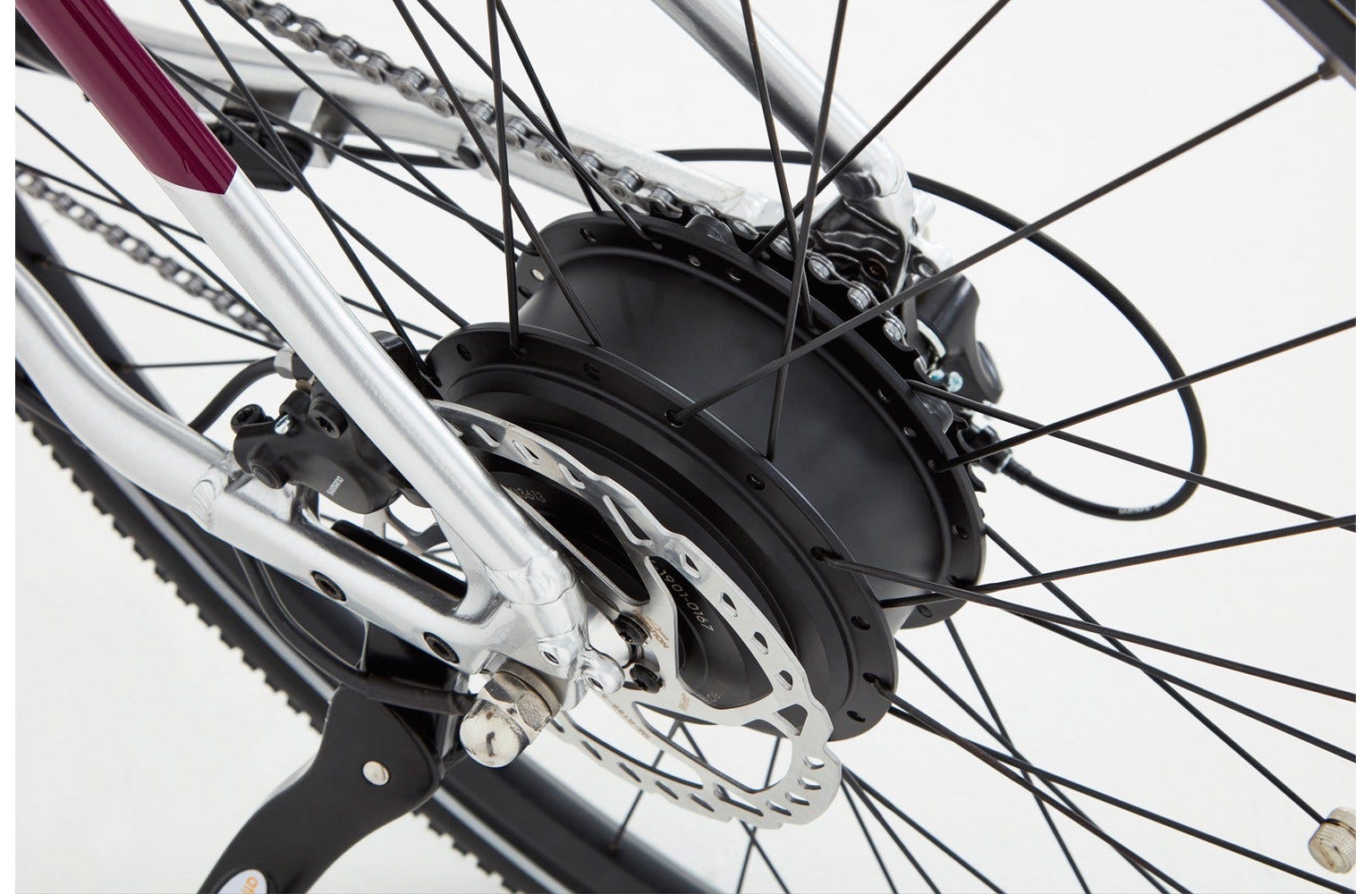

Motor :
Sportdrive M155 250W 40Nm
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RDM36L 8 Speed
Rims :
Alloy J19SZ

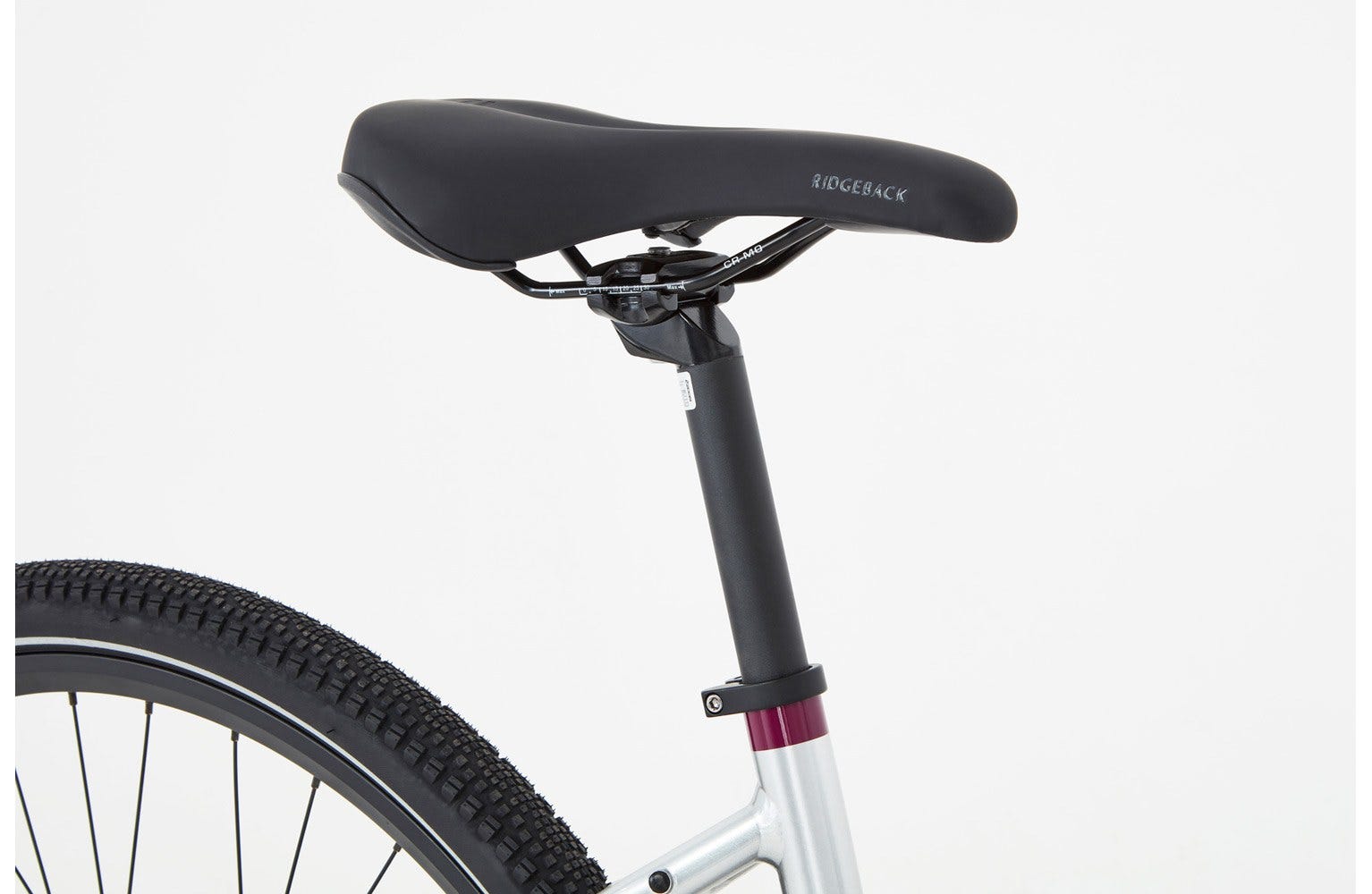

Seat Post :
Alloy 27.2 x 350 mm
Shifters :
microSHIFT Mezzo TS39-8R 8 Speed
Spokes :
Steel 14 g
Stem :
Alloy 65 mm +9deg

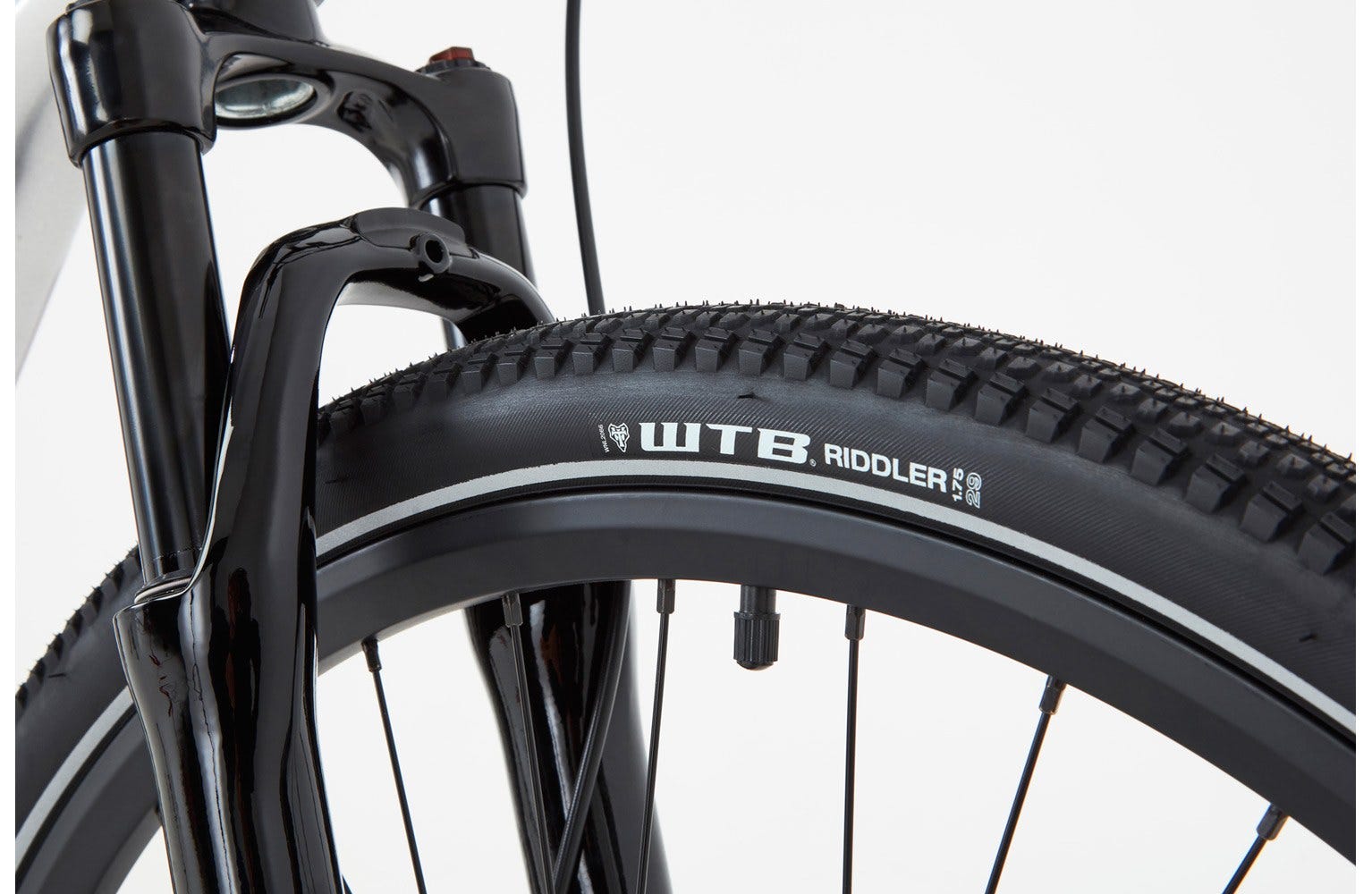

Tyres :
WTB Riddler 700 x 45c Reflex
Wheel Size :
700c
Battery Integration :
External
Fork :
RST Volant 63mm Travel
Fork Material :
Alloy
Frame Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Brake Type :
Hydraulic Disc
160
162
164
166
168
170
172
174
176
178
180
SMALL - 160 to 170
MEDIUM - 170 to 180
| Frame Size | SMALL | MEDIUM |
|---|---|---|
| Stem Length plus Reach | 473 | 475 |
| Frame Seat Tube | 431 | 483 |
| Frame Top Tube | 580 | 600 |
| Frame Reach | 408 | 410 |
| Frame Stack | 599 | 617 |
| Frame Head Tube | 140 | 160 |
| Frame Head Angle | 69° | 69° |
| Frame Seat Angle | 74° | 73° |
| Frame Chainstay | 455 | 455 |
| Frame BB Drop | 55 | 55 |
| Frame Wheel Base | 1117 | 1127 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
