- Meet the Arcus 3, our premium SportDrive equipped E-bike.
- A true do it all bike that's at home on woodland trails as well as on the morning commute.

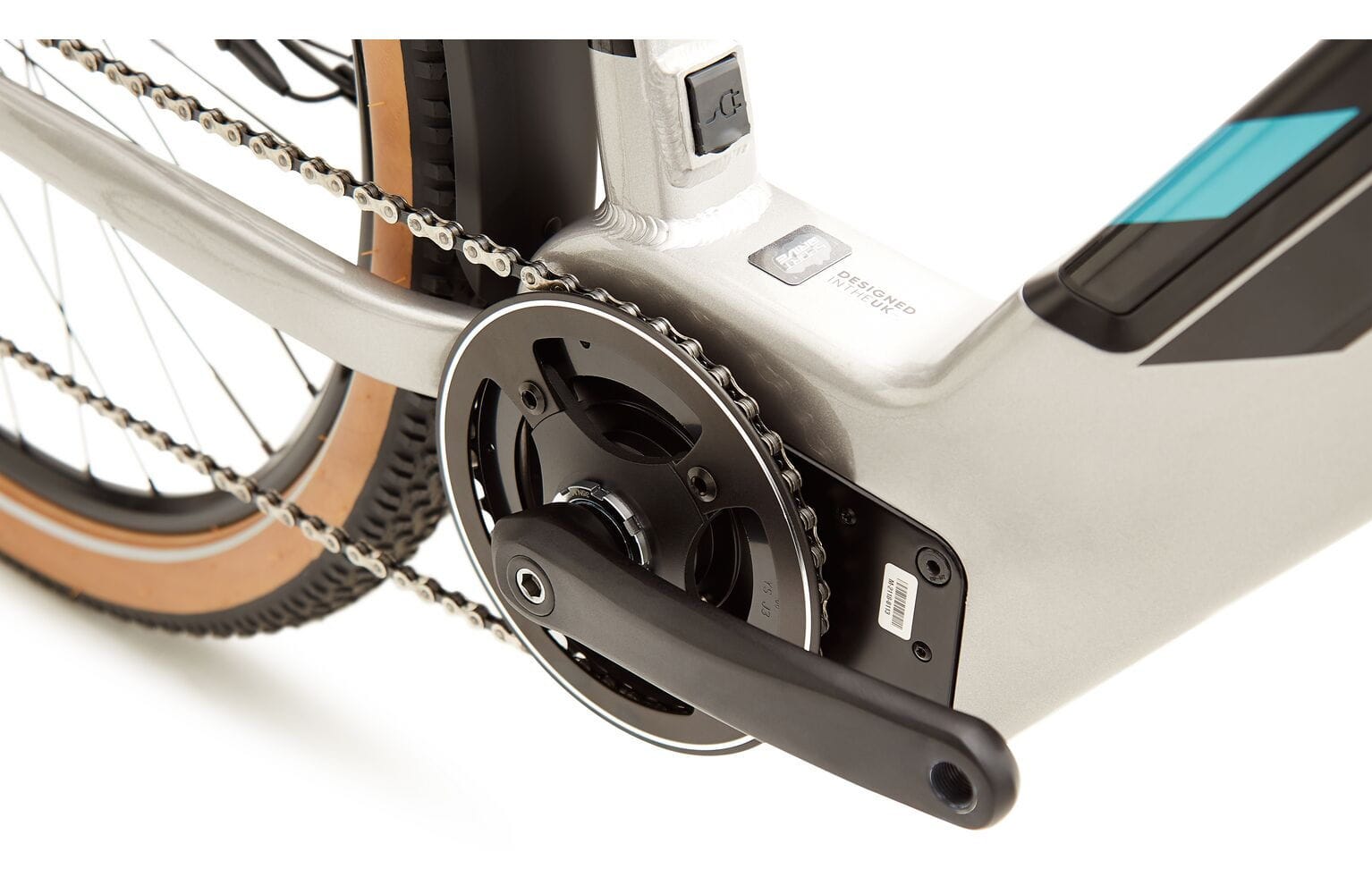

- Hills? What hills? With the SportDrive MDS250S drive unit boasting 95Nm of torque you will never have to worry about another climb again.
- The Arcus 3 can be tuned to exactly how you want to ride it whether that be increased torque for pulling away from traffic lights or a gentler start for a more leisurely ride with increased range.
- With a 500Wh internally mounted battery you can enjoy up to 100km of assisted pedalling, plenty of range for a weekend of exploring.

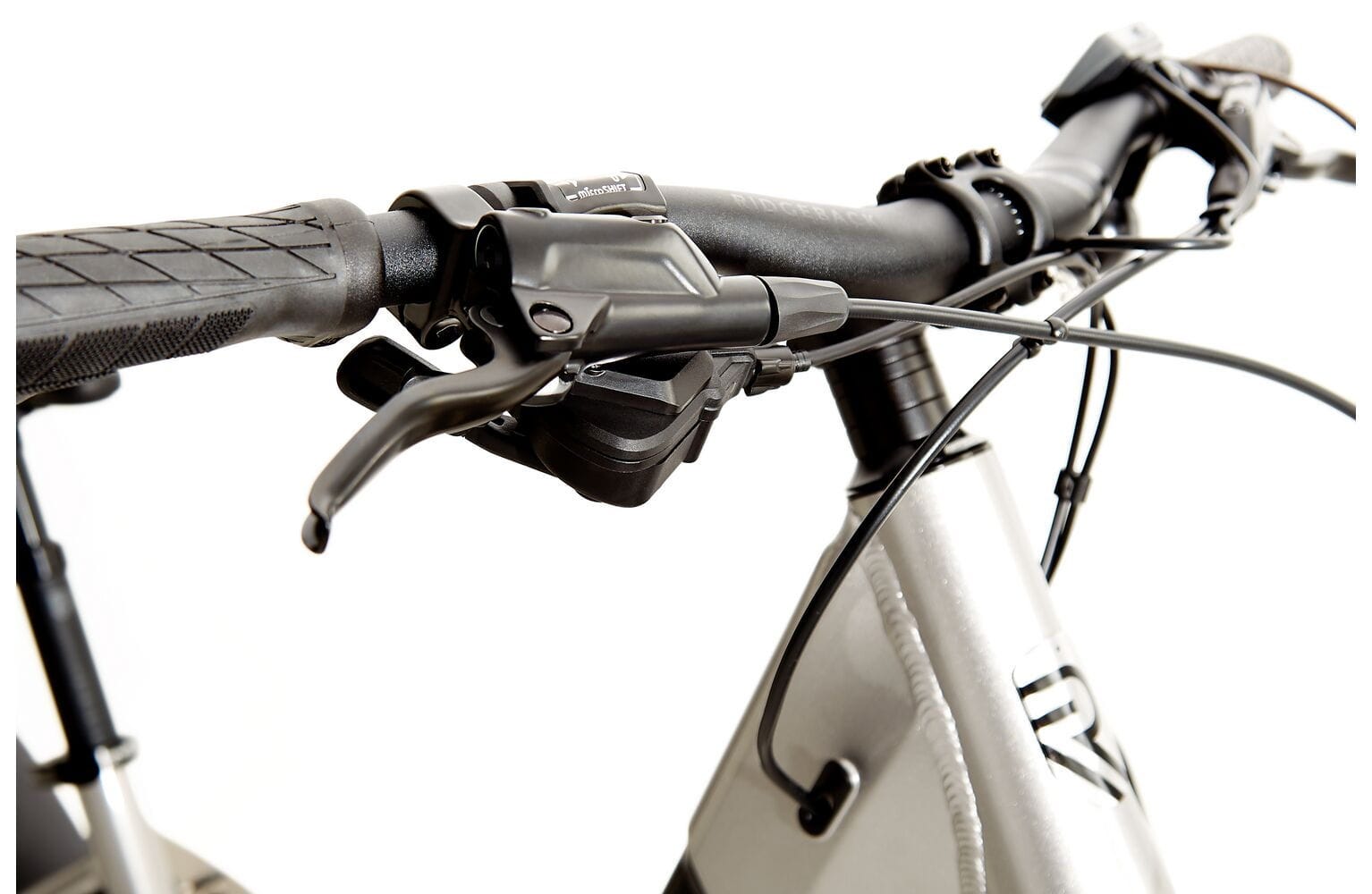

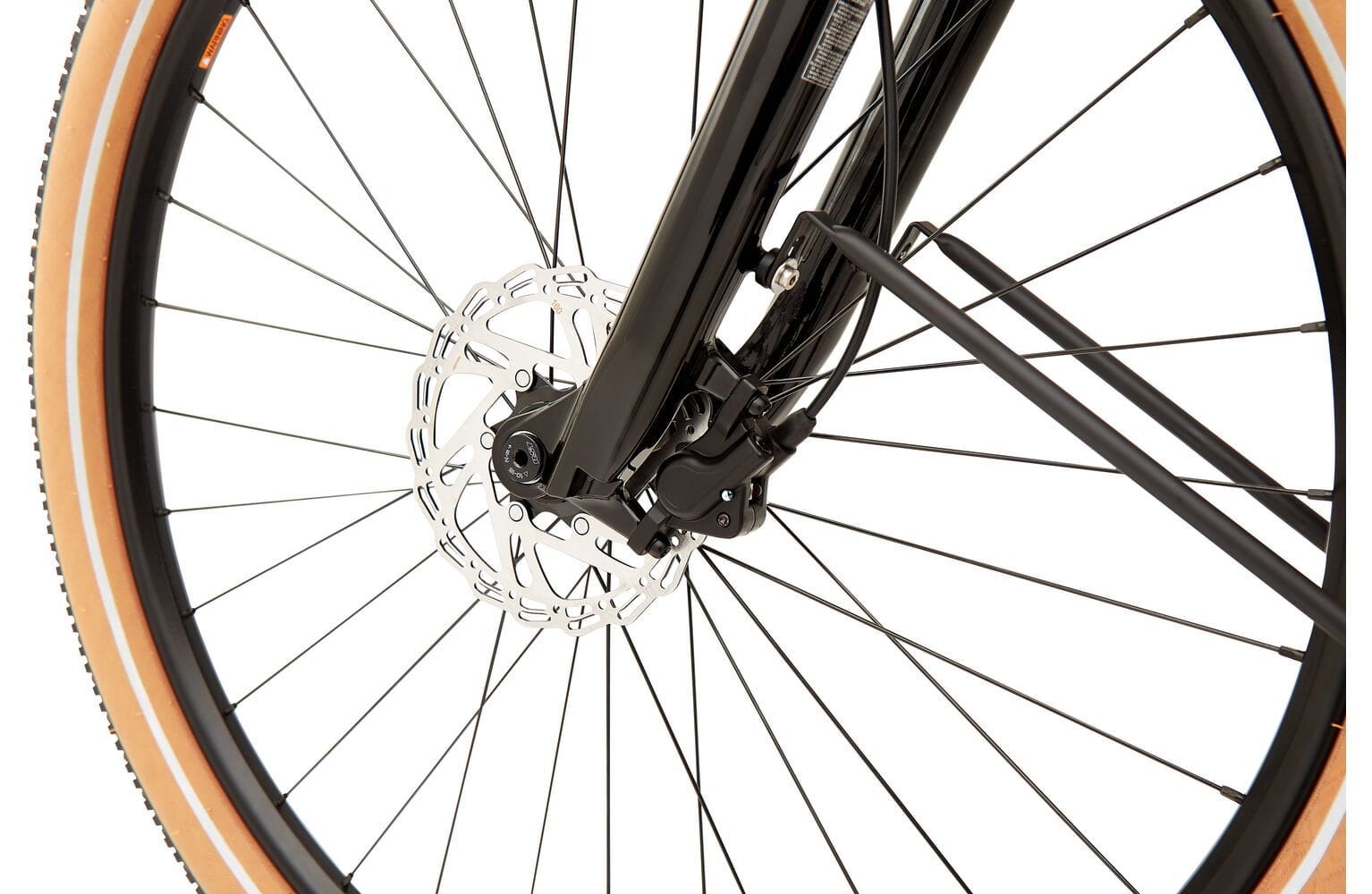

- The Arcus 3 comes fully equipped with a microSHIFT Mezzo 9–speed drivetrain and powerful hydraulic disc brakes.

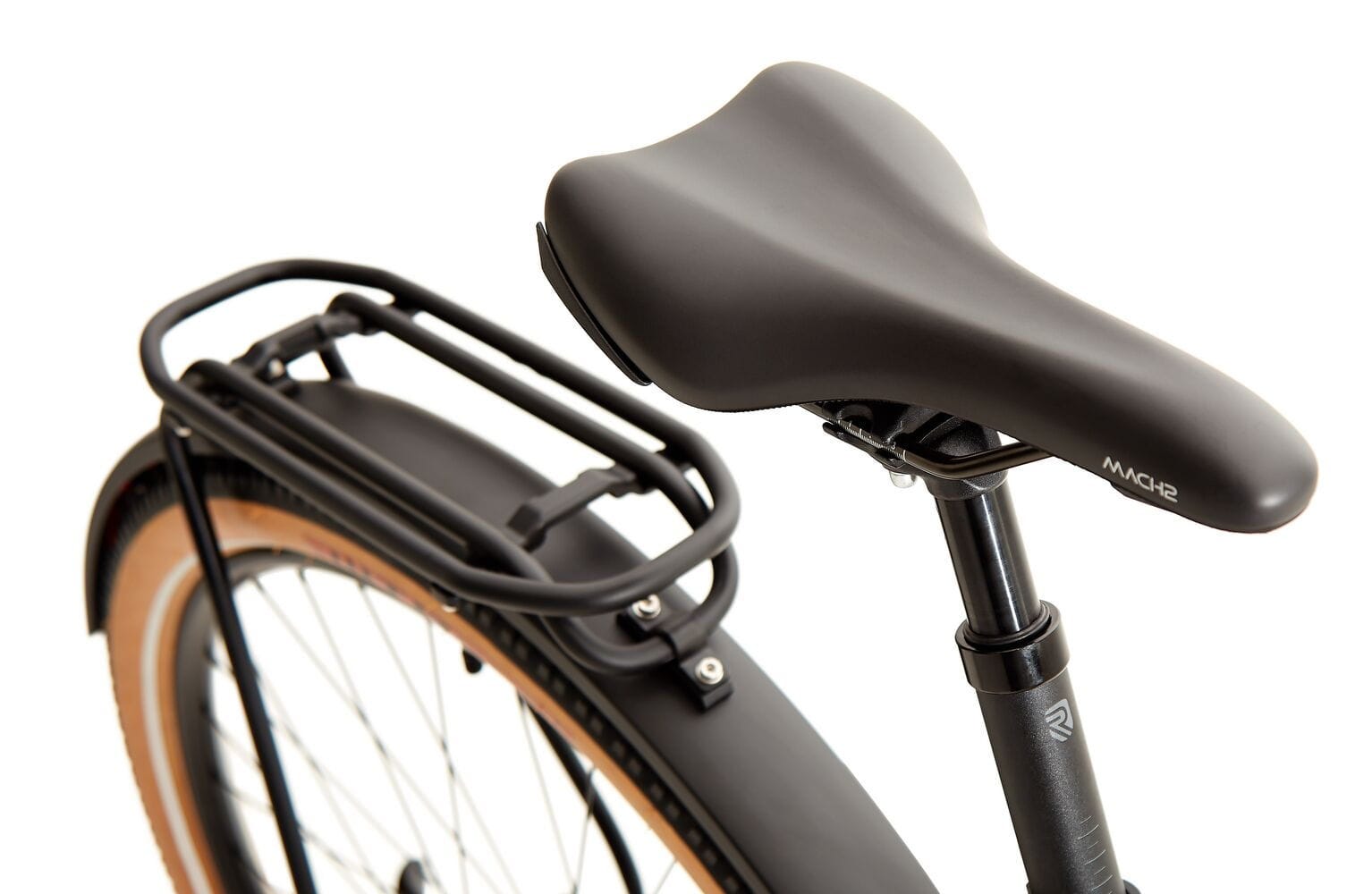

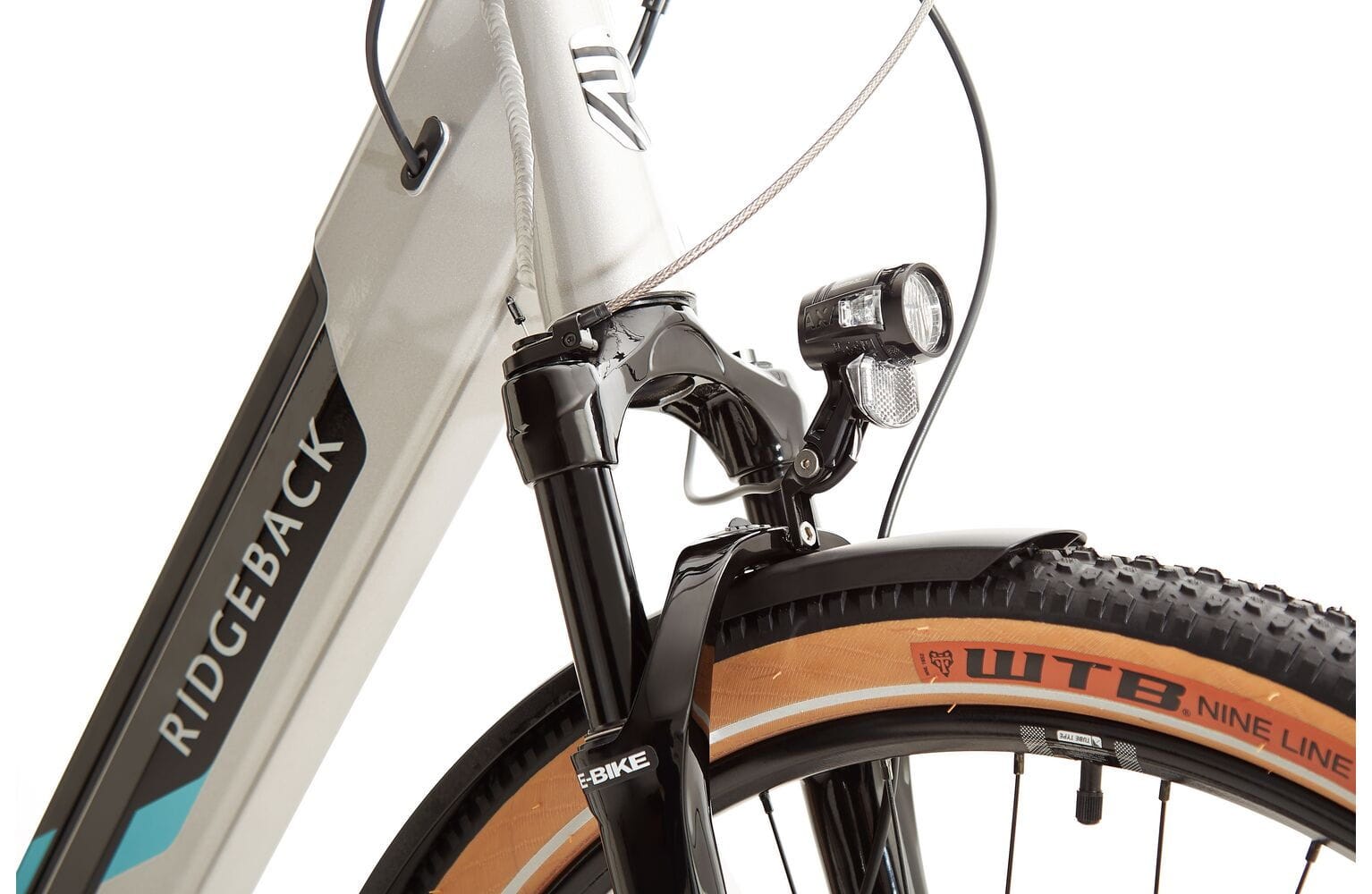

- The RST Air sprung suspension forks with remote lock out give you the adaptability to handle any terrain in comfort whilst bespoke alloy mudguards, AXA Blue line lights and the excellent AtranVelo rear rack system complete the build making a truly versatile package.

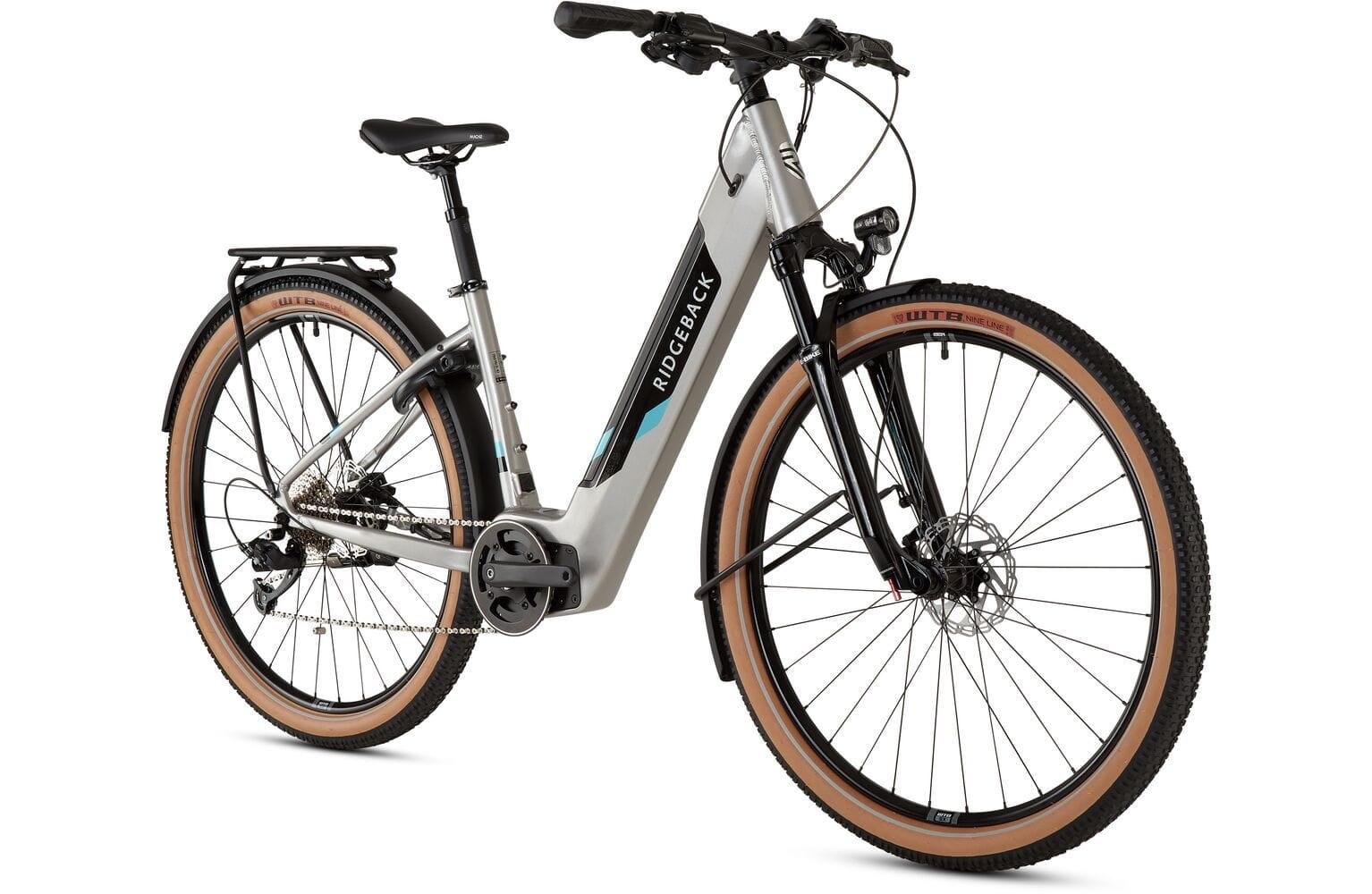

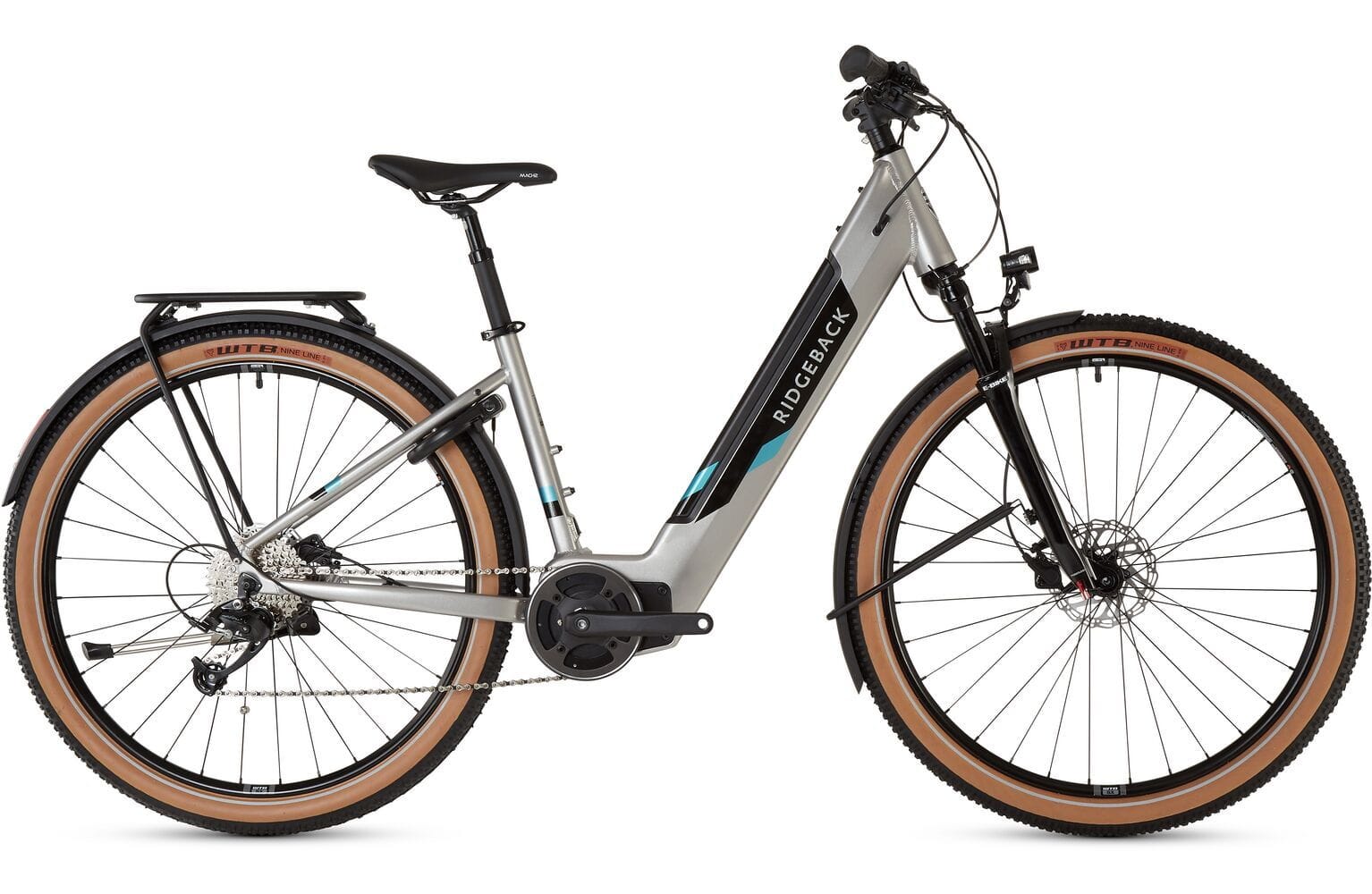

Ridgeback Arcus 3W
SKU
VARRB22125
Ridgeback has been making bikes for all kinds of riders since 1983, and understands what an important part bikes play in the lives of many, many people in the UK. From flat bar mountain and touring bikes to comfortable commuters and children’s bikes all the way to E-Bikes, Ridgeback leads the way in making practical and fun bikes designed to fit in with your lifestyle.
From the UK’s first MTB in 1983, through the Roxy, the introduction of the Urban series in 1998, the Genesis Day 03 flat bar road bike in 2001, the Dual Track 29er and the 25th anniversary R25, Ridgeback Bikes have been helping people get out and about for 40 years now.
For the modern Ridgeback range, E-Bikes are absolutely the present and the future. Cycling isn’t always about fun or fitness, sometimes (or even most of the time) it’s an incredibly powerful tool for just getting around without using a car. For that type of urban mobility, E-Bikes are the perfect solution which is why the Ridgeback range contains multiple different models at different price points so that you have a choice no matter where you are or where you need to get to.
But that’s not to say that Ridgeback has ignored the non-E-Bike, not at all. The range still has classic, powered bikes from £400 all the way up to £1,199.99, making sure there is a choice for every rider, no matter their budget. The other fundamental is to make bikes that complement lifestyle, not hinder it. That means every Ridgeback uses quality parts to make sure that they keep going for longer and wont let you down when you need them most.
The other fundamental part of Ridgeback bikes is the kids bikes. It starts with the Scoot and Scoot XL balance bikes that are designed to teach kids the fundamentals of bike riding without throwing pedalling into the mix and goes all the way up to the almost-adult-sized Dimension 26, Ridgeback’s kids bikes are proper bikes, not toys. That means they’re made to withstand the beating that kids can inflict and come back ready for more, they wont need a trip to the bike shop every 5mins because that’s doesn’t benefit anyone.
Battery Type :
SportDrive Internal 500Wh
Brake Levers :
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Brakes :
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Cassette Freewheel :
Microshift CS-H092 11-36t 9-speed
Chain :
KMC X9EPT
Chain Set :
SportDrive 170mm 38t
Charger :
SportDrive 2Ah
Grip Tape :
Ridgeback Lock On
Headset :
FSA Orbit 1.5E No.57B Zero Stack
Hubs :
Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
Motor :
SportDrive MD250S 36v 95Nm 250W
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RD-M36L 9-speed
Rims :
WTB SX19 32h
Seat Post :
ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm
Shifters :
microSHIFT Mezzo TS39 9-speed
Spokes :
Steel 14g
Stem :
Ridgeback Alloy 45mm x 3 degrees
Tyres :
WTB Nineline 29x2.25"
Wheel Size :
29 inch
Battery Integration :
Internal
Fork :
80mm, RST Air Sprung with lockout
Fork Material :
Alloy
Frame Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Brake Type :
Hydraulic Disc
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
MEDIUM - 160 to 180
LARGE - 175 to 195
| Frame Size | MEDIUM | LARGE |
|---|---|---|
| Stem Length plus Reach | 481 | 511 |
| Frame Seat Tube | 4320 | 473 |
| Frame Top Tube | 615 | 645 |
| Frame Reach | 436 | 466 |
| Frame Stack | 625 | 625 |
| Frame Head Tube | 175 | 175 |
| Frame Head Angle | 67° | 67° |
| Frame Seat Angle | 74.5° | 74.5° |
| Frame Chainstay | 480 | 480 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1215 | 1245 |
| Fork Offset | ||
| Fork Travel | 80 | 80 |
| Standover | ||
| Stem Length | 45 | 45 |
| Handle Bar Width | 680 | 680 |
| Frame Size | MEDIUM | LARGE |
|---|---|---|
| Stem Length plus Reach | 481 | 511 |
| Frame Seat Tube | 4320 | 473 |
| Frame Top Tube | 615 | 645 |
| Frame Reach | 436 | 466 |
| Frame Stack | 625 | 625 |
| Frame Head Tube | 175 | 175 |
| Frame Head Angle | 67° | 67° |
| Frame Seat Angle | 74.5° | 74.5° |
| Frame Chainstay | 480 | 480 |
| Frame BB Drop | 60 | 60 |
| Frame Wheel Base | 1215 | 1245 |
| Fork Offset | ||
| Fork Travel | 80 | 80 |
| Standover | ||
| Stem Length | 45 | 45 |
| Handle Bar Width | 680 | 680 |
