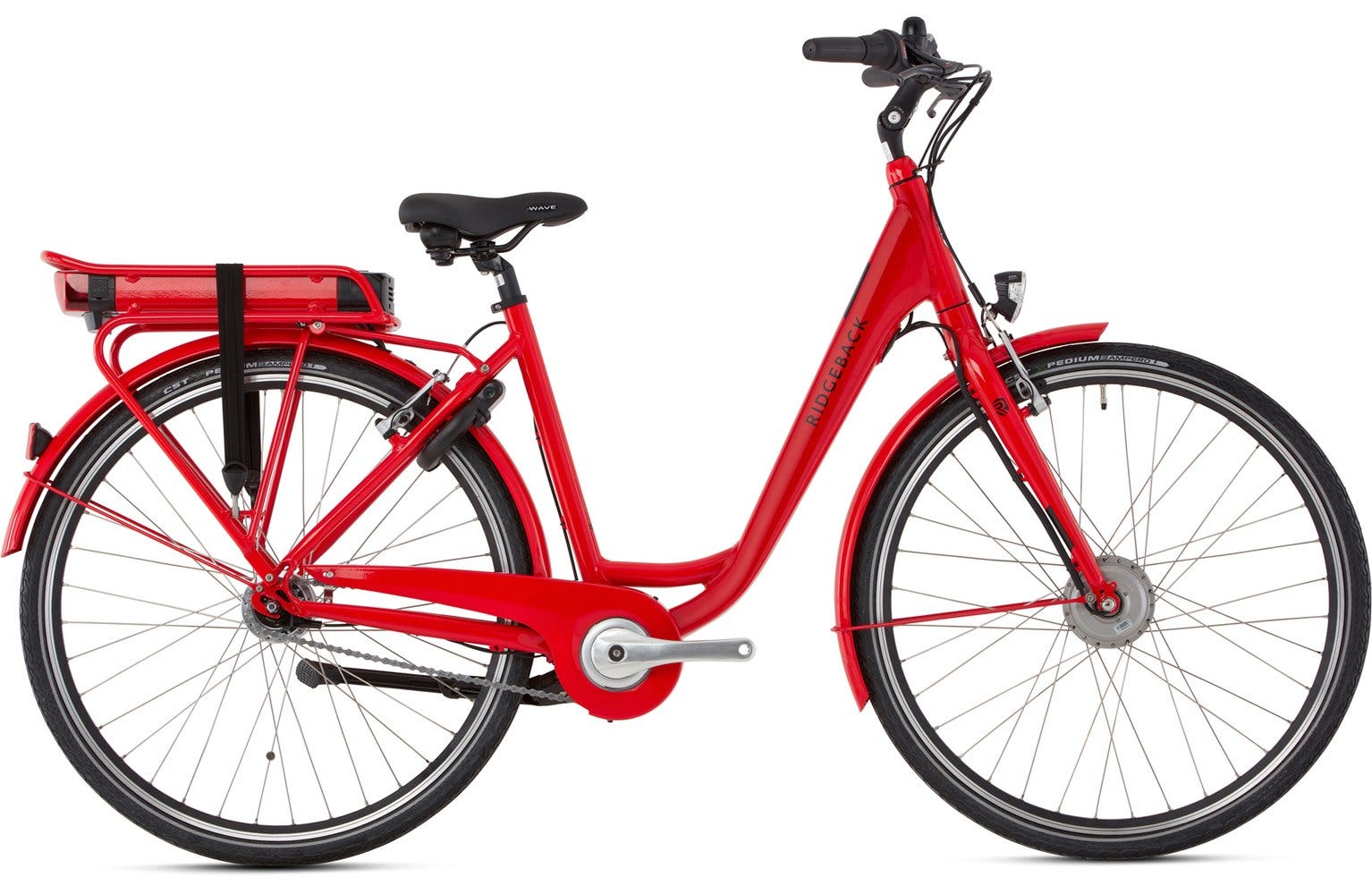

Electron Front Hub Drive

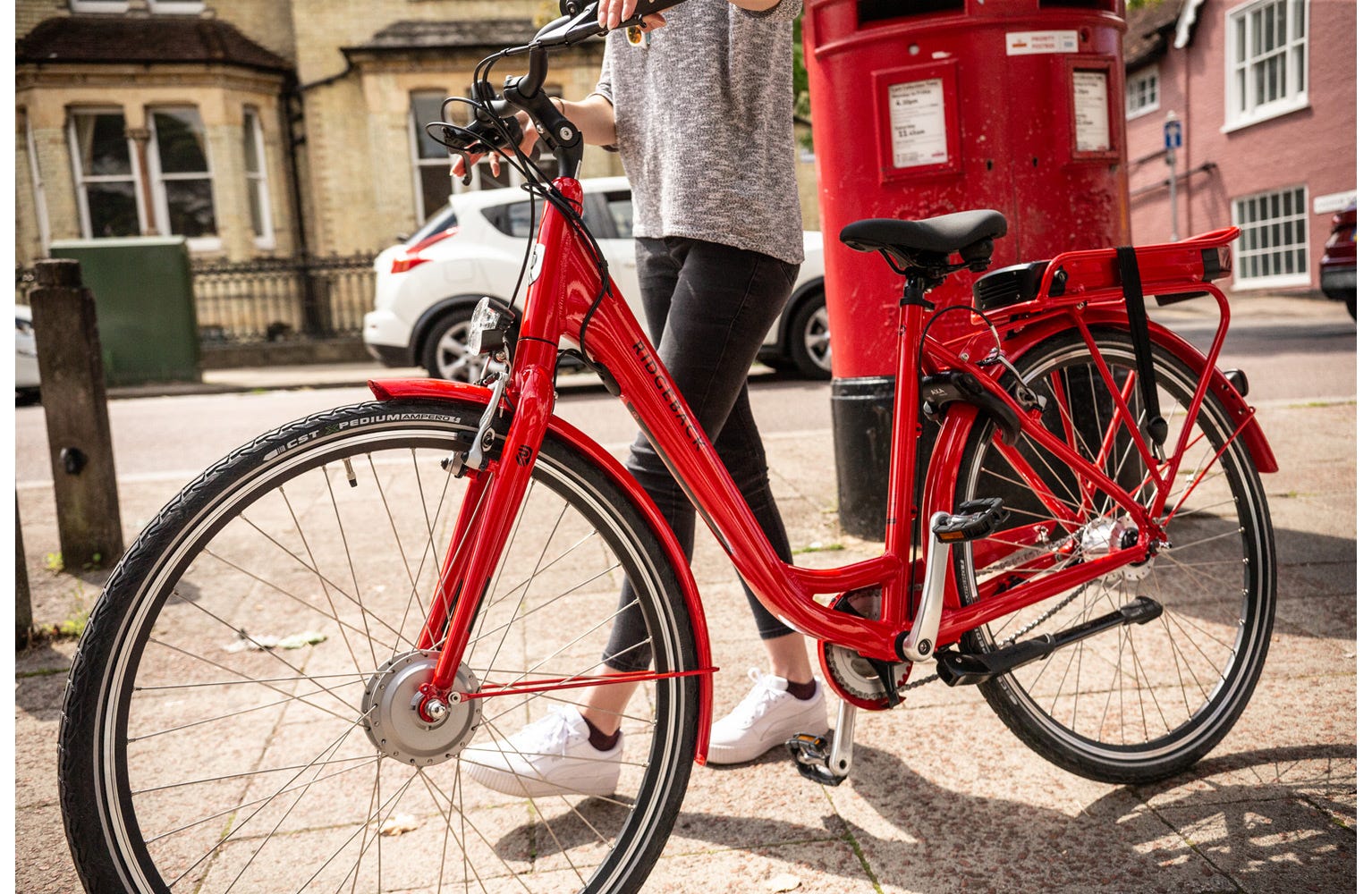

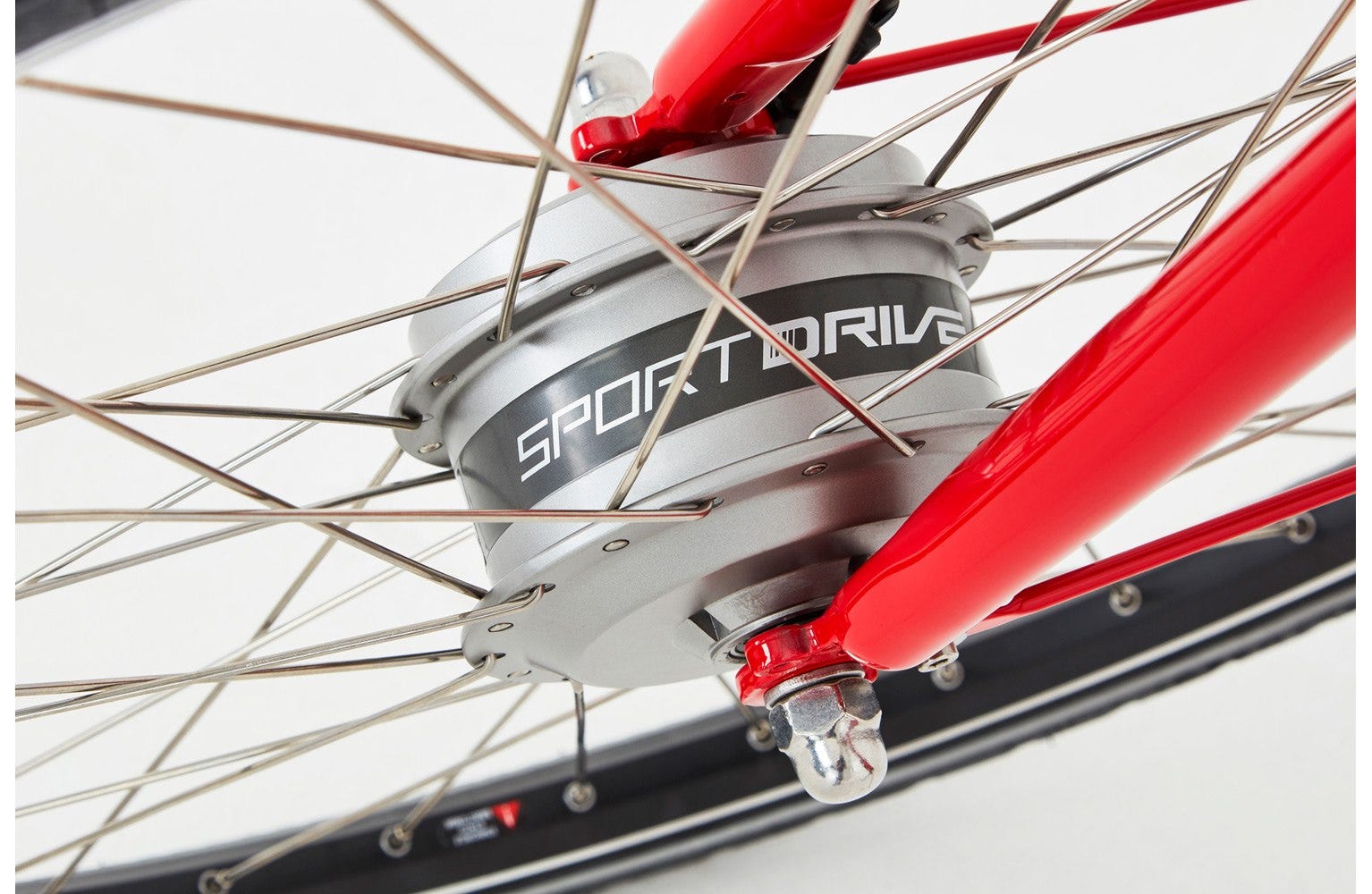

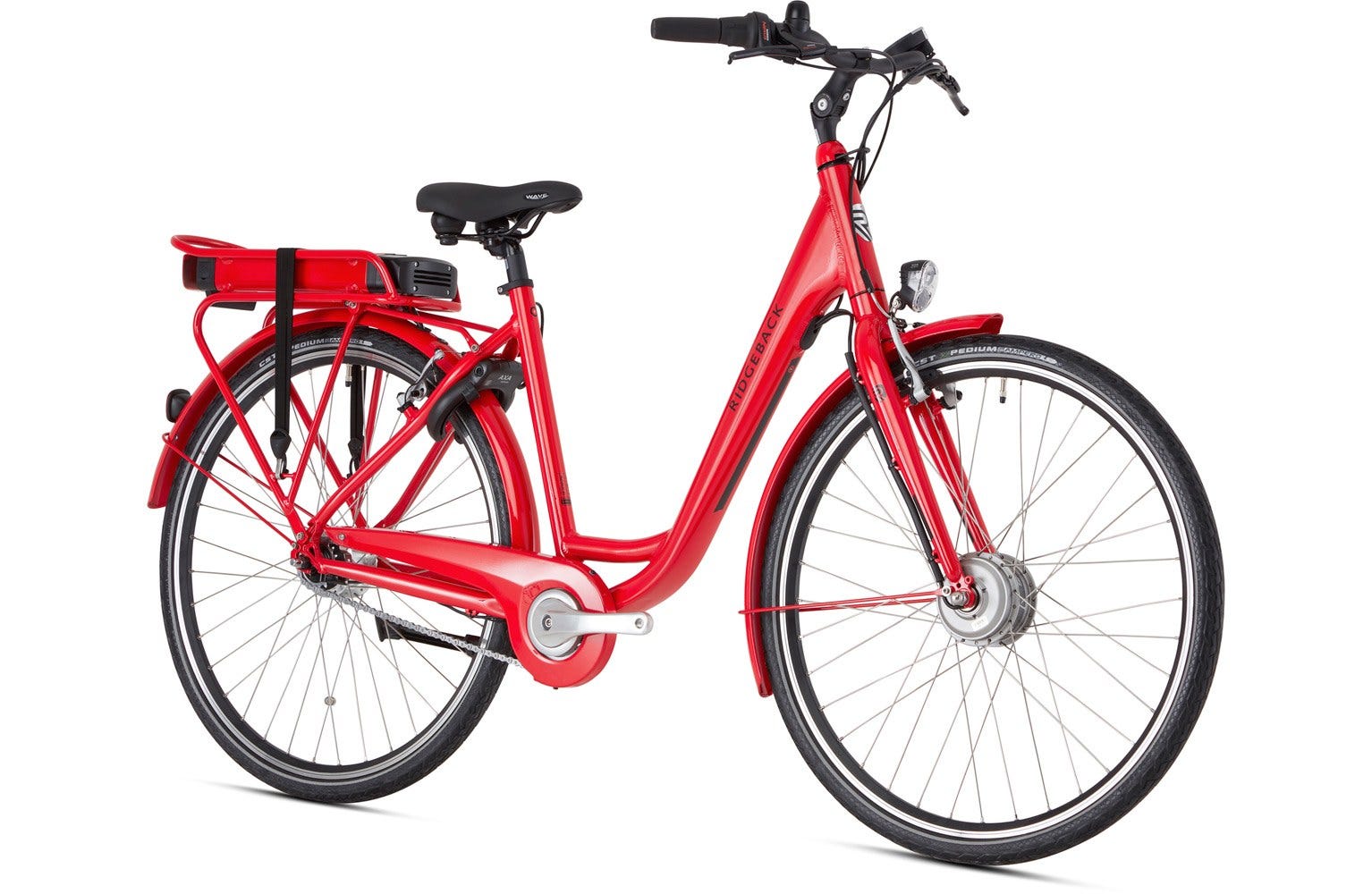

Our most affordable e-bike ever The Electron uses the tried and tested SportDrive hub system with a 313wh battery, making it perfect for short daily trips to work or the shops. The use of a front hub motor instead of a conventional frame mounted system allows us to use a standard bottom bracket and chain set which in turn allows us to equip the bike with a full chainguard to keep the chain covered at all times. A front hub motor still offers all the power and pedal assist benefits of a standard E-bike setup as allowing the bike to keep its classic clean look. Offering a smooth power delivery, the Electrons front hub motor transforms this in to a classic step through bike which offers a comfortable upright riding position with a modern twist.
Tech Highlights
ELECTRON F.H.D 2021
NAME
OUR BEST PRICE ELECTRIC BIKE
PRICE
UP TO 55KM RANGE
RANGE
3 HOUR CHARGE TIME (50% TO 100%)
CHARGE
LOW MAINTENANCE SHIMANO HUB GEAR
GEARS
EASY ENTRY LOW STEP FRAME
FRAME
INTEGRATED LIGHTS
LIGHTS
Specification
"| Frame | SPORTDRIVE 6061 HEAT TREATED ALUMINIUM |
|---|---|
| Rear Shock | |
| Fork | STEEL DISC |
| Headset | FSA TH-805ST 1-1/8"" |
| Shifters | SHIMANO NEXUS SL-C3000 7-SPEED |
| Rear Derailleur | |
| Front Derailleur | N/A |
| Chainset | STEEL/ALLOY 170MM, 36T |
| Bottom Bracket | |
| Chain | |
| Cassette / Freewheel | SHIMANO 18T |
| Rims | ALLOY J19SZR 36H |
| Hubs | SPORTDRIVE M123 / SHIMANO NEXUS SG-C300 36H |
| Spokes | STEEL 14G |

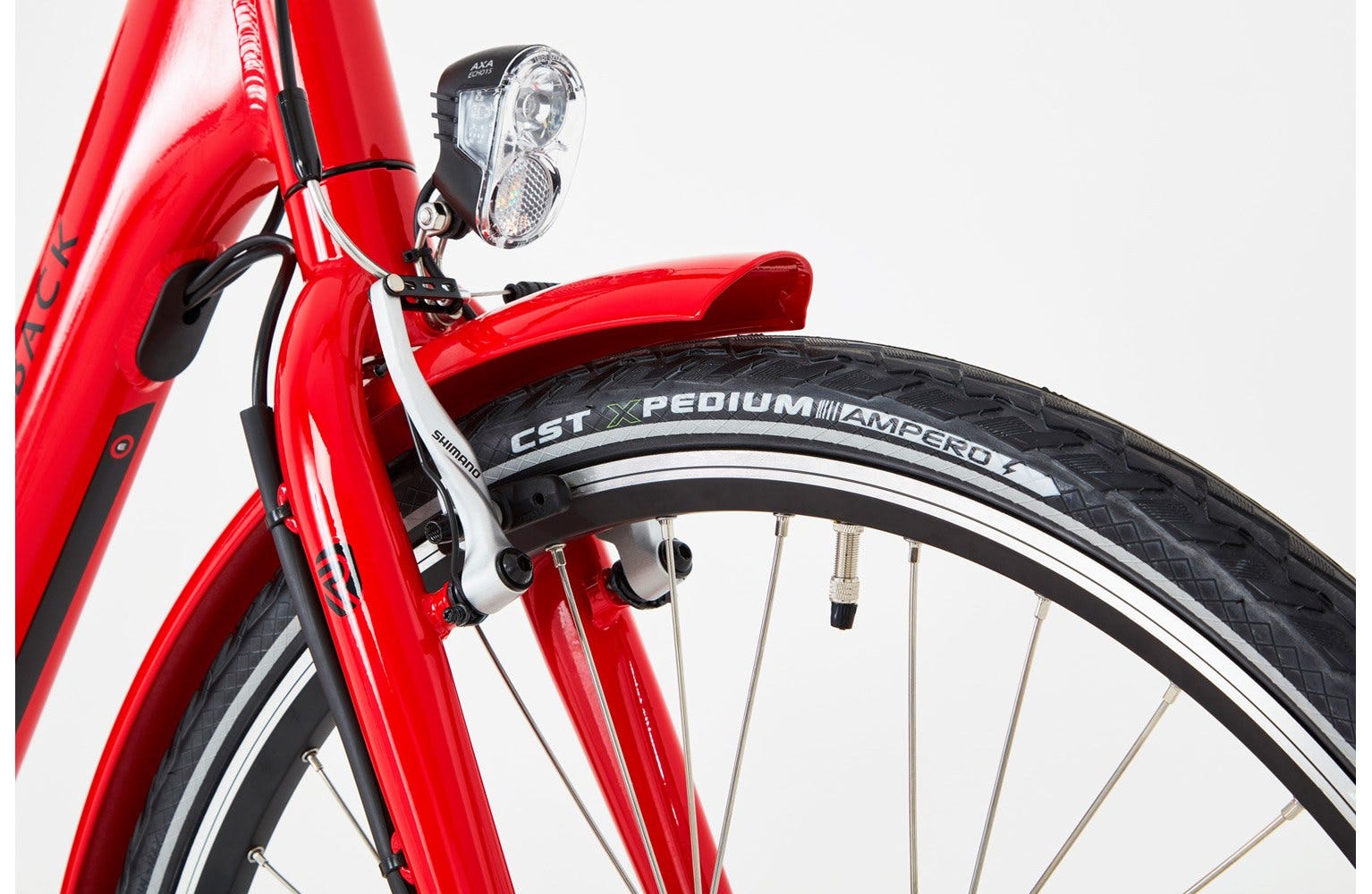

| Tyres | CST AMPERO 700x40C |
| Brakes | SHIMANO BR-T4000 V-BRAKE |
| Brake levers | SHIMANO BR-T4000 V-BRAKE |
| Handlebars | ALLOY 33DEG BACKSWEEP, 25.4MM BAREBORE, 600MM WIDTH |
| Stem | ALLOY, ADJUSTABLE 90MM |
| Saddle | SELLE ROYAL WAVE |
| Seatpost | ALLOY 30x300MM |
| Pedals | RIDGEBACK METRO |
| Drive Unit | SPORTDRIVE M123, 250W, 30NM |

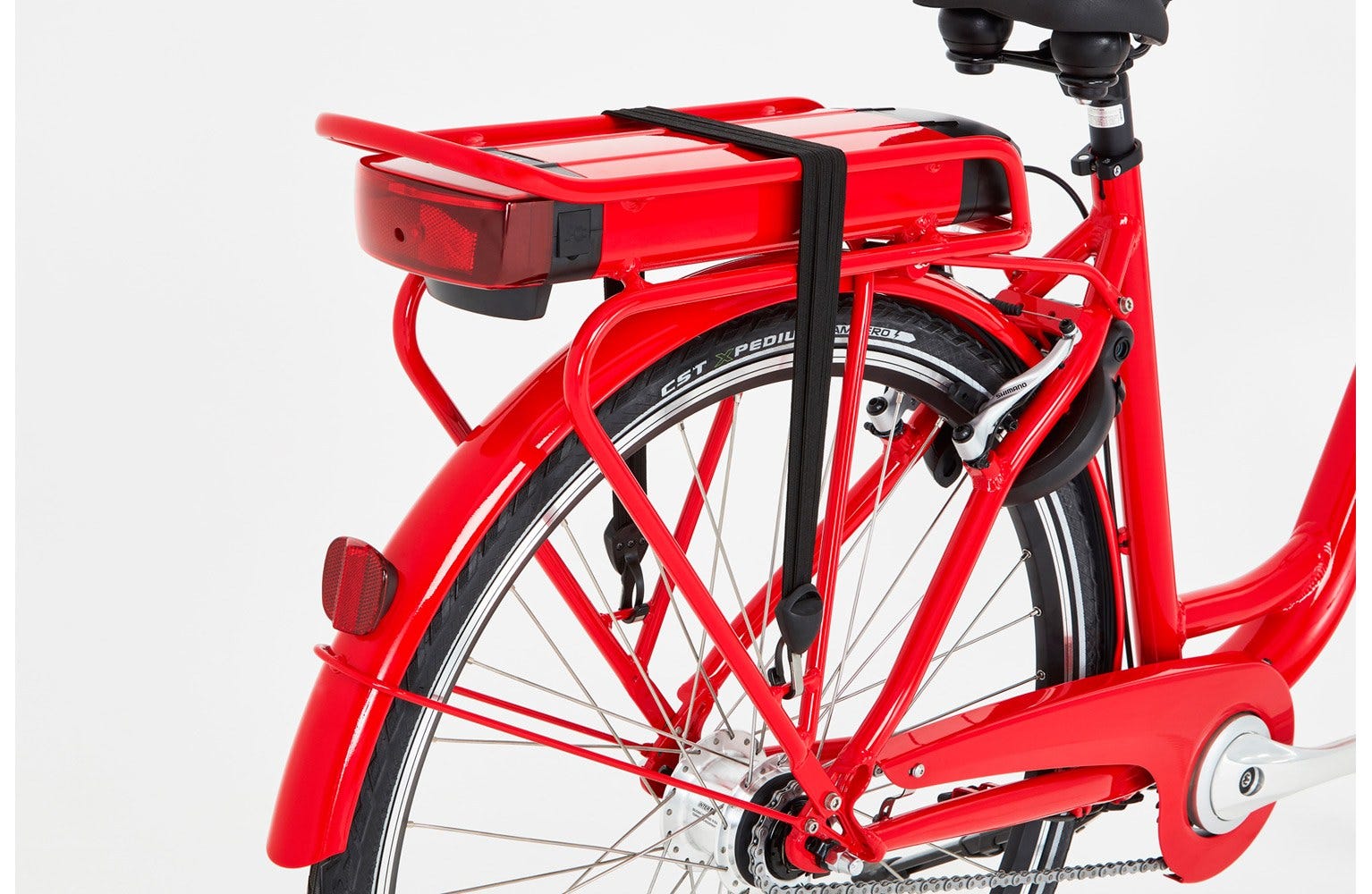

| Battery | SPORTDRIVE 313WH |
| charger | SPORTDRIVE 2AH |
Delivery Options
Please note that delivery (and returns) for online purchases are managed by our ecommerce partner Freewheel.
UK and Ireland Deliveries
Free UK Standard Delivery (allow 5-9 working days)
Prior to shipment, your bike will undergo a pre-delivery inspection (PDI) and subsequent safety checks by a skilled bicycle technician. When you receive your bike, you will need to adjust the handlebars and seat-post height. Instructions are provided. If the bike is supplied with pedals, these will be fitted to the bike.
Click and Collect
Click & Collect at your local Freewheel store for Free.
Your selected store will carry out a pre-delivery inspection (PDI) and subsequent safety checks by a skilled bike technician. Once completed, your chosen Freewheel store will inform you that your bike is ready to collect. All payments are made online prior to collection.
International Deliveries
We are unable to provide international deliveries at this time. Please contact your local Ridgeback stockist for availability.
Please be aware that whilst the COVID-19 pandemic is still present you may notice some delays to your order. Please contact Freewheel directly for online order enquires.
Sizing
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.
Geometry
| Frame Seat Tube | 500 |
|---|---|
| Frame Top Tube | 584 |
| Frame Reach | 387 |
| Frame Stack | 643 |
| Frame Head Tube | 180 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1109 |
| Fork Offset | 45 |
| Stem Length | 90 |
| Handle Bar Width | 600 |
| Frame Seat Tube | 460 |
| Frame Top Tube | 585 |
| Frame Reach | 394 |
| Frame Stack | 625 |
| Frame Head Tube | 160 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1109 |
| Fork Offset | 45 |
| Stem Length | 90 |
| Handle Bar Width | 600 |
