- The ultimate great value tourer.
The Ridgeback Tour offers the best in wallet friendly touring capability. Based on our 6061 heat treated aluminium frame featuring all the rack, mudguard and cage mounts you could need.

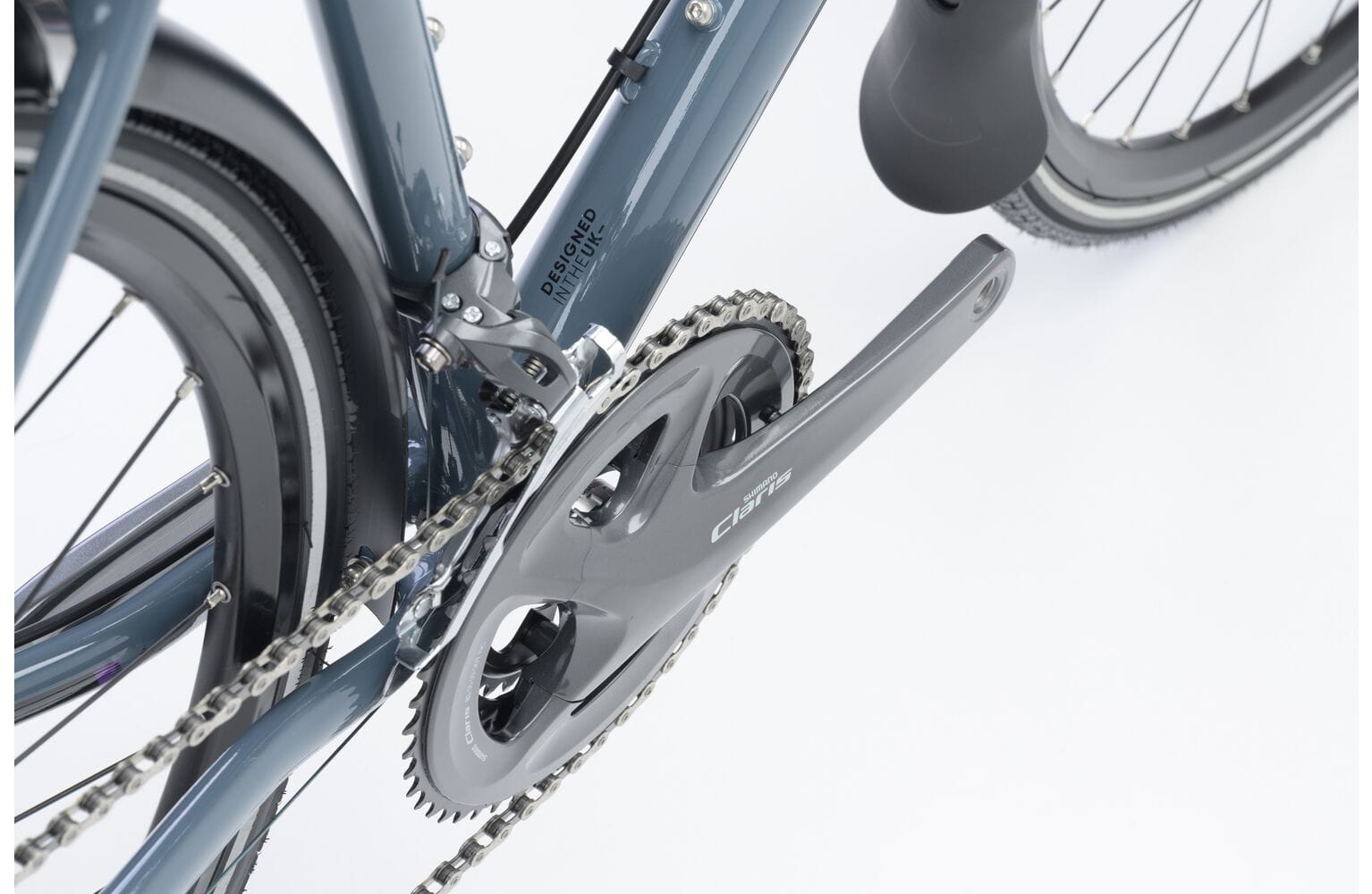

Utilising the ever-dependable Shimano Claris groupset with a triple chainset and 8 speed cassette you will always the right gear no matter your situation.

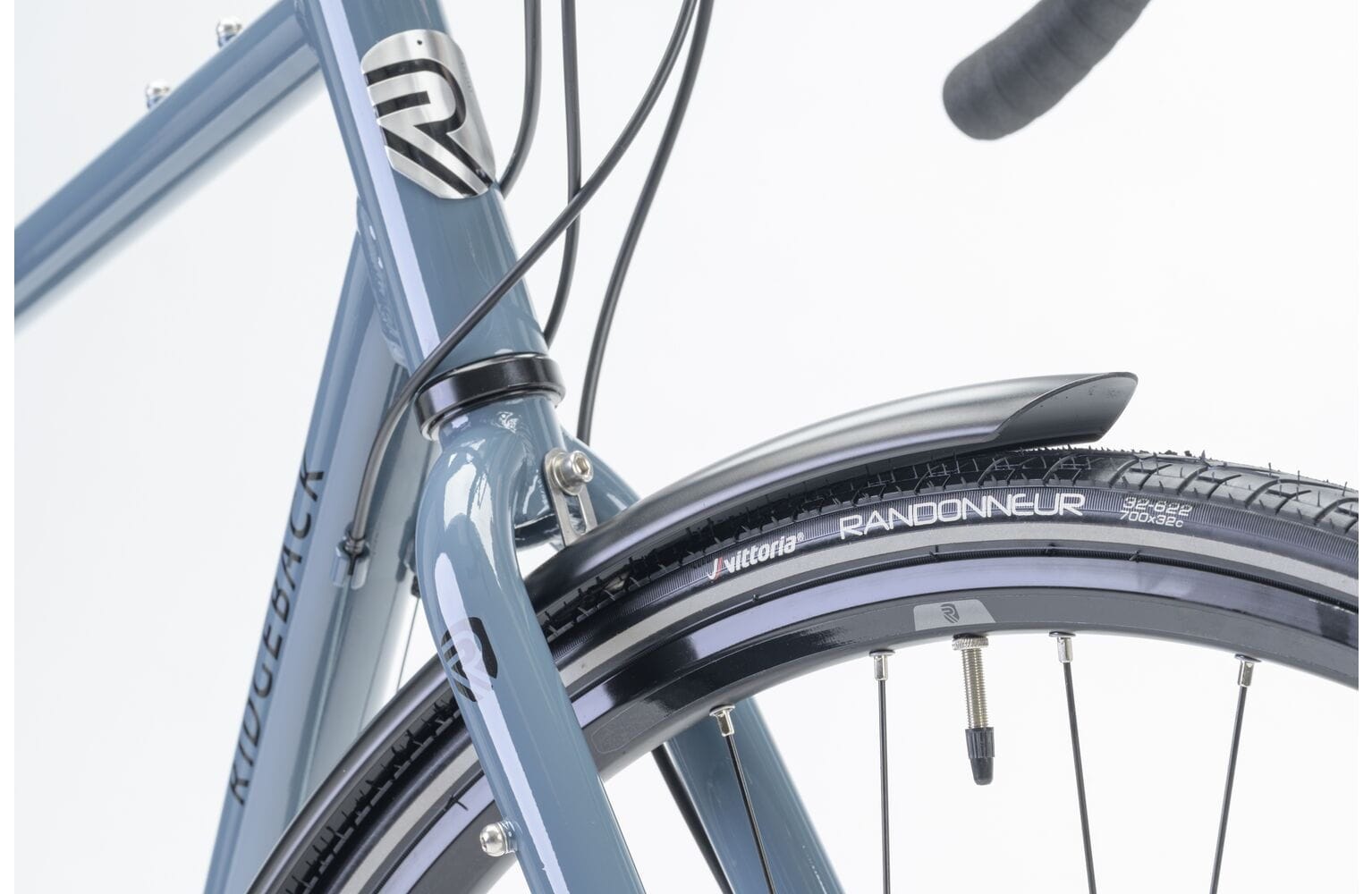

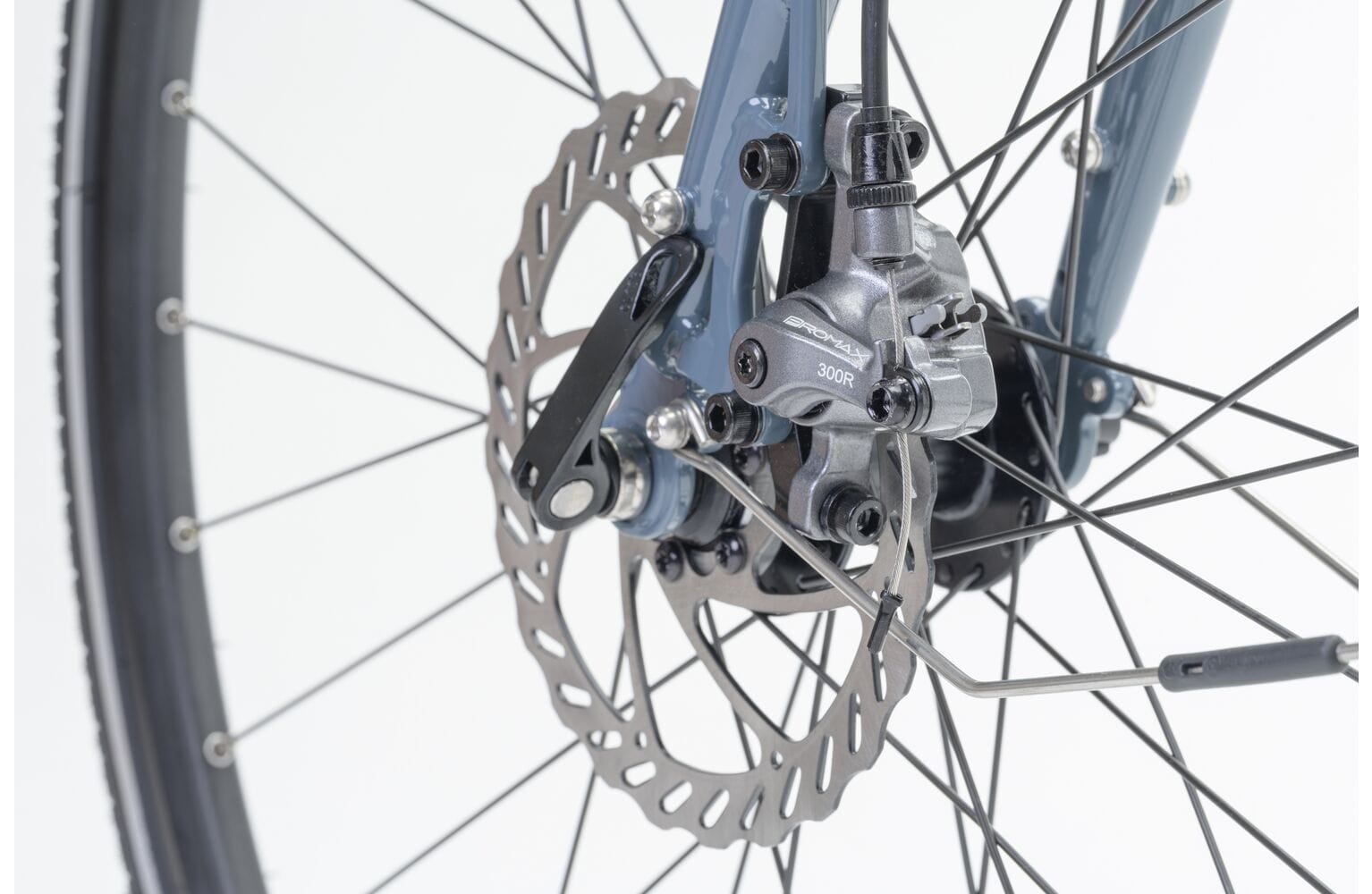

Promax mechanical disc brakes provide easy maintenance stopping power where ever your Tour takes you and Fast rolling Vittoria Randonneur tyres help you get there that bit easier.

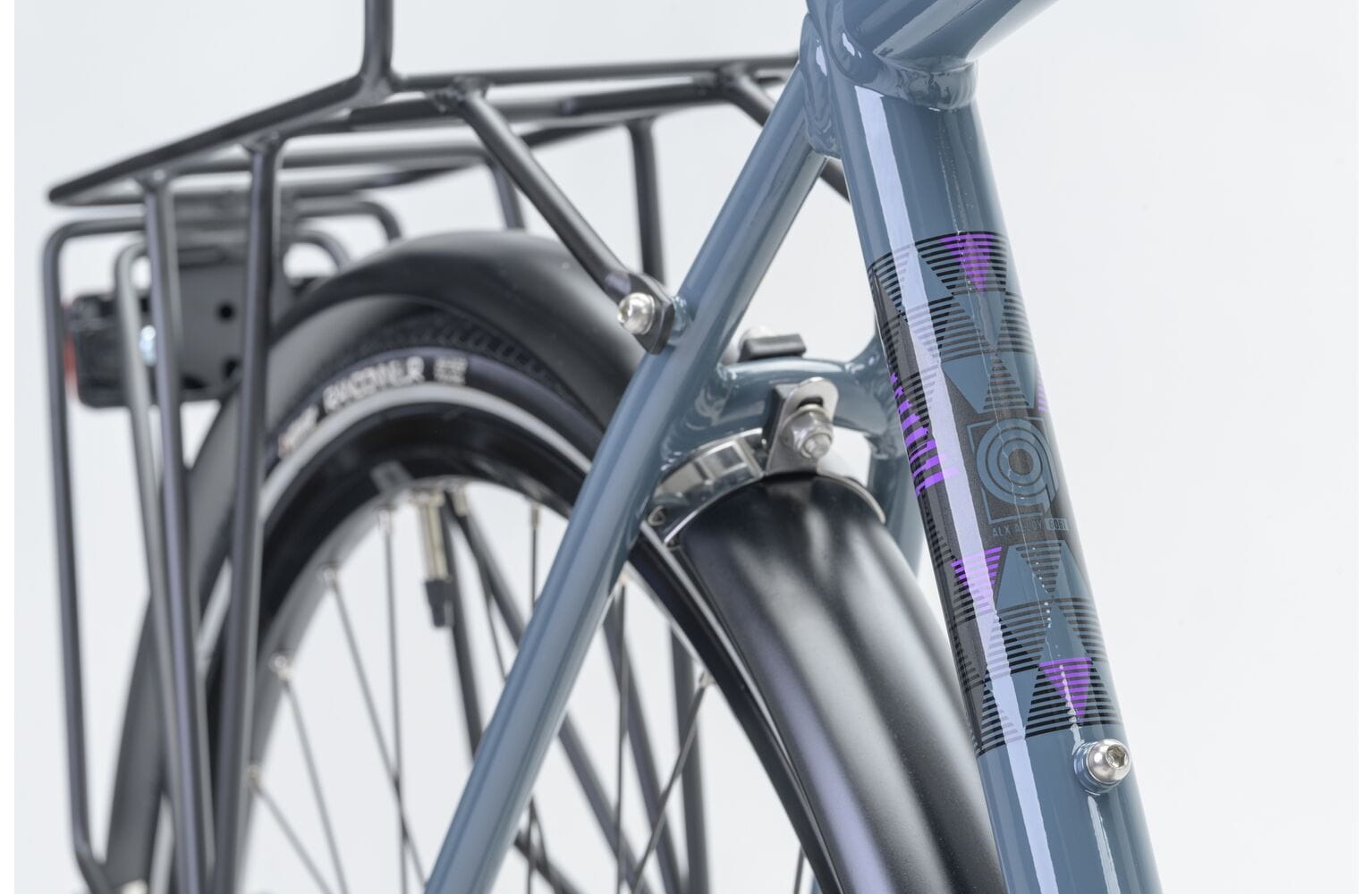

Mudguards and a rear panier rack complete the package.
The Ridgeback Tour makes that dream trip that little bit more affordable.
Ridgeback Tour
SKU
VARRB2350
Brake Type :
Mechanical Disc
Fork Material :
Chromoly
Frame Material :
Alloy
Brake Levers :
Shimano Claris ST-R2030
Intended Use :
Touring
Brakes :
Promax DSK-300R
Cassette Freewheel :
Shimano HG31 8-Speed 11-32T
Chain :
KMC X8
Chain Set :
Shimano Claris FC-R2030 50/39/30T XS-MD = 170mm LG-XL = 175mm
Fork :
Ridgeback Chromoly Disc 1-1/8
Front Derailleur :
Shimano Claris FD-R2030 Triple
Handlebars :
Ridgeback Alloy 31.8mm 12 Deg Flare XS = 400mm SM/MD = 420mm LG/XL = 440mm
Headset :
Prestine PT-1606
Hubs :
KT68F/KT68R
Mudguard :
Fitted
Rear Derailleur :
Shimano Claris RD-R2000GS 8-Speed
Rims :
Shining DB-31
Saddle :
Madison Flux
Seat Post :
Ridgeback Alloy 27.2 x 350mm
Shifters :
Shimano Claris ST-R2030 3 x 8-Speed
Stem :
Ridgeback Alloy 100 x 31.8mm -7 deg
Tyres :
Vittoria Randonneur 700 x 32mm
Gender :
Mens, Womens
Wheel Size :
700c
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 550 |
|---|---|
| Frame Top Tube | 582 |
| Frame Reach | 395 |
| Frame Stack | 612 |
| Frame Head Tube | 175 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 430 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1052 |
| Fork Offset | 50 |
| Standover | 826 |
| Stem Length | 100 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 530 |
| Frame Top Tube | 561 |
| Frame Reach | 385 |
| Frame Stack | 593 |
| Frame Head Tube | 155 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 430 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1035 |
| Fork Offset | 50 |
| Standover | 808 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 500 |
| Frame Top Tube | 544 |
| Frame Reach | 375 |
| Frame Stack | 572 |
| Frame Head Tube | 135 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 430 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1023 |
| Fork Offset | 50 |
| Standover | 784 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 580 |
| Frame Top Tube | 605 |
| Frame Reach | 405 |
| Frame Stack | 633 |
| Frame Head Tube | 195 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 72.5 |
| Frame Chainstay | 430 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1063 |
| Fork Offset | 50 |
| Standover | 850 |
| Stem Length | 100 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 470 |
| Frame Top Tube | 524 |
| Frame Reach | 365 |
| Frame Stack | 553 |
| Frame Head Tube | 115 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 74 |
| Frame Chainstay | 430 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1007 |
| Fork Offset | 50 |
| Standover | 761 |
| Stem Length | 100 |
| Handle Bar Width | 400 |
