- With its classic looks and the new Voyage is a timeless all-day tourer.

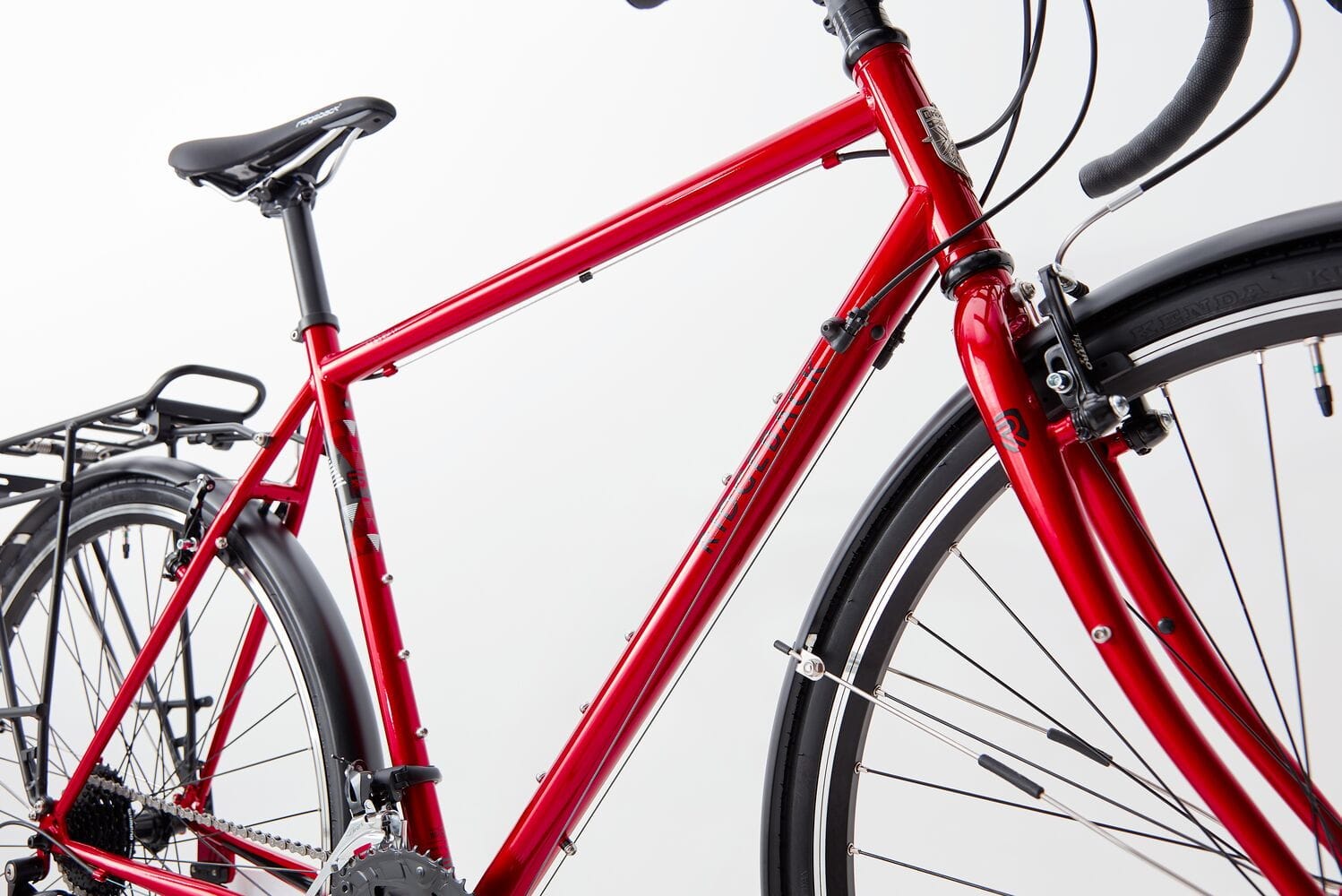

- Using Reynolds 520 chromoly, the frame gives a smooth and comfortable ride especially when combined with Kenda Kwest 32mm tyres and a gently raked chromoly fork.
- A Shimano drivetrain with a triple chainset and 11-34 cassette make carrying luggage up the steepest climbs a breeze and Mini-V brake callipers improve braking performance compared to cantilever designs.

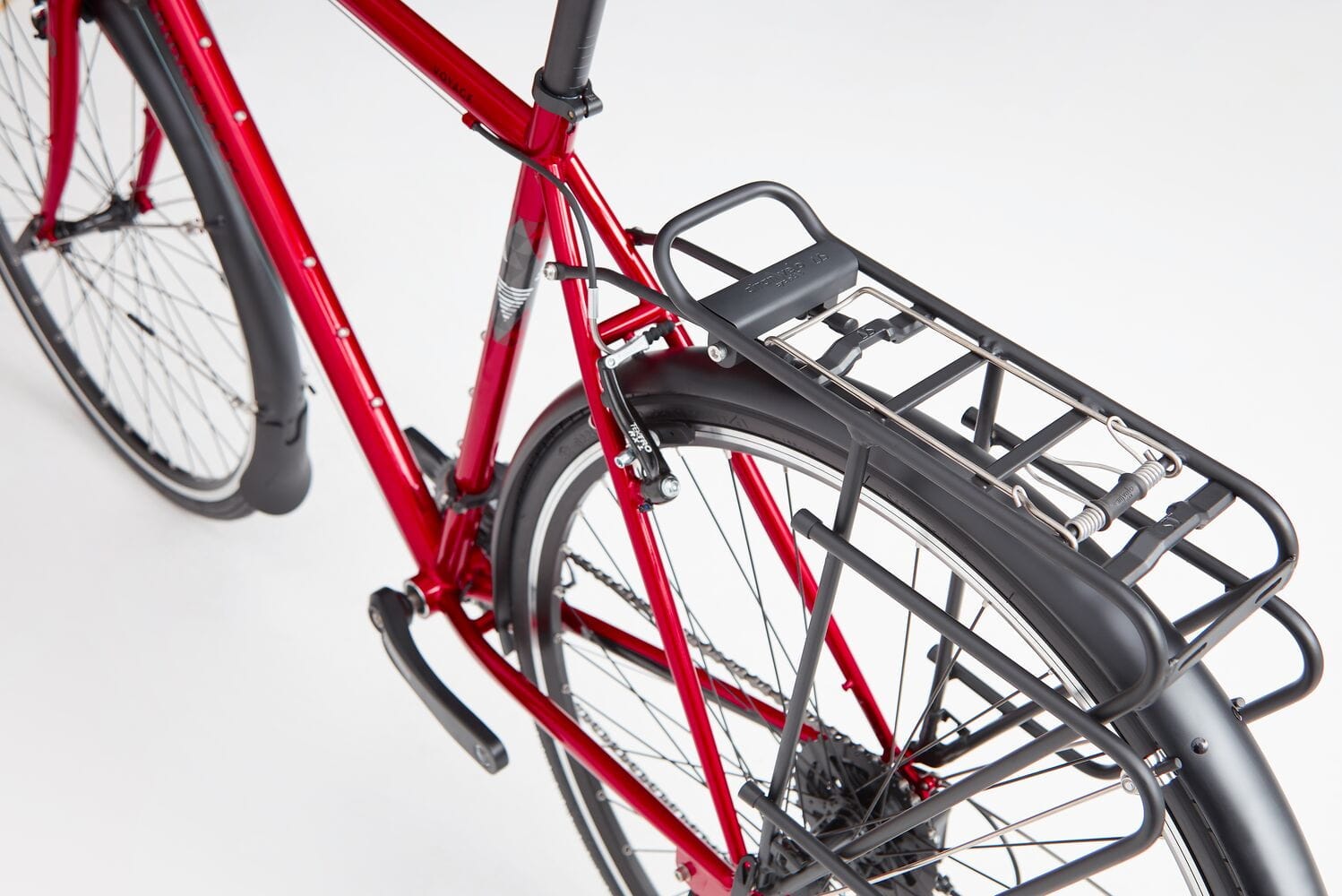

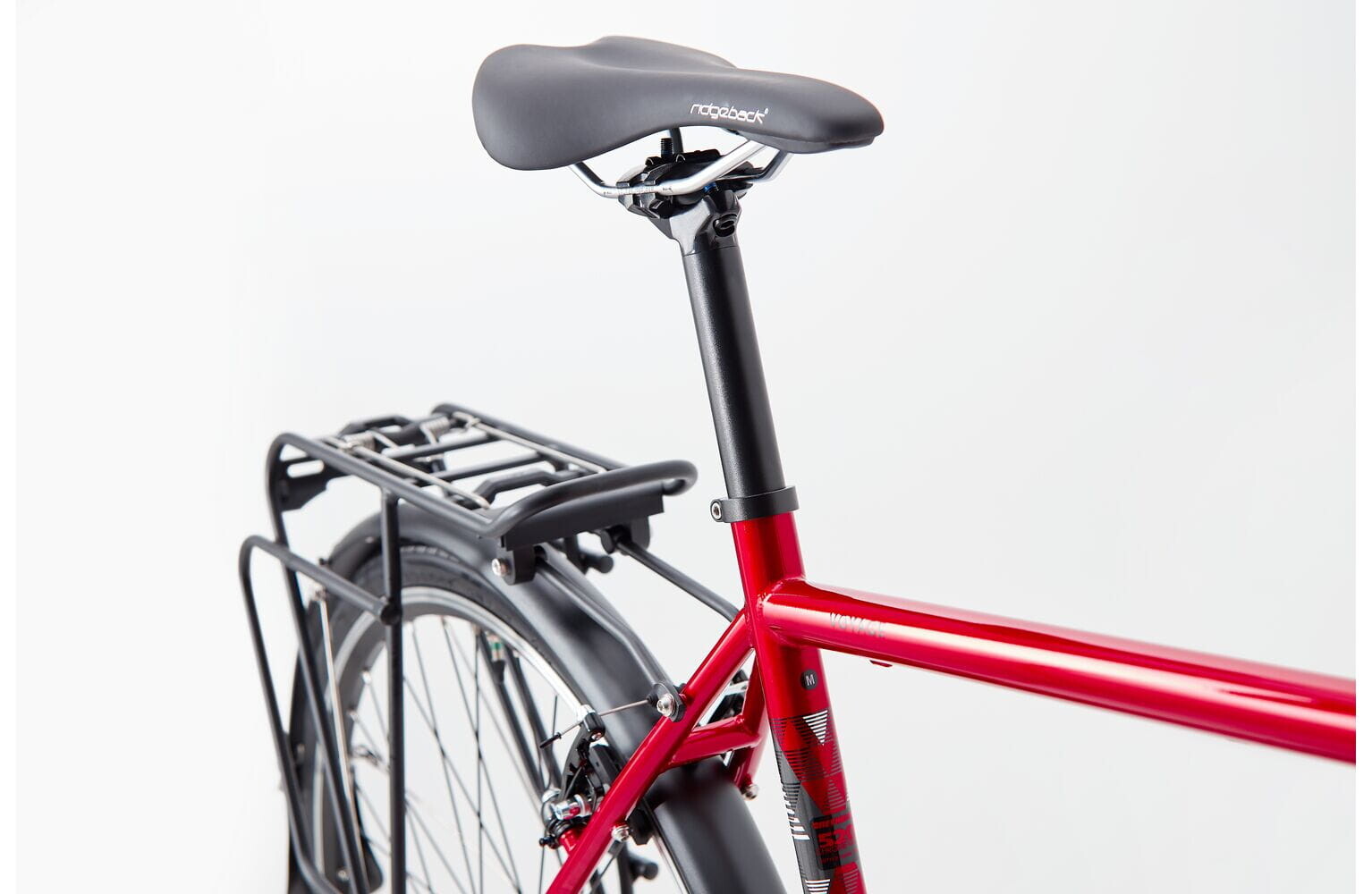

- The Voyage is equipped with full-length mudguards and a rear panier rack.

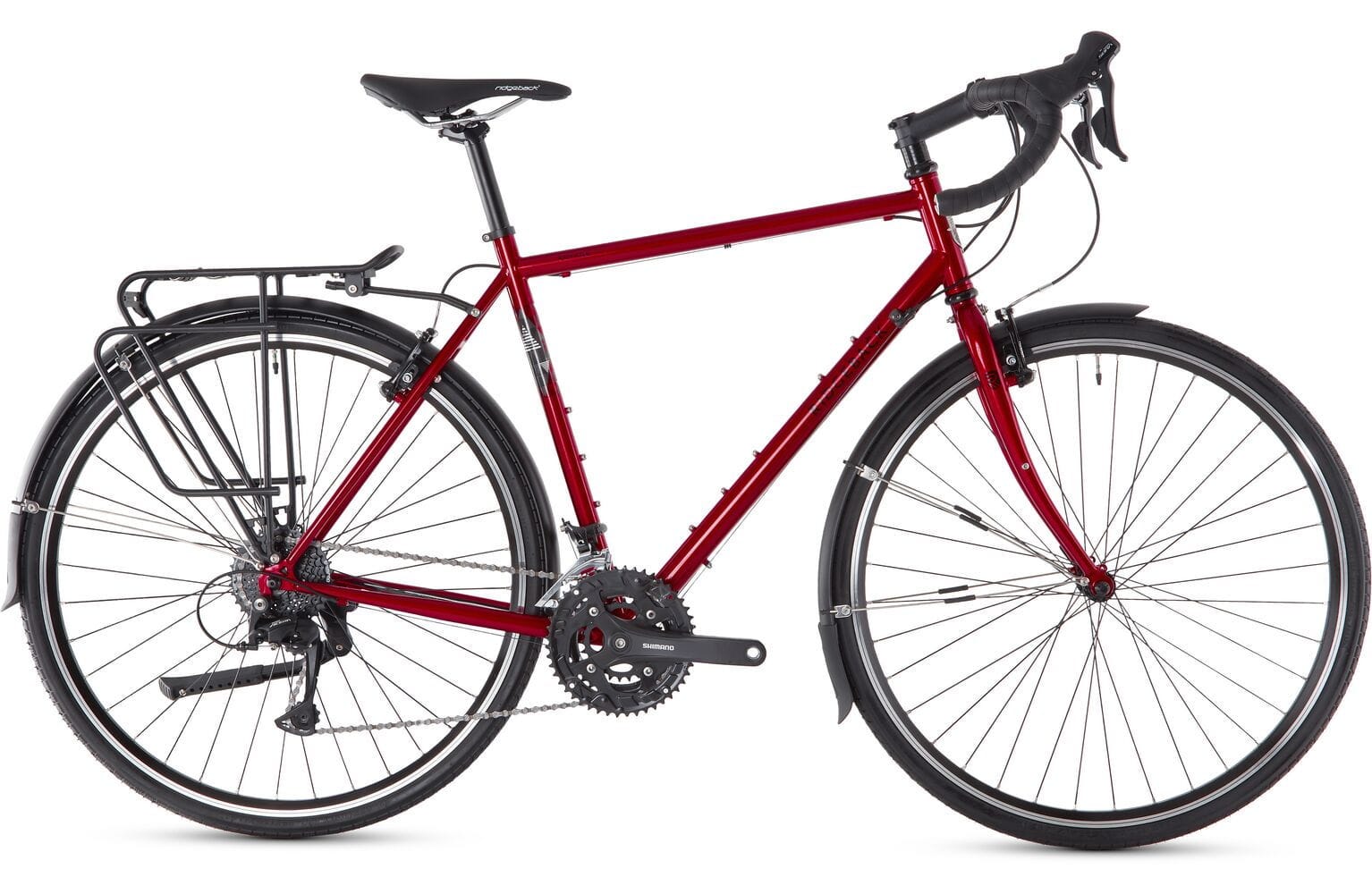

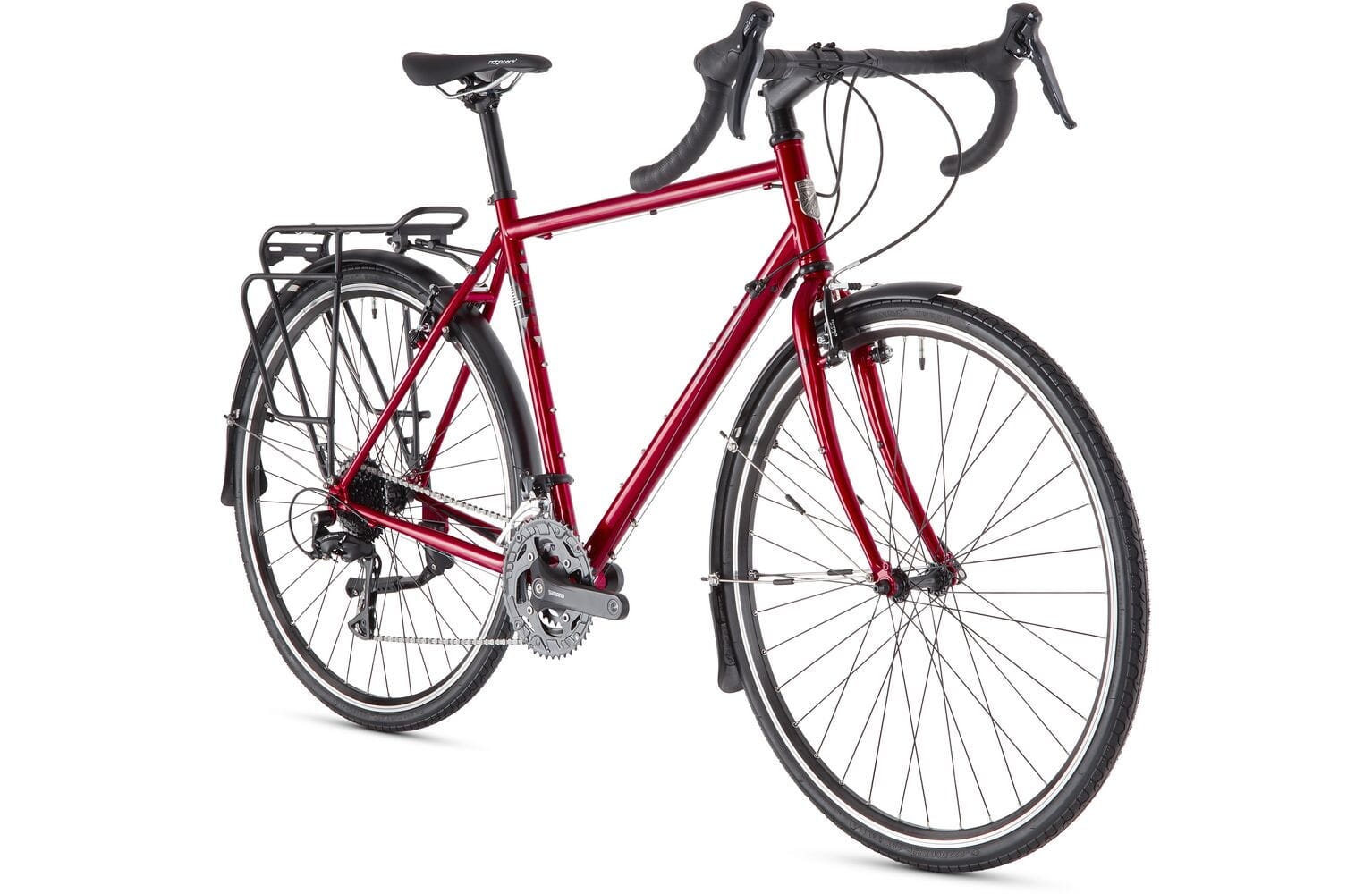

Ridgeback Voyage
SKU
VARRB22510
Brake Type :
Rim
Fork Material :
Chromoly
Frame Material :
Steel
Bottom Bracket :
Shimano BB-UN300
Max Tyre Size :
700 x 35mm

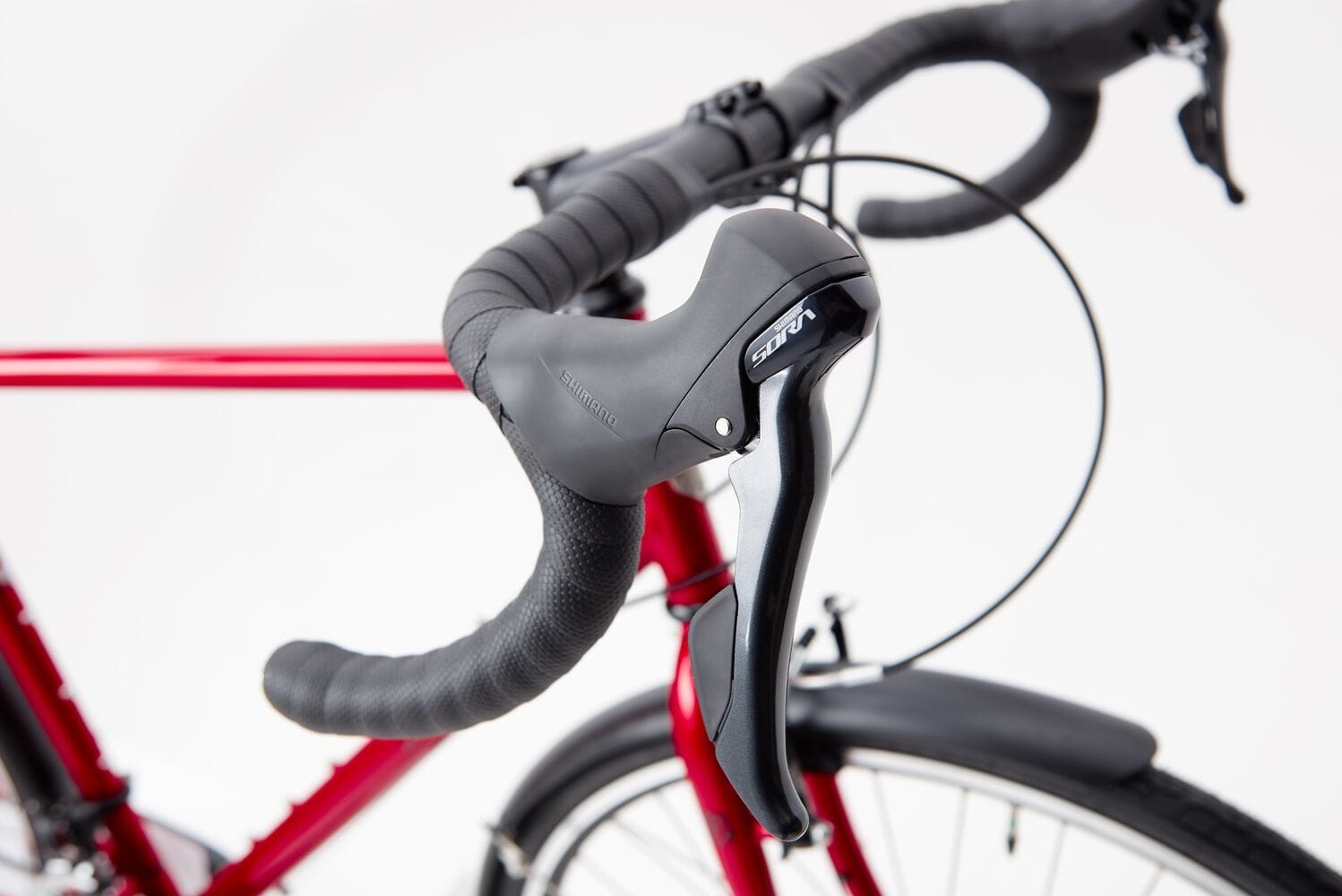

Brake Levers :
Shimano Sora ST-R3030
Intended Use :
Touring
Brakes :
Tektro RX6 Mini-V
Cassette Freewheel :
Shimano HG200 11-34T
Chain :
KMC CNHG-53

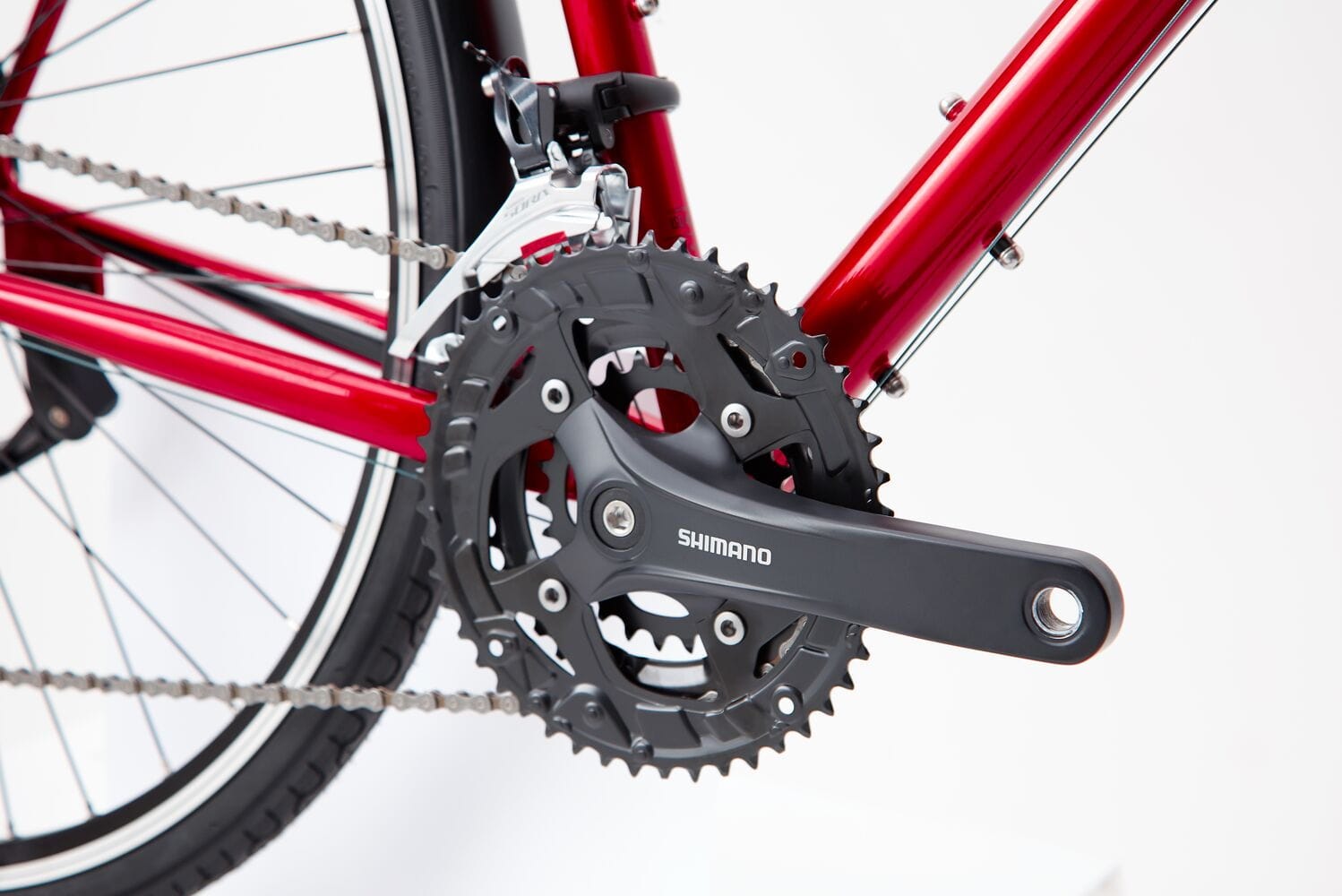

Chain Set :
Shimano FC-T3010 48-36-26T
Fork :
Chromoly Steel
Front Derailleur :
Shimano Sora FD-R3030
Grip Tape :
Ridgeback
Handlebars :
Ridgeback Alloy XS 400mm / S-M 420mm / L-XL 440mm
Headset :
Threadless 1-1/8" - EC34/28.6 | EC34/30
Hubs :
Front KT-GP5F / Rear KT-AEZR

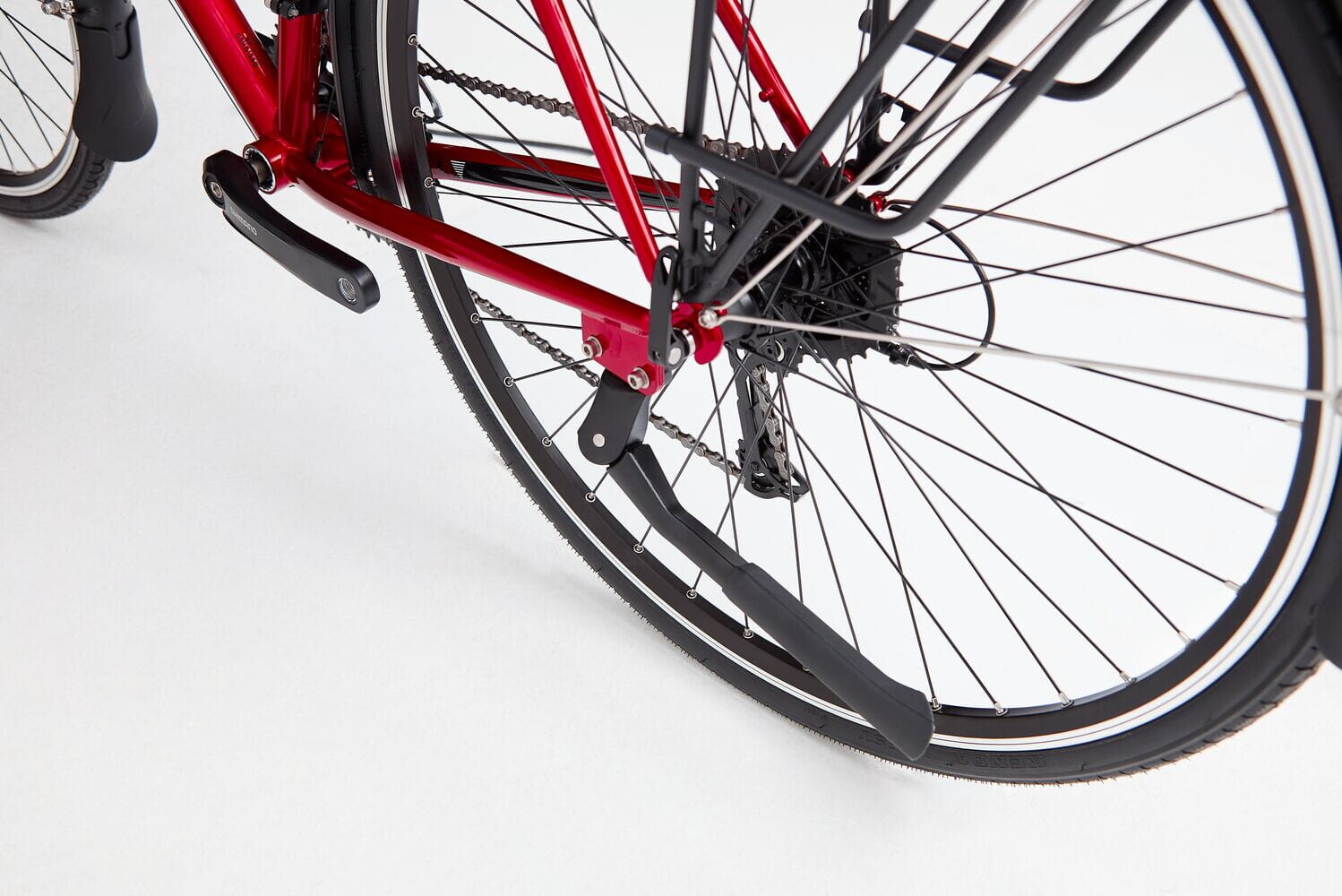

Mudguard :
Matt Black Fitted
Pedals :
FPD Road with Toe Clips
Rear Derailleur :
Shimano Acera RD-T3000 SGS
Rims :
Jalco DM23
Saddle :
Ridgeback Custom
Seat Post :
Ridgeback Alloy 27.2 x 350mm
Shifters :
Shimano Sora ST-R3030
Spokes :
Stainless Steel 14G Brass Nipples
Stem :
Ridgeback Alloy XS 90mm / S-M 100mm / L-XL 110mm
Tyres :
Kenda Kwest 700 x 32mm
Frame Shape :
Crossbar
Gender :
Mens, Womens
Wheel Size :
700c
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry

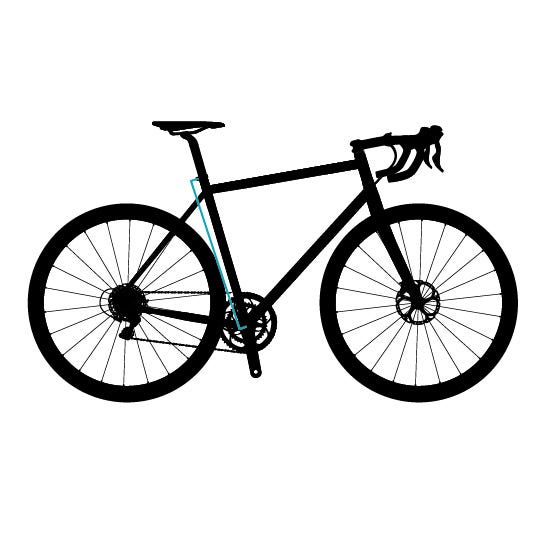

| Frame Seat Tube | 570 |
|---|---|
| Frame Top Tube | 582 |
| Frame Reach | 395 |
| Frame Stack | 613 |
| Frame Head Tube | 175 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 450 |
| Frame BB Drop | 75 |
| Frame Wheel Base | 1072 |
| Fork Offset | 50 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 550 |
| Frame Top Tube | 561 |
| Frame Reach | 385 |
| Frame Stack | 594 |
| Frame Head Tube | 155 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 75 |
| Frame Wheel Base | 1055 |
| Fork Offset | 50 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 520 |
| Frame Top Tube | 545 |
| Frame Reach | 375 |
| Frame Stack | 573 |
| Frame Head Tube | 135 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 75 |
| Frame Wheel Base | 1043 |
| Fork Offset | 50 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 590 |
| Frame Top Tube | 605 |
| Frame Reach | 405 |
| Frame Stack | 634 |
| Frame Head Tube | 195 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 72.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 75 |
| Frame Wheel Base | 1083 |
| Fork Offset | 50 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 490 |
| Frame Top Tube | 523 |
| Frame Reach | 365 |
| Frame Stack | 552 |
| Frame Head Tube | 115 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 74 |
| Frame Chainstay | 450 |
| Frame BB Drop | 75 |
| Frame Wheel Base | 1031 |
| Fork Offset | 50 |
| Stem Length | 90 |
| Handle Bar Width | 400 |
