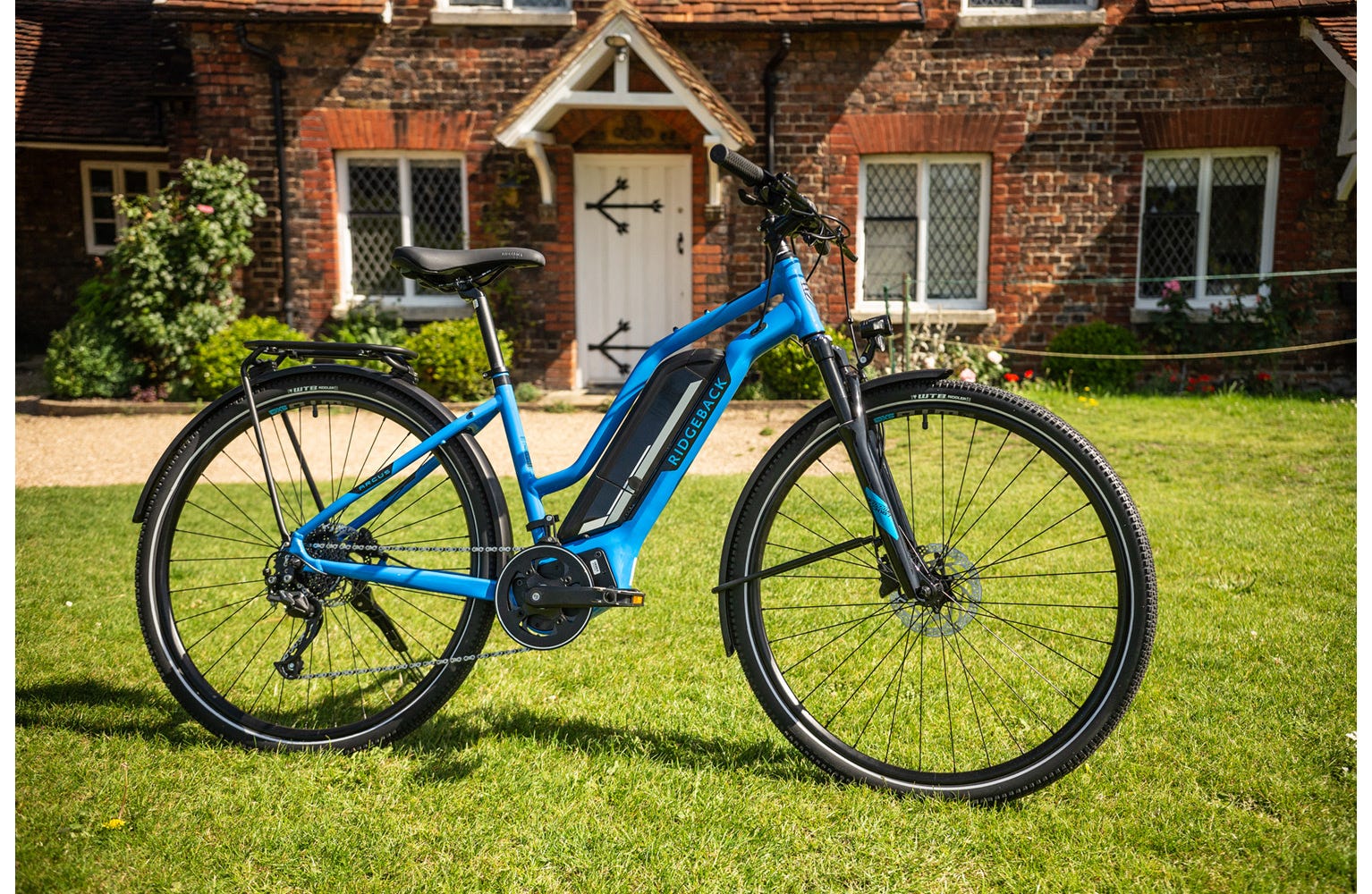

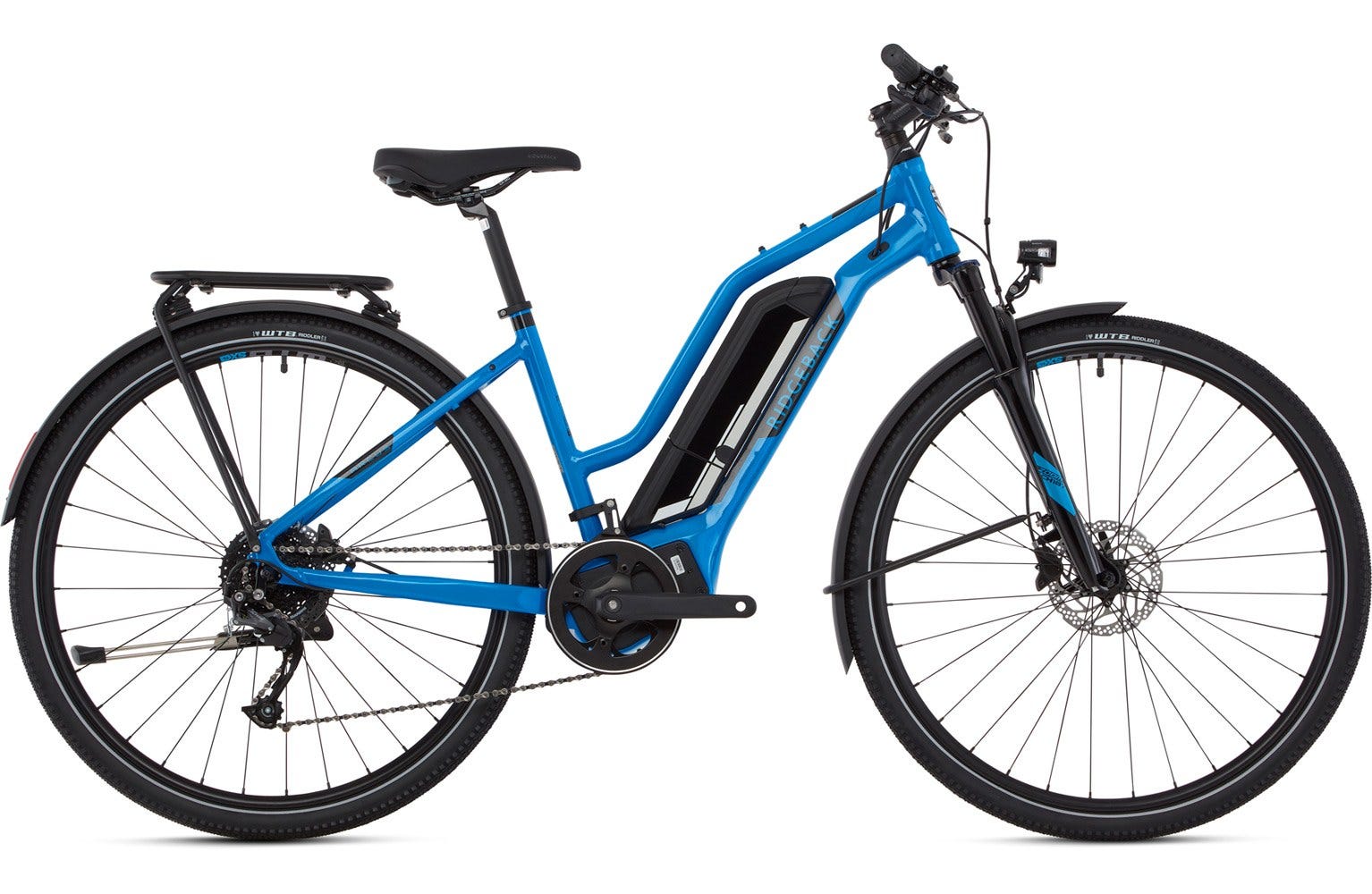

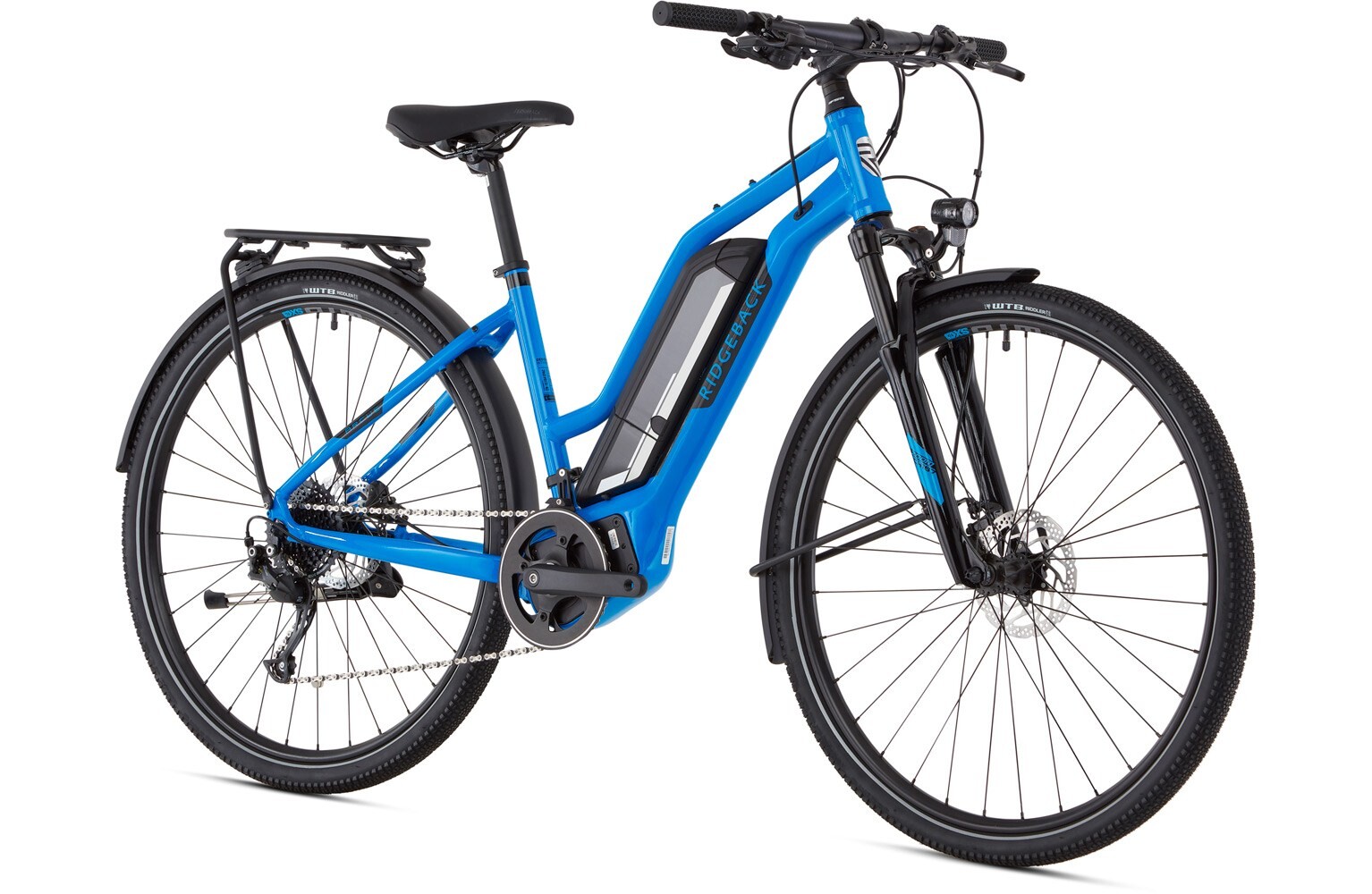

Ridgeback Arcus 2 Open Frame
- Our all-terrain E-bike, the Arcus 2 is built for comfort in town and country.

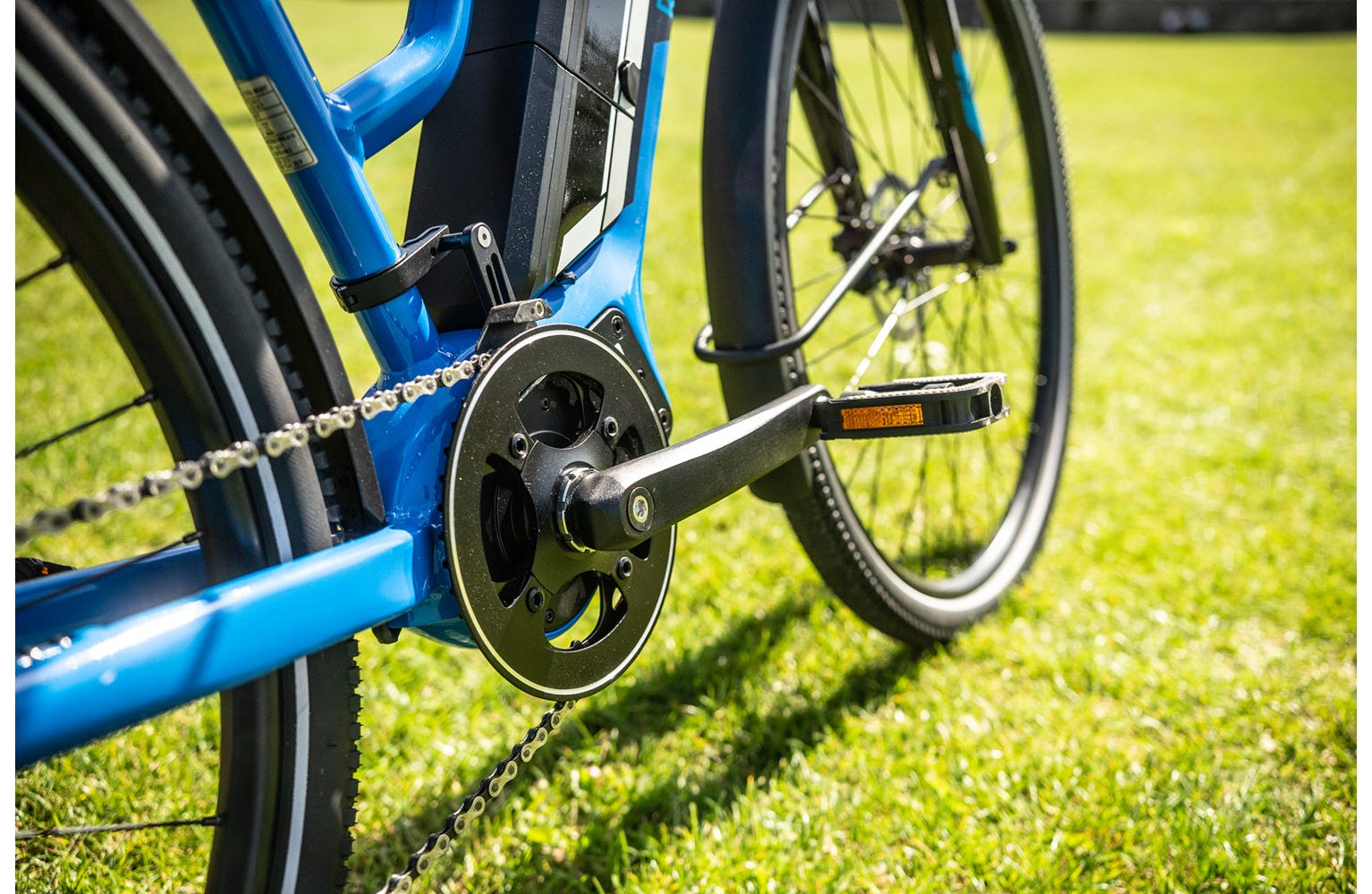

The Sportdrive MD250S motor offers 250 watts of pedal assist and up to 90nm of torque, making climbs a breeze. A range of up to 75km is perfect for local trips and longer weekend rides.

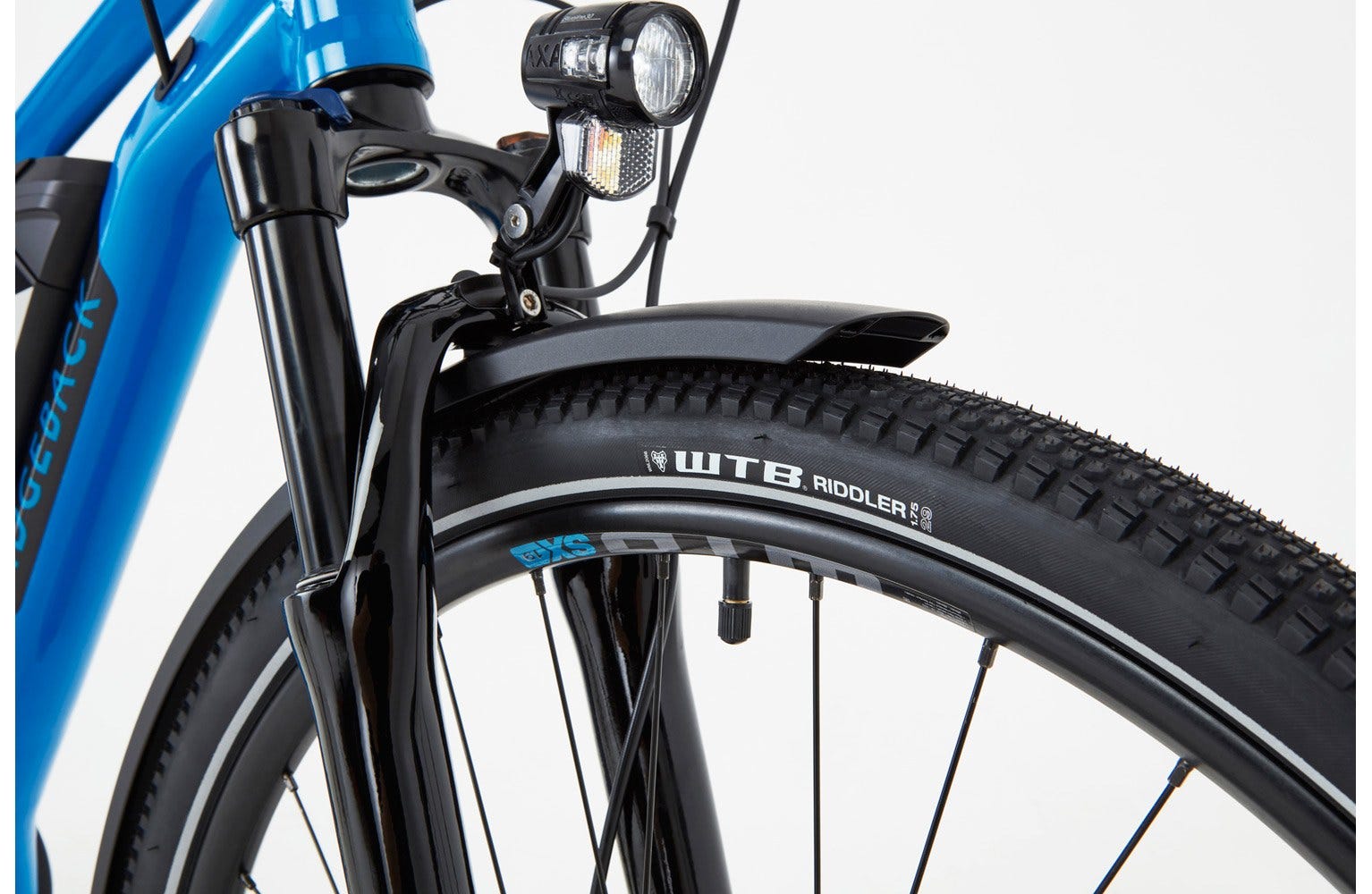

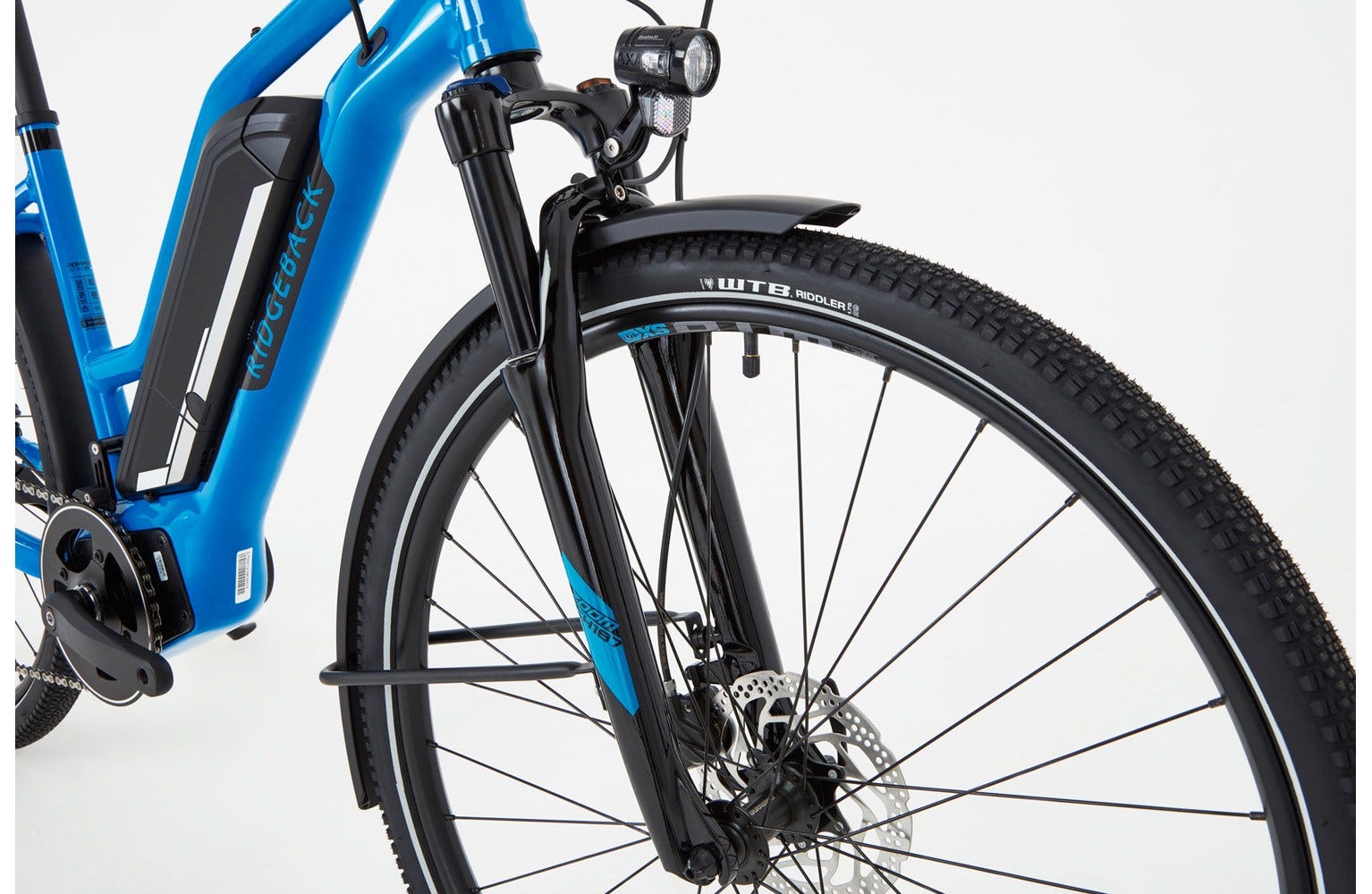

A suspension fork with 63mm of travel is paired with wide 45mm tyres to provide comfort over rough roads, and the capability to head off the beaten track on towpaths and gravel tracks.

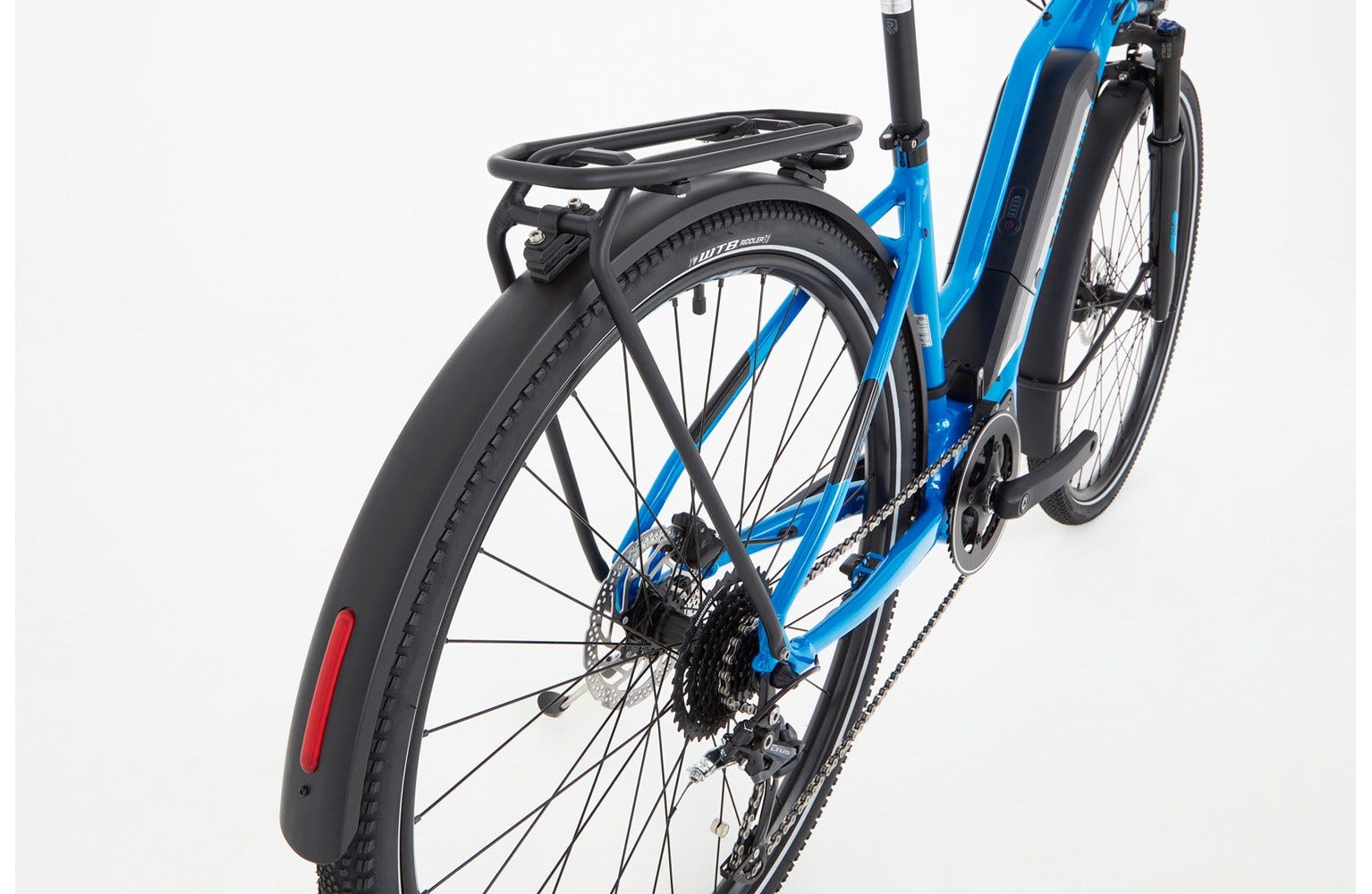

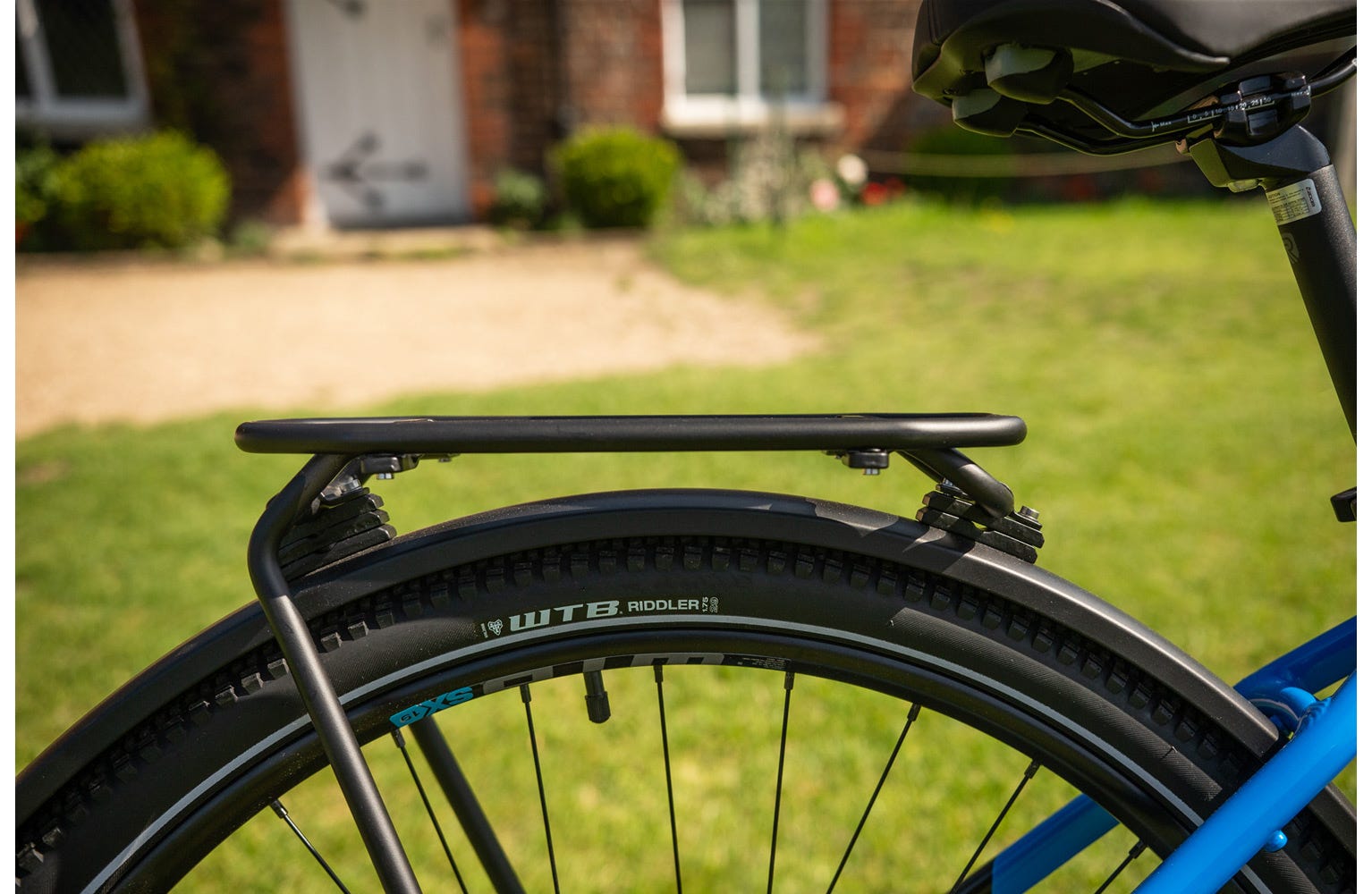

Finished off with full length mudguards, pannier rack and lights the Arcus 2 is a true modern utility bike.
Ridgeback Arcus 2 Open Frame
SKU
VARRB21940

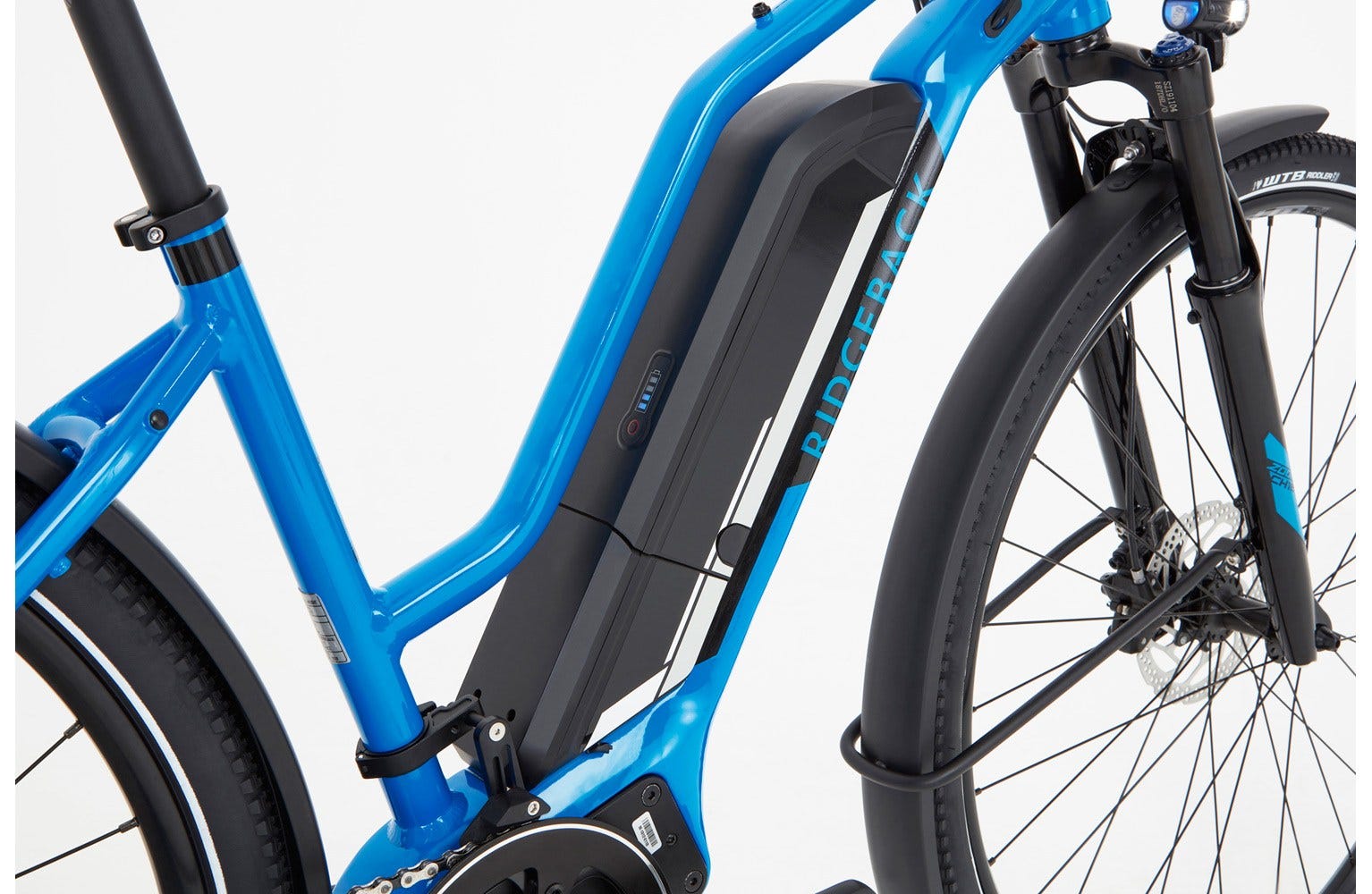

Battery Type :
Sportdrive 418wh

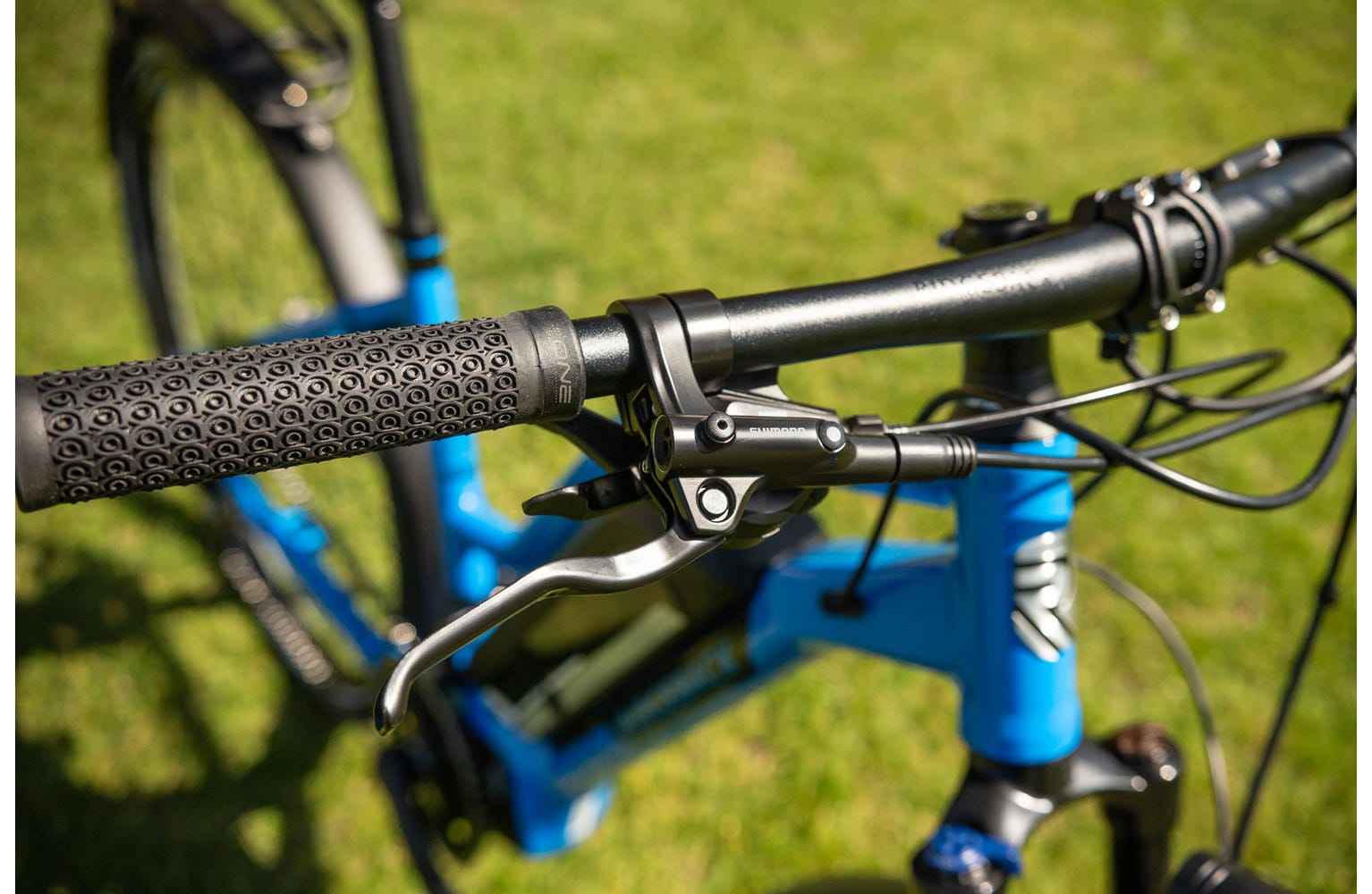

Brake Levers :
ALHONGA AHJ-OD07
Brakes :
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Cassette Freewheel :
microSHIFT Mezzo CSH092 11-36T
Chain :
KMC X9E
Chain Set :
Sportdrive 42T / 170 mm
Charger :
Sportdrive 2AH
Grip Tape :
Ridgeback
Headset :
FSA HS NO.10 1-1/8 inch
Hubs :
KTTC7 32h Front and Rear

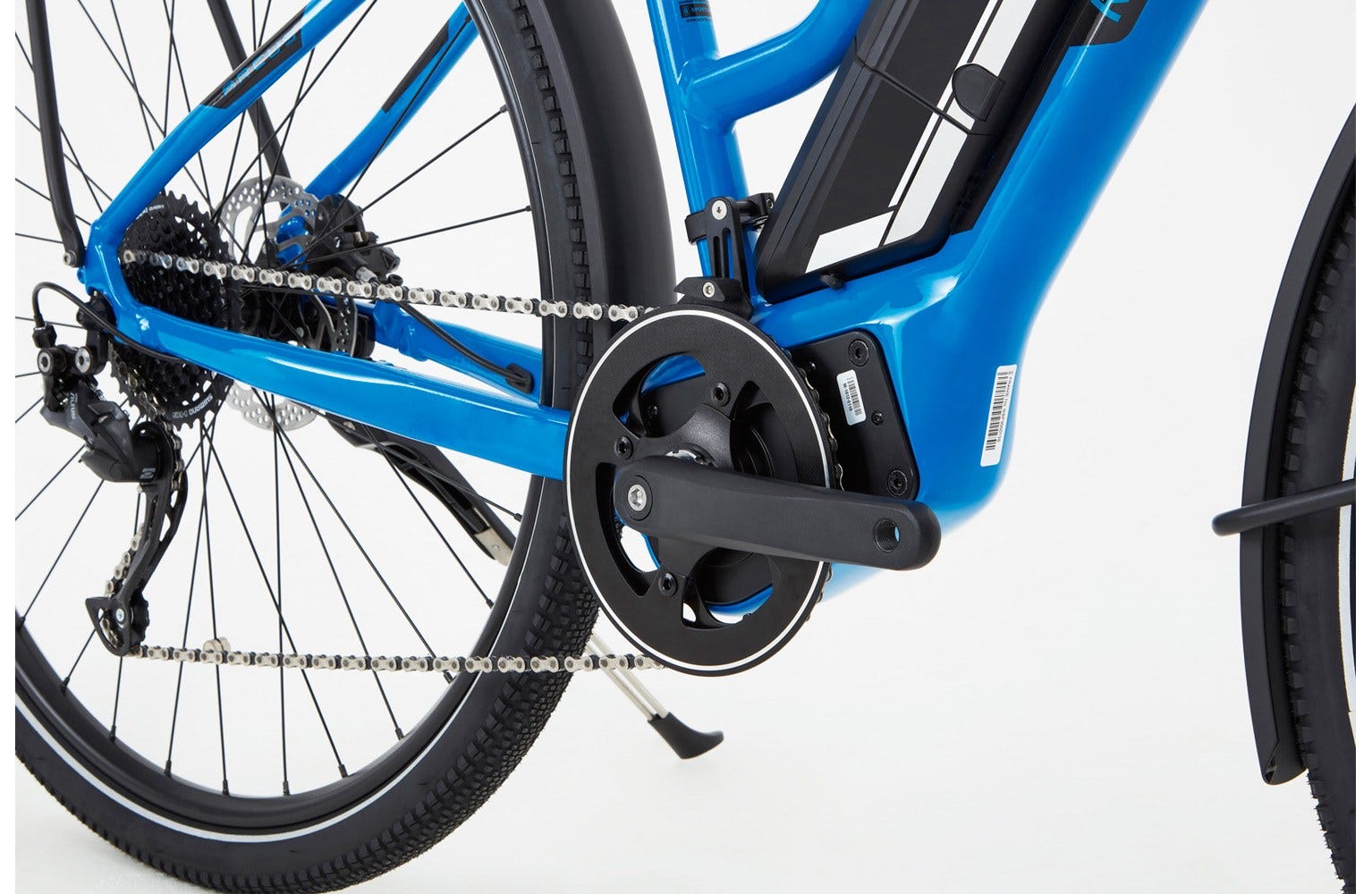

Motor :
Sportdrive MD250S 250W 90Nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RDM36L 9 Speed
Rims :
WTB SX19

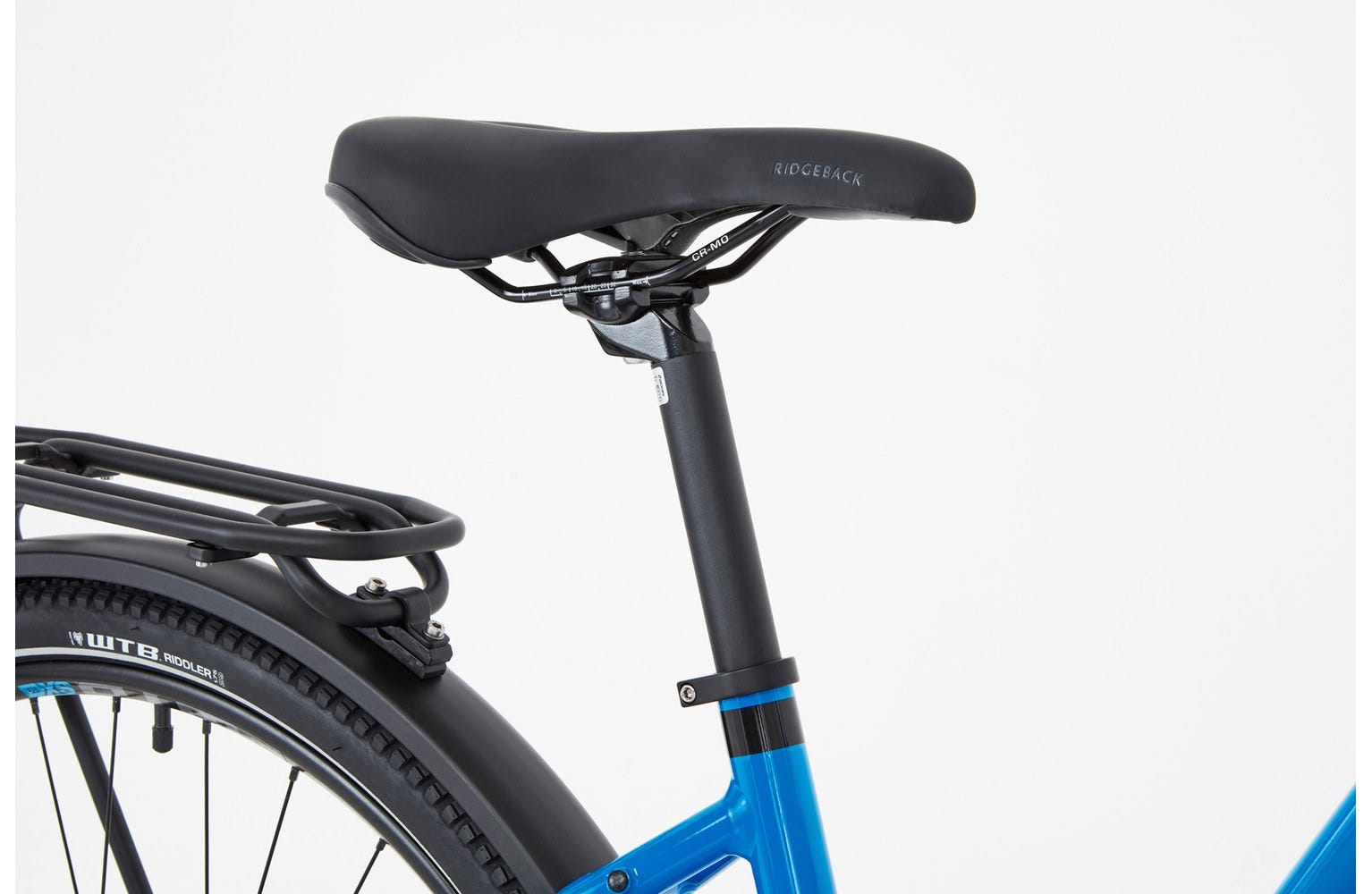

Seat Post :
Alloy 27.2 x 350 mm

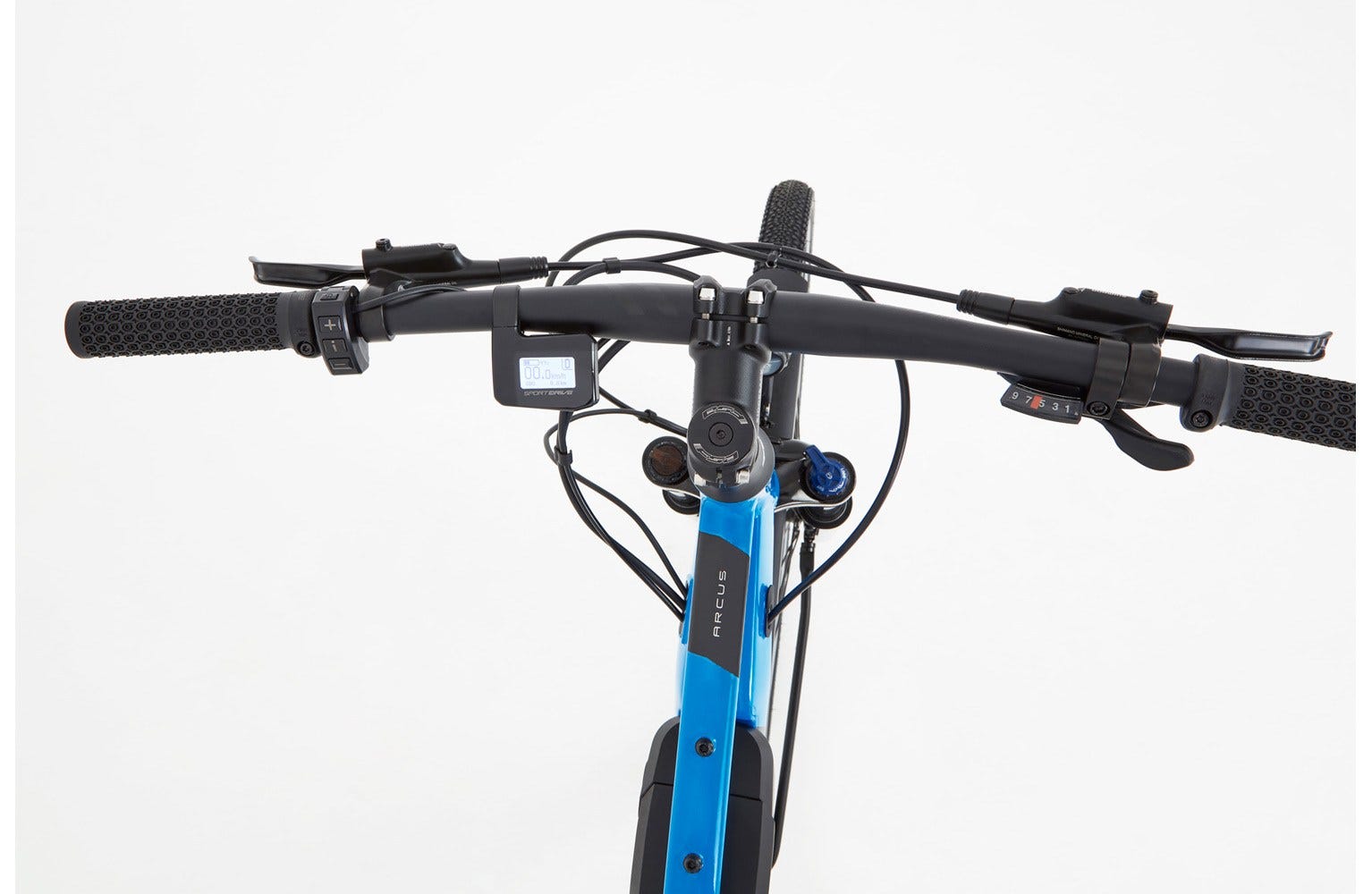

Shifters :
microSHIFT Mezzo TS39-9R 9 Speed
Spokes :
Steel 14 g
Stem :
Alloy 65 mm +9deg
Tyres :
WTB Riddler 700 x 45c Reflex
Wheel Size :
700c
Battery Integration :
External
Fork :
RST Volant 63mm
Fork Material :
Alloy
Frame Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Brake Type :
Hydraulic Disc
160
162
164
166
168
170
172
174
176
178
180
SMALL - 160 to 170
MEDIUM - 170 to 180
| Frame Size | SMALL | MEDIUM |
|---|---|---|
| Stem Length plus Reach | 475 | 476 |
| Frame Seat Tube | 431 | 483 |
| Frame Top Tube | 581 | 600 |
| Frame Reach | 410 | 411 |
| Frame Stack | 599 | 617 |
| Frame Head Tube | 140 | 160 |
| Frame Head Angle | 69° | 69° |
| Frame Seat Angle | 74° | 73° |
| Frame Chainstay | 465 | 465 |
| Frame BB Drop | 55 | 55 |
| Frame Wheel Base | 1129 | 1137 |
| Fork Offset | 45 | 45 |
| Fork Travel | ||
| Standover | ||
| Stem Length | 65 | 65 |
| Handle Bar Width | 680 | 680 |
