Arcus 2
Currently unavailable online, check your local bike shop for availability.

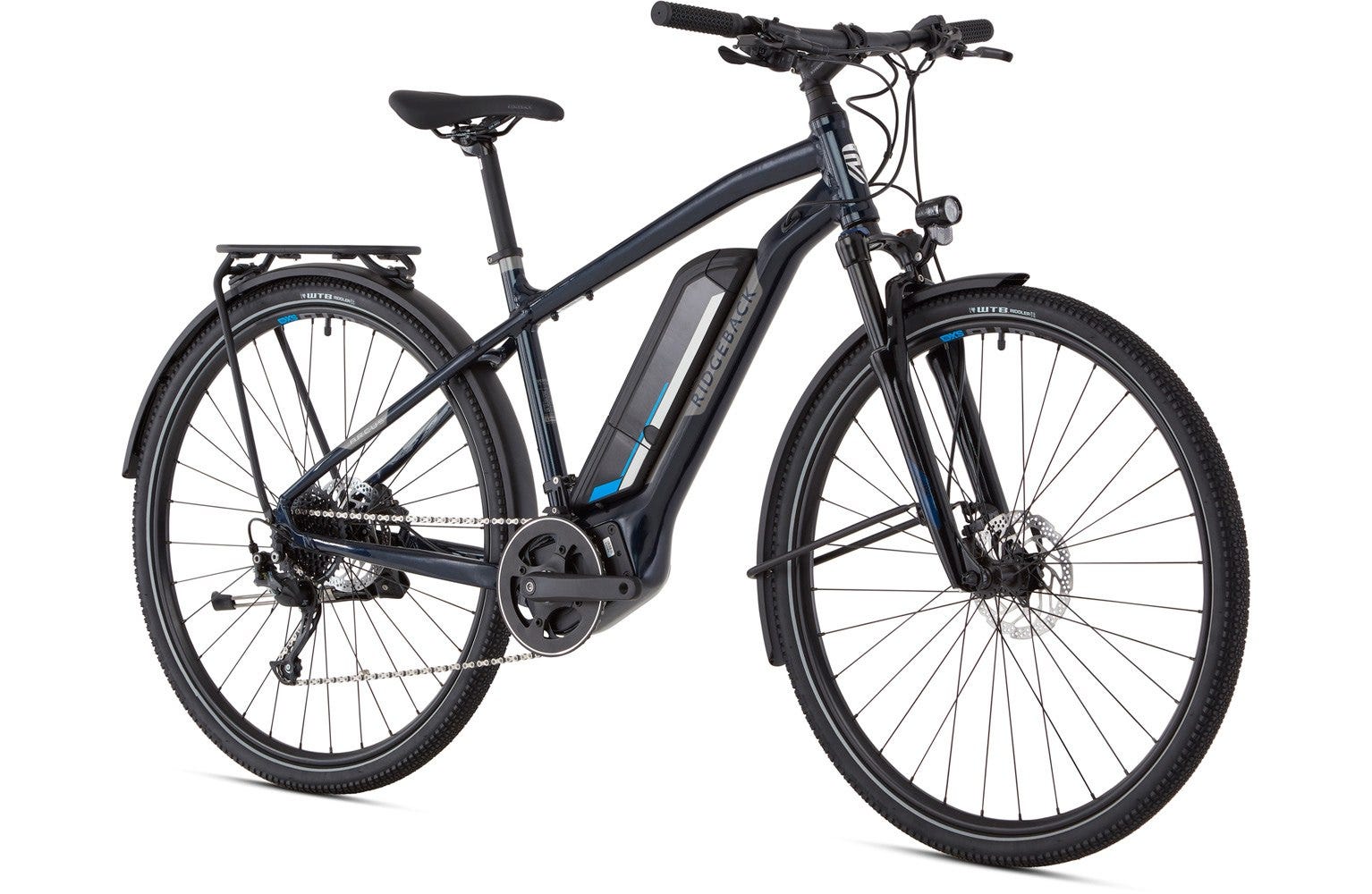

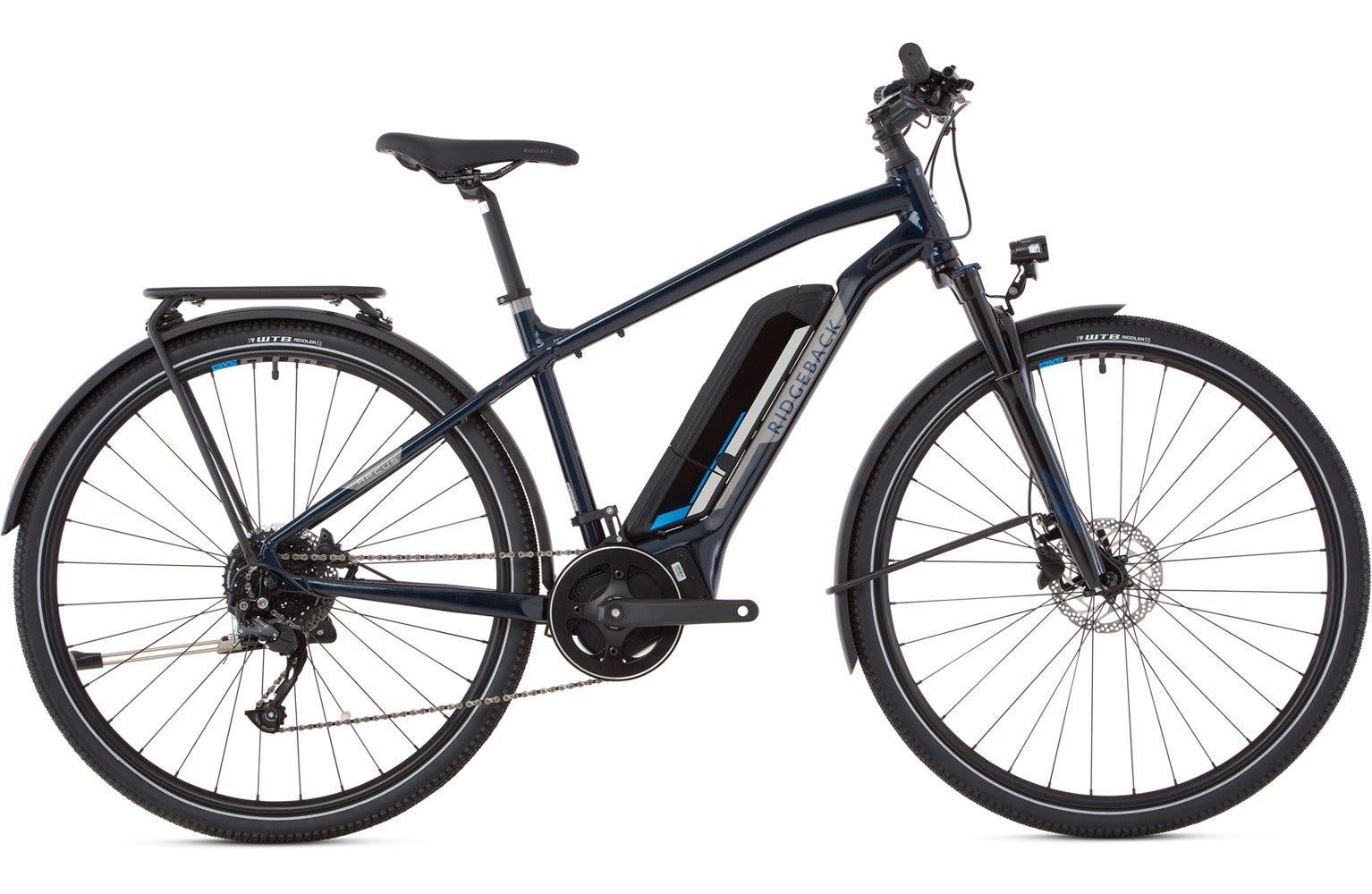

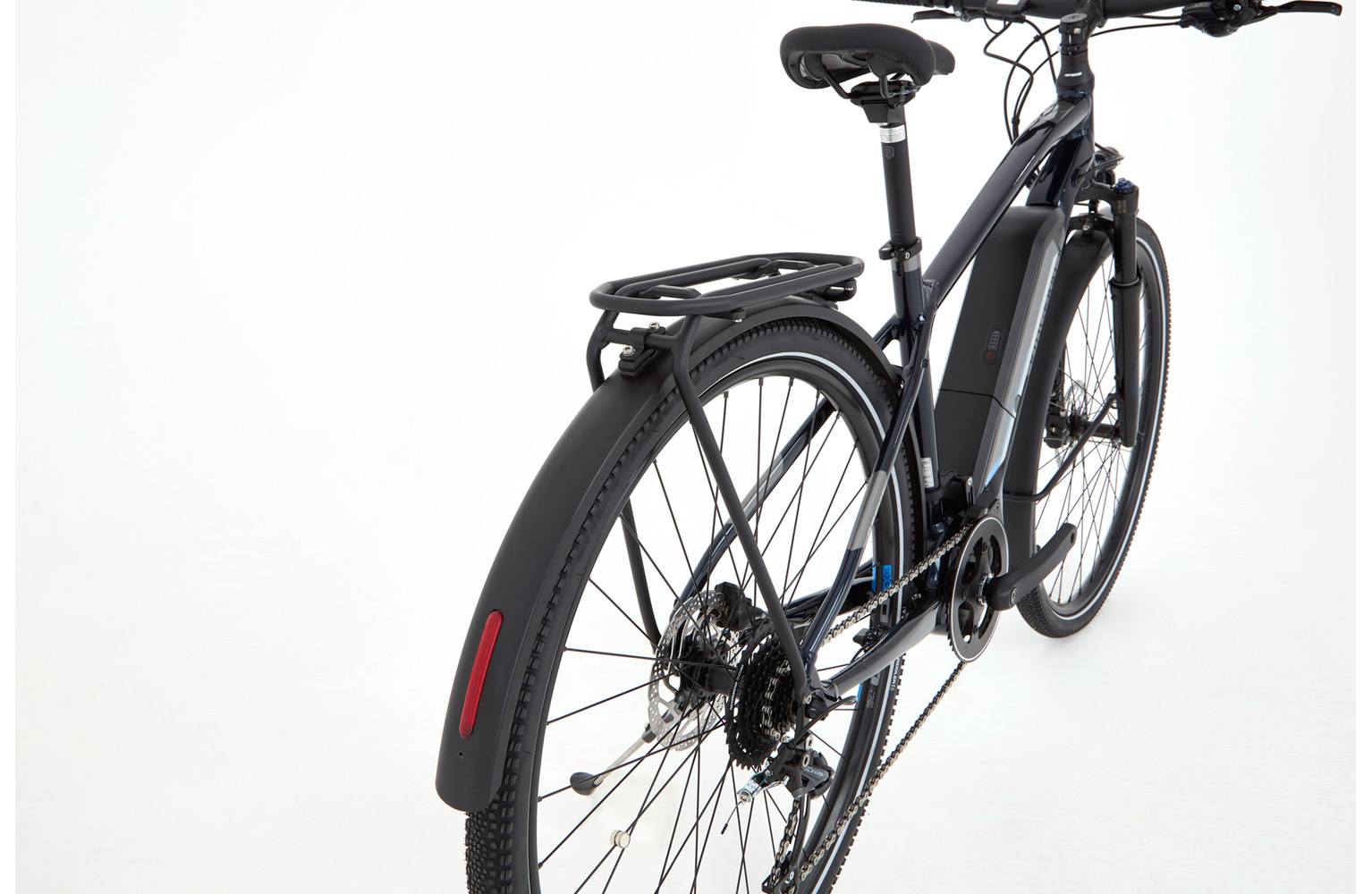

- The second generation of the Arcus has become more refined without losing any of its original practical charm. The Arcus 2 is built around a 6061 heat treated aluminium lightweight and strong frame which is paired with a 63mm travel suspension fork which makes sure you maintain a comfortable ride whatever the terrain. Equipped with a Sportdrive MD250S drive unit offering 250w of power and up to 90nm of torque mounted in the bottom bracket it allows you to take on any urban environment. Finished off with full length guards, pannier rack and lights out of the box the Arcus 2 is a true modern urban utility bike.
Specification
| Frame | SPORTDRIVE 6061 HEAT TREATED ALUMINIUM |
|---|---|
| Rear Shock | |

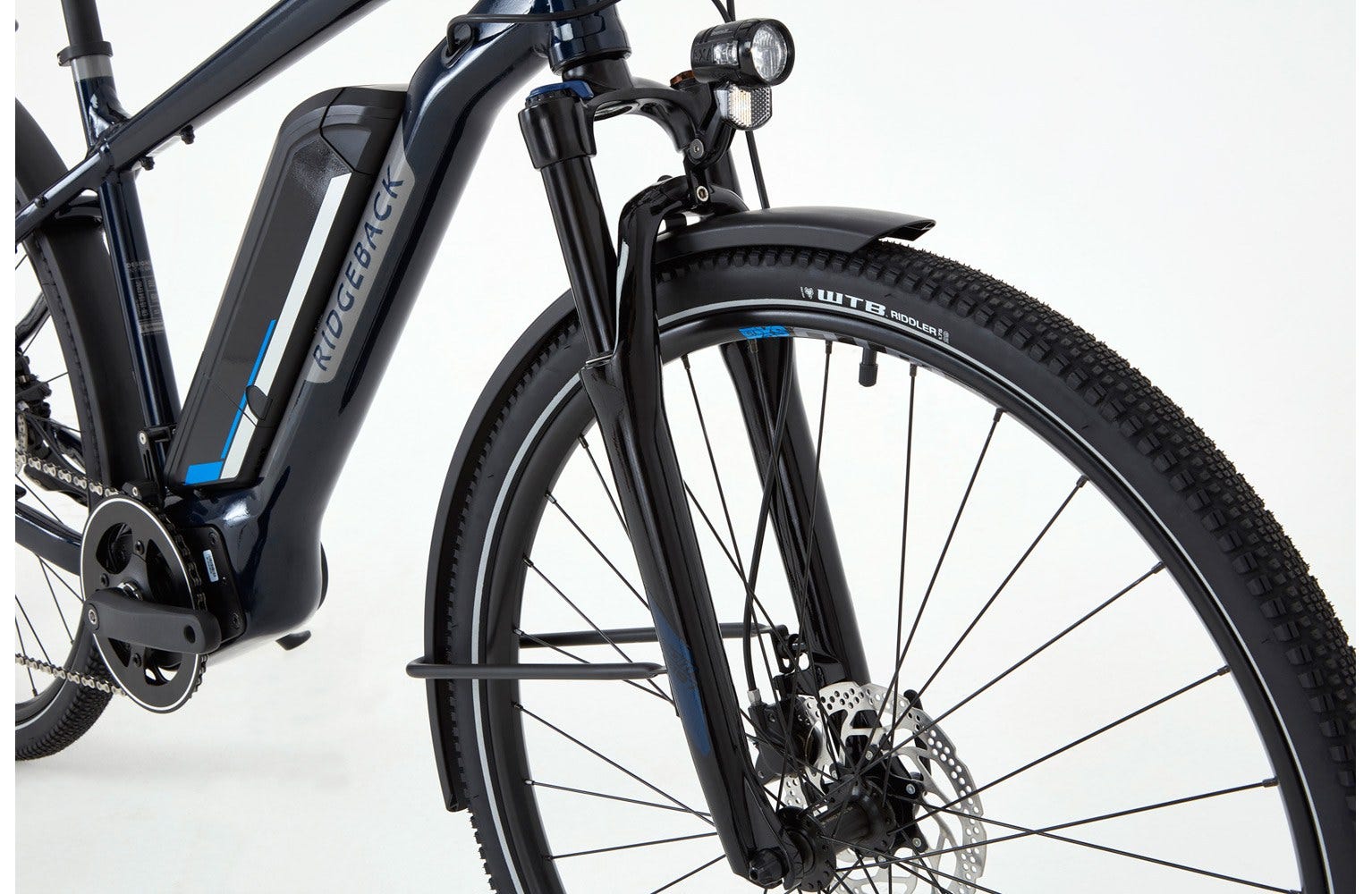

| Fork | ZOOM 188D, LO, 63MM TRAVEL |
| Headset | FSA HS NO.10 1-1/8" |
| Shifters | SHIMANO ALTUS SL-M2000 9-SPEED |
| Rear Derailleur | SHIMANO ALTUS RD-M2000 9-SPEED |
| Front Derailleur | N/A |
| Chainset | SPORTDRIVE 170MM, 42T |
| Bottom Bracket | N/A |
| Chain | KMC X9E |
| Cassette / Freewheel | SHIMANO CS-HG200-9 11-36T |
| Rims | WTB SX19 32H |
| Hubs | SHIMANO HB-M4050 / FH-M4050 32H |
| Spokes | STEEL 14G |

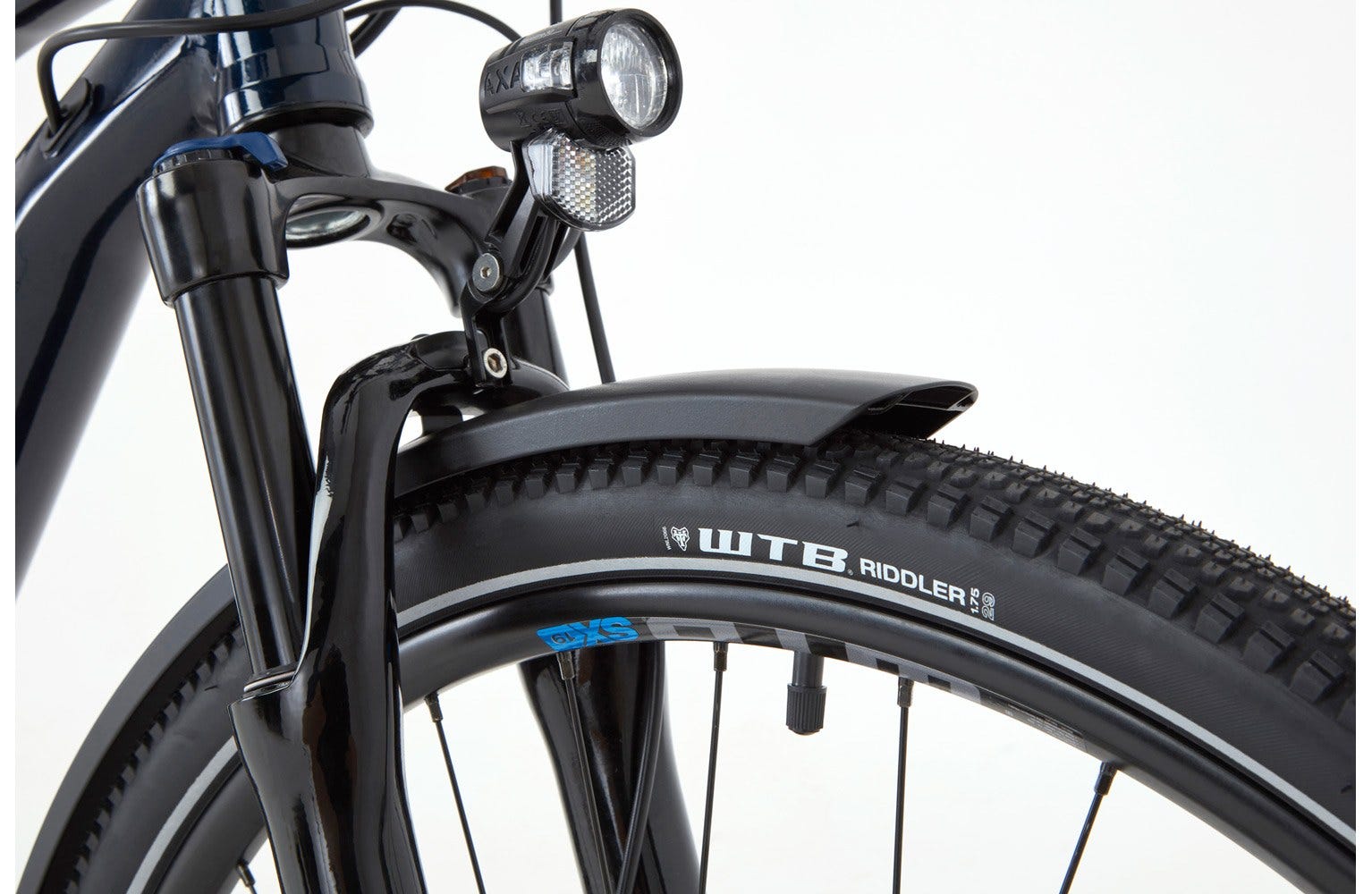

| Tyres | WTB RIDDLER 700x45C REFLEX |
| Brakes | SHIMANO BR-MT200 HYDRAULIC BRAKES |
| Brake levers | SHIMANO BL-MT200 HYDRAULIC BRAKES |

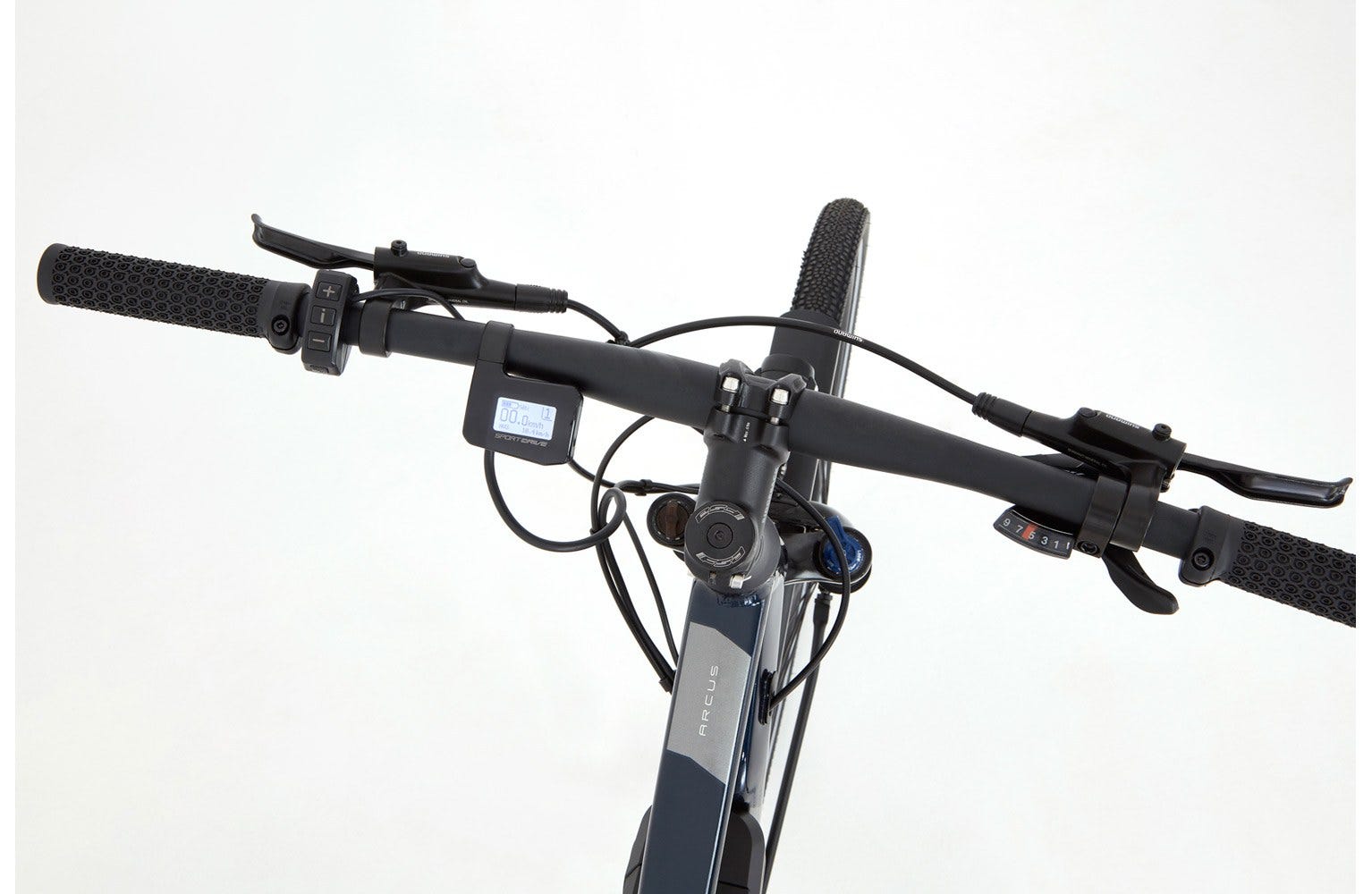

| Handlebars | ALLOY 9DEG BACKSWEEP, 31.8MM BAREBORE, 680MM WIDTH |
| Stem | ALLOY, 65MM, +9DEG |
| Saddle | RIDGEBACK METRO |
| Seatpost | ALLOY 27.2x350MM |
| Pedals | RIDGEBACK METRO |

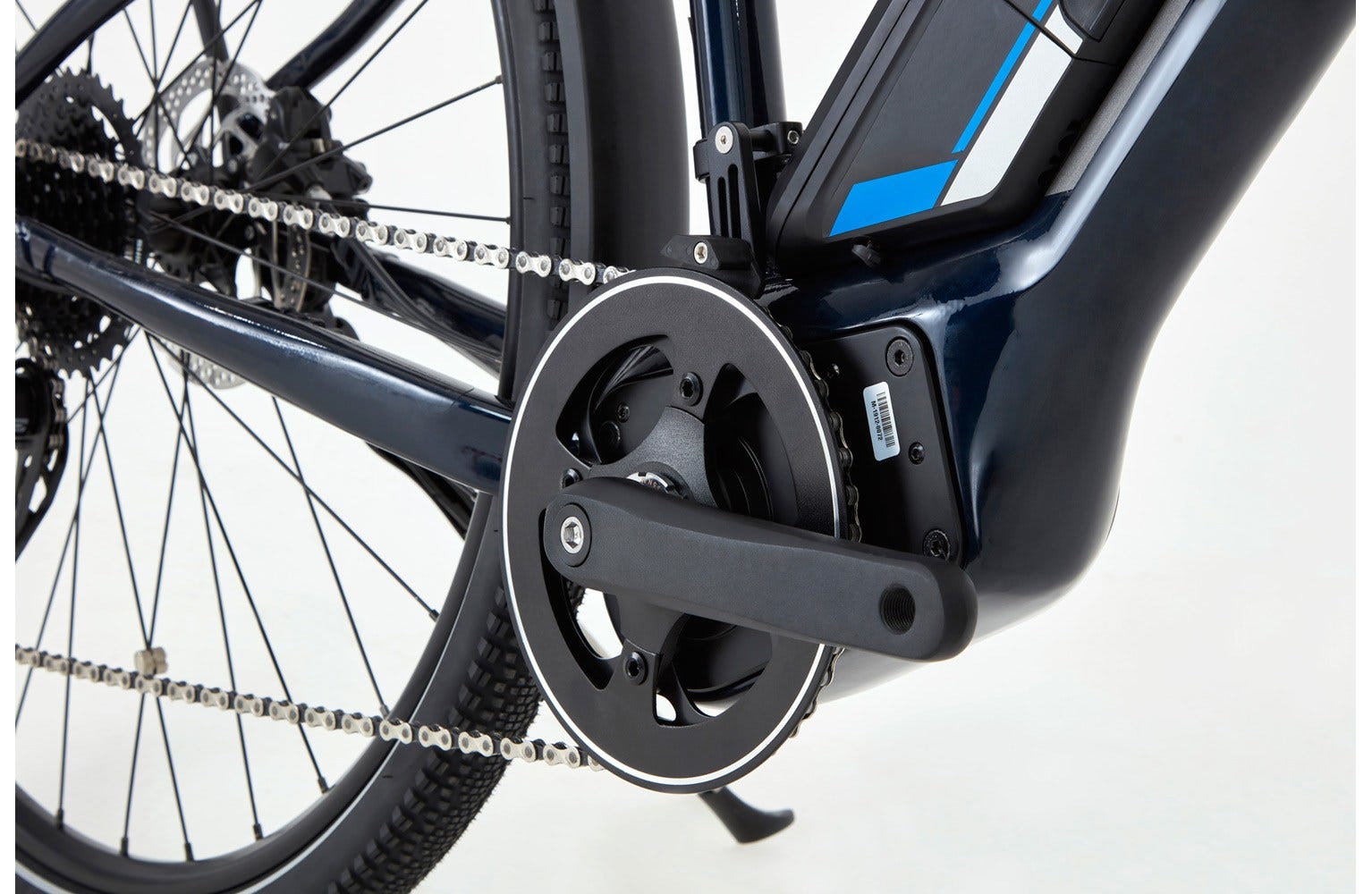

| Drive Unit | SPORTDRIVE MD250S, 250W, 90NM |

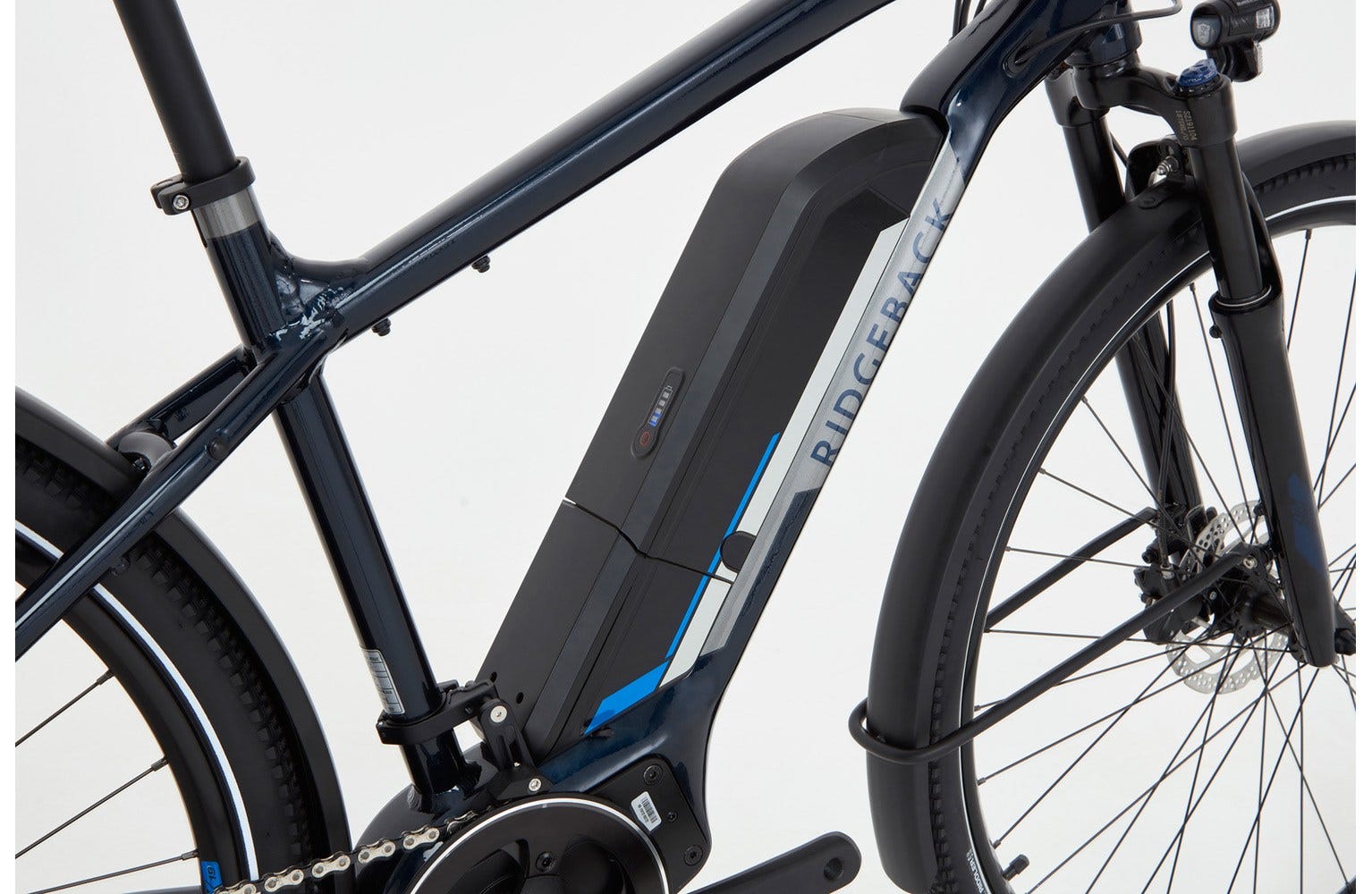

| Battery | SPORTDRIVE 418WH |
| charger | SPORTDRIVE 2AH |
Delivery Options
Please note that delivery (and returns) for online purchases are managed by our ecommerce partner Freewheel.
UK and Ireland Deliveries
Free UK Standard Delivery (allow 3-5 working days)
Prior to shipment, your bike will undergo a pre-delivery inspection (PDI) and subsequent safety checks by a skilled bicycle technician. When you receive your bike, you will need to adjust the handlebars and seat-post height. Instructions are provided. If the bike is supplied with pedals, these will be fitted to the bike.
Click and Collect
Click & Collect at your local Freewheel store for Free.
Your selected store will carry out a pre-delivery inspection (PDI) and subsequent safety checks by a skilled bike technician. Once completed, your chosen Freewheel store will inform you that your bike is ready to collect. All payments are made online prior to collection.
International Deliveries
We are unable to provide international deliveries at this time. Please contact your local Ridgeback stockist for availability.
Please be aware that whilst the COVID-19 pandemic is still present you may notice some delays to your order. Please contact Freewheel directly for online order enquires.
Full Specifications
Sizing
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.
Geometry
| Frame Seat Tube | 406 |
|---|---|
| Frame Top Tube | 558 |
| Frame Reach | 390 |
| Frame Stack | 589 |
| Frame Head Tube | 130 |
| Frame Head Angle | 69.000 |
| Frame Seat Angle | 74.000 |
| Frame BB Drop | 55 |
| Frame Wheel Base | 1105 |
| Fork Offset | 45 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 457 |
| Frame Top Tube | 580 |
| Frame Reach | 408 |
| Frame Stack | 599 |
| Frame Head Tube | 140 |
| Frame Head Angle | 69.000 |
| Frame Seat Angle | 74.000 |
| Frame BB Drop | 55 |
| Frame Wheel Base | 1117 |
| Fork Offset | 45 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 508 |
| Frame Top Tube | 600 |
| Frame Reach | 417 |
| Frame Stack | 599 |
| Frame Head Tube | 140 |
| Frame Head Angle | 69.000 |
| Frame Seat Angle | 73.000 |
| Frame BB Drop | 55 |
| Frame Wheel Base | 1136 |
| Fork Offset | 45 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
