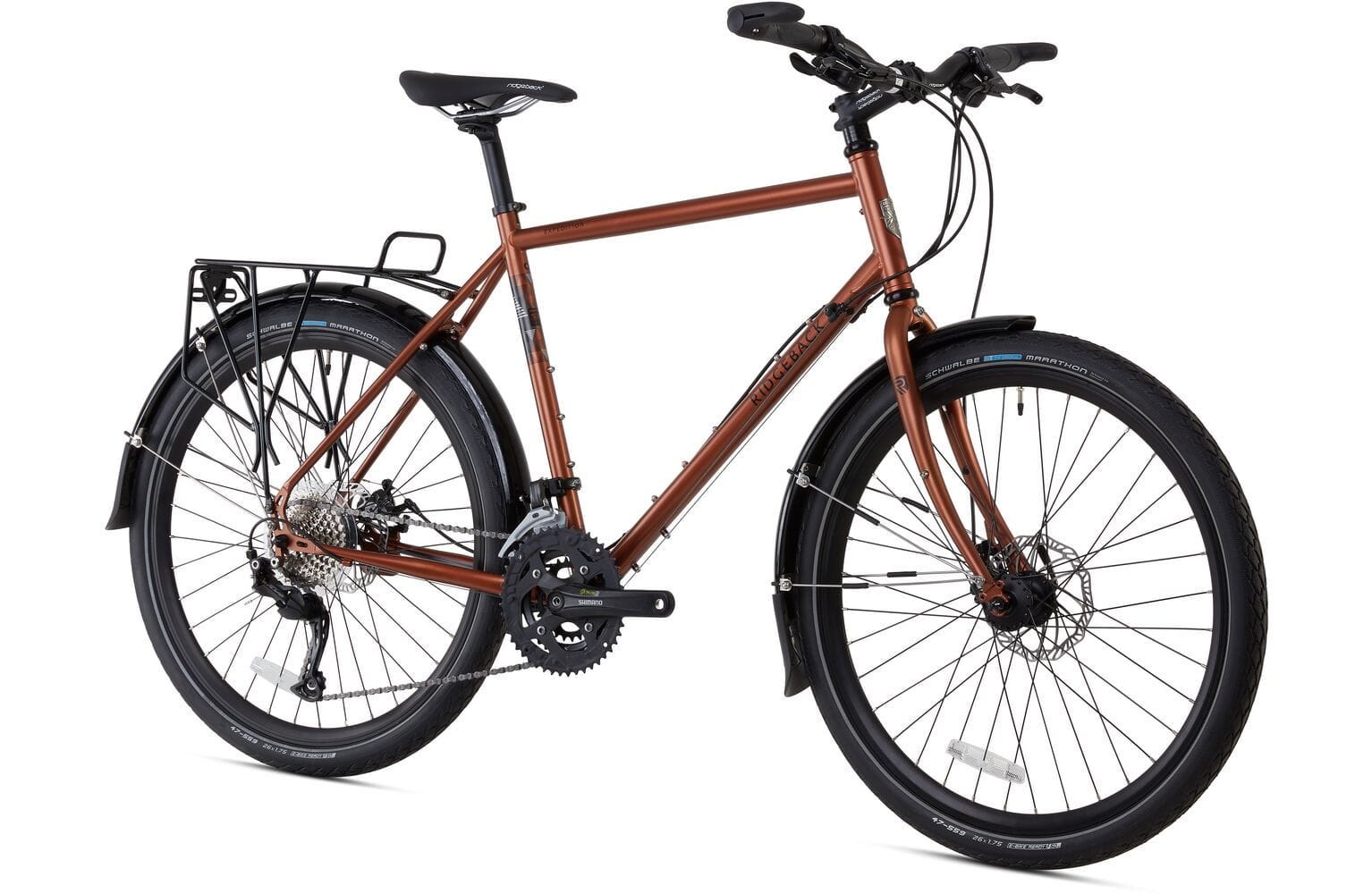

- For cycle touring in the ultimate comfort, the Ridgeback Expedition is the perfect partner.

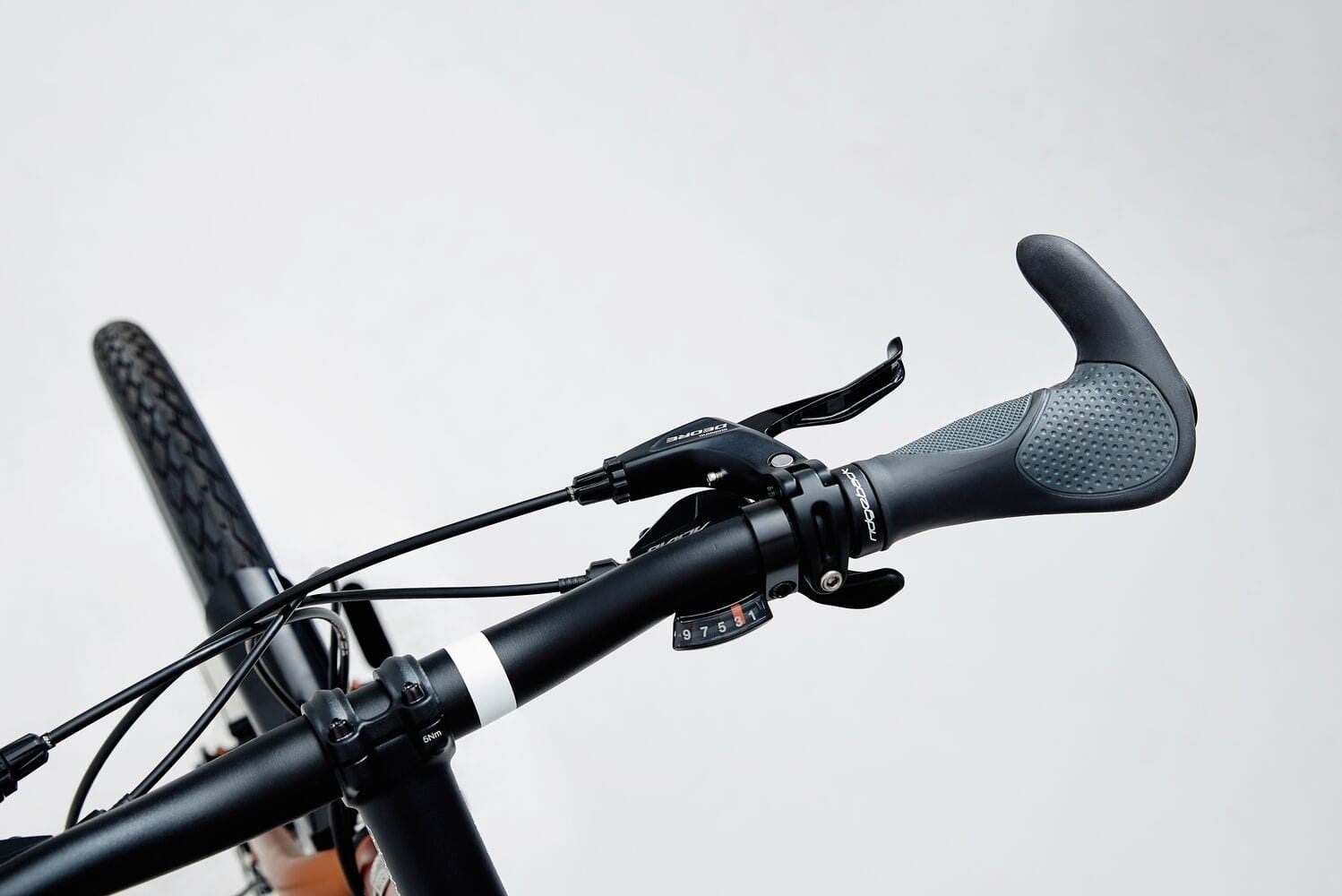

A riser handlebar and positive rise stem all bring the front of the bike higher, allowing for a more upright riding position.
But we haven't stopped there. Ergonomic grips provide palm relief and the integrated bar end gives another position to rest your hands.

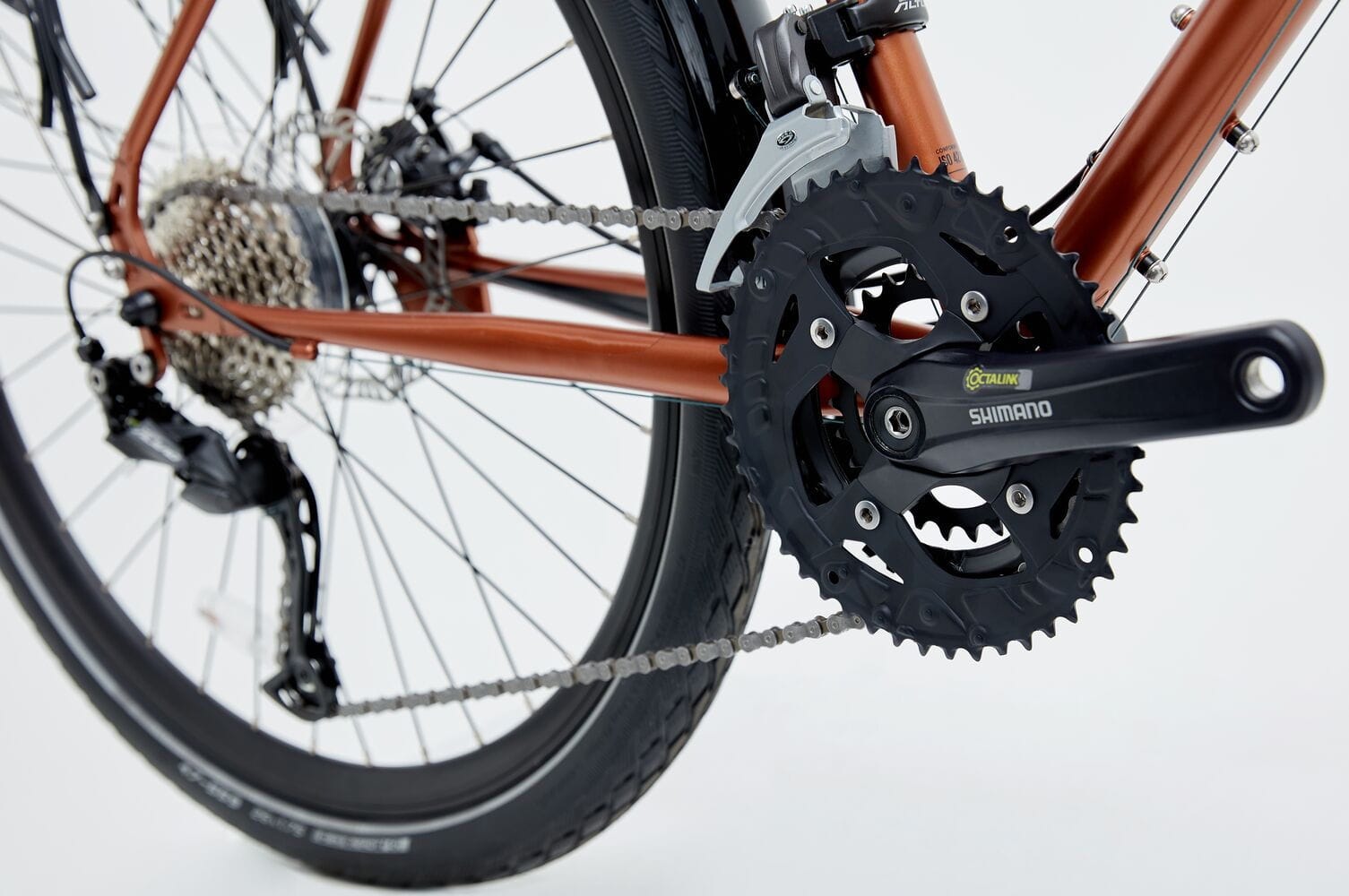

A wide range of 27-gears give the flexibility needed to conquer the steepest climbs without being tiresome, and being Shimano shifting quality and longevity is assured.

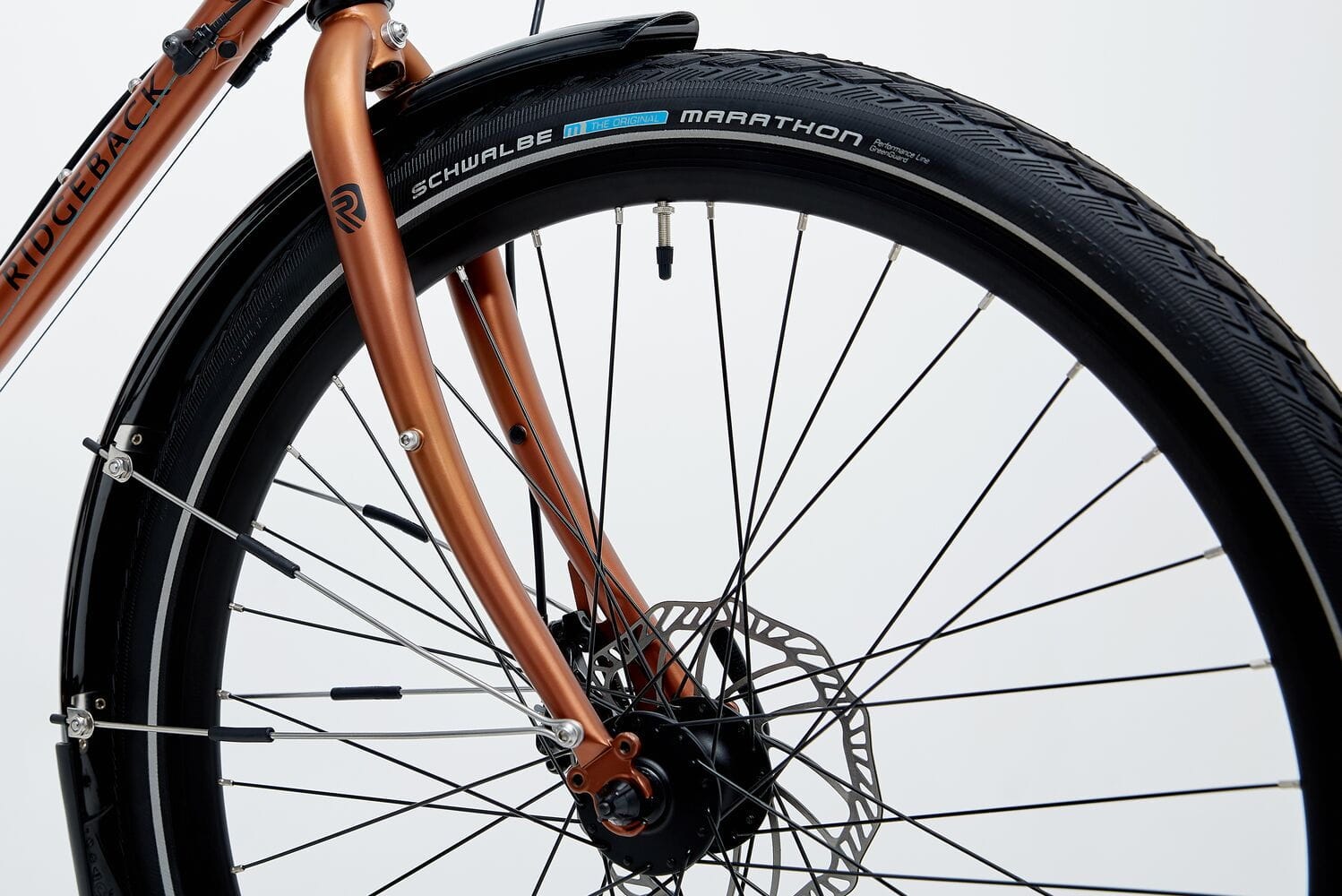

Wide Schwalbe Marathon tyres are hardwearing and puncture resistant and feature a reflective sidewall for added visibility.

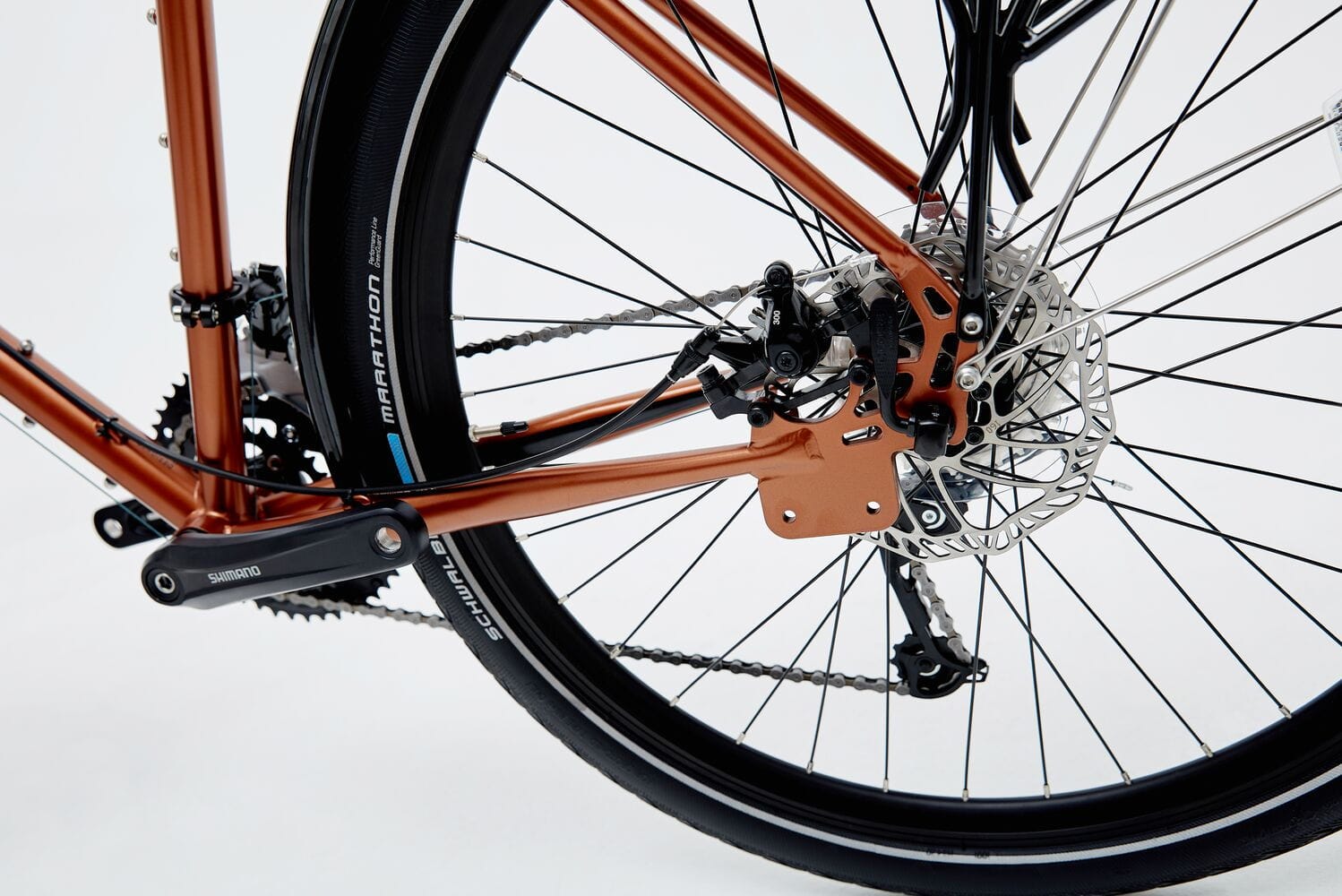

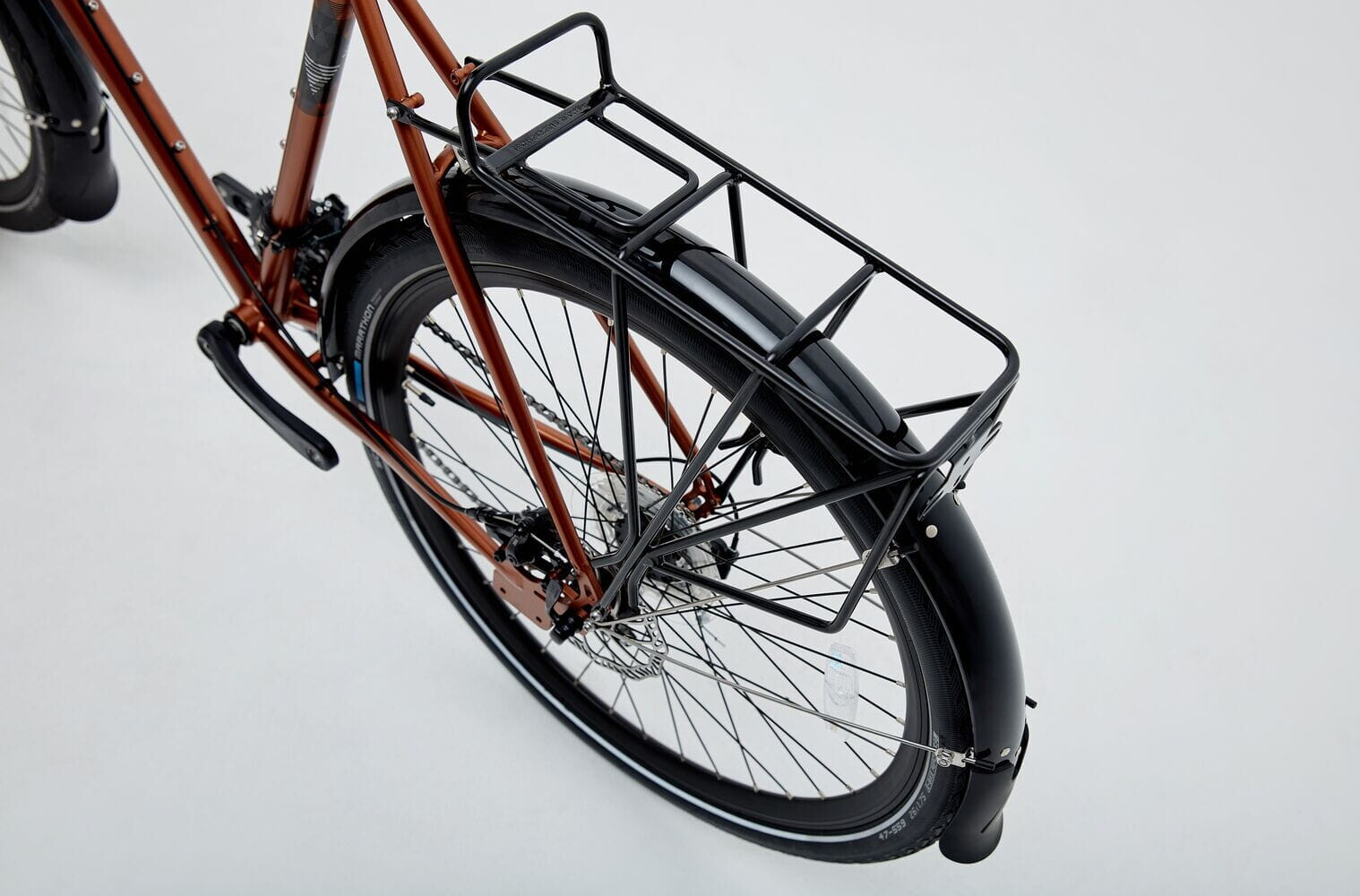

Full-length mudguards provide protection from road spray and disc brakes give reassuring stopping power in all conditions.
Weight - 14.59
Press Review
★★★★
It feels stable whether unloaded or loaded, and once its up to speed I felt akin to a king of the road. - Cycling Plus
A comfortable, heavyweight tourer and commuter that's well suited to year-round riding over poor surfaces - BikeRadar

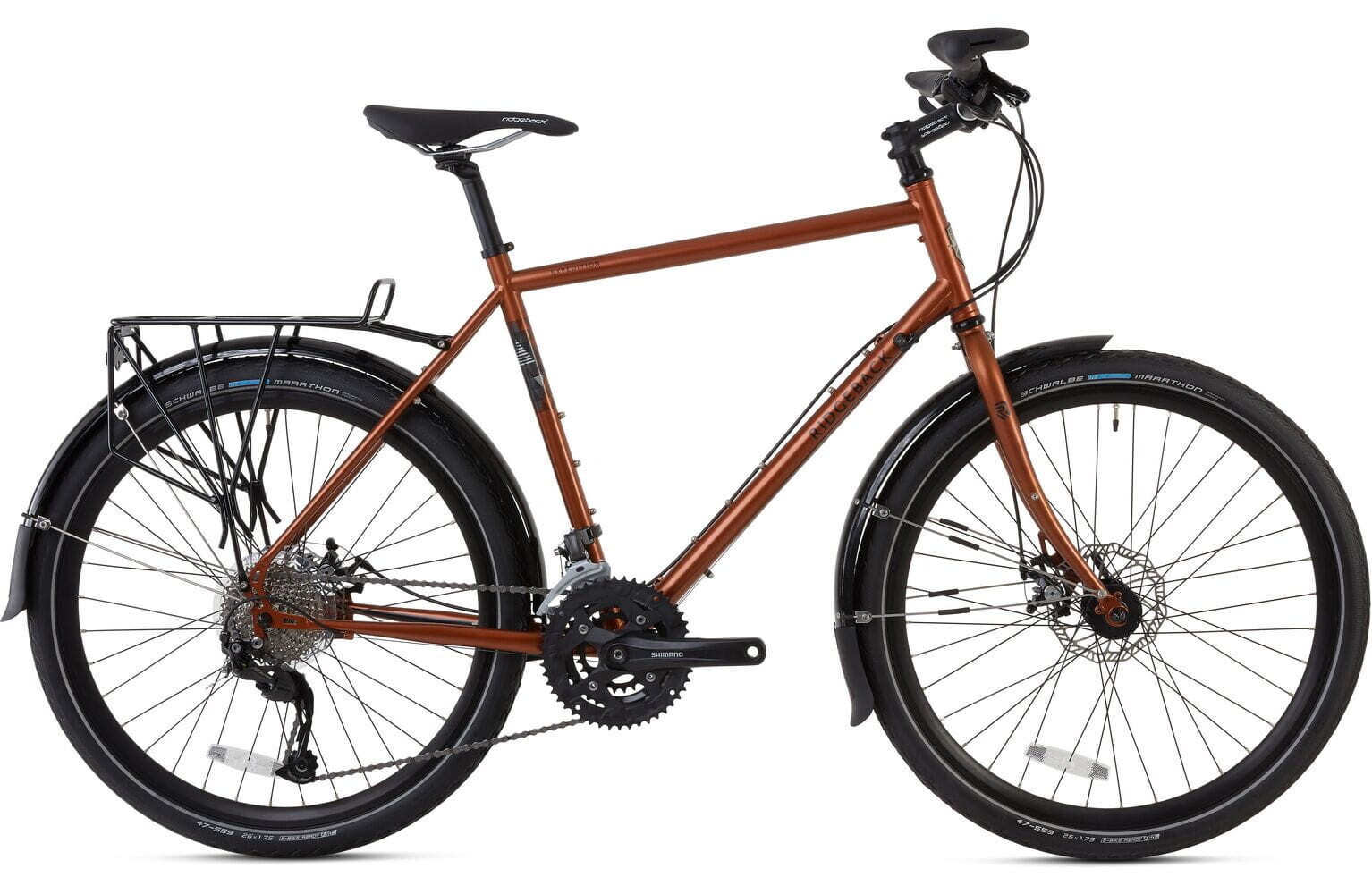

Ridgeback Expedition
SKU
VARRB22520
Brake Type :
Mechanical Disc
Frame Material :
Steel
Bottom Bracket :
Shimano BB-ES300
Brake Levers :
Shimano Deore BL-T610
Brakes :
Promax DSK-300 Mechanical Disc Brake
Cassette Freewheel :
Shimano CS-HG400 11-36T
Chain :
KMC X9
Chain Set :
Shimano FC-T4010 48-36-26T
Front Derailleur :
Shimano Alivio FD-T4000
Grip Tape :
Ridgeback
Headset :
Prestine PT-1767D
Hubs :
Shimano M475
Mudguard :
Fitted
Pedals :
FPD Road / Toe Clips
Rear Derailleur :
Shimano Alivio RD-M3100-SGS
Rims :
Jalco DM25

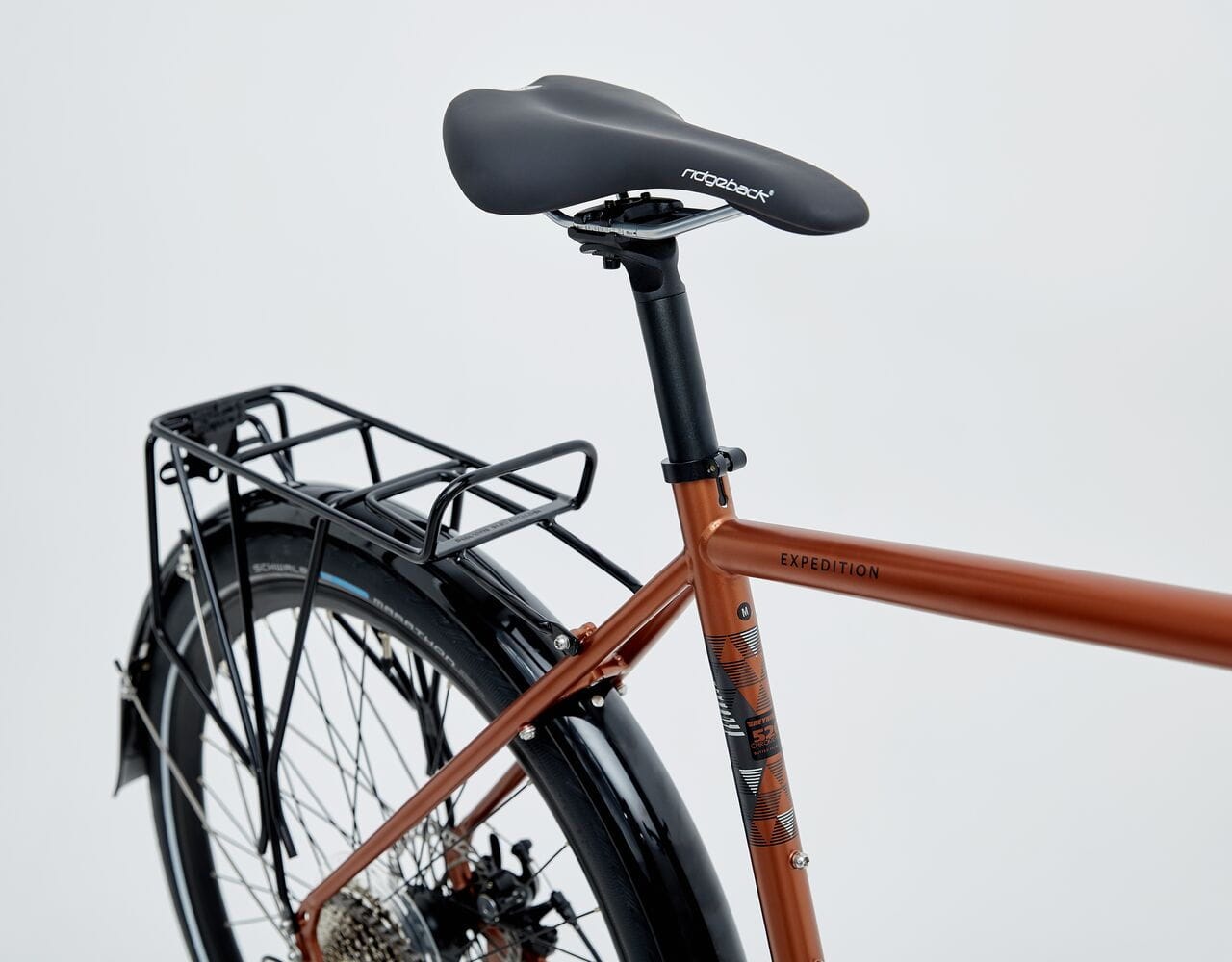

Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm
Shifters :
Shimano Alivio SL-M3100
Spokes :
Steel 14 g
Stem :
Ridgeback AS-007 XS-M 90 mm / L-XL 100 mm
Tyres :
Schwalbe Marathon GG 26 x 1.75
Wheel Size :
26 inch
Fork :
Chromoly Steel
Fork Material :
Chromoly
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
X-SMALL - 156 to 164
SMALL - 164 to 172
MEDIUM - 171 to 179
LARGE - 178 to 186
X-LARGE - 185 to 193
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|

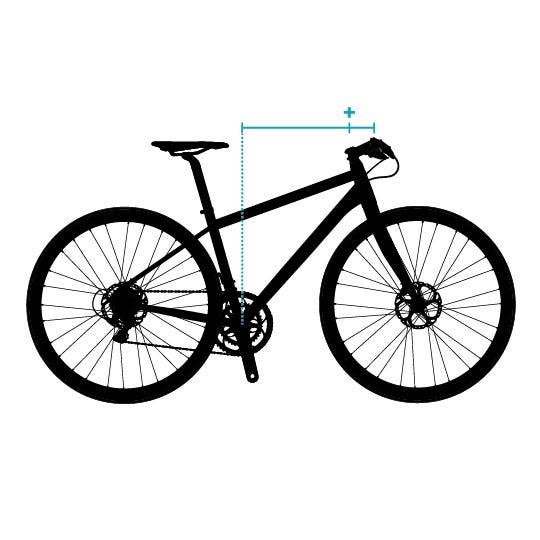

| Stem Length plus Reach | 455 | 465 | 475 | 495 | 505 |
| Frame Seat Tube | 470 | 500 | 530 | 560 | 590 |
| Frame Top Tube | 521 | 541 | 557 | 581 | 603 |
| Frame Reach | 365 | 375 | 385 | 395 | 405 |
| Frame Stack | 544 | 563 | 587 | 610 | 632 |
| Frame Head Tube | 140 | 160 | 180 | 210 | 230 |
| Frame Head Angle | 70° | 70° | 70° | 70° | 70° |
| Frame Seat Angle | 74° | 73.5° | 73.5° | 73° | 72.5° |
| Frame Chainstay | 445 | 445 | 445 | 445 | 445 |
| Frame BB Drop | 45 | 45 | 45 | 45 | 45 |
| Frame Wheel Base | 1042 | 1059 | 1076 | 1096 | 1113 |
| Fork Offset | |||||
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 90 | 100 | 100 |
| Handle Bar Width | 620 | 620 | 620 | 640 |
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| Stem Length plus Reach | 455 | 465 | 475 | 495 | 505 |
| Frame Seat Tube | 470 | 500 | 530 | 560 | 590 |
| Frame Top Tube | 521 | 541 | 557 | 581 | 603 |
| Frame Reach | 365 | 375 | 385 | 395 | 405 |
| Frame Stack | 544 | 563 | 587 | 610 | 632 |
| Frame Head Tube | 140 | 160 | 180 | 210 | 230 |
| Frame Head Angle | 70° | 70° | 70° | 70° | 70° |
| Frame Seat Angle | 74° | 73.5° | 73.5° | 73° | 72.5° |
| Frame Chainstay | 445 | 445 | 445 | 445 | 445 |
| Frame BB Drop | 45 | 45 | 45 | 45 | 45 |
| Frame Wheel Base | 1042 | 1059 | 1076 | 1096 | 1113 |
| Fork Offset | |||||
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 90 | 100 | 100 |
| Handle Bar Width | 620 | 620 | 620 | 640 |
You may also like
-
-

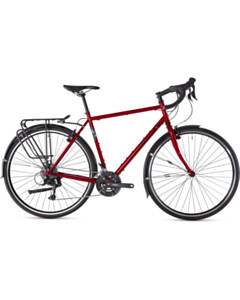

Ridgeback Voyage
