The Ridgeback Motion is the perfect bike for town or country and is ready to take on any incline thanks to its wide range of 21-gears.
Whether you're riding at speed on the flat, or negotiating a steep climb, the smooth-shifting Shimano gears provide you with the perfect option for every terrain, without hurting your legs.
The Motion's aluminium frame is built to last and enjoys our limited lifetime warranty.

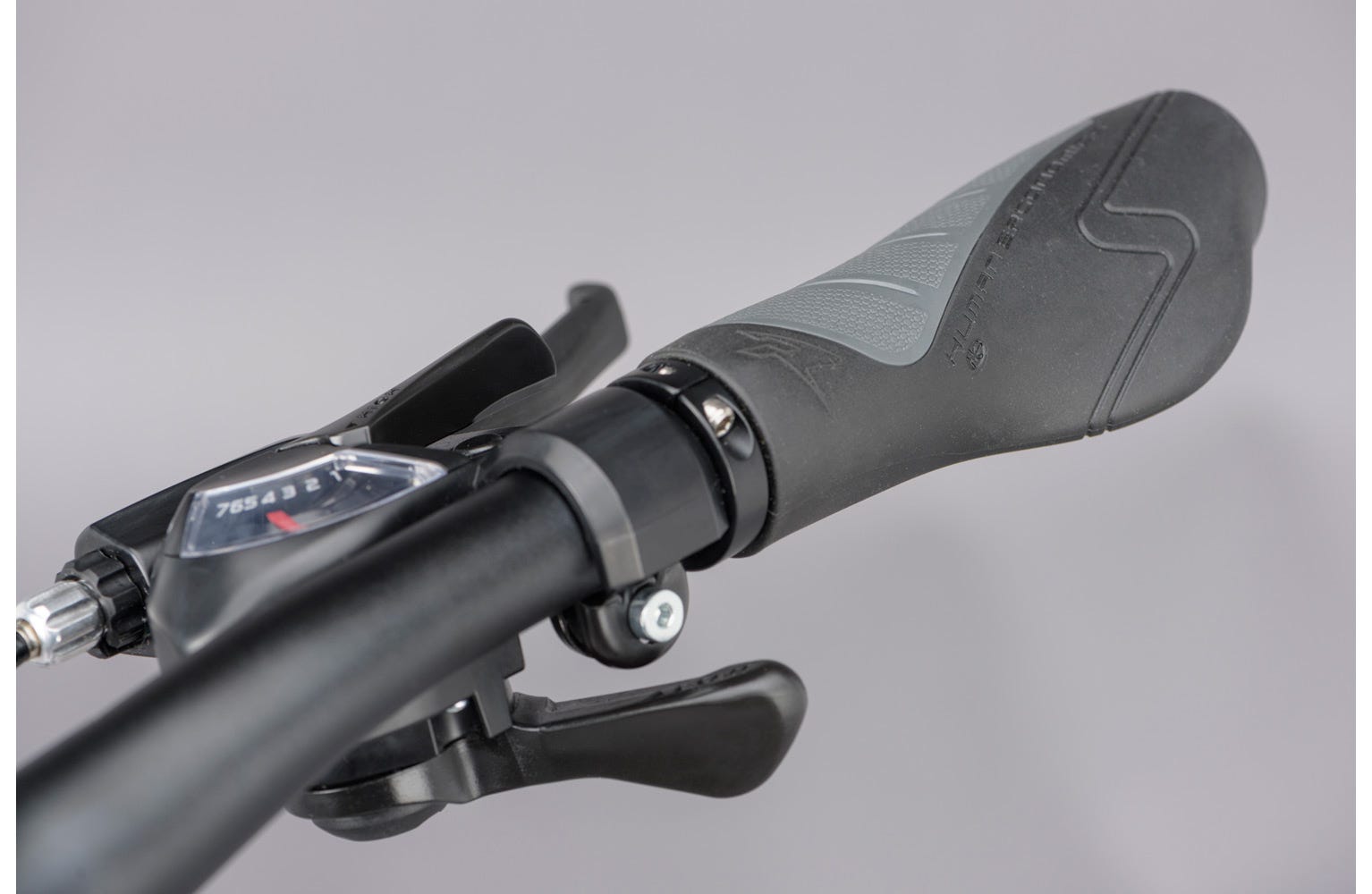

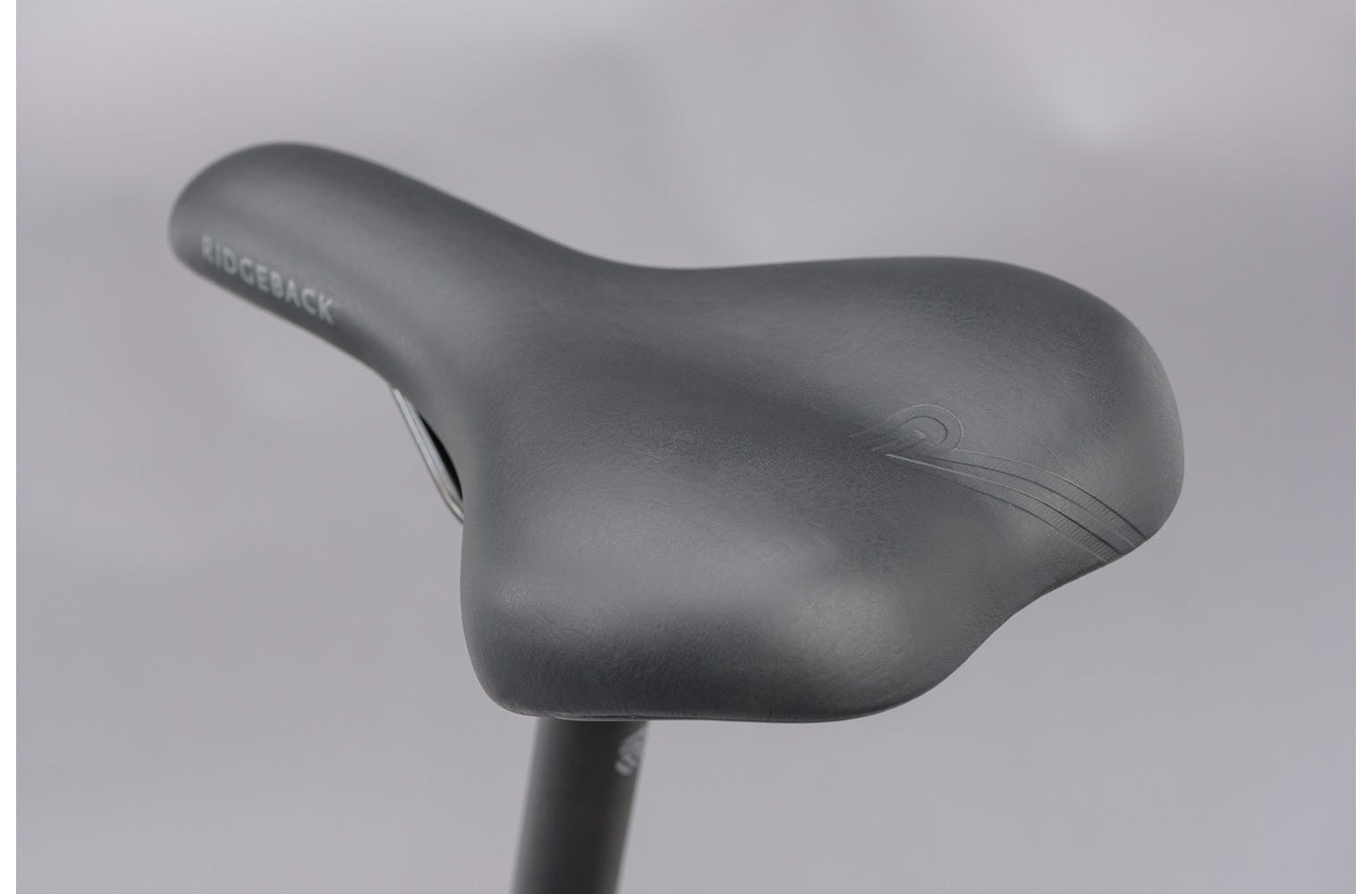

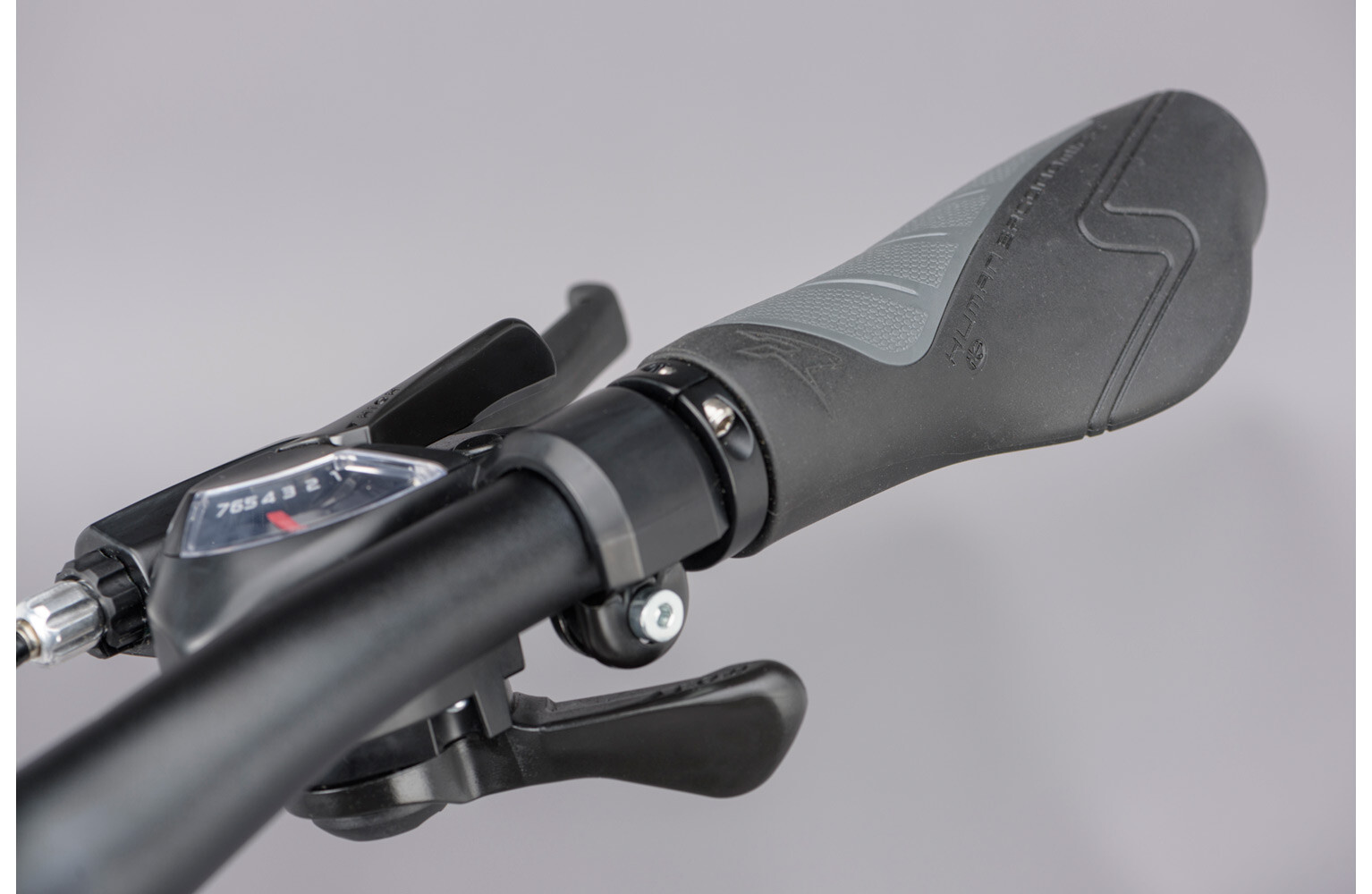

You'll also ride in comfort because we have selected wide tyres a comfort saddle with pressure relief channel and ergonomically-shaped dual density grips.

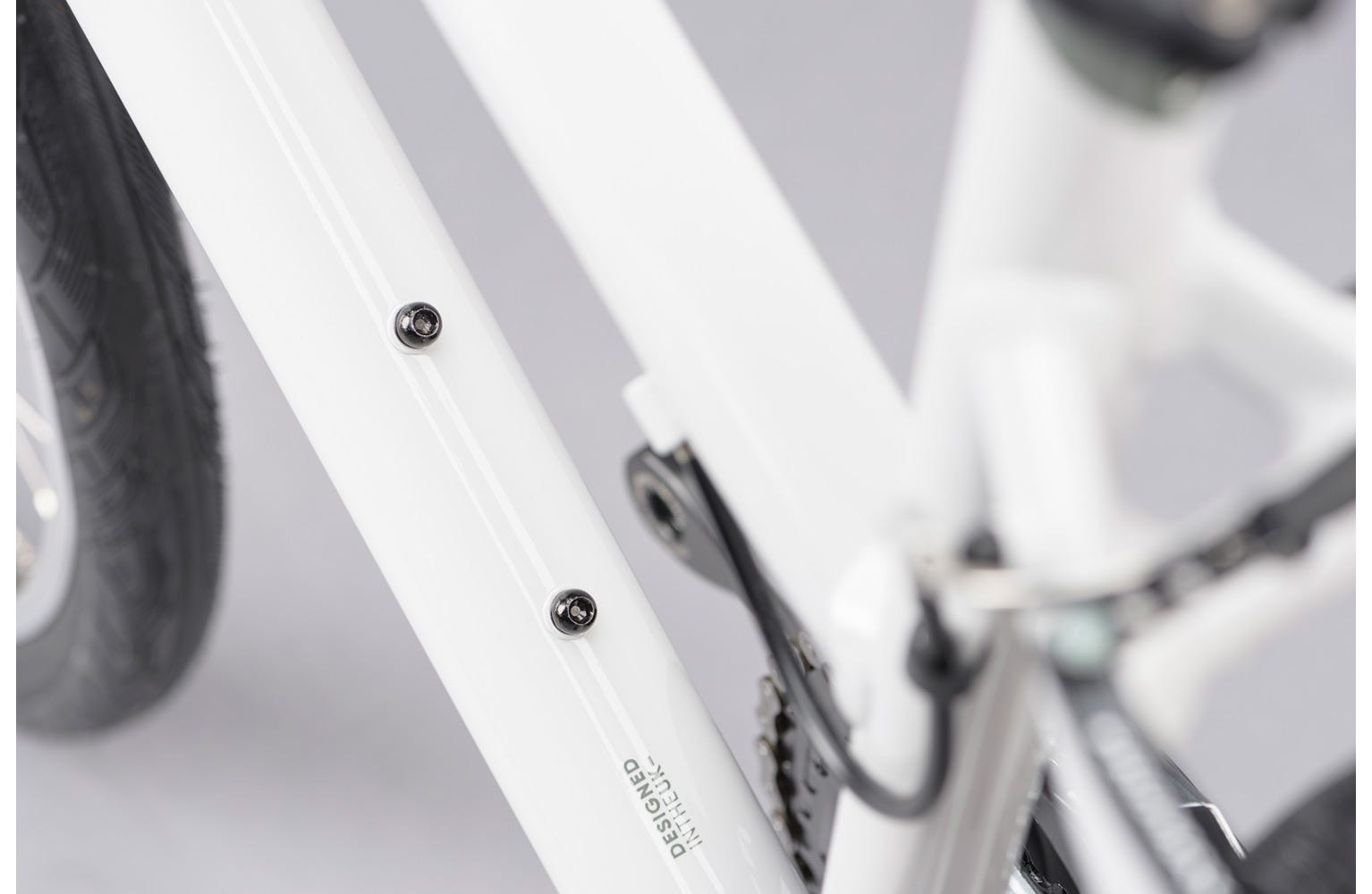

Practicality is another area where the Motion really shines, with mounts for mudguards and racks, making this a truly adaptable bike.
Weight - 14.6

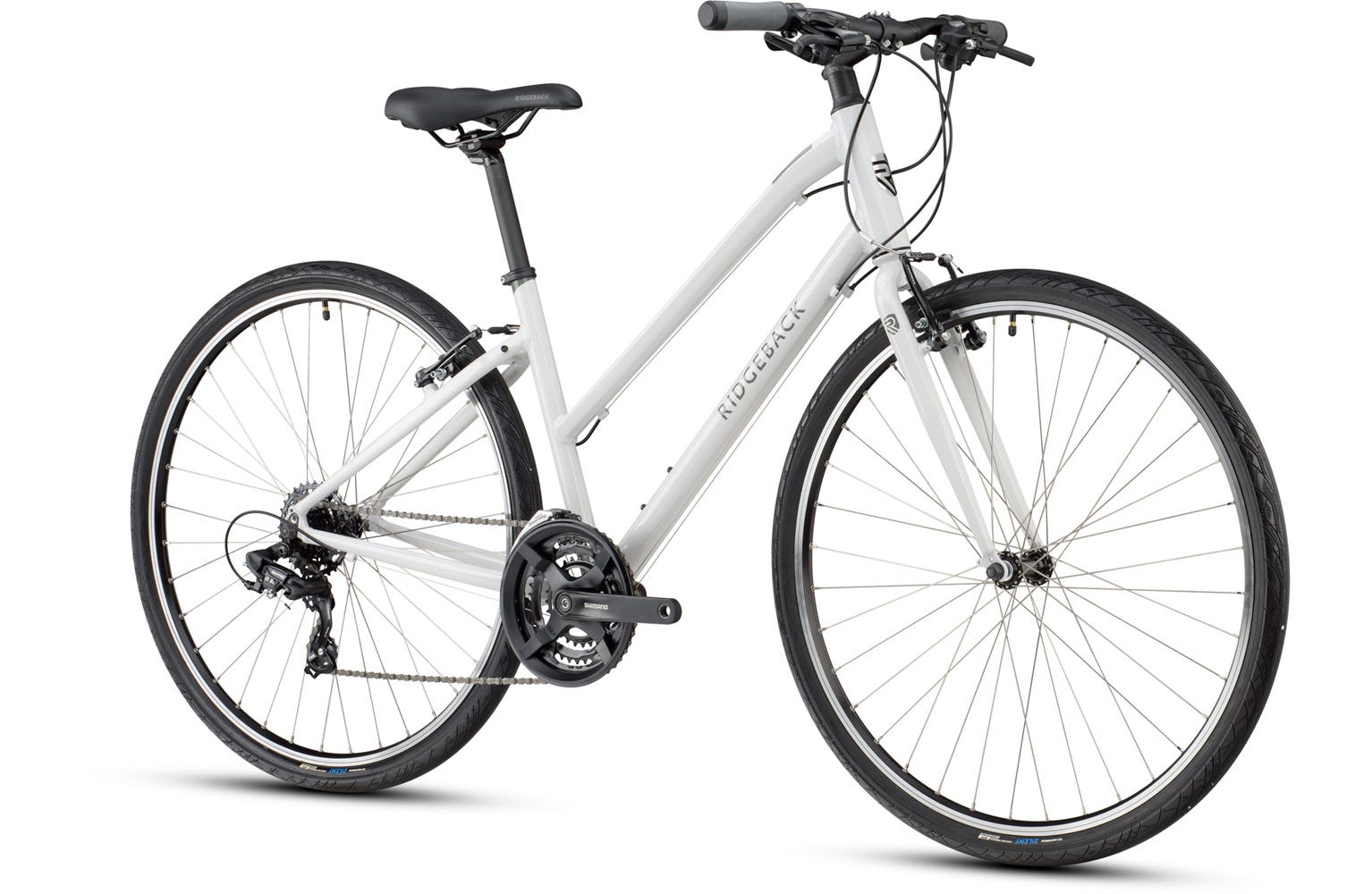

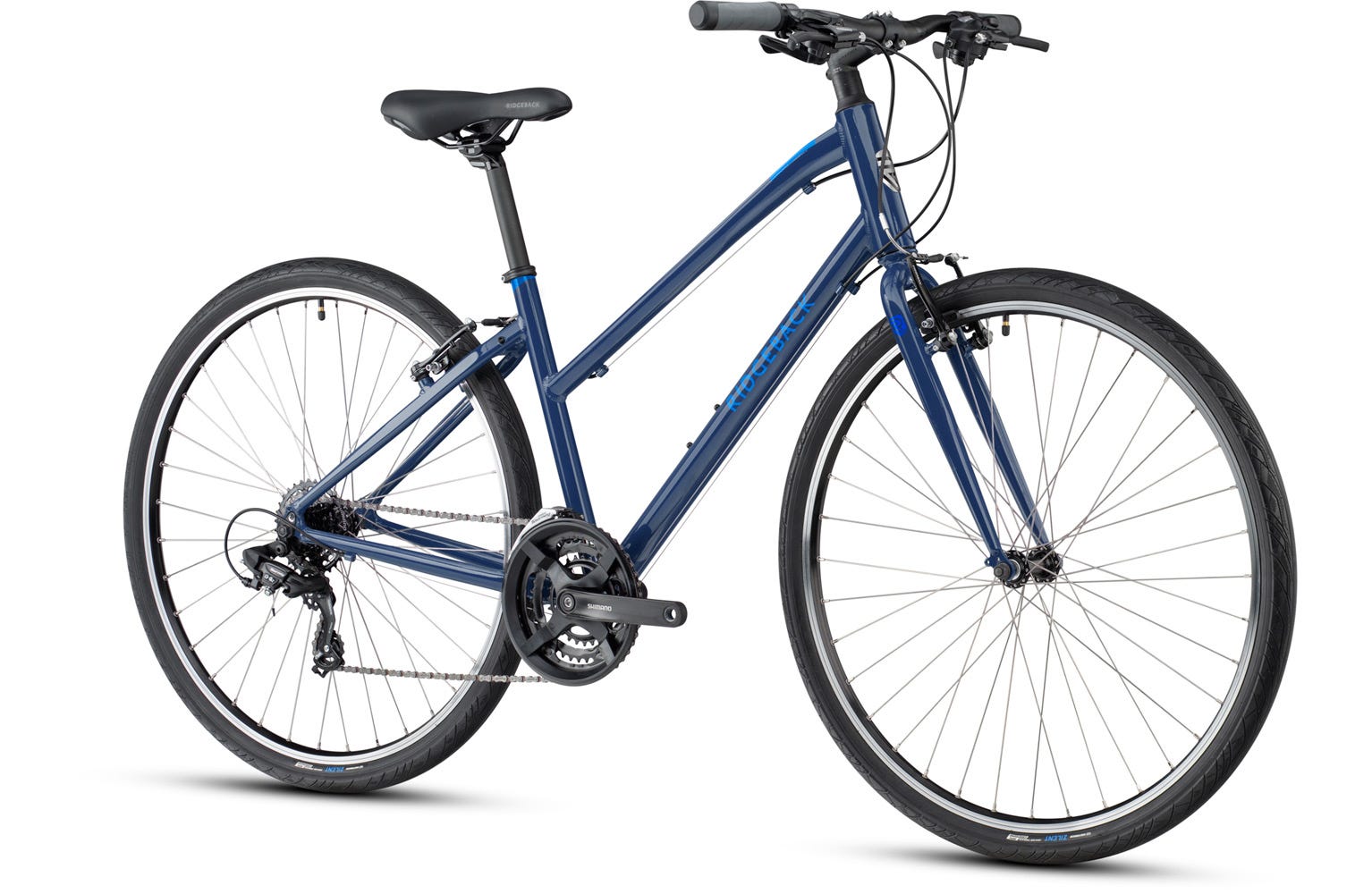

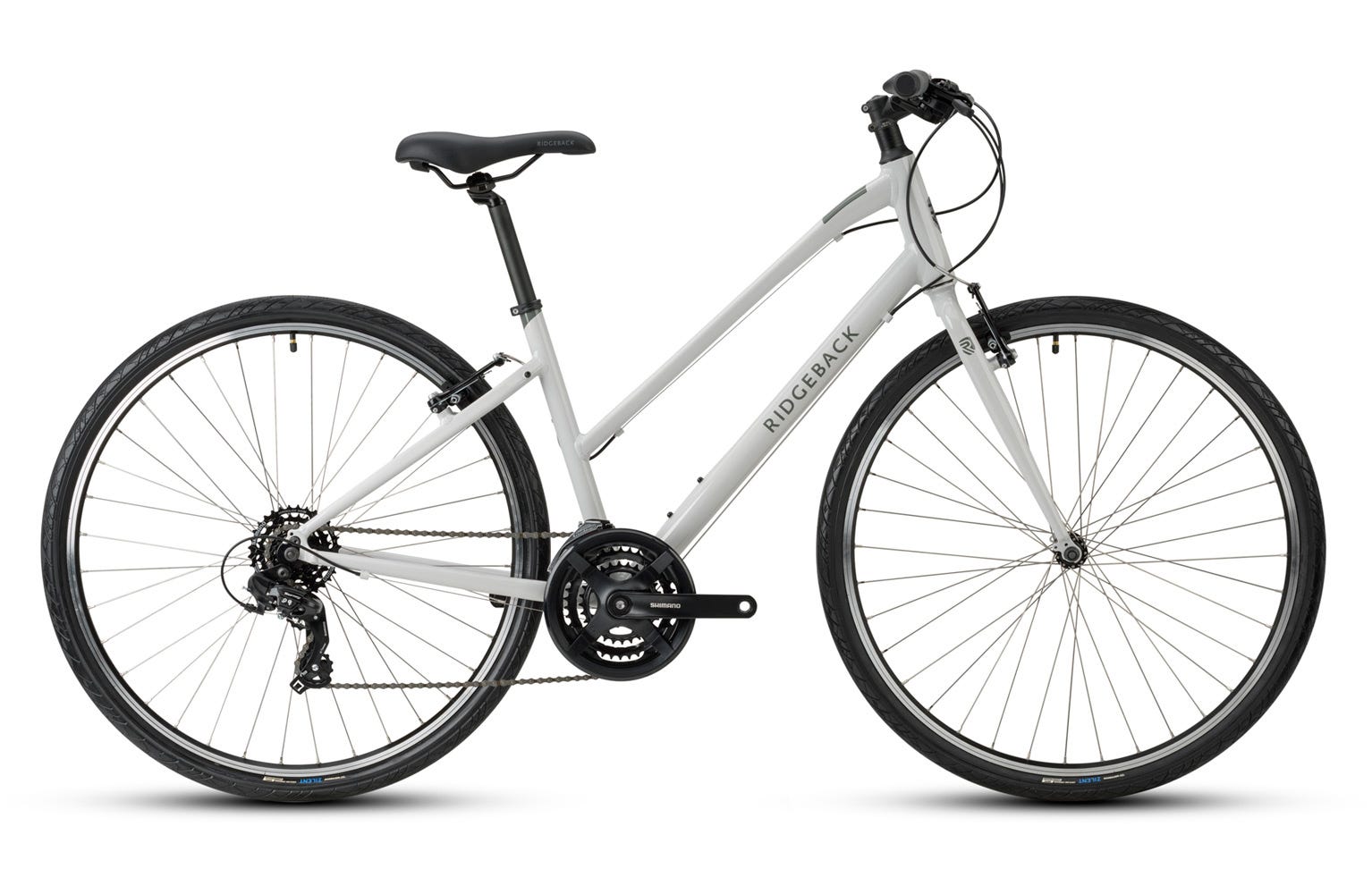

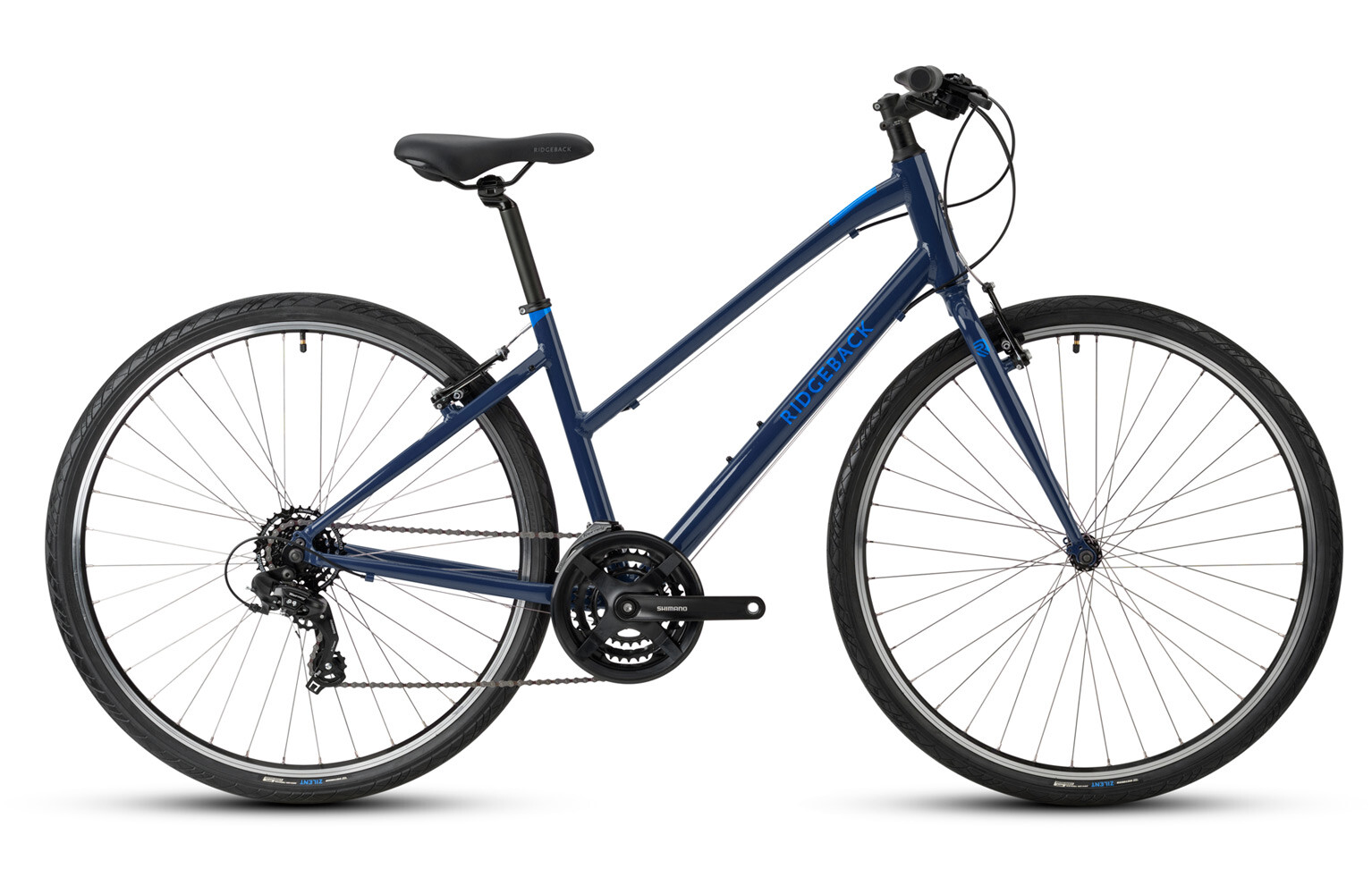

Ridgeback Motion Open Frame
SKU
VARRB2104
Brake Type :
Rim
Fork Material :
Chromoly
Frame Material :
Alloy
Bottom Bracket :
Shimano BB-UN100 BSA 68/122.5mm
Wheel Size :
700c

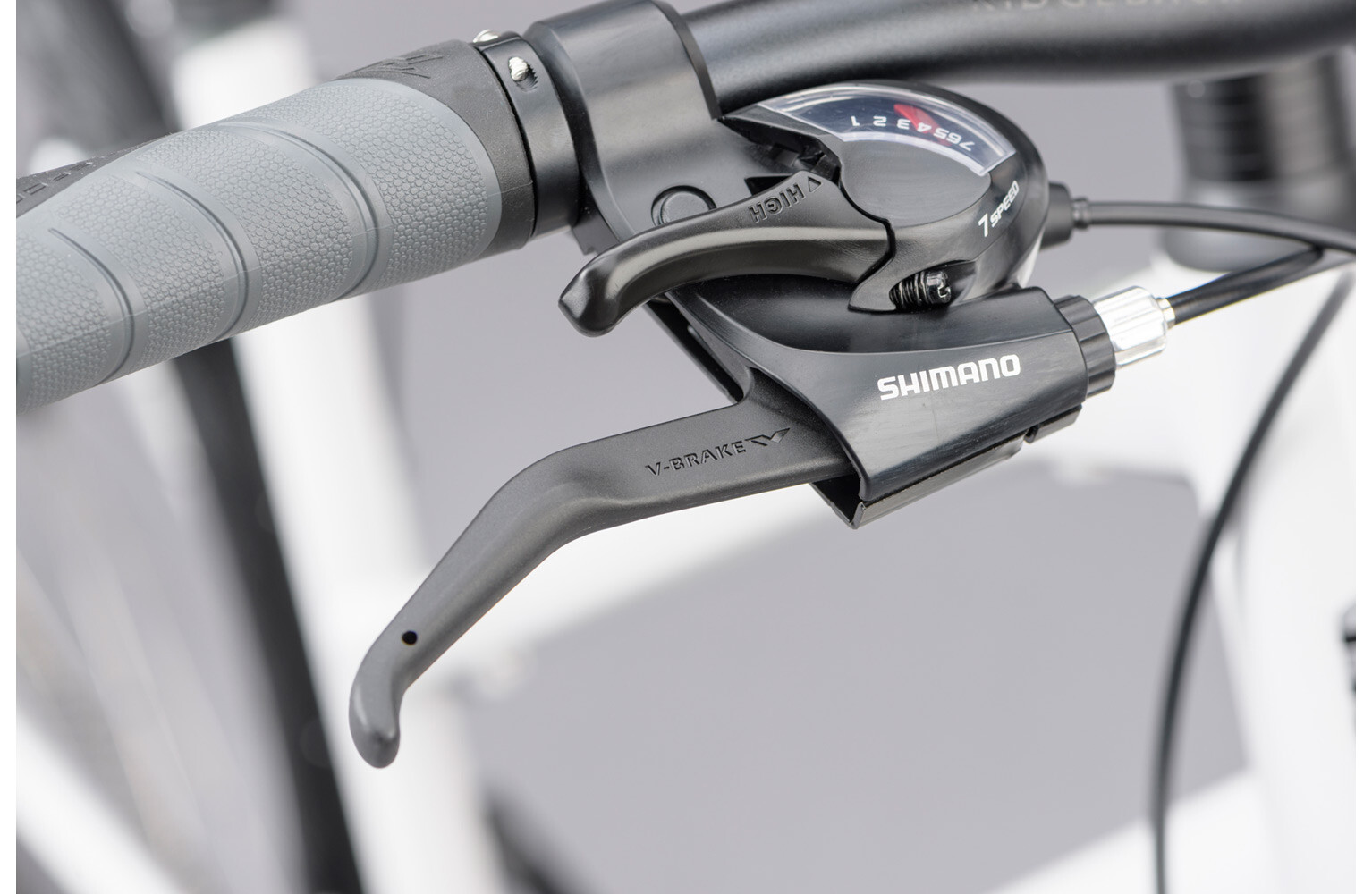

Brake Levers :
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Intended Use :
Urban and Commute
Brakes :

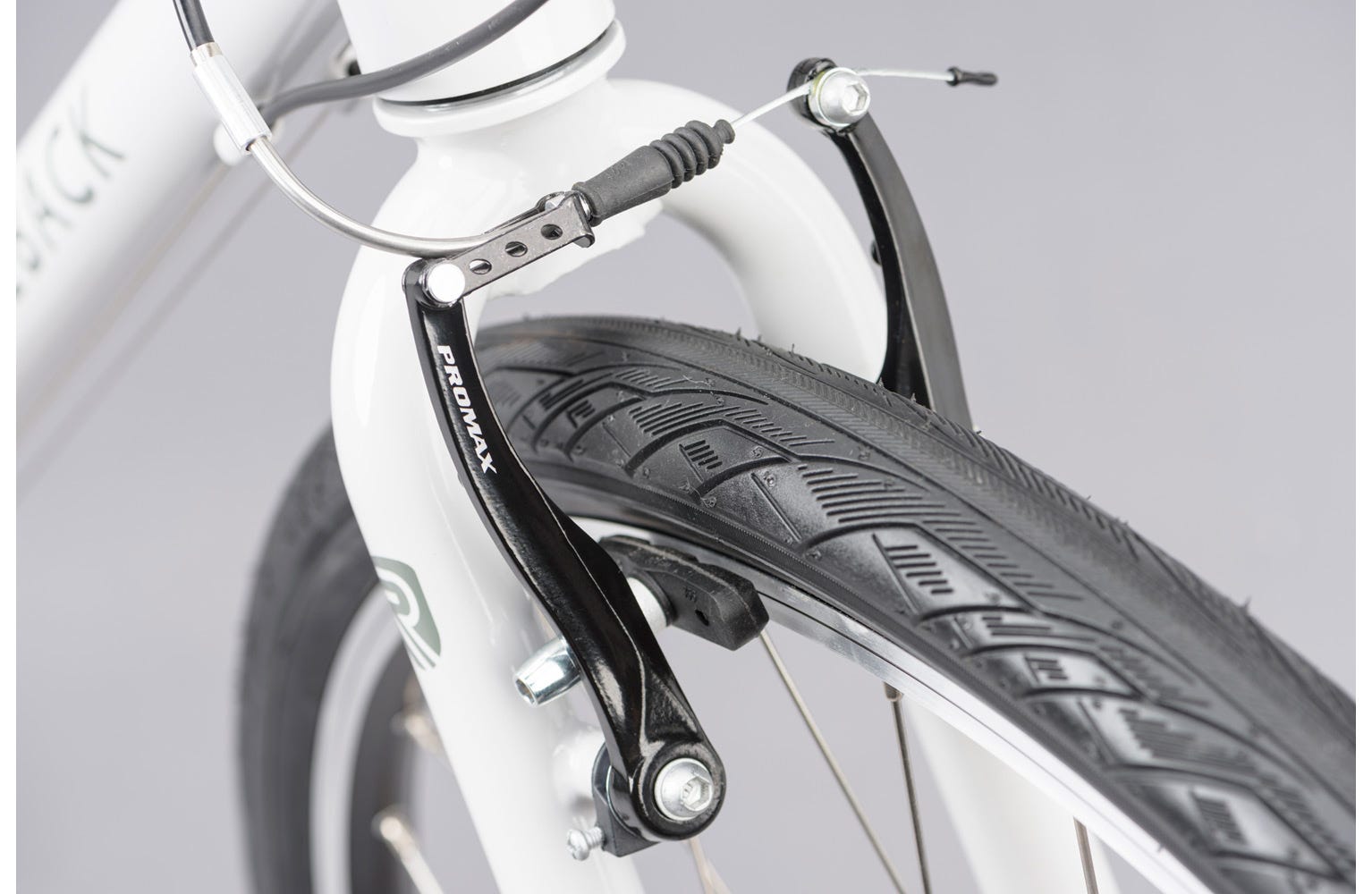

Promax TX-117 V-Brake
Cassette Freewheel :
Shimano CS-HG200-7 12-32T
Chain :
KMC Z7
Fork :
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Front Derailleur :

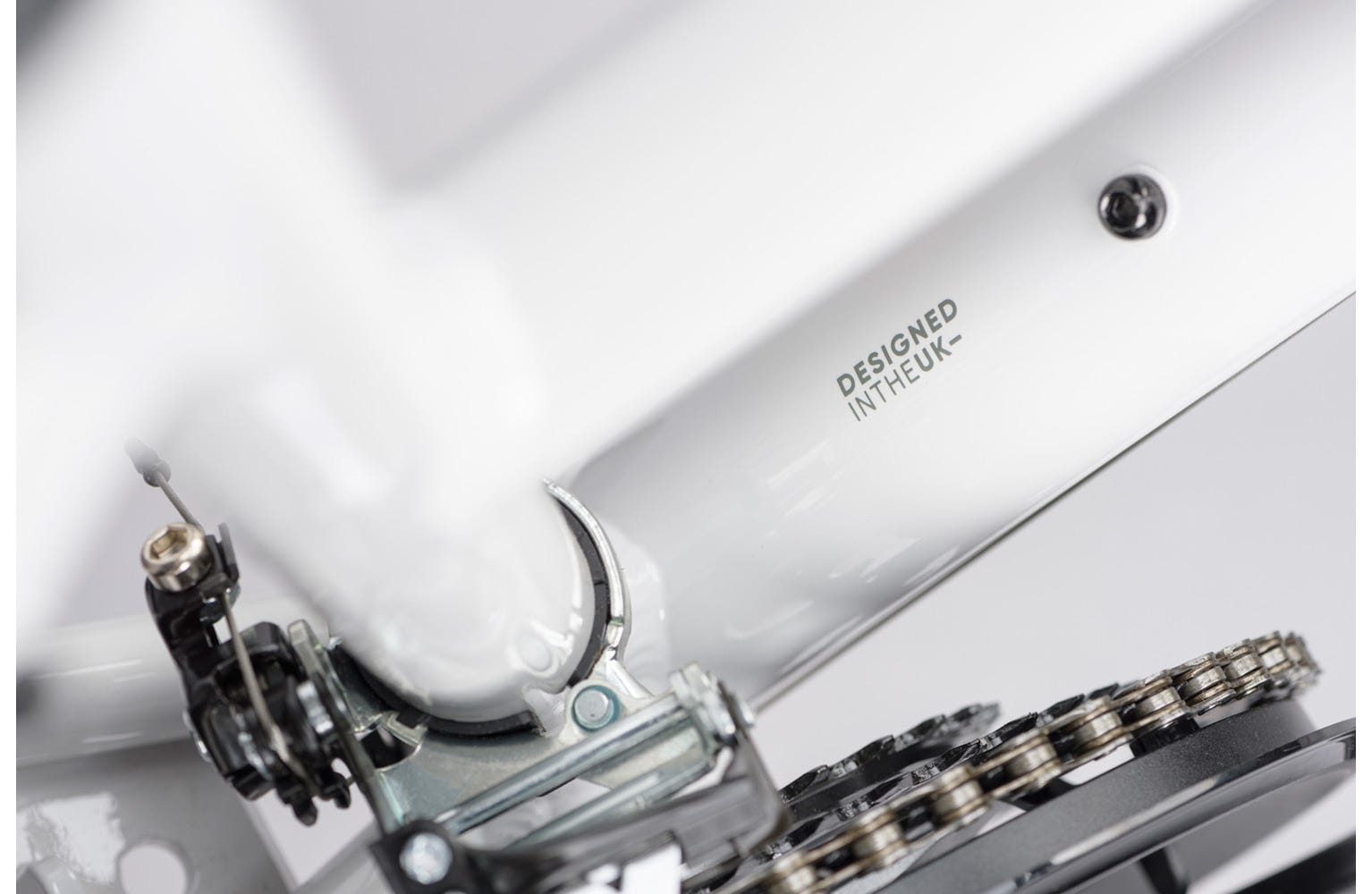

Shimano Tourney FD-TY510-TS3
Grip Tape :
Ridgeback
Headset :
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Hubs :
KT A16F/AY1R / front / rear
Pedals :
Resin Metro

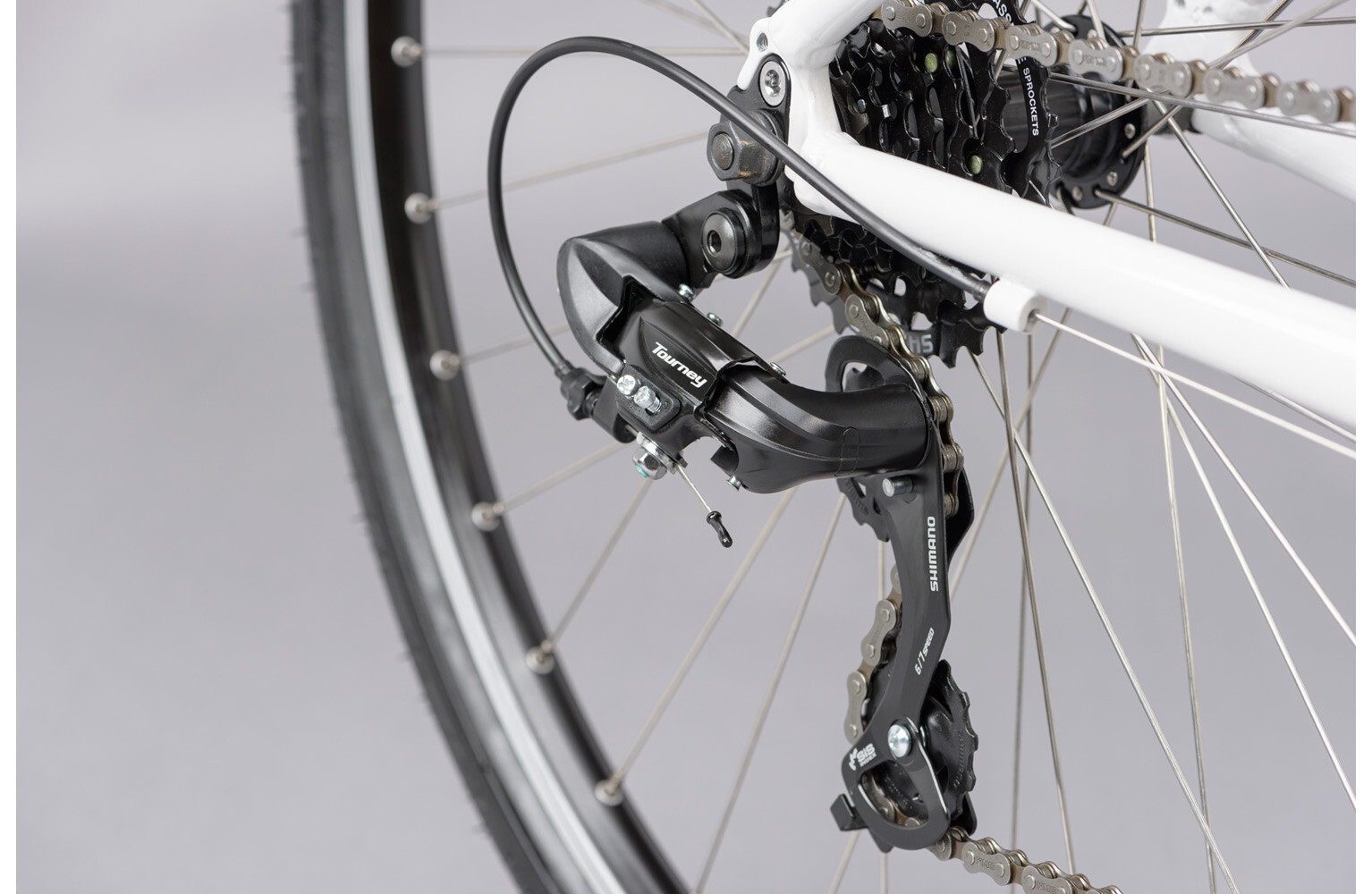

Rear Derailleur :

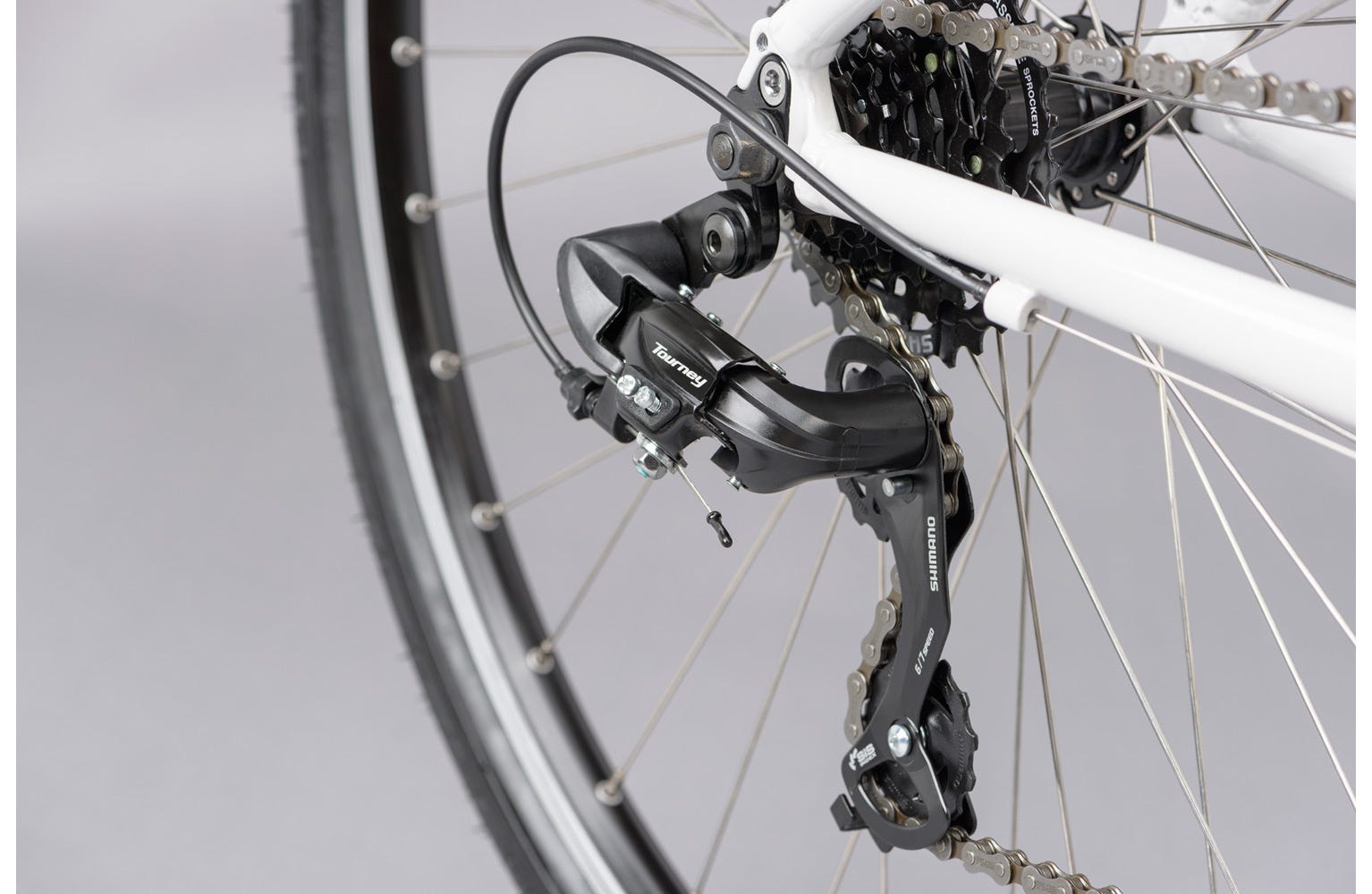

Shimano Tourney RD-TY300
Rims :
AJ AJ-1 /
Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm
Shifters :
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Spokes :
Steel 14 g
Stem :
Ridgeback 70mm +7deg
Tyres :
Vee Tire Zilent 700 x 42c
Frame Shape :
Open Frame
Gender :
Mens
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 483 |
|---|---|
| Frame Top Tube | 587 |
| Frame Reach | 395 |
| Frame Stack | 629 |
| Frame Head Tube | 200 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1089 |
| Fork Offset | 50 |
| Standover | 831 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 433 |
| Frame Top Tube | 572 |
| Frame Reach | 385 |
| Frame Stack | 610 |
| Frame Head Tube | 180 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1073 |
| Fork Offset | 50 |
| Standover | 801 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 383 |
| Frame Top Tube | 557 |
| Frame Reach | 375 |
| Frame Stack | 597 |
| Frame Head Tube | 170 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1068 |
| Fork Offset | 50 |
| Standover | 772 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 603 |
| Frame Reach | 405 |
| Frame Stack | 648 |
| Frame Head Tube | 220 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1106 |
| Fork Offset | 50 |
| Standover | 864 |
| Stem Length | 70 |
| Handle Bar Width | 640 |
| Frame Seat Tube | 483 |
| Frame Top Tube | 587 |
| Frame Reach | 395 |
| Frame Stack | 629 |
| Frame Head Tube | 200 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1089 |
| Fork Offset | 50 |
| Standover | 831 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 433 |
| Frame Top Tube | 572 |
| Frame Reach | 385 |
| Frame Stack | 610 |
| Frame Head Tube | 180 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1073 |
| Fork Offset | 50 |
| Standover | 801 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 383 |
| Frame Top Tube | 557 |
| Frame Reach | 375 |
| Frame Stack | 597 |
| Frame Head Tube | 170 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1068 |
| Fork Offset | 50 |
| Standover | 772 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 603 |
| Frame Reach | 405 |
| Frame Stack | 648 |
| Frame Head Tube | 220 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1106 |
| Fork Offset | 50 |
| Standover | 864 |
| Stem Length | 70 |
| Handle Bar Width | 640 |
