Ridgeback Speed Open Frame
In stock
£649.99

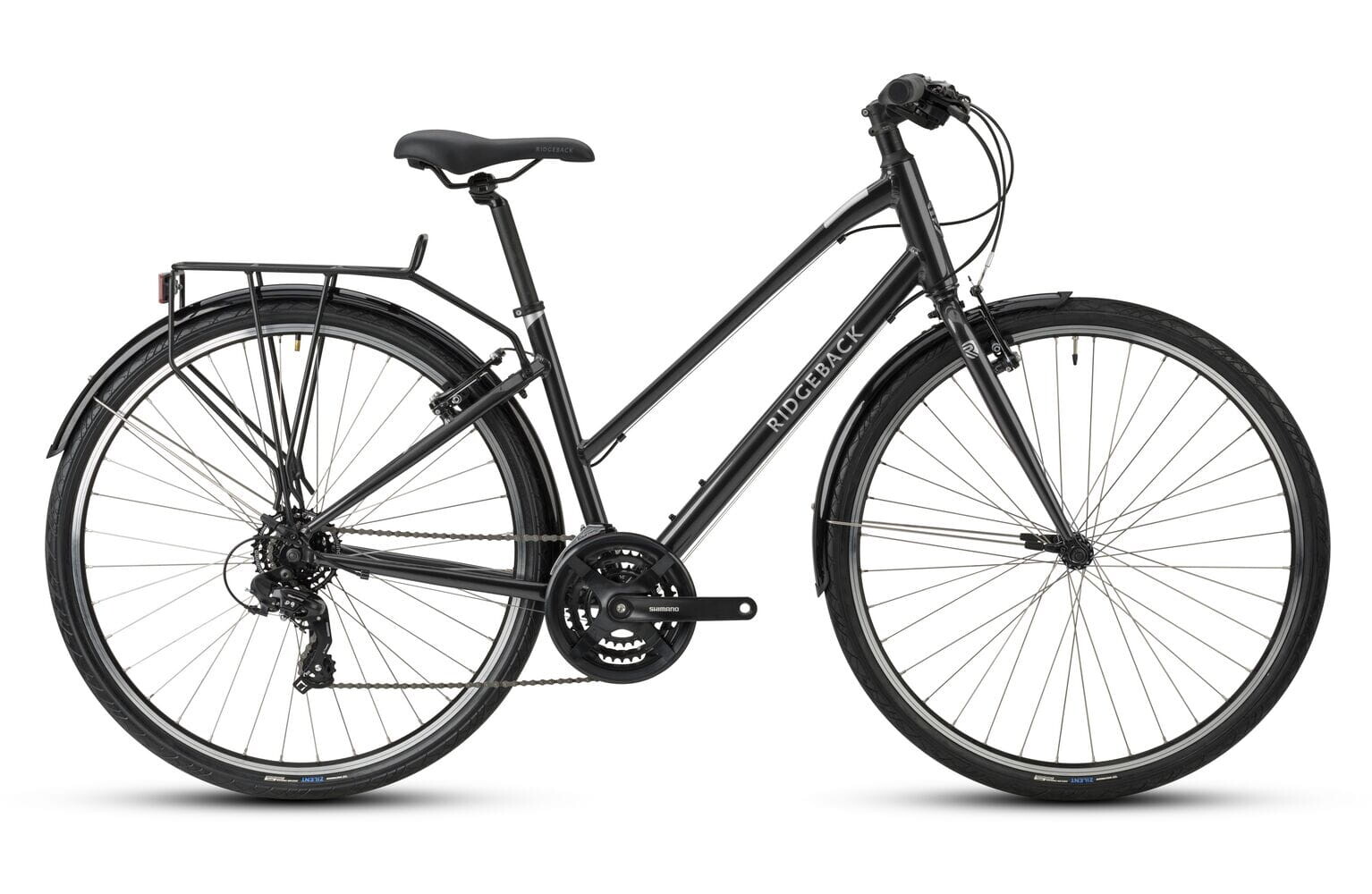

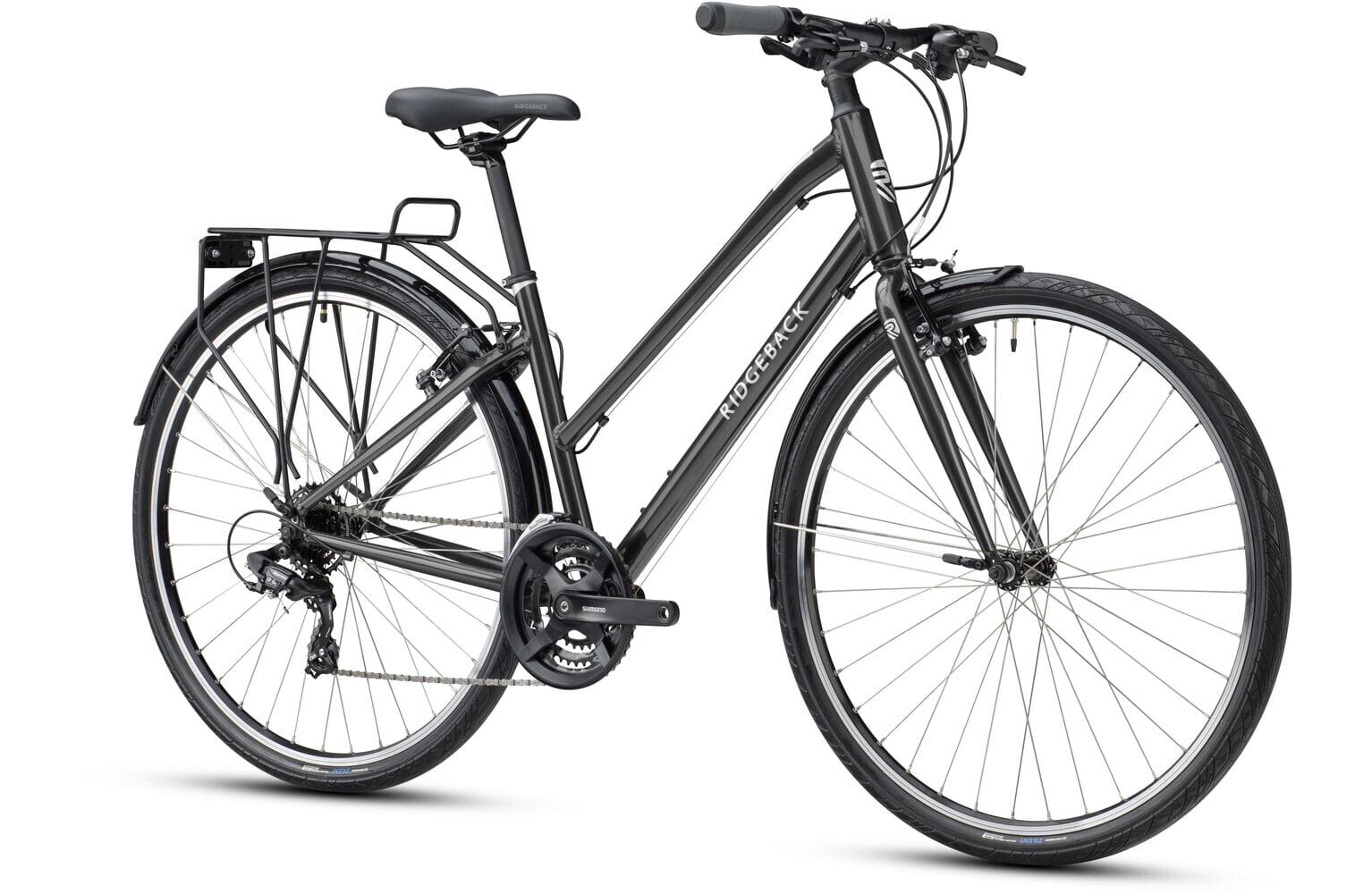

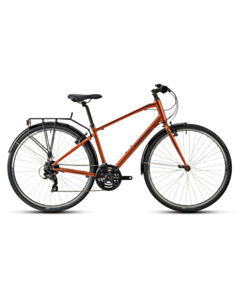

Ridgeback Speed Open Frame

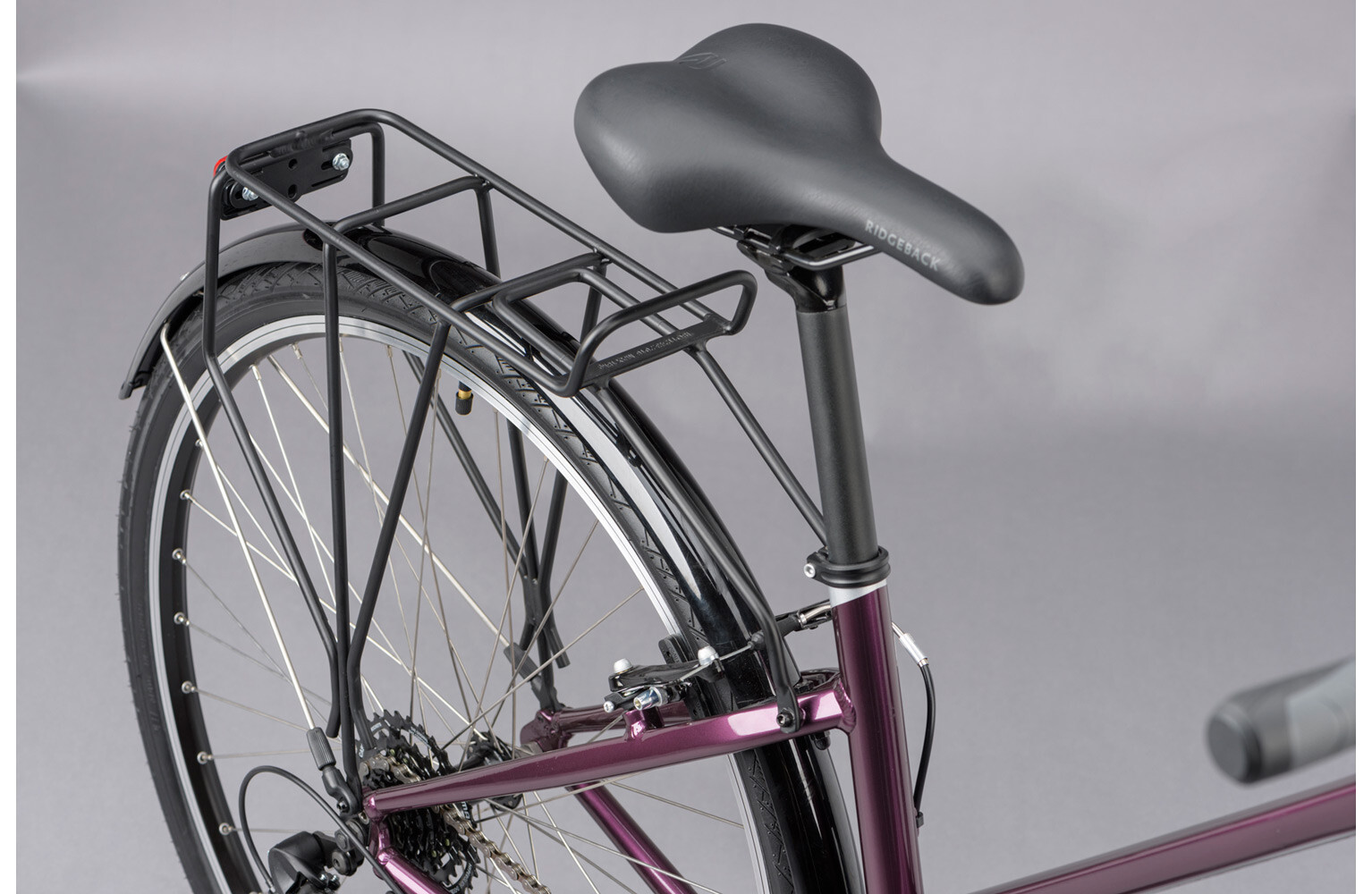

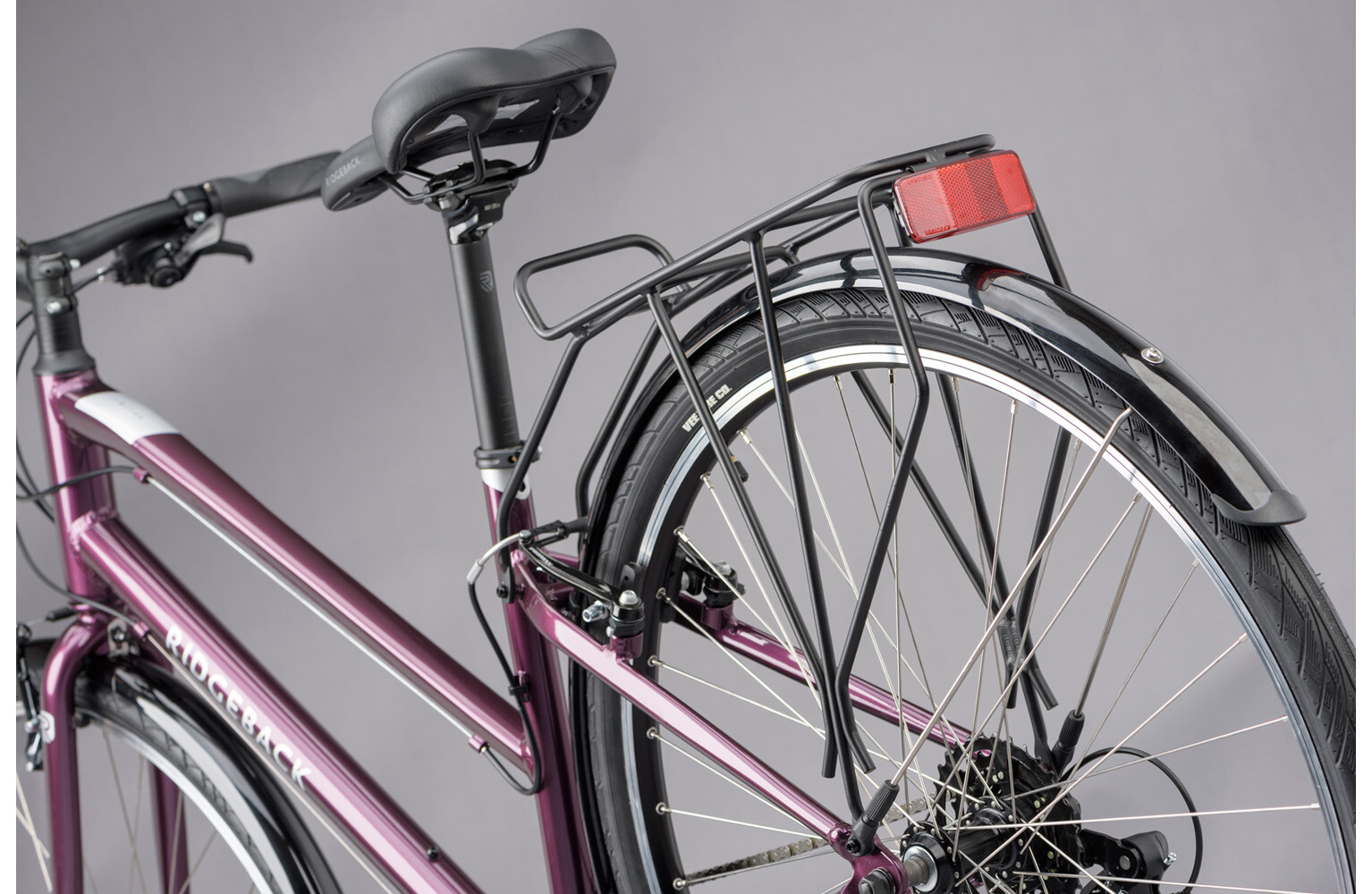

Our best value fully equipped utility bike, the Ridgeback Speed features full-length mudguards and a pannier rack, making it the perfect all-weather year-round ride.
The aluminium frame is built to last and enjoys our limited lifetime warranty, underlining its durable credentials.

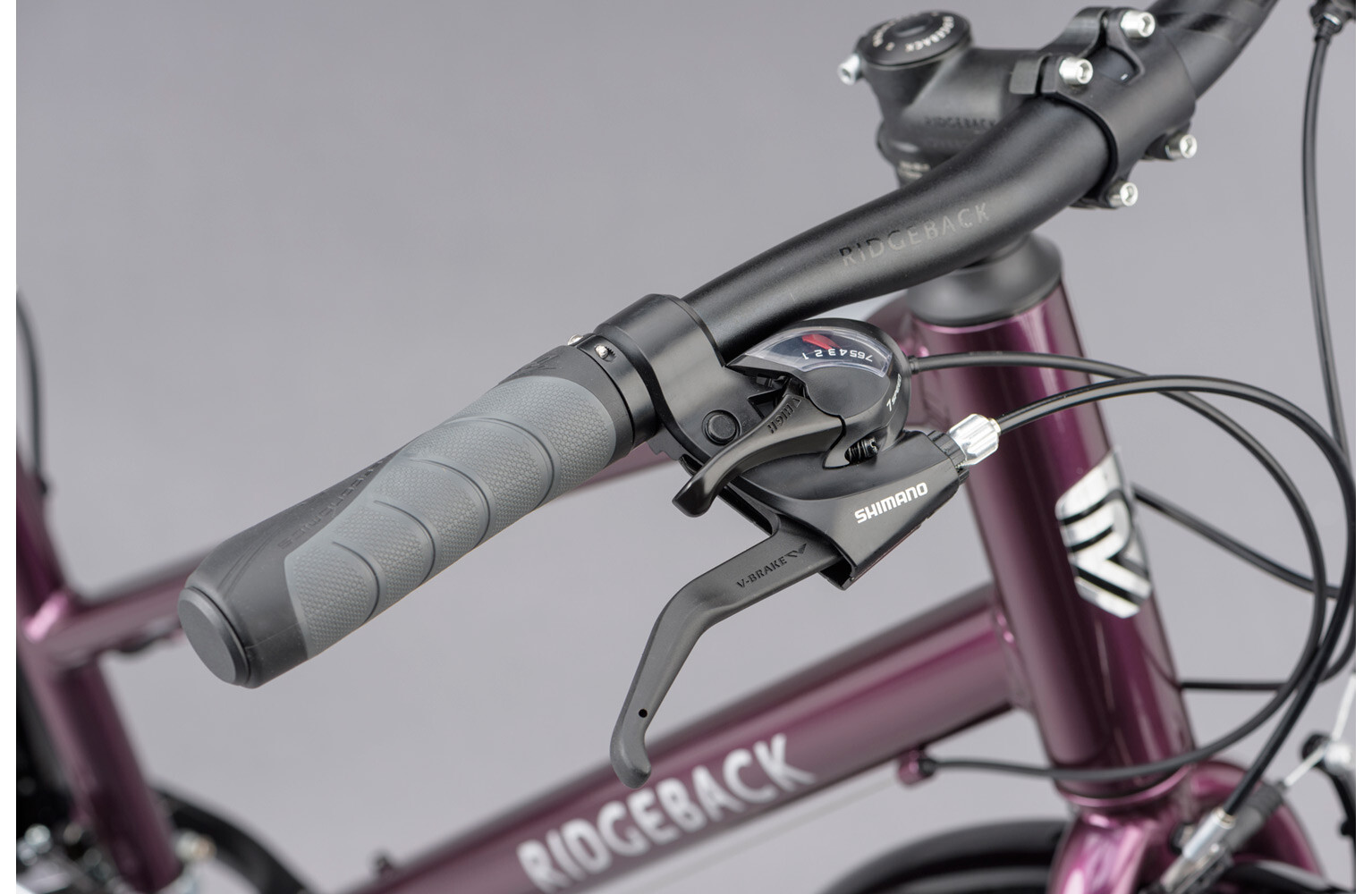

Comfort takes centre stage in the Speed's specification, with wide tyres providing a smooth ride over rough streets. Contact points have also been considered, with ergonomically-shaped dual density grips providing relief for your hands and a cushioned saddle with pressure relief channel ensuring you ride in comfort.

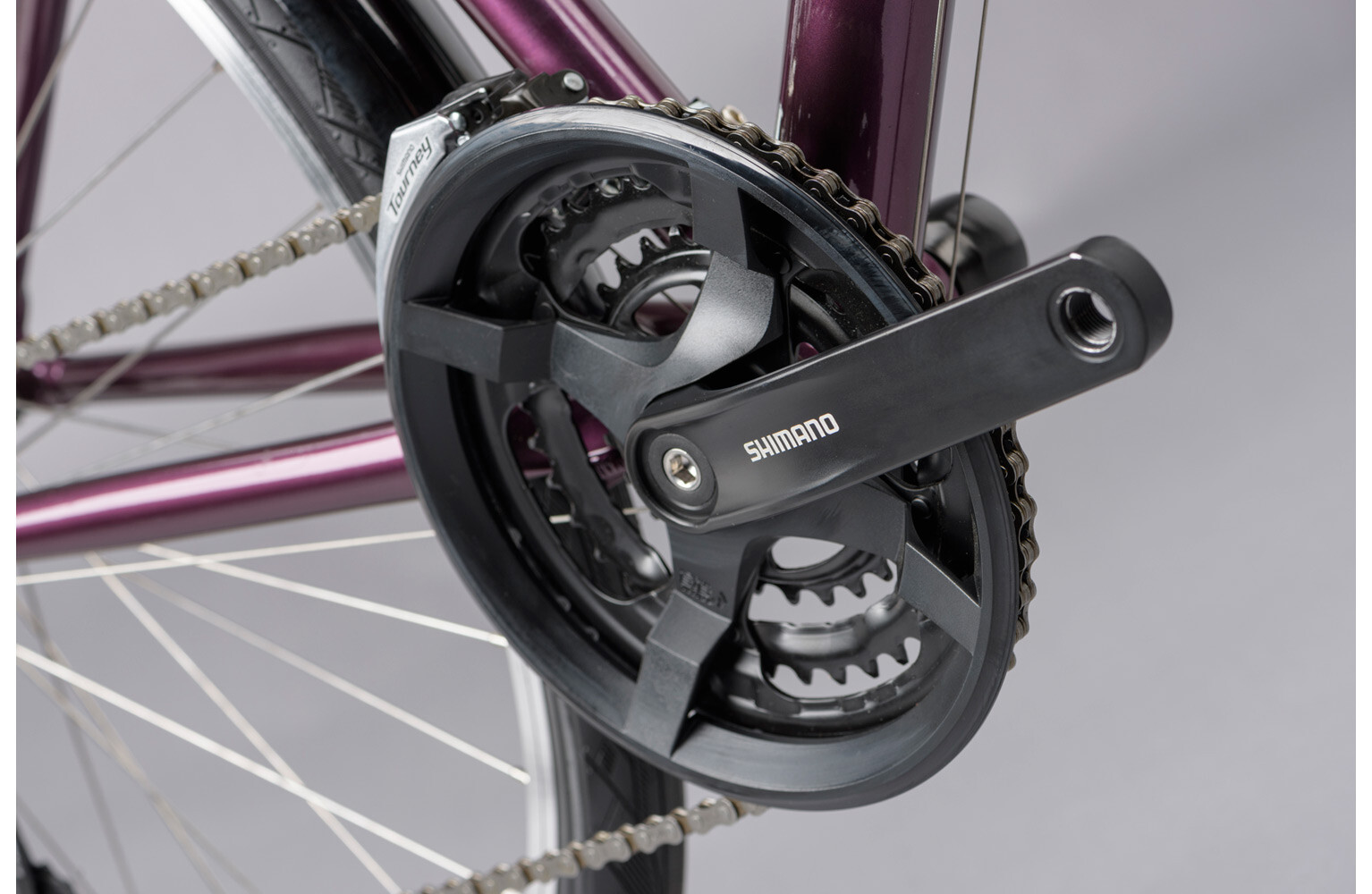

Shimano's high-quality drivetrain provides 21 wide ranging gears, ideal for getting up the steepest slopes with ease without draining your legs. The integrated chainguard means that whichever gear you choose, your clothing is offered some protection from the chain.
Weight: 15.9kg
Ridgeback Speed Open Frame
SKU
VARRB2106
Brake Type :
Rim
Fork Material :
Chromoly
Frame Material :
Alloy
Bottom Bracket :
Shimano BB-UN100 BSA 68/122.5mm
Wheel Size :
700c
Brake Levers :
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Intended Use :
Urban and Commute

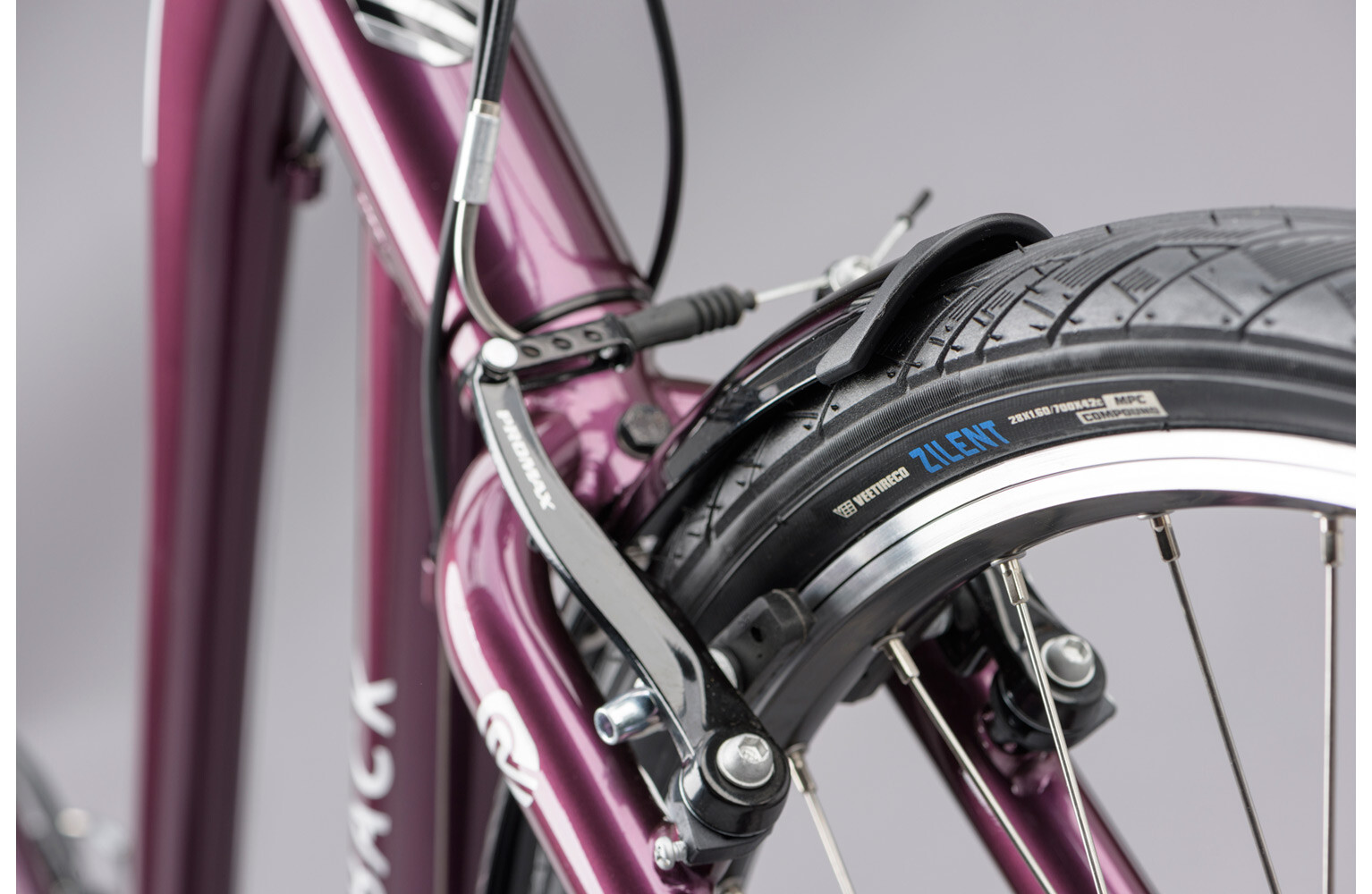

Brakes :
Promax TX-117 V-Brake
Cassette Freewheel :
Shimano CS-HG200-7 12-32T
Chain :
KMC Z7

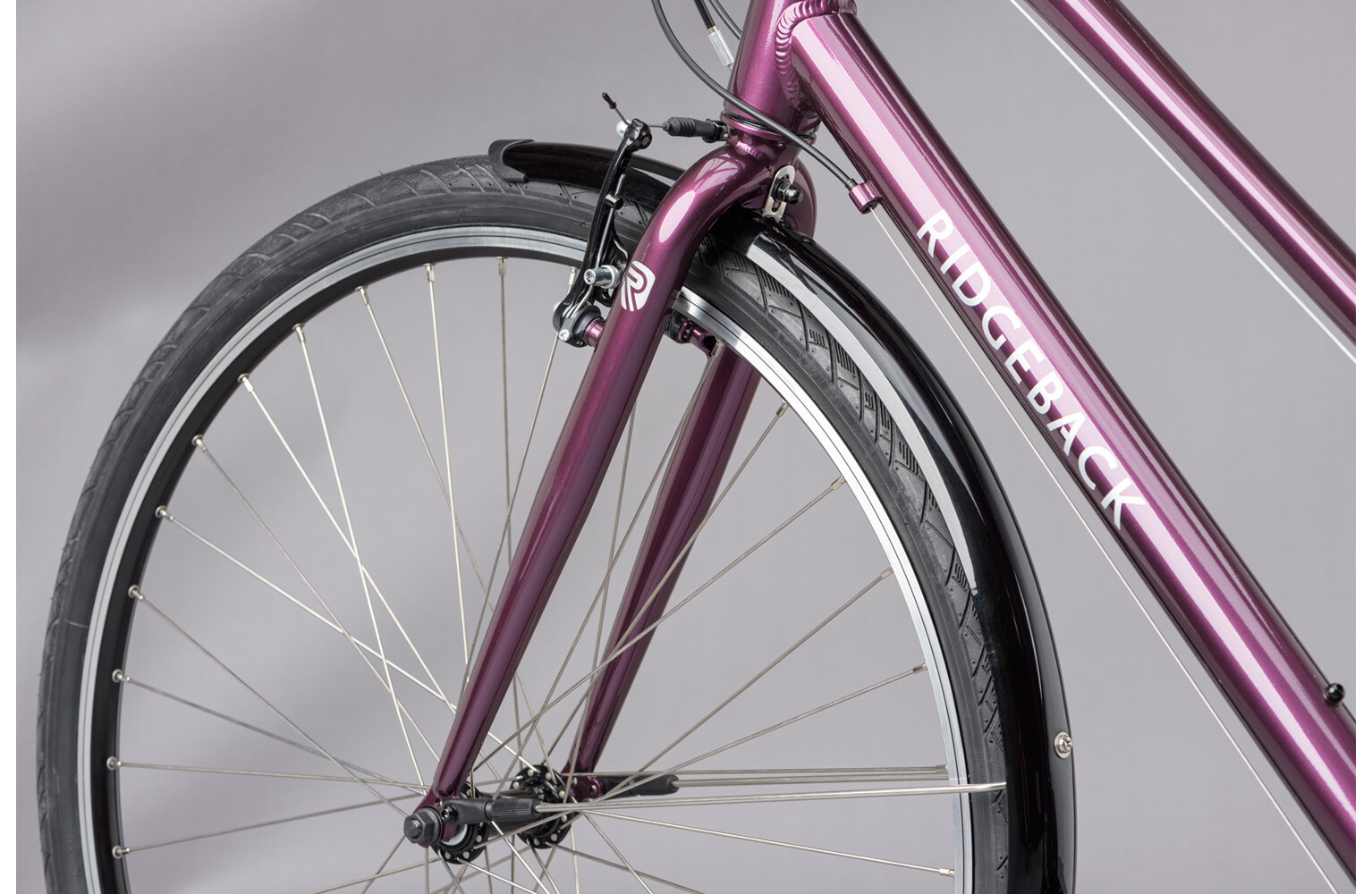

Fork :
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Front Derailleur :
Shimano Tourney FD-TY510-TS3
Grip Tape :
Ridgeback
Headset :
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Hubs :
KT A16F/AY1R / front / rear
Mudguard :
Fitted
Pedals :
Resin Metro

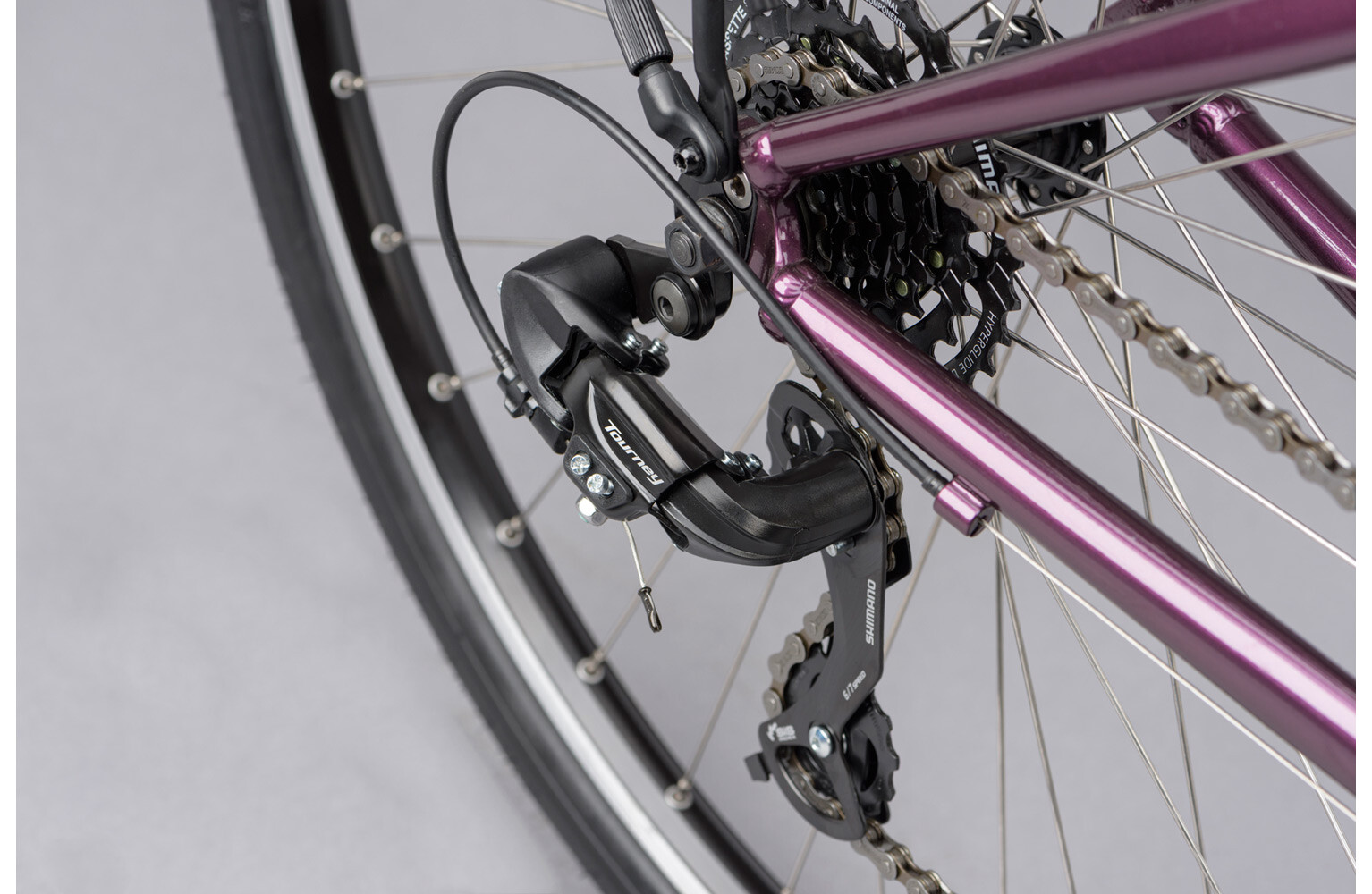

Rear Derailleur :
Shimano Tourney RD-TY300
Rims :
AJ AJ-1 /
Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm

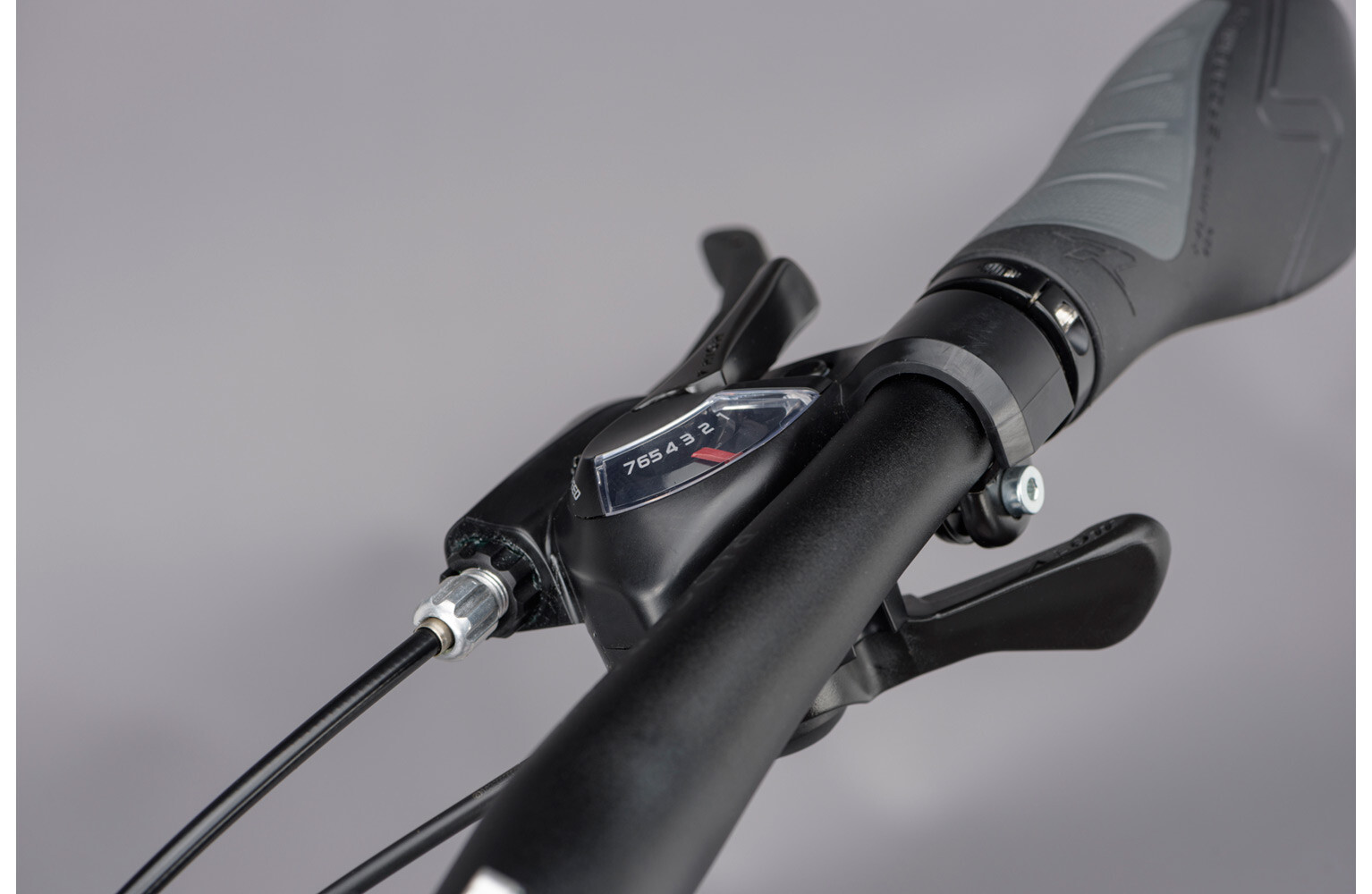

Shifters :
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Spokes :
Steel 14 g
Stem :
Ridgeback 70mm +7deg
Tyres :
Vee Tire Zilent 700 x 42c
Frame Shape :
Open Frame
Gender :
Mens
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.
Geometry
| Frame Seat Tube | 433 |
|---|---|
| Frame Top Tube | 572 |
| Frame Reach | 385 |
| Frame Stack | 610 |
| Frame Head Tube | 180 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1073 |
| Fork Offset | 50 |
| Standover | 801 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 483 |
| Frame Top Tube | 587 |
| Frame Reach | 395 |
| Frame Stack | 629 |
| Frame Head Tube | 200 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1089 |
| Fork Offset | 50 |
| Standover | 831 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 603 |
| Frame Reach | 405 |
| Frame Stack | 648 |
| Frame Head Tube | 220 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1106 |
| Fork Offset | 50 |
| Standover | 864 |
| Stem Length | 70 |
| Handle Bar Width | 640 |
| Frame Seat Tube | 483 |
| Frame Top Tube | 587 |
| Frame Reach | 395 |
| Frame Stack | 629 |
| Frame Head Tube | 200 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1089 |
| Fork Offset | 50 |
| Standover | 831 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 433 |
| Frame Top Tube | 572 |
| Frame Reach | 385 |
| Frame Stack | 610 |
| Frame Head Tube | 180 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1073 |
| Fork Offset | 50 |
| Standover | 801 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 383 |
| Frame Top Tube | 557 |
| Frame Reach | 375 |
| Frame Stack | 597 |
| Frame Head Tube | 170 |
| Frame Head Angle | 70 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1068 |
| Fork Offset | 50 |
| Standover | 772 |
| Stem Length | 70 |
| Handle Bar Width | 620 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 603 |
| Frame Reach | 405 |
| Frame Stack | 648 |
| Frame Head Tube | 220 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1106 |
| Fork Offset | 50 |
| Standover | 864 |
| Stem Length | 70 |
| Handle Bar Width | 640 |
