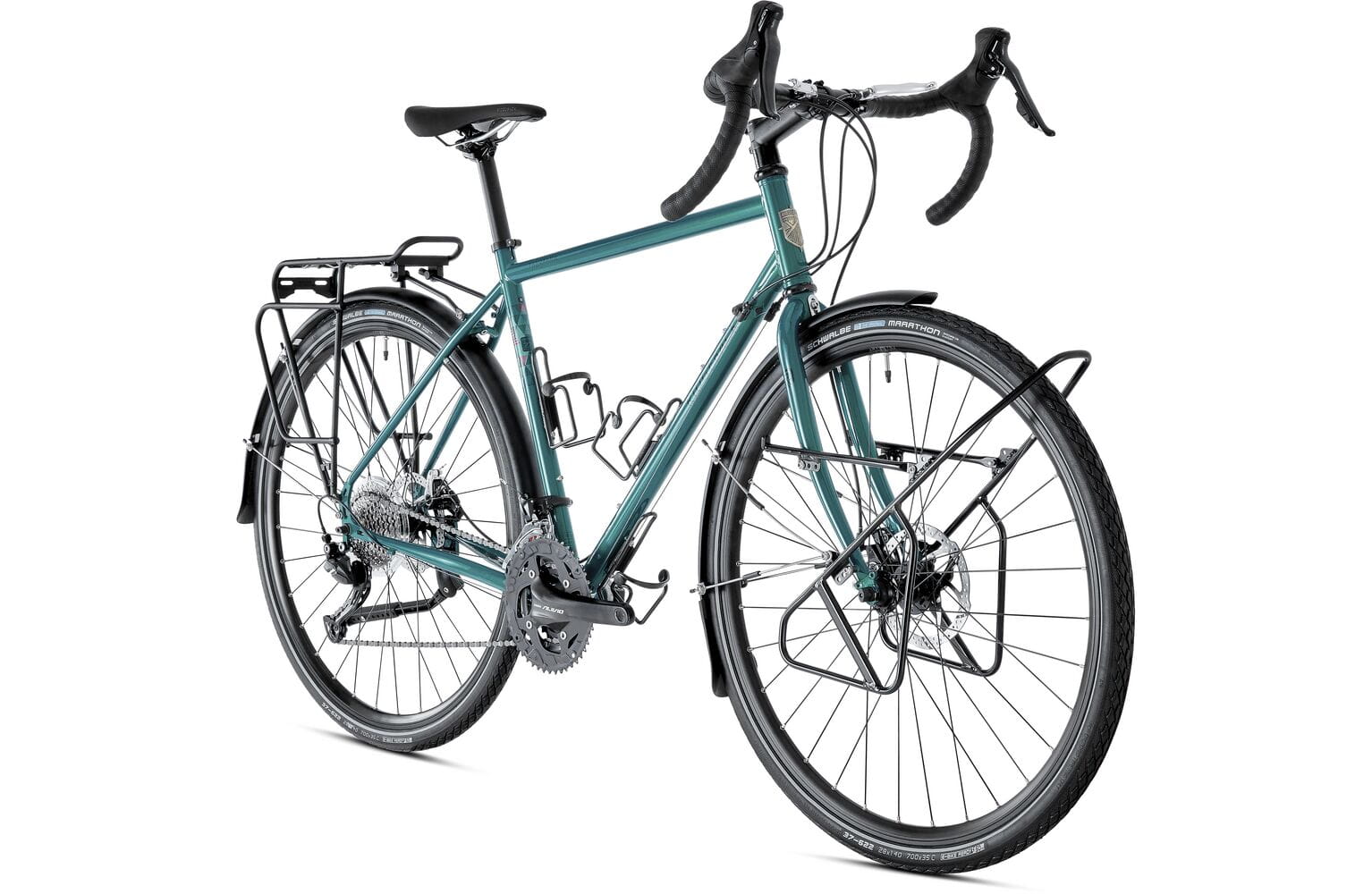

- The complete cycle touring package, the Ridgeback Panorama is built to be loaded with luggage and cover vast distances.
The Reynolds 725 frame and chromoly fork provide superb ride quality - essential when travelling long periods over rough roads.
The attention to detail continues with the specification with gearing provided by a mix of Shimano's smooth and reliable Alivio and Sora components.

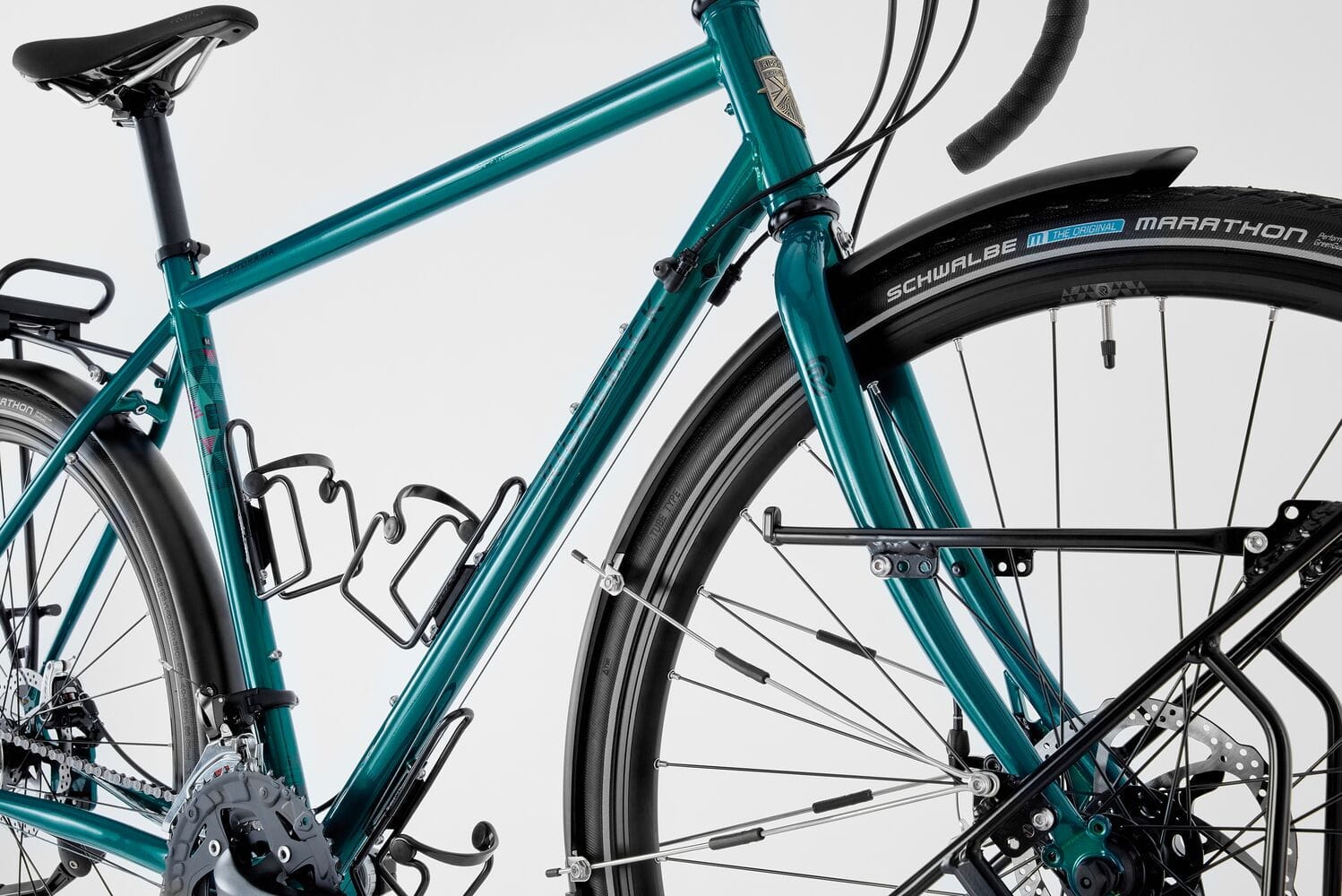

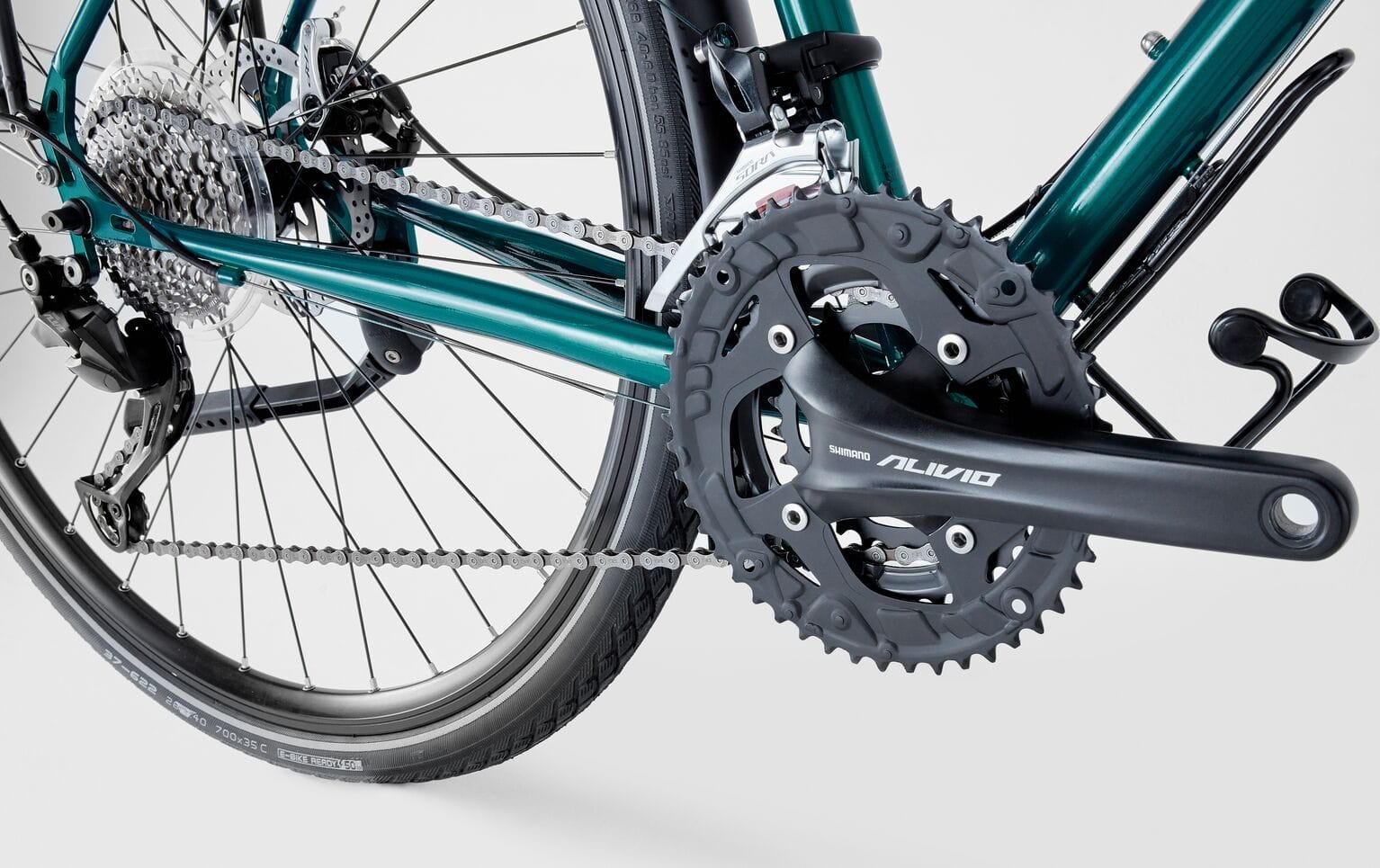

A triple chainset and wide 11-34 cassette provide ample gearing when climbing fully laden and Schwable's Marathon tyres are a stalwart for their durability and puncture protection.

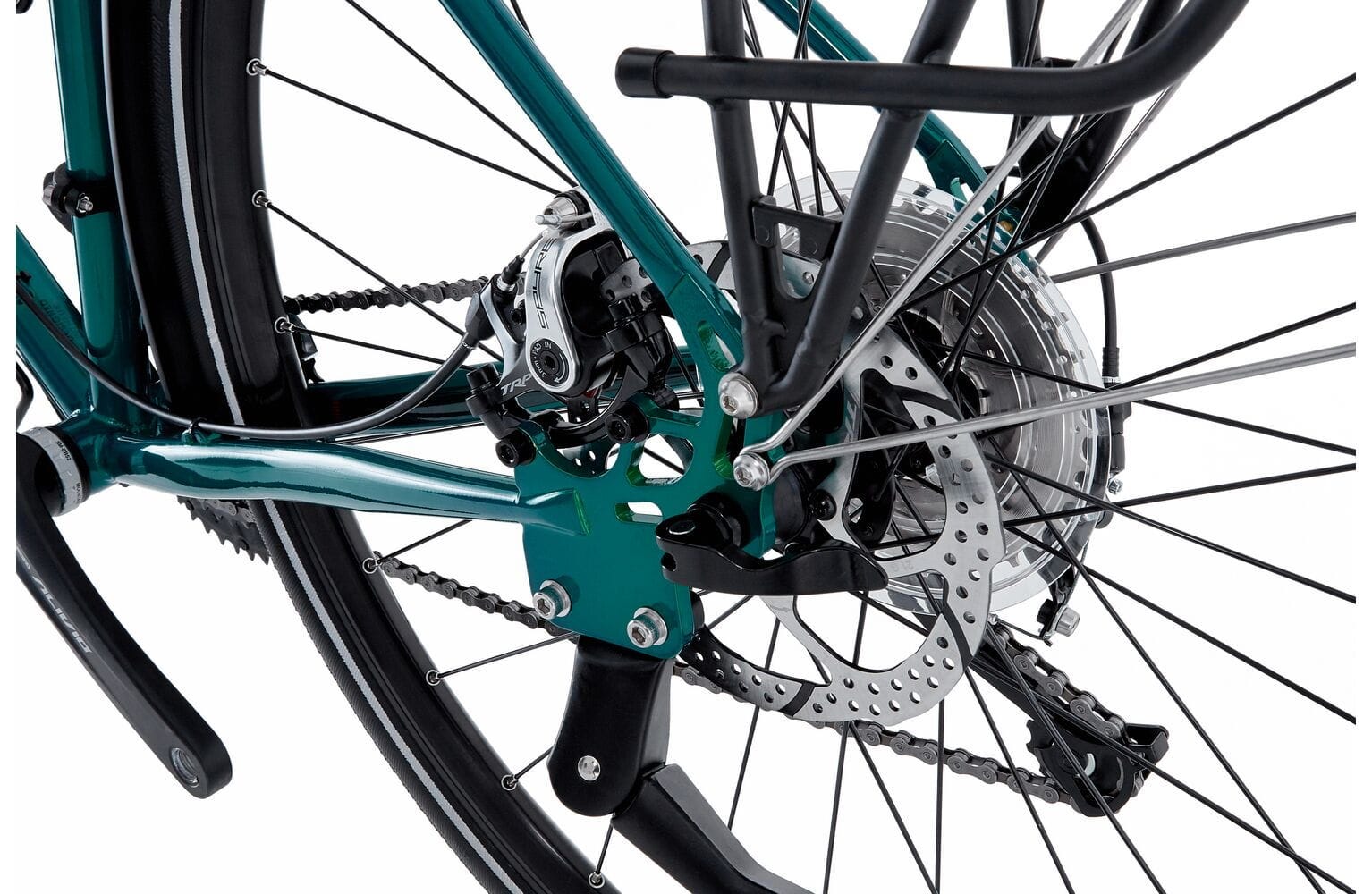

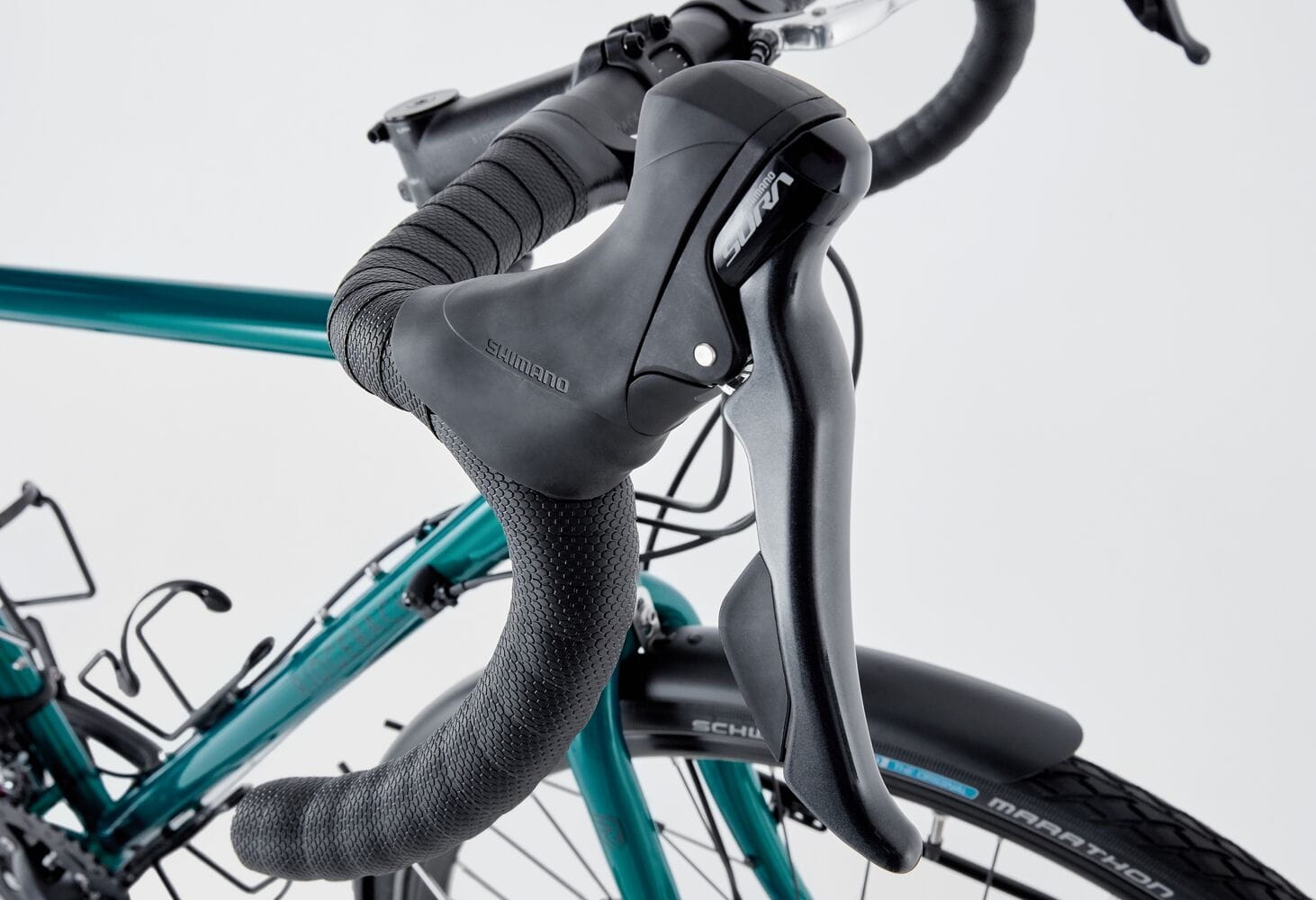

We have paired the TRP Spyre cable disc brakes with bar-top levers, allowing another hand position with the convenience of the brakes at your fingertips.

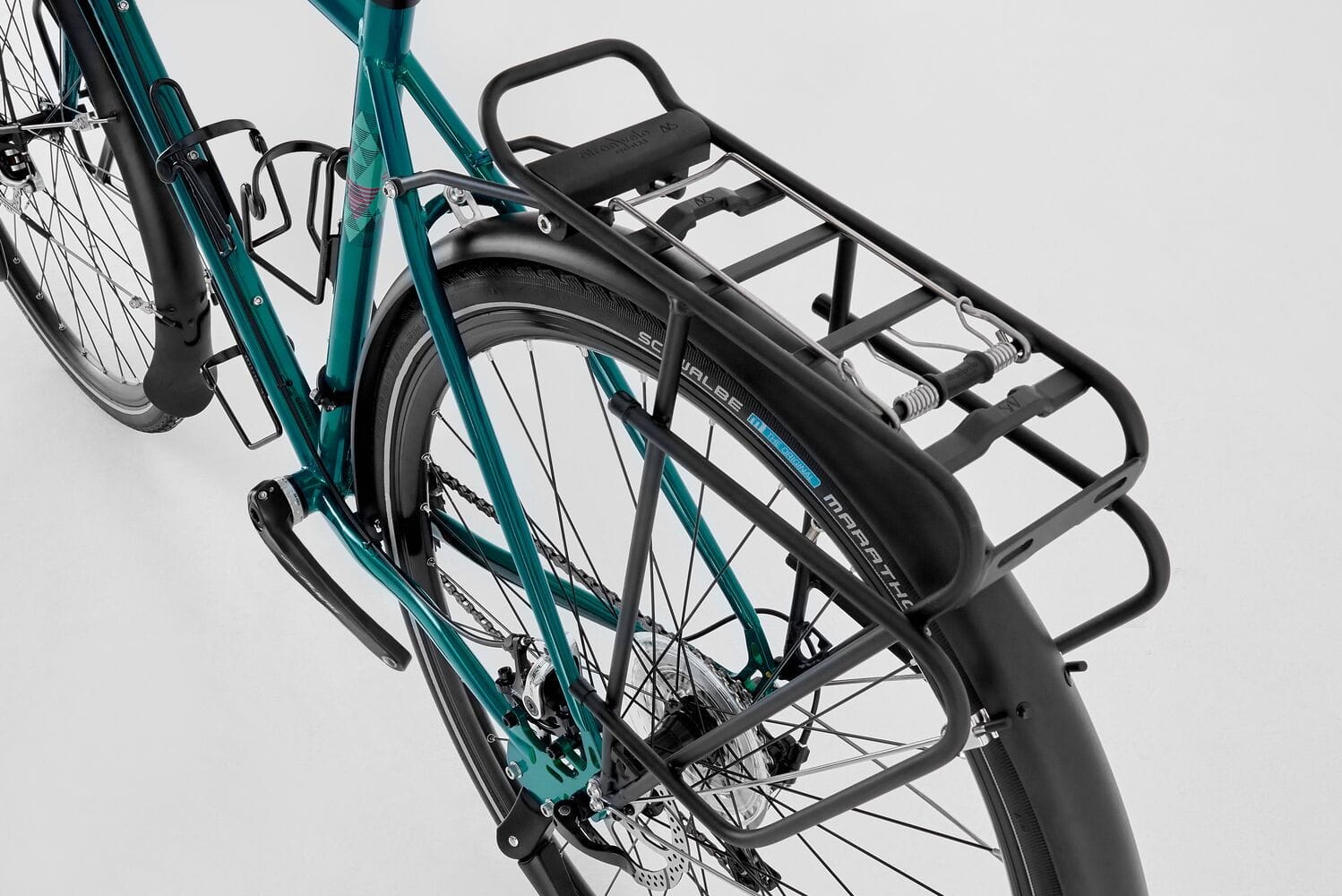

Touring essentials are taken care of with the included rear rack, mudguards and three bottle cages.
Weight - 14.59kg
Ridgeback Panorama
SKU
VARRB22530
Brake Type :
Mechanical Disc
Fork Material :
Chromoly
Frame Material :
Steel
Bottom Bracket :
Shimano BB-ES300
Wheel Size :
700c
Max Tyre Size :
700 x 42c
Brake Levers :
Shimano Sora ST-T3030
Intended Use :
Touring
Brakes :
TRP Spyre Mechanical Disc Brake
Cassette Freewheel :
Shimano CS-HG400 11-34T
Chain :
KMC X9
Chain Set :
Shimano FC-T4660 48-36-26T
Fork :
Chromoly Steel
Front Derailleur :
Shimano Sora FD-R3030
Grip Tape :
Ridgeback
Handlebars :
Ridgeback Alloy - XS 400mm / S-M 420mm / L-XL 440mm
Headset :
Prestine PT-1767D
Hubs :
Jalco DC20/DC22 36h
Mudguard :
Fitted
Pedals :
FPD Road / Toe Clips
Rear Derailleur :
Shimano Alivio RD-M3100
Rims :
Jalco DM25 36h
Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm
Shifters :
Shimano Sora ST-T3030
Spokes :
Steel 14 g
Stem :
Ridgeback AS-007 - XS-S 90mm / M 100mm / L 110mm / XL 120mm
Tyres :
Schwalbe Marathon GG 700 x 35c
Frame Shape :
Crossbar
Gender :
Mens
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Geometry
| Frame Seat Tube | 580 |
|---|---|
| Frame Top Tube | 601 |
| Frame Reach | 406 |
| Frame Stack | 618 |
| Frame Head Tube | 180 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 72.5 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1081 |
| Fork Offset | 50 |
| Stem Length | 120 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 550 |
| Frame Top Tube | 580 |
| Frame Reach | 396 |
| Frame Stack | 601 |
| Frame Head Tube | 165 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1071 |
| Fork Offset | 50 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 530 |
| Frame Top Tube | 564 |
| Frame Reach | 386 |
| Frame Stack | 583 |
| Frame Head Tube | 145 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1055 |
| Fork Offset | 50 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 500 |
| Frame Top Tube | 544 |
| Frame Reach | 375 |
| Frame Stack | 586 |
| Frame Head Tube | 130 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73.5 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1023 |
| Fork Offset | 50 |
| Stem Length | 90 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 480 |
| Frame Top Tube | 522 |
| Frame Reach | 366 |
| Frame Stack | 543 |
| Frame Head Tube | 105 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 74 |
| Frame BB Drop | 73 |
| Frame Wheel Base | 1025 |
| Fork Offset | 50 |
| Stem Length | 90 |
| Handle Bar Width | 400 |
