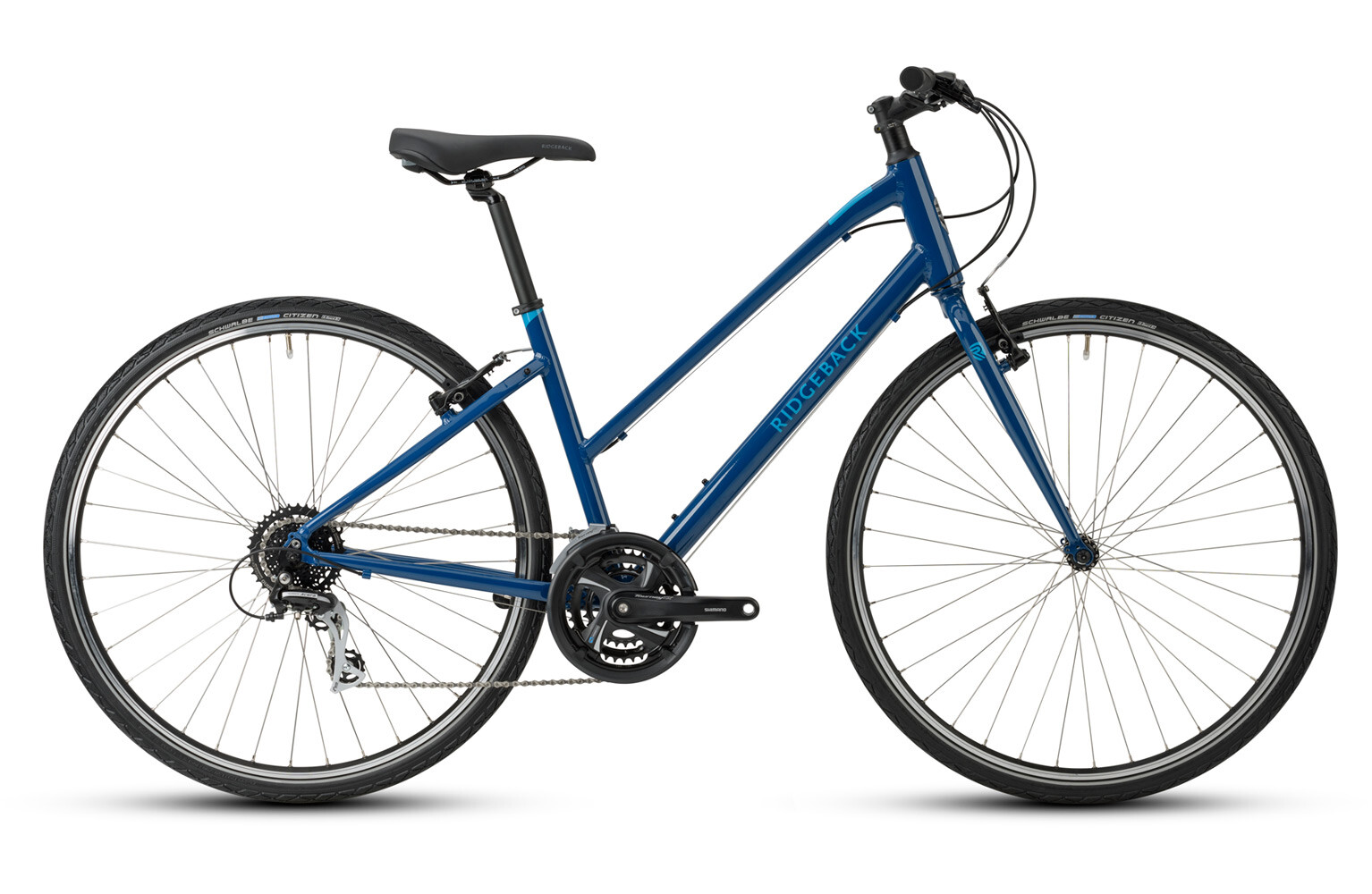

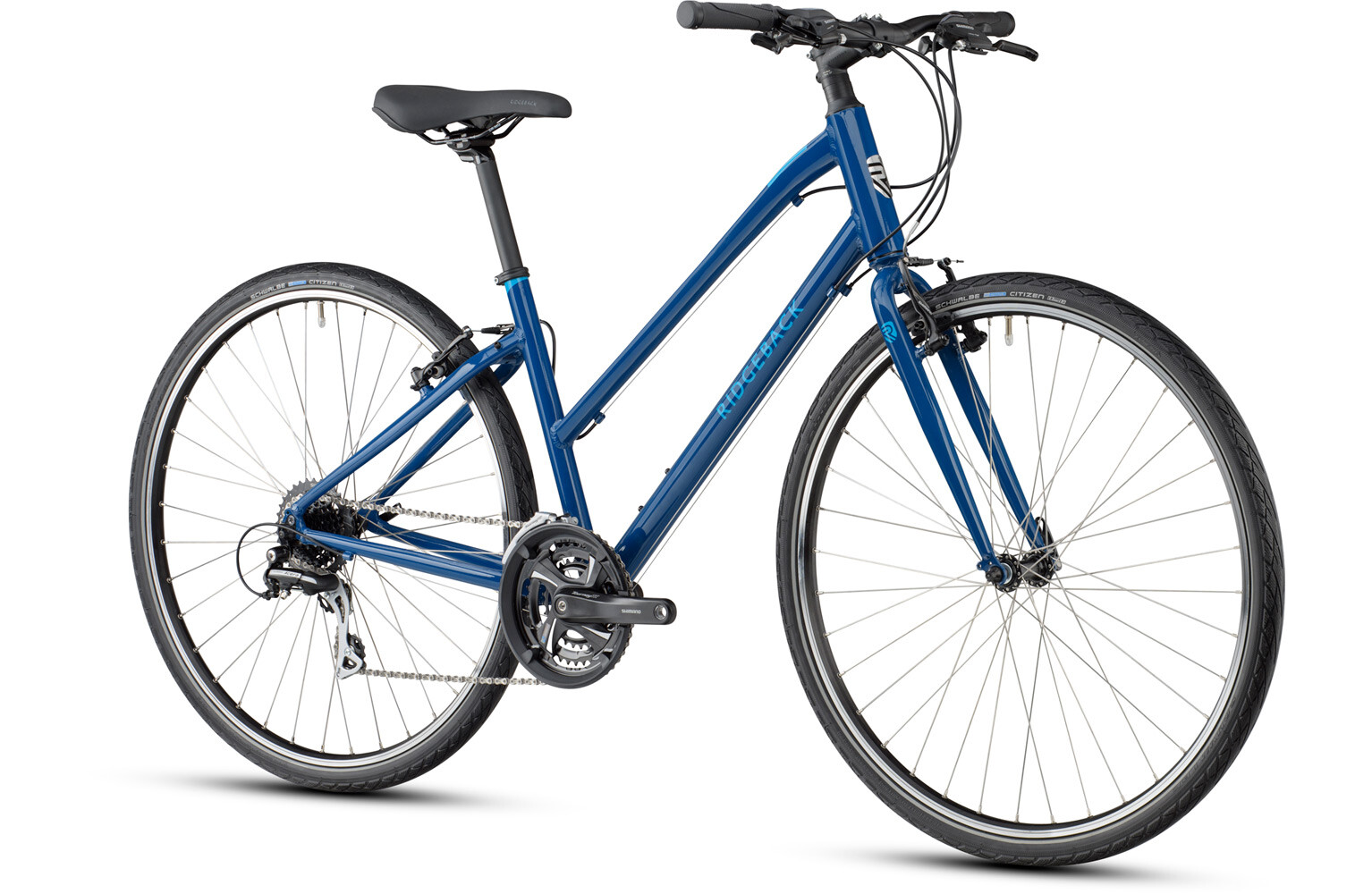

Ridgeback Velocity Open Frame
    With a lightweight aluminium frame and wide range of gears, the Ridgeback Velocity is modern utility bike built for everyday riding.

    Shimano's reliable Acera groupset features 24-gears, making tough climbs manageable and still giving enough scope for high speed work on the flat.

    Mounts for mudguards and racks add versatility, allowing you to turn the bike into a load-lugger or wet-weather commuter.

    V-brakes provide assured stopping power and puncture resistant tyres give you added peace-of-mind when encountering poor road conditions.

    Weight - 14.5kg

Ridgeback Velocity Open Frame
SKU
VARRB2108
Rim
Chromoly
Alloy
CH CH52 Sealed Bearing 68/122.5mm
700c

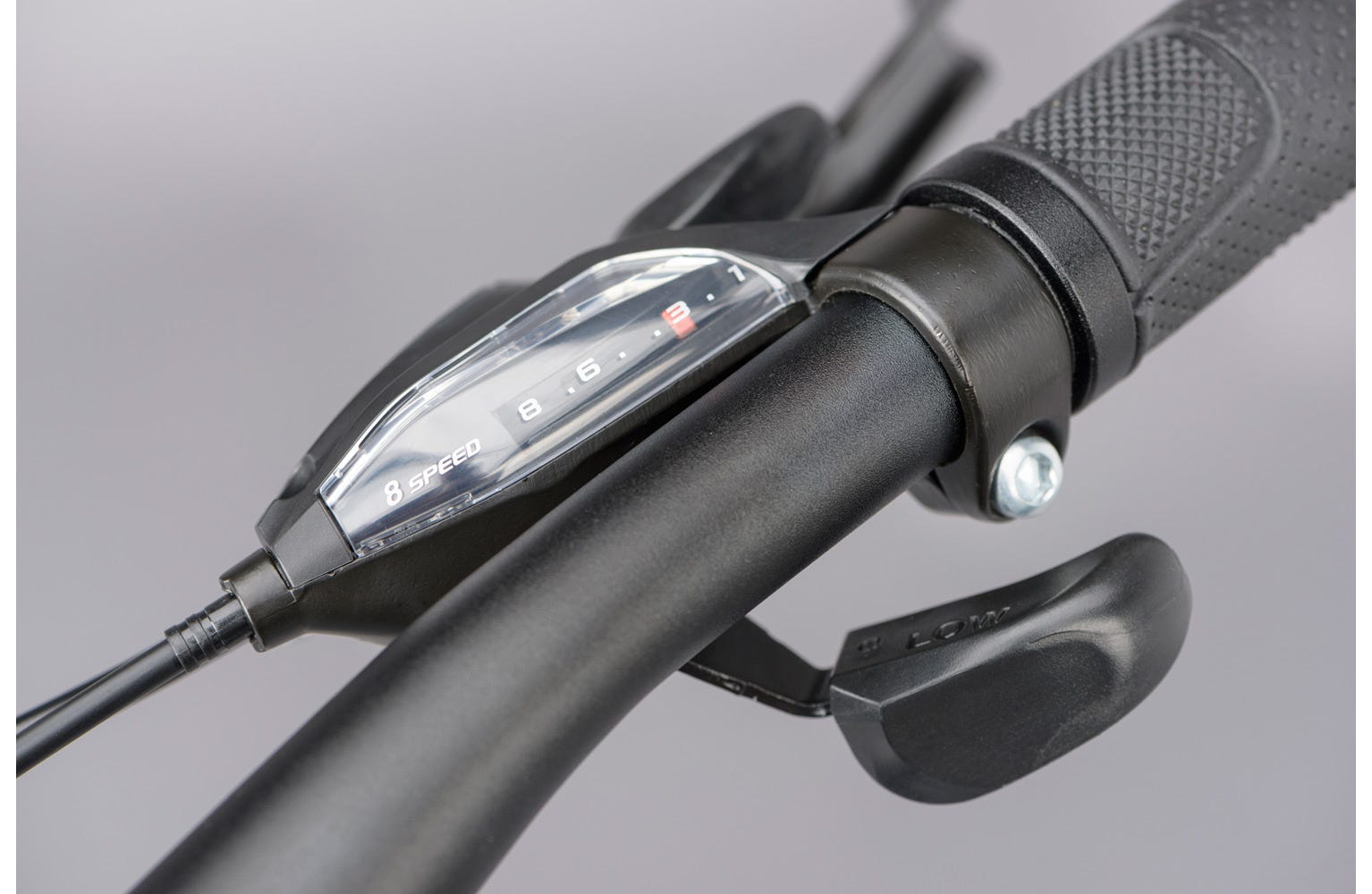

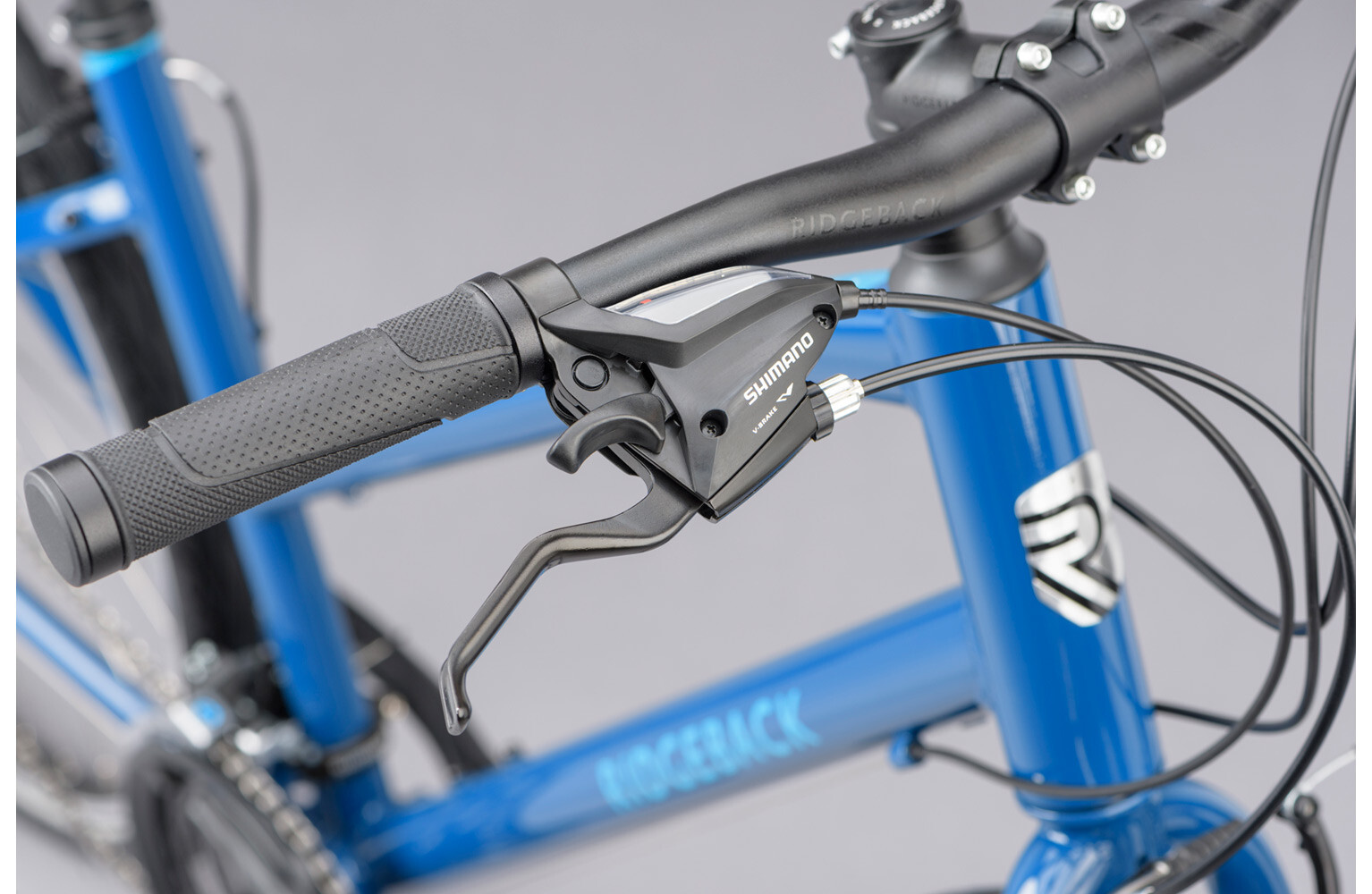

Shimano ST-EF500 EZ-Fire 3 x 8 Speed
Urban and Commute

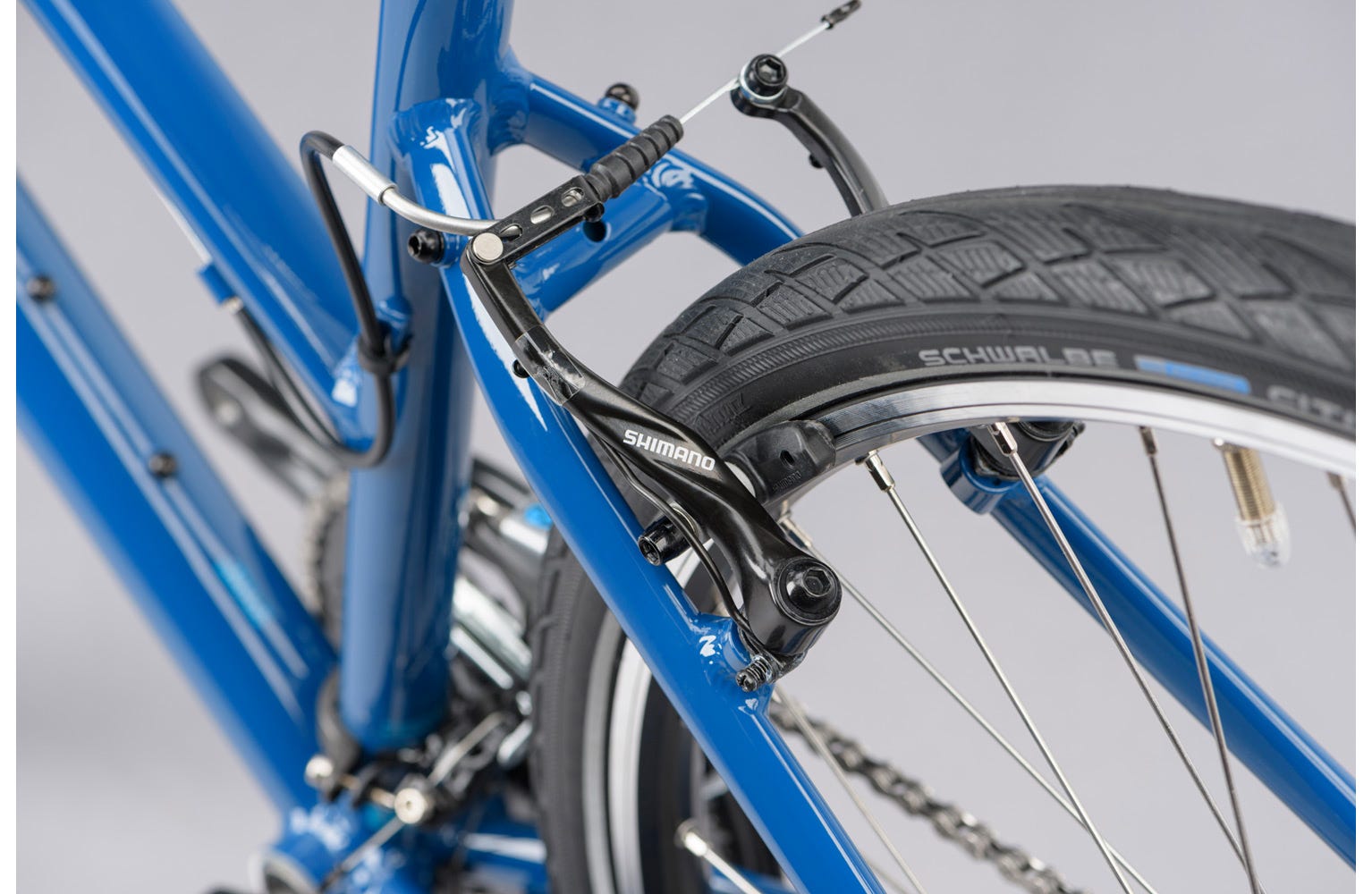

Shimano BR-T4000 V-Brake
Shimano CS-HG31 11-34T
KMC Z8
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch

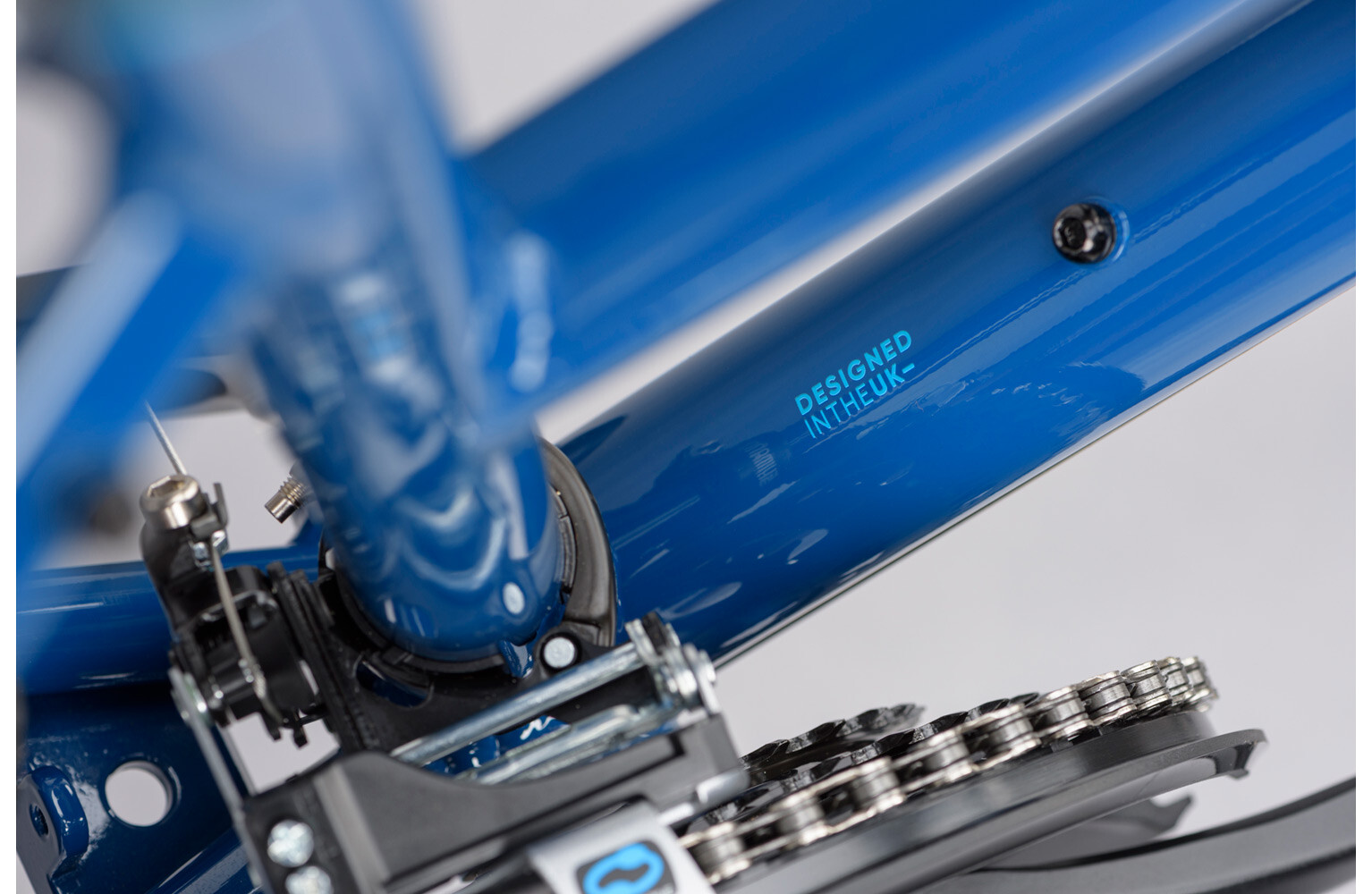

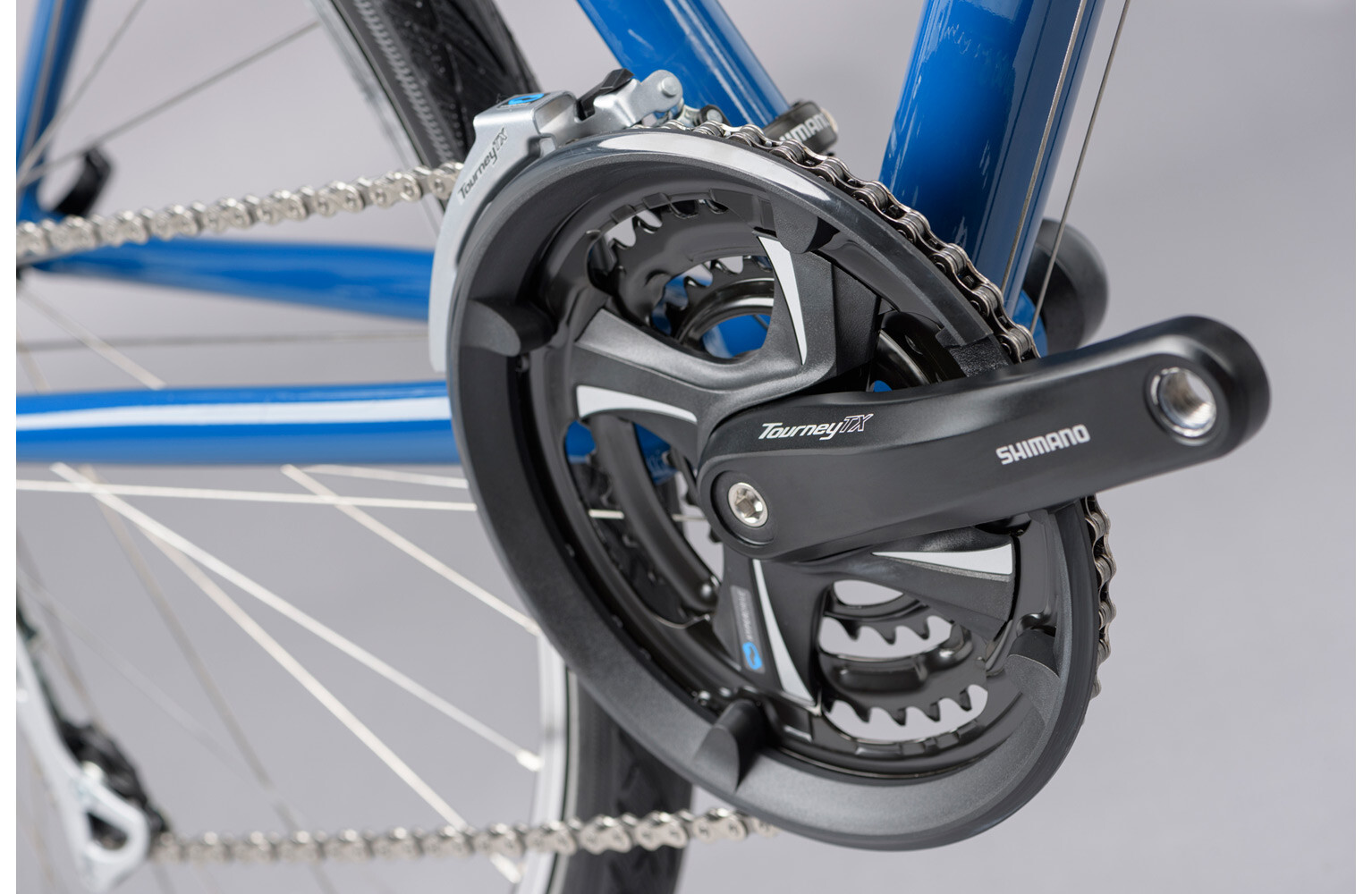

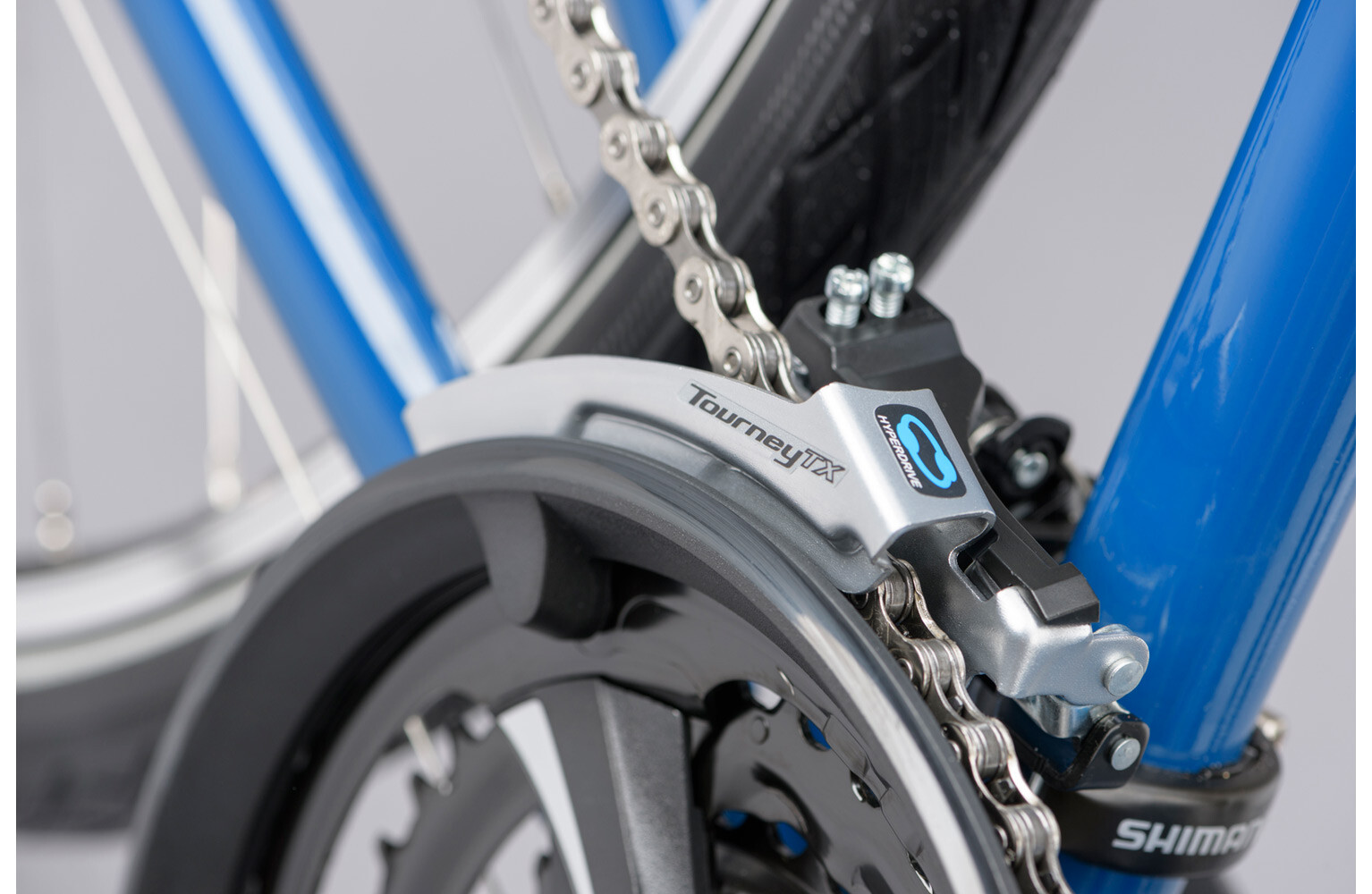

Shimano Tourney FD-TX800-TS3
Ridgeback
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
KT A15F/AZER-M10 / front / rear
Resin Metro

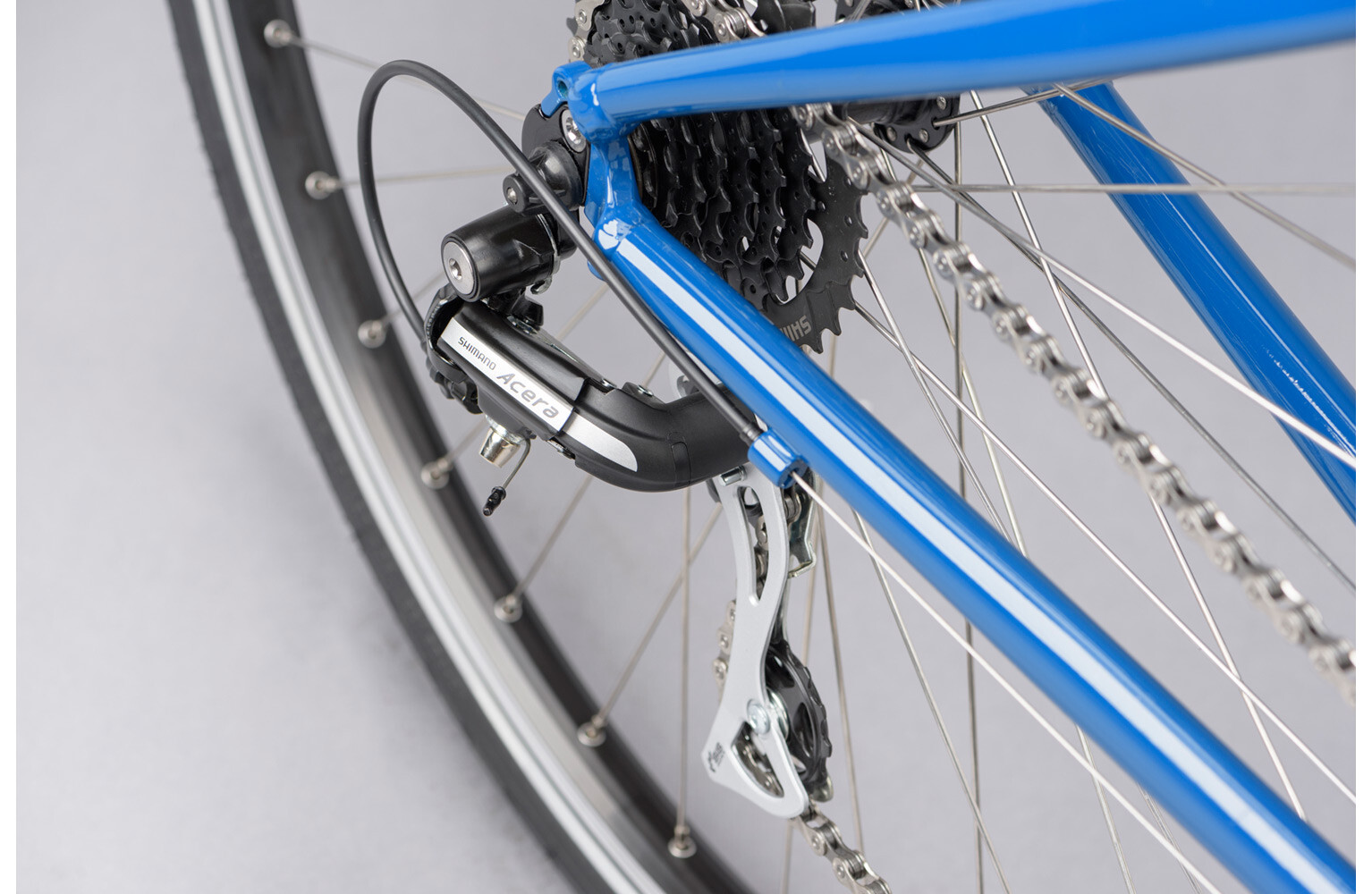

Shimano Acera RD-M360-L
Shining MT-25 /

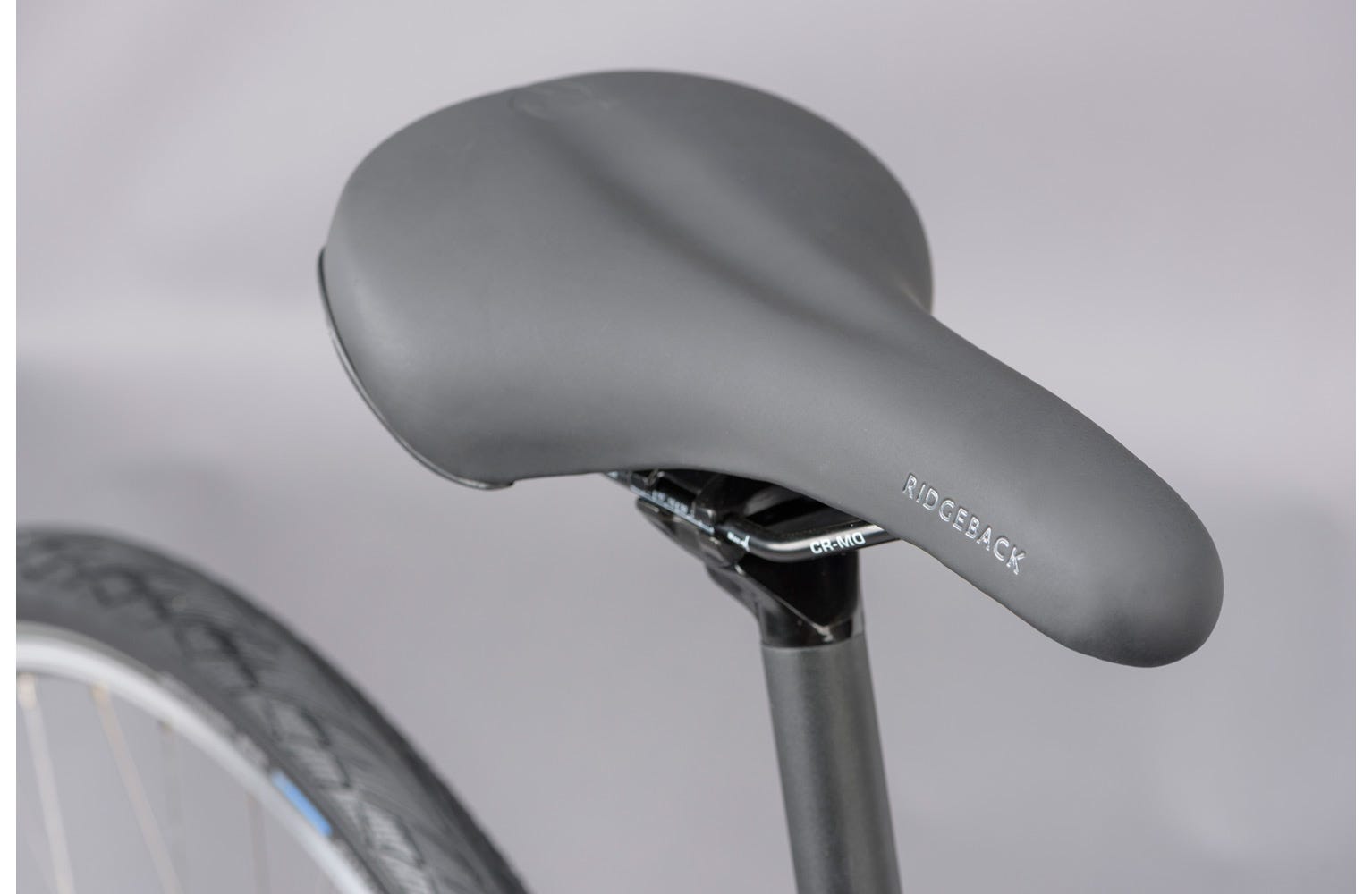

Ridgeback Custom
Alloy 27.2 x 350 mm
Shimano ST-EF500 EZ-Fire 3 x 8 Speed
Steel 14 g
Ridgeback 70mm +7deg

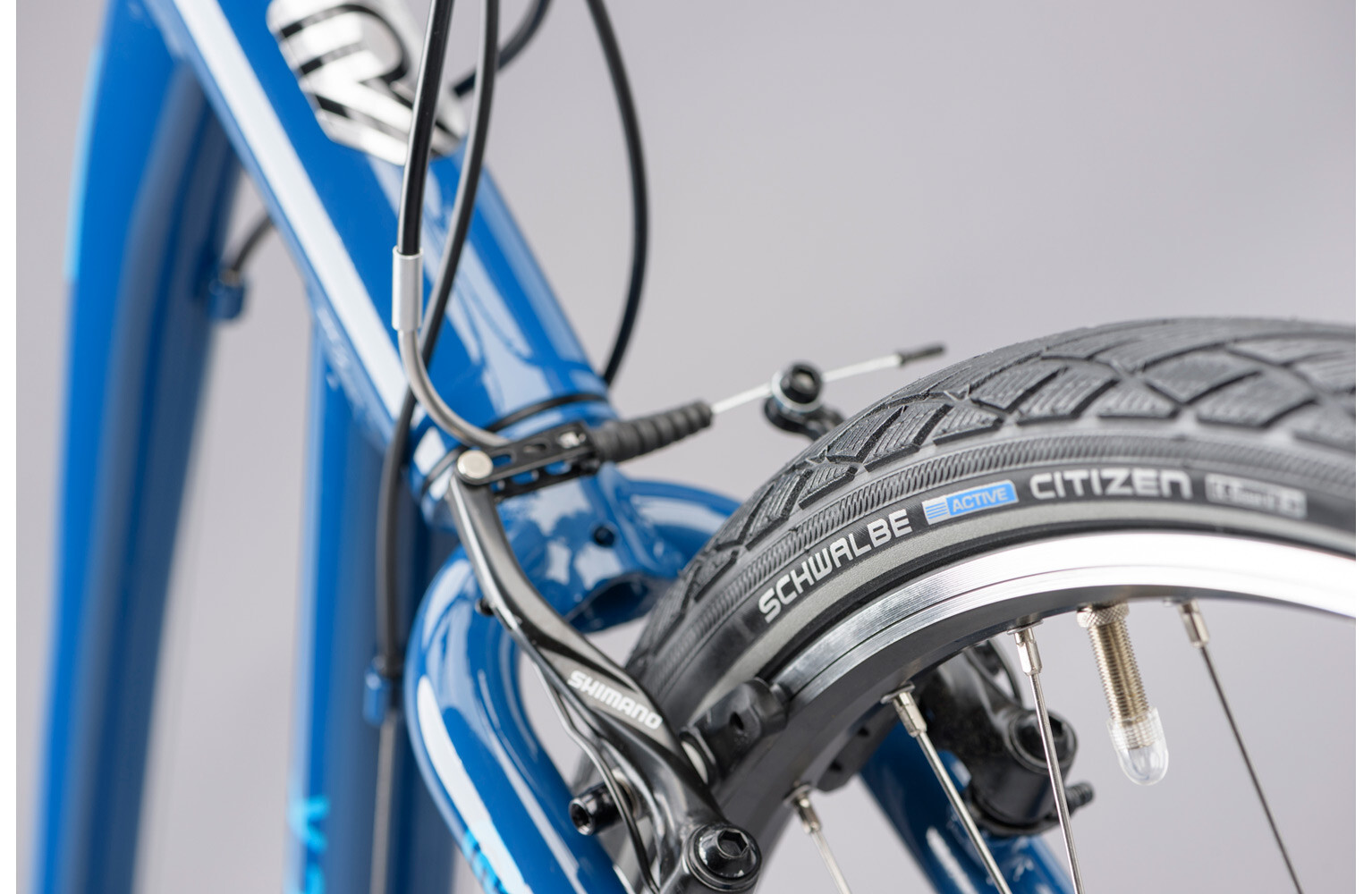

Schwalbe Citizen K-Guard 700 x 40c
Open Frame
Mens

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

Small - 156 to 164
Medium - 164 to 172
Large - 171 to 179
X-Large - 178 to 186

Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.

Geometry

Frame Seat Tube 383
Frame Top Tube 557
Frame Reach 375
Frame Stack 597
Frame Head Tube 170
Frame Head Angle 70
Frame Seat Angle 73
Frame BB Drop 72
Frame Wheel Base 1068
Fork Offset 50
Standover 772
Stem Length 70
Handle Bar Width 640
Frame Seat Tube 433
Frame Top Tube 572
Frame Reach 385
Frame Stack 610
Frame Head Tube 180
Frame Head Angle 71
Frame Seat Angle 73
Frame BB Drop 72
Frame Wheel Base 1073
Fork Offset 50
Standover 801
Stem Length 70
Handle Bar Width 640
Frame Seat Tube 483
Frame Top Tube 587
Frame Reach 395
Frame Stack 629
Frame Head Tube 200
Frame Head Angle 71
Frame Seat Angle 73
Frame BB Drop 72
Frame Wheel Base 1089
Fork Offset 50
Standover 831
Stem Length 70
Handle Bar Width 640
Frame Seat Tube 533
Frame Top Tube 603
Frame Reach 405
Frame Stack 648
Frame Head Tube 220
Frame Head Angle 71
Frame Seat Angle 73
Frame BB Drop 72
Frame Wheel Base 1106
Fork Offset 50
Standover 864
Stem Length 70
Handle Bar Width 660
